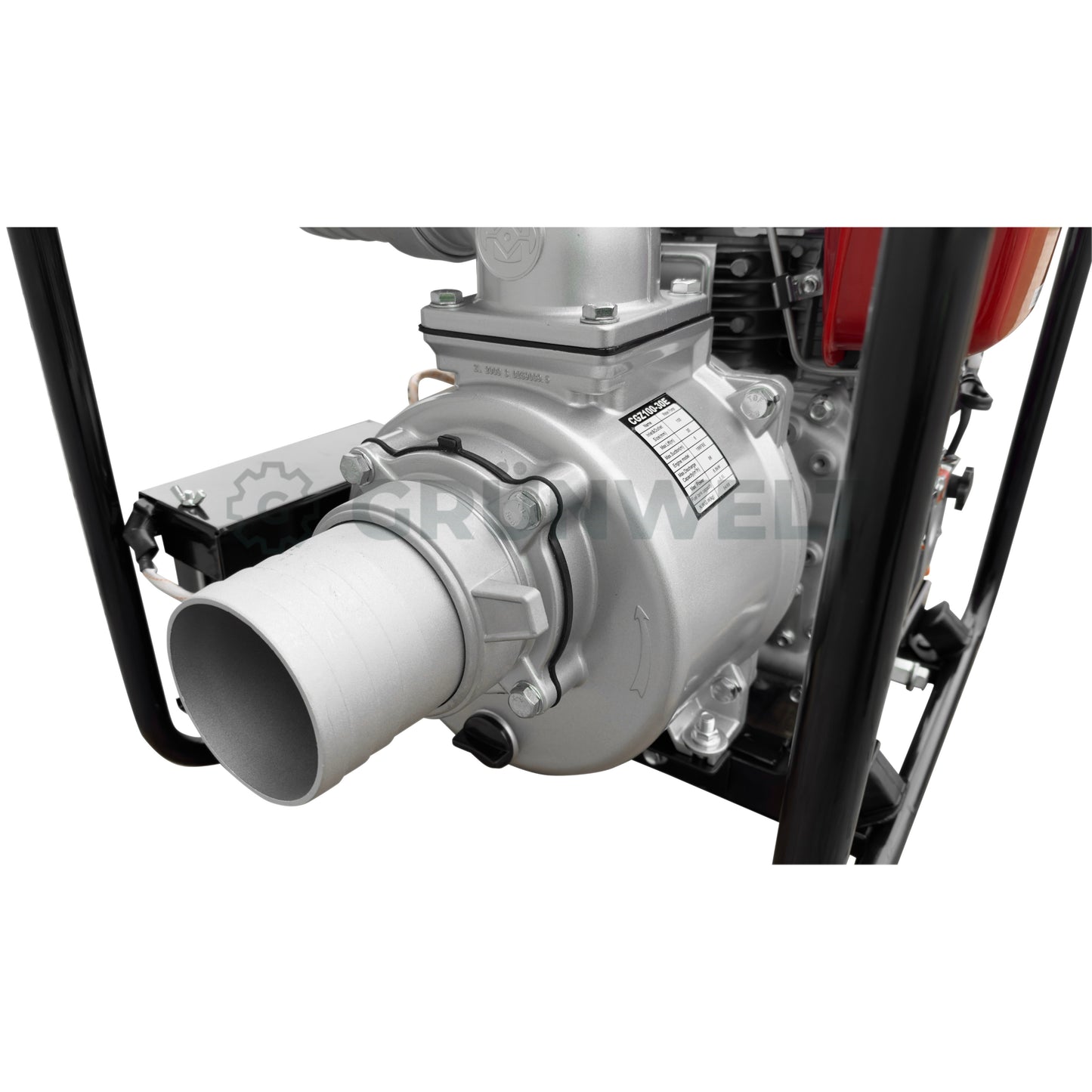

Diesel Water Pump Weima WMCGZ100-30E

The WMCGZ100-30E pumps faster than expected! The Weima WMCGZ100-30E diesel water pump is especially suitable for moving large amounts of clean and slightly dirty water in industrial use due to its high delivery capacity. This device can easily pump 120 cubic meters in one hour of operation. The new model WMCGZ100-30E is the best solution for water supply problems for any industrial company, industrial plant, or production site, especially when no electricity is available. Our water pump, equipped with a high-performance Weima WM186FBЕ diesel engine with 9.5 horsepower, is indispensable for moving large volumes of water. It serves as an essential helper for firefighters and utility companies. The Weima WMCGZ100-30E diesel water pump can raise water up to a height of 30 meters and draw from a depth of up to 5 meters. The liquid can contain foreign particles up to 8 mm in diameter. The Weima WMCGZ100-30E water pump has a fuel tank with a sufficiently large volume of 5.5 liters and consumes fuel relatively sparingly. The outer diameter of the nozzles is 100 mm (4 inches). The kit includes two tapered hose connection adapters, which make it easy to connect all types of 4″ hoses, and a suction basket that prevents particles exceeding the allowed diameter. This versatile diesel motor pump leaves nothing to be desired and always works reliably in field use. The motor of the water pump is not only reliable but also environmentally friendly! The motor meets all stringent requirements of the EURO 5 emission standards.

• Reliable and environmentally friendly Weima WM186FBE diesel engine (9.5 hp, electric starter)
• Delivery rate up to 120 m³/h
• Suction height up to 5 m
• Maximum delivery height is 30 m
• Suitable for water with foreign particles up to 8 mm
• Includes a suction basket
• Sturdy construction made of high-quality materials
• Minimal noise and vibration
• Easy to operate and transport

• GTIN: 4260614712751
• Delivery height: 30 m
• Delivery volume: 120 m³/h
• Suction height: 5 m
• Suction pipe / pressure pipe connection: 100 mm
• Dimensions: 680 × 520 × 660 mm
• Net weight: 67 kg
Engine
• Engine: Weima WM186FBE (single-cylinder, four-stroke, forced cooling)
• Displacement: 418 cm³
• Bore × stroke: 86 × 72 mm
• Maximum engine power: 7 kW / 9.5 hp at 3600 rpm
• Rated engine power: 6.3 kW / 3600 rpm
• Shaft diameter: 25 mm (keyway)
• Direction of rotation: left (from the side of the auxiliary drive)
• Fuel / engine oil volume: 5.5 / 1.65 L
• Starting system: pull starter + electric starter
