Weima WM190FE-L petrol engine

Weima WM190FE-L petrol engine

€629,99
€629,99
SAVE Liquid error (snippets/price line 112): Computation results in '-Infinity'% Sold out

The Weima WM190FE-L engine is a single-cylinder, four-stroke, air-cooled engine that runs on gasoline. This engine is designed for equipment where traction at low shaft speeds is paramount.

Receive it between - and - .

Weima WM190FE-L petrol engine

€629,99
€629,99
SAVE Liquid error (snippets/price line 112): Computation results in '-Infinity'% Sold out
  • PayPal
View full details

DESCRIPTION

The Weima WM190FE-L engine is a single-cylinder, four-stroke, air-cooled gasoline engine. This engine is designed for equipment where traction at low shaft speeds is paramount. It delivers 16 hp and consumes 374 g/kWh of fuel. Thanks to its 6.5-liter tank, the engine can run for approximately 1.5 hours without refueling. The new WM190FE-L engine from Weima is easy to maintain and reliable. It produces low levels of smoke and noise and can be started easily and reliably in any weather thanks to its electric starter. Its applications are not limited to industrial use; this engine model can be installed on everyday and agricultural equipment. The Weima WM190FE-L engine is frequently used as a replacement engine for various tillers, sickle bar mowers, single-axle tractors, vibratory plates, mini-dumpers, water pumps, generators, and many other gasoline-powered equipment. The crankshaft shaft is standardized. The Weima WM190FE-L engine can be used as a replacement engine with the same crankshaft dimensions. The engine's crankshaft has a direct output shaft with a keyway.

SPECIAL FEATURES

• Reliable and environmentally friendly engine (certified according to EURO 5)
• The cylinder with a working volume of 420 cm³, featuring a cast iron casting sleeve and an aluminum block with large cooling fins, guarantees the engine's longevity and reliability.
• Reduced shaft speed thanks to the gear drive
• Depending on the modification, a high-performance oil bath filter (such as a cyclone) or a fine/coarse automotive-type filter is used. Under normal conditions, a "dry" version is sufficient.
• The oil system is equipped with a modern sensor that monitors the oil level in the crankcase.
• For easier maintenance, two necks are provided for filling with lubricants.

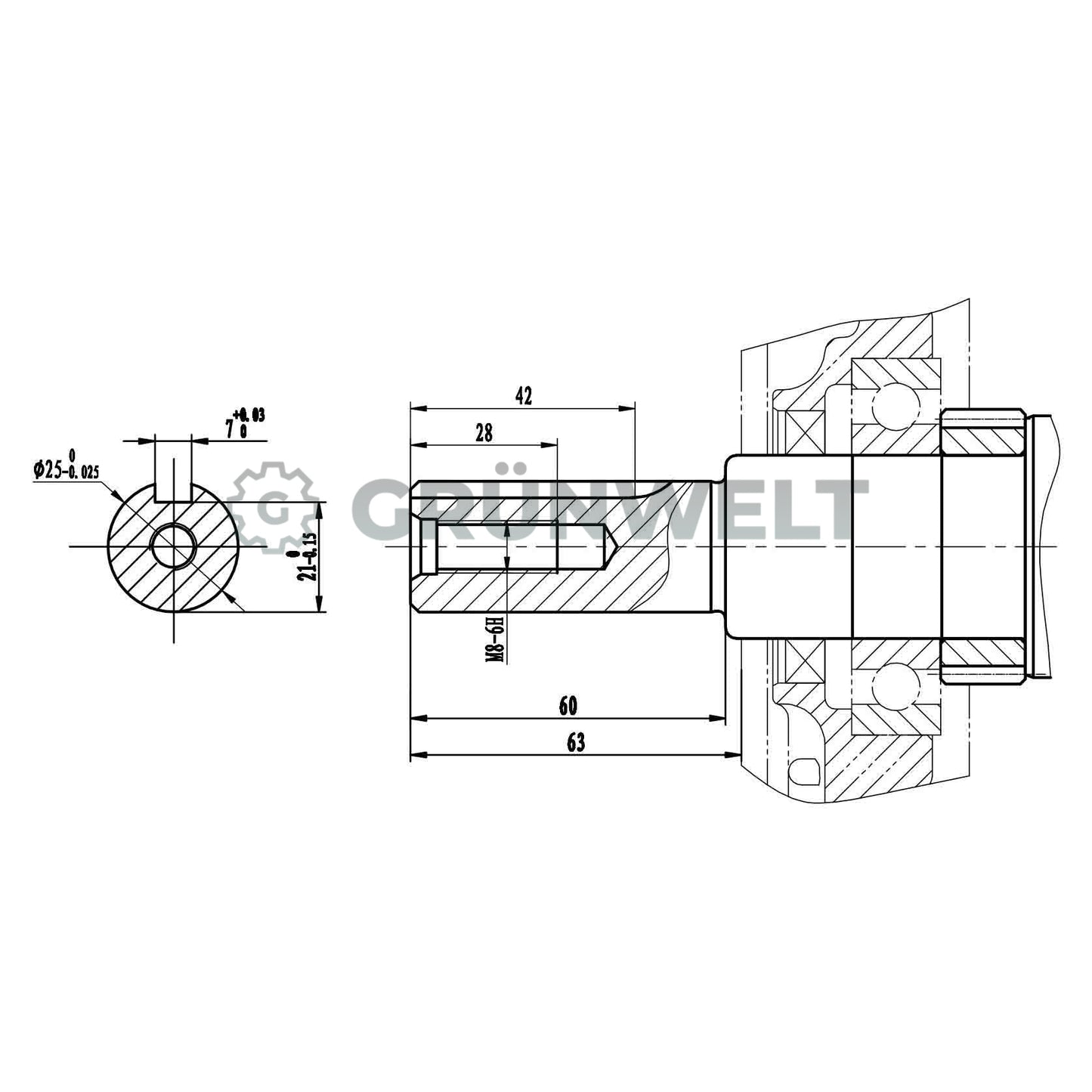

• The shaft has a diameter of 25 mm and a keyway.
• The rotation is counterclockwise when evaluated from the side of the shaft.

TECHNICAL DATA

• GTIN: 6971472300117
• Model: Weima WM190FE-L
• Type: OHV, single-cylinder, 4-stroke, forced cooling, ½ reduction gear
• Engine displacement: 420 cm³
• Bore × Stroke: 90 × 66 mm
• Maximum engine power: 11.7 kW / 16 hp / 3600 rpm
• Nominal engine power: 9.1 kW / 3600 rpm
• Maximum torque: 28.1 N∙m / 2500 rpm
• Shaft diameter: 25 mm (keyway)
• Fuel/engine oil capacity: 6.5 / 1.1 L
• Fuel consumption: 374 g/kW∙h
• Starting system: Recoil starter + electric starter
• Dimensions: 460 × 400 × 430 mm
• Net weight: 32 kg

SCOPE OF DELIVERY

• Weima WM190FE-L petrol engine
• 1 × Key set
• 1 × User manual (multilingual)
