The Weima WM190FE engine is a single-cylinder, four-stroke, air-cooled engine that runs on gasoline. It produces 16 hp and consumes 374 g/kWh of fuel. Thanks to its 6.5-liter tank, the engine can run for approximately 1.5 hours without refueling.

Receive it between - and - .

Weima WM190FE petrol engine

€519,99
€519,99
SAVE Liquid error (snippets/price line 112): Computation results in '-Infinity'% Sold out
  • PayPal
View full details

DESCRIPTION

The Weima WM190FE engine is a single-cylinder, four-stroke, air-cooled gasoline engine. It delivers 16 hp and consumes 374 g/kWh of fuel. Thanks to its 6.5-liter tank, the engine can run for approximately 1.5 hours without refueling. The new WM190FE engine from Weima is easy to maintain and reliable. It produces low levels of smoke and noise and can be started easily and reliably in any weather thanks to its electric starter. Its applications are not limited to industrial use. This engine model can be installed on everyday and agricultural equipment. The Weima WM190FE engine is frequently used as a replacement engine for various tillers, sickle bar mowers, single-axle tractors, vibratory plates, mini-dumpers, water pumps, generators, and many other gasoline-powered machines. The crankshaft is standardized. The Weima WM190FE engine can be used as a replacement engine with the same crankshaft dimensions. The engine's crankshaft has a direct output point below the keyway.

SPECIAL FEATURES

• Reliable and environmentally friendly engine (certified according to EURO 5)
• The cylinder with a working volume of 420 cm³, featuring a cast iron casting sleeve and an aluminum block with large cooling fins, guarantees the engine's long service life and reliability.
Depending on the modification, a high-performance oil bath filter (such as a cyclone) or a fine/coarse automotive-type filter is used. Under normal conditions, a dry version is sufficient.
• For easier maintenance, two necks are provided for filling with lubricants.

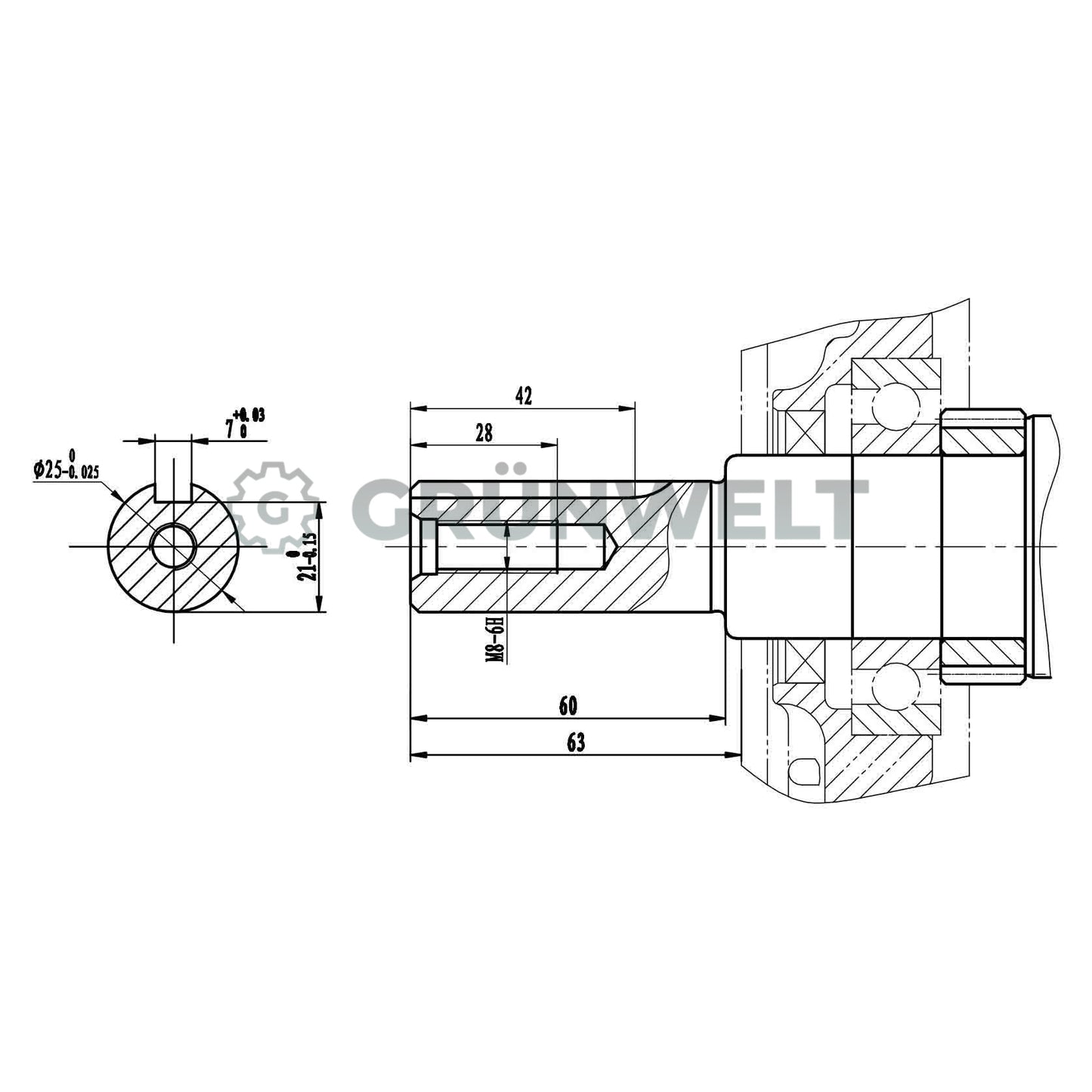

• The shaft has a diameter of 25 mm and a keyway.
• The rotation is counterclockwise when evaluated from the side of the shaft.

TECHNICAL DATA

• GTIN: 6971472300100
• Type: OHV, single-cylinder, 4-stroke, forced cooling
• Engine displacement: 420 cm³
• Bore × Stroke: 90 × 66 mm
• Maximum engine power: 11.7 kW / 16 hp / 3600 rpm
• Nominal engine power: 9.1 kW / 3600 rpm
• Maximum torque: 28.1 N∙m / 2500 rpm
• Shaft diameter: 25 mm (keyway)
• Fuel/engine oil capacity: 6.5 / 1.1 L
• Fuel consumption: 374 g/kW∙h
• Starting system: Recoil starter + electric starter
• Dimensions: 460 × 400 × 430 mm
• Net weight: 30 kg

SCOPE OF DELIVERY

• Weima WM190FE petrol engine
• 1 × Key set
• 1 × User manual (multilingual)
