Weima WM188FP-T petrol engine with splined shaft (25 mm)

Weima WM188FP-T petrol engine with splined shaft (25 mm)

€479,99
€479,99
SAVE Liquid error (snippets/price line 112): Computation results in '-Infinity'% Sold out

The Weima WM188FP-T engine is a single-cylinder, four-stroke, air-cooled engine that runs on gasoline. It produces 13 hp and consumes 374 g/kWh of fuel. Thanks to its 6.5-liter tank, the engine can run for approximately 1.5 hours without refueling.

Receive it between - and - .

Weima WM188FP-T petrol engine with splined shaft (25 mm)

€479,99
€479,99
SAVE Liquid error (snippets/price line 112): Computation results in '-Infinity'% Sold out
  • PayPal
View full details

DESCRIPTION

The Weima WM188FP-T engine is a single-cylinder, four-stroke, air-cooled gasoline engine. It delivers 13 hp and consumes 374 g/kWh of fuel. Thanks to its 6.5-liter tank, the engine can run for approximately 1.5 hours without refueling. The new WM188FP-T engine from Weima is easy to maintain and reliable. It produces low levels of smoke and noise and can be started easily and reliably in any weather. Its applications are not limited to industrial use. This engine model can be installed on everyday and agricultural equipment. The Weima WM188FP-T engine is frequently used as a replacement engine for various tillers, sickle bar mowers, single-axle tractors, vibratory plates, mini-dumpers, water pumps, generators, and many other gasoline-powered machines. The shaft drive is standardized. The Weima WM188FP-T motor can be used as a replacement motor with the same splined shaft dimensions.

SPECIAL FEATURES

• Reliable and environmentally friendly engine (certified according to EURO 5)
• The cylinder with a working volume of 389 cm³, featuring a cast iron casting sleeve and an aluminum block with large cooling fins, guarantees the engine's longevity and reliability.
Depending on the modification, a high-performance oil bath filter (such as a cyclone) or a fine/coarse automotive-type filter is used. Under normal conditions, a dry version is sufficient.
• For easier maintenance, two necks are provided for filling with lubricants.

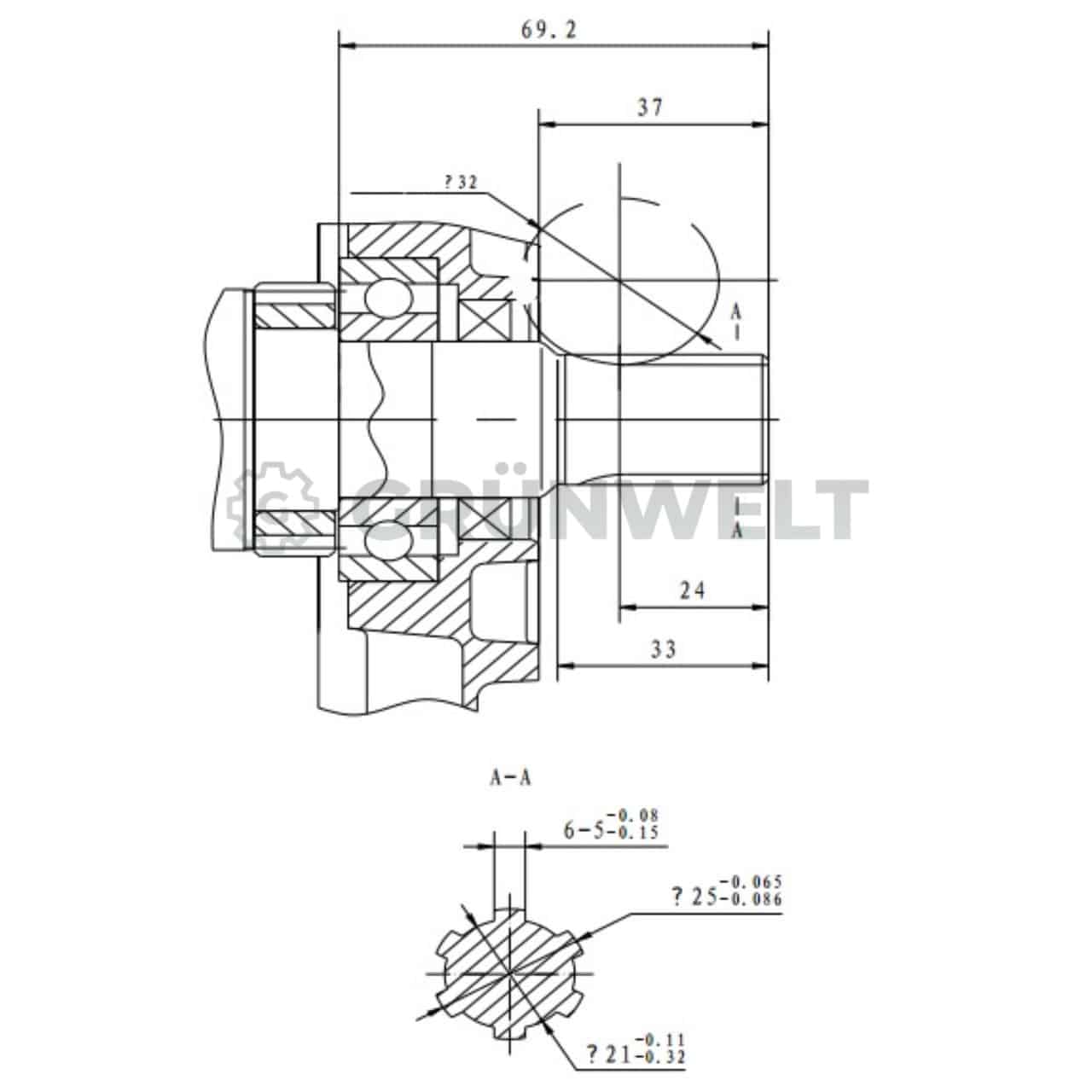

• The motor is equipped with a splined shaft with a diameter of 25 mm.
• The rotation is counterclockwise when evaluated from the side of the shaft.

TECHNICAL DATA

• GTIN: 4260614711709
• Type: OHV, single-cylinder, 4-stroke, forced cooling
• Engine displacement: 389 cm³
• Bore × Stroke: 88 × 64 mm
• Maximum engine power: 9.7 kW / 13 hp / 3600 rpm
• Nominal engine power: 7.6 kW / 3600 rpm
• Maximum torque: 23.5 N∙m / 2500 rpm
• Splined shaft diameter: 25 mm
• Splined shaft length: 33 mm
• Fuel/engine oil capacity: 6.5 / 1.1 L
• Fuel consumption: 374 g/kW∙h
• Starting system: Recoil starter
• Dimensions: 460 × 400 × 430 mm
• Net weight: 28 kg

SCOPE OF DELIVERY

• Weima WM188FP-T petrol engine with splined shaft (25 mm)
• 1 × Key set
• 1 × User manual (multilingual)
