Weima WM177F gasoline engine

The Weima WM177F engine is a single-cylinder four-stroke engine that runs on petrol and is equipped with air cooling. The engine has a power output of 9 horsepower and consumes 374 g/kWh of fuel. Thanks to its 6-liter tank, the engine can operate for approximately 2.5 hours without refueling. The new WM177F engine from Weima is easy to maintain and reliable in use. It produces low levels of smoke and noise, and you can start it easily and without trouble in any weather. Its range of applications is not limited solely to the industrial sector. This engine model can be installed on everyday and agricultural machines. The Weima WM177F engine is often used as a replacement engine for various motor hoes, bar mowers, single-axle tractors, vibrating plates, mini dumpers, water pumps, power generators, and many other machines with petrol engines. The crankshaft shaft is standardized. The Weima WM177F engine can be used as a replacement engine with the same crankshaft dimensions. The engine’s crankshaft has a direct output under the keyway.

• GTIN: 6971472300070
• Type: OHV, single cylinder, 4-stroke, forced cooling
• Displacement: 277 cm³
• Bore × Stroke: 77 × 58 mm
• Maximum engine power: 6.6 kW / 9 hp / 3600 rpm
• Rated engine power: 5 kW / 3600 rpm
• Maximum torque: 19.1 N∙m / 2500 rpm

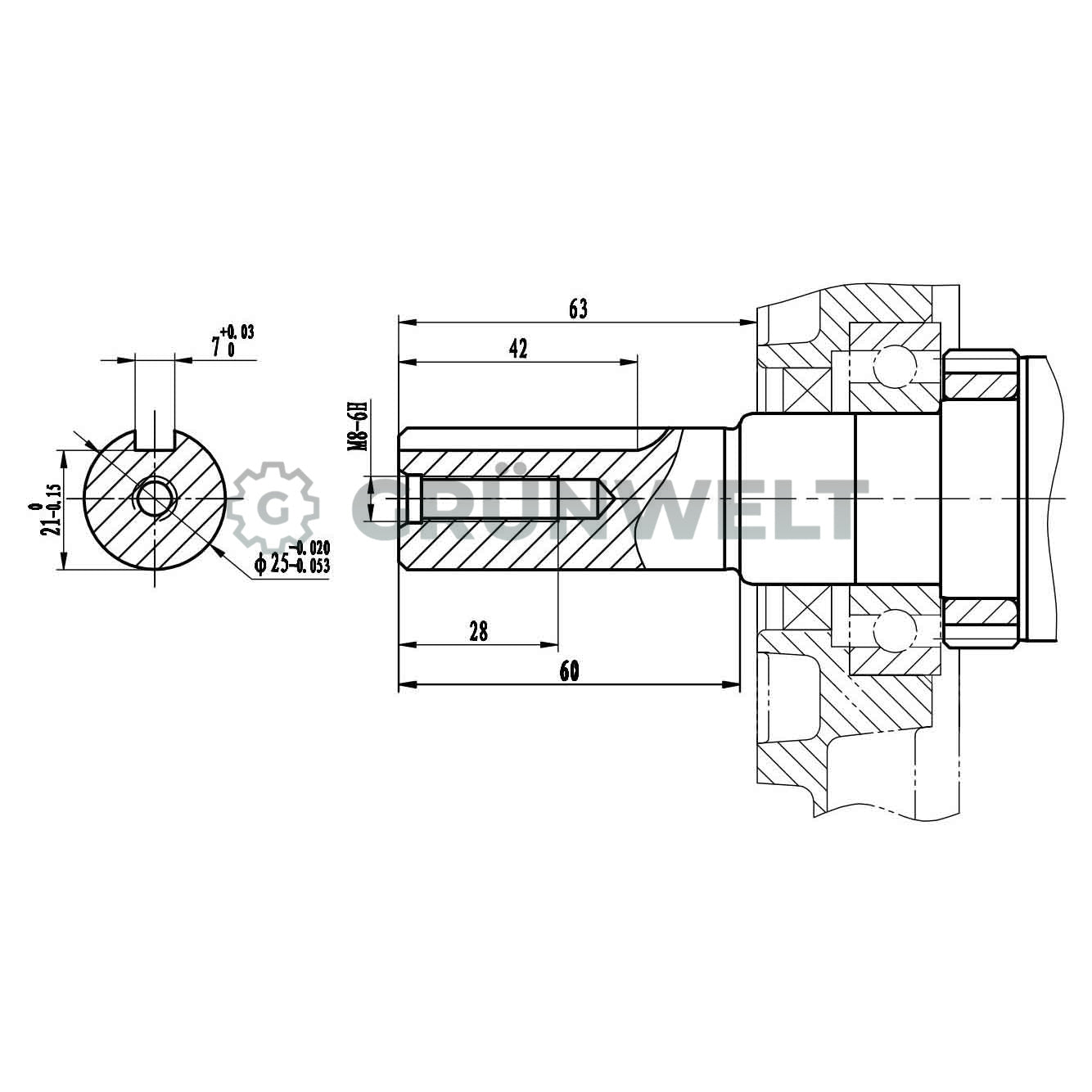

• Shaft diameter: 25 mm (keyway)
• Fuel / engine oil volume: 6 / 1.1 L
• Fuel consumption: 374 g/kW∙h
• Starting system: pull starter
• Dimensions: 440 × 370 × 410 mm
• Net weight: 27 kg

• Gasoline engine Weima WM177F
• 1 × Key set
• 1 × Operating manual (multilingual)
