Weima WM170F-S gasoline engine

The Weima WM170F-S engine is a single-cylinder four-stroke engine that runs on petrol and is equipped with air cooling. The engine has a power output of 7 horsepower and consumes 395 g/kWh of fuel. Thanks to its 3.6-liter tank, the engine can operate for about 2 hours without refueling. The new WM170F-S engine from Weima is easy to maintain and reliable in use. It produces low levels of smoke and noise, and you can start it easily and without trouble in any weather. Its range of use is not limited solely to the industrial sector. This engine model can be installed on everyday and agricultural machines. The Weima WM170F-S engine is often used as a replacement engine for various motor hoes, bar mowers, single-axle tractors, vibrating plates, mini dumpers, water pumps, power generators, and many other machines with petrol engines. The crankshaft shaft is standardized. The Weima WM170F-S engine can be used as a replacement engine with the same crankshaft dimensions. The engine’s crankshaft has a direct output under the keyway. The engine is not only reliable but also environmentally friendly! The device meets all the requirements of the EURO 5 exhaust standards.

• Reliable and environmentally friendly engine (certified according to EURO 5)
• The cylinder with a working volume of 212 cm³, featuring a cast-iron liner and an aluminum block with large cooling fins, guarantees long-lasting durability and reliability of the engine
• Depending on the version, a high-performance oil-bath filter (such as a "cyclone") or a fine/coarse filter of the vehicle type is provided. Under normal conditions, a "dry" version is sufficient
• For easier maintenance, two openings for filling lubricants are provided
• The shaft has a diameter of 20 mm with a keyway
• The rotation is counterclockwise when viewed from the shaft side

• GTIN: 6971472300896
• Type: OHV, single cylinder, 4-stroke, forced cooling
• Displacement: 212 cm³
• Bore × Stroke: 70 × 54 mm
• Maximum engine power: 5.1 kW / 7 hp / 3600 rpm
• Rated engine power: 4.5 kW / 3600 rpm
• Maximum torque: 12.5 N∙m / 2500 rpm

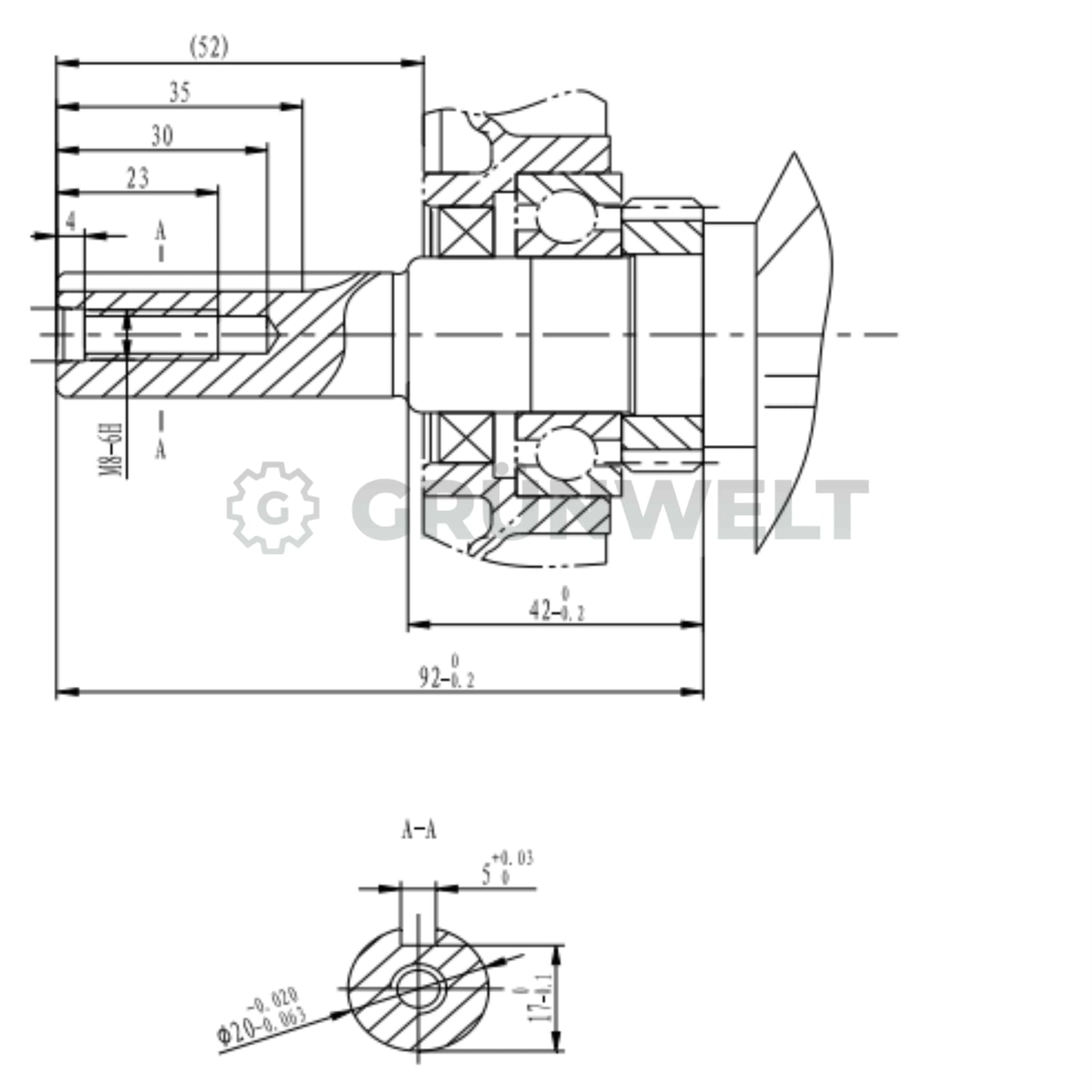

• Shaft diameter: 20 mm (keyway)
• Fuel / engine oil volume: 3.6 / 0.6 L
• Fuel consumption: 395 g/kW∙h
• Starting system: pull starter
• Dimensions: 390 × 330 × 330 mm
• Net weight: 16 kg
