The Weima WM170F-L engine is a single-cylinder, four-stroke, air-cooled engine that runs on gasoline. It produces 7 hp and consumes 395 g/kWh of fuel. Thanks to its 3.6-liter tank, the engine can run for approximately 2 hours without refueling.

Receive it between - and - .

Weima WM170F-L petrol engine

€219,99
€219,99
SAVE Liquid error (snippets/price line 112): Computation results in '-Infinity'% Sold out
  • PayPal
View full details

DESCRIPTION

The Weima WM170F-L engine is a single-cylinder, four-stroke, air-cooled gasoline engine. It delivers 7 hp and consumes 395 g/kWh of fuel. Thanks to its 3.6-liter tank, the engine can run for approximately 2 hours without refueling. The new WM170F-L engine from Weima is easy to maintain and reliable. It produces low levels of smoke and noise and can be started easily and reliably in any weather. Its applications are not limited to industrial use. This engine model can be installed on everyday and agricultural equipment. The Weima WM170F-L engine is frequently used as a replacement engine for various tillers, sickle bar mowers, single-axle tractors, vibratory plates, mini-dumpers, water pumps, generators, and many other gasoline-powered machines. The crankshaft is standardized. The Weima WM170F-L engine can be used as a replacement engine with the same crankshaft dimensions. The engine's crankshaft has a direct output shaft positioned under the keyway. The engine is not only reliable but also environmentally friendly! The unit meets all EURO 5 emissions standards.

SPECIAL FEATURES

• Reliable and environmentally friendly engine (certified according to EURO 5)
• The cylinder with a working volume of 212 cm³, featuring a cast iron casting sleeve and an aluminum block with large cooling fins, ensures a long service life and reliability of the engine.
• Reduced shaft speed thanks to the gear drive
Depending on the modification, a high-performance oil bath filter (such as a cyclone) or a fine/coarse automotive-type filter is used. Under normal conditions, a dry version is sufficient.
• The oil system is equipped with a modern sensor that monitors the oil level in the crankcase.
• For easier maintenance, two necks are provided for filling with lubricants.
• The shaft has a diameter of 20 mm and a keyway.
• The rotation is counterclockwise when evaluated from the side of the shaft.

TECHNICAL DATA

• GTIN: 4260614712201
• Type: OHV, single-cylinder, 4-stroke, forced cooling, ½ reduction gear
• Engine displacement: 212 cm³
• Bore × Stroke: 70 × 54 mm
• Maximum engine power: 5.1 kW / 7 hp / 3600 rpm
• Nominal motor power: 4.5 kW / 3600 rpm
• Maximum torque: 12.5 N∙m / 2500 rpm
• Shaft diameter: 20 mm (keyway)
• Fuel/engine oil capacity: 3.6 / 0.6 L
• Fuel consumption: 395 g/kW∙h
• Starting system: Recoil starter
• Dimensions: 390 × 330 × 330 mm
• Net weight: 16 kg

SCOPE OF DELIVERY

• Weima WM170F-L petrol engine

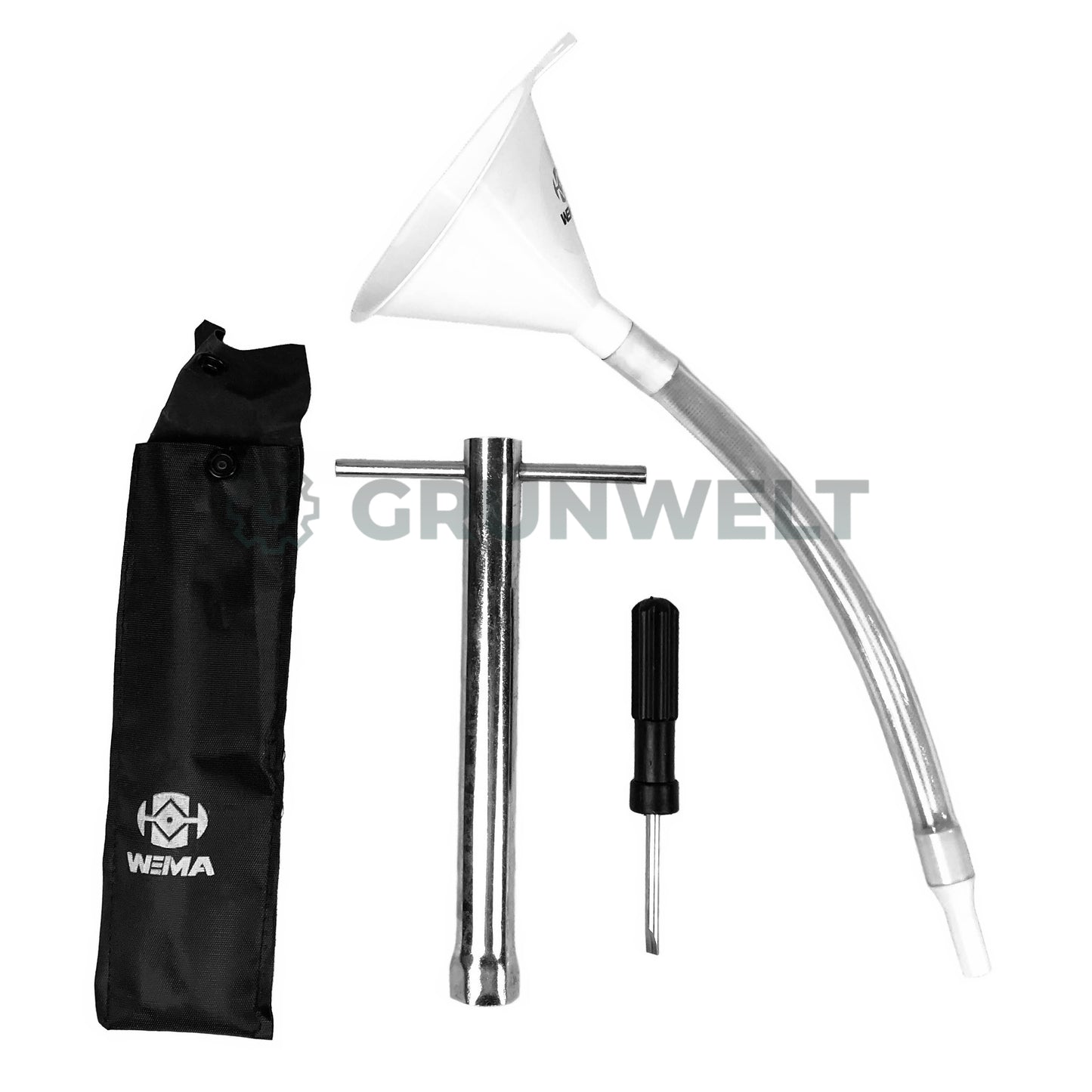

• 1 × Key set
• 1 × User manual (multilingual)
• 2-year warranty
