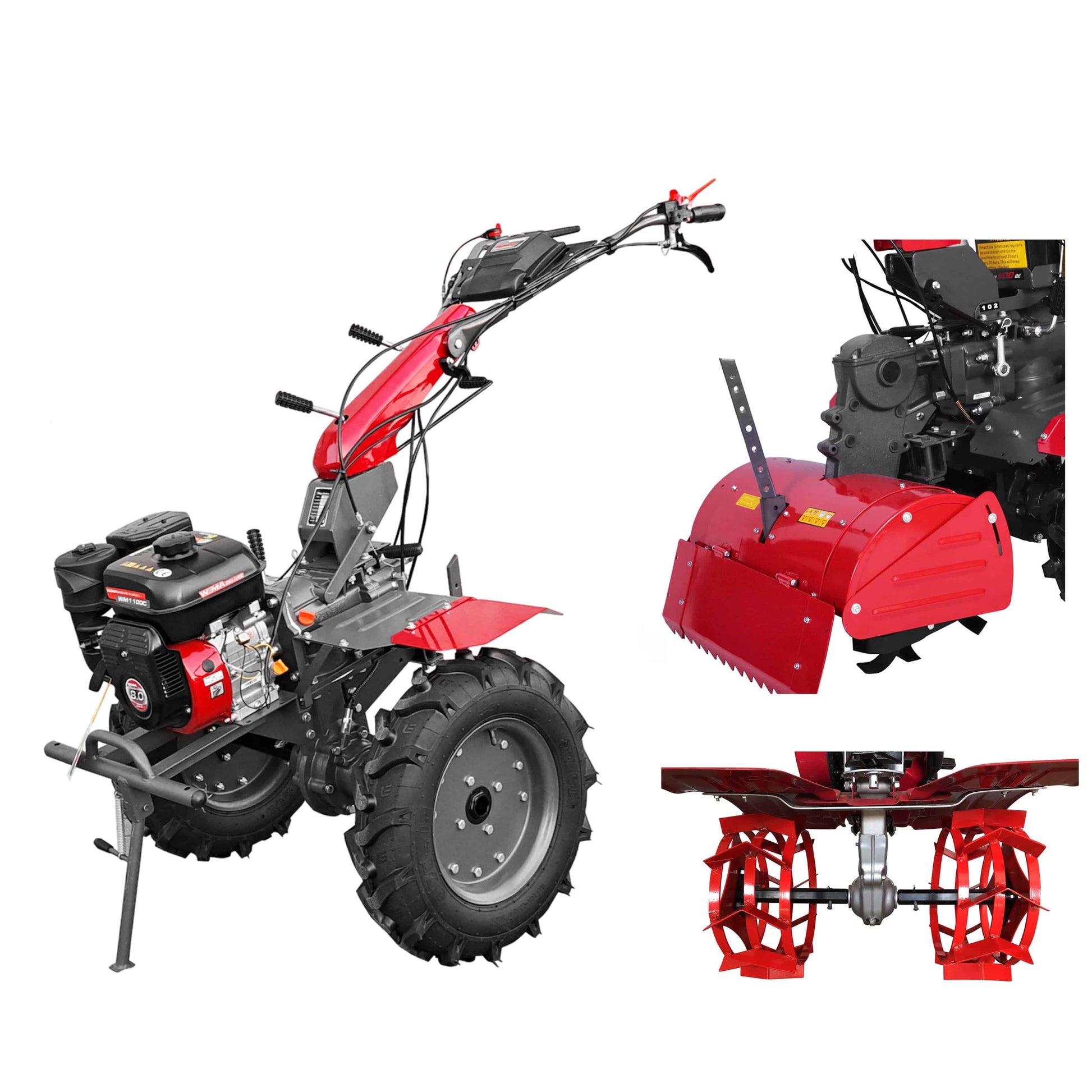

Rototiller Weima WM1100C-6 DIFF Deluxe SET with rotary tiller and iron wheels (without gearbox and engine oil)

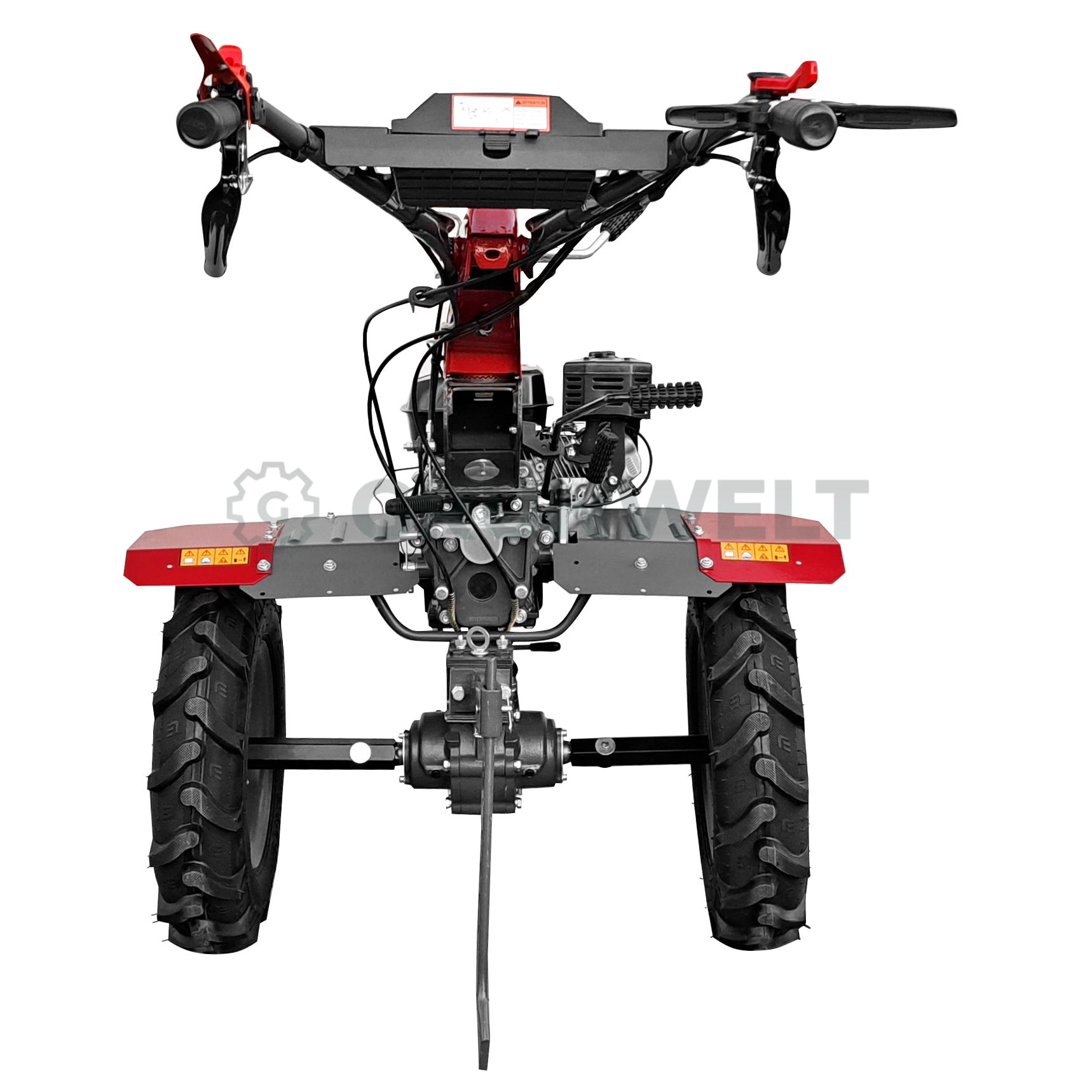

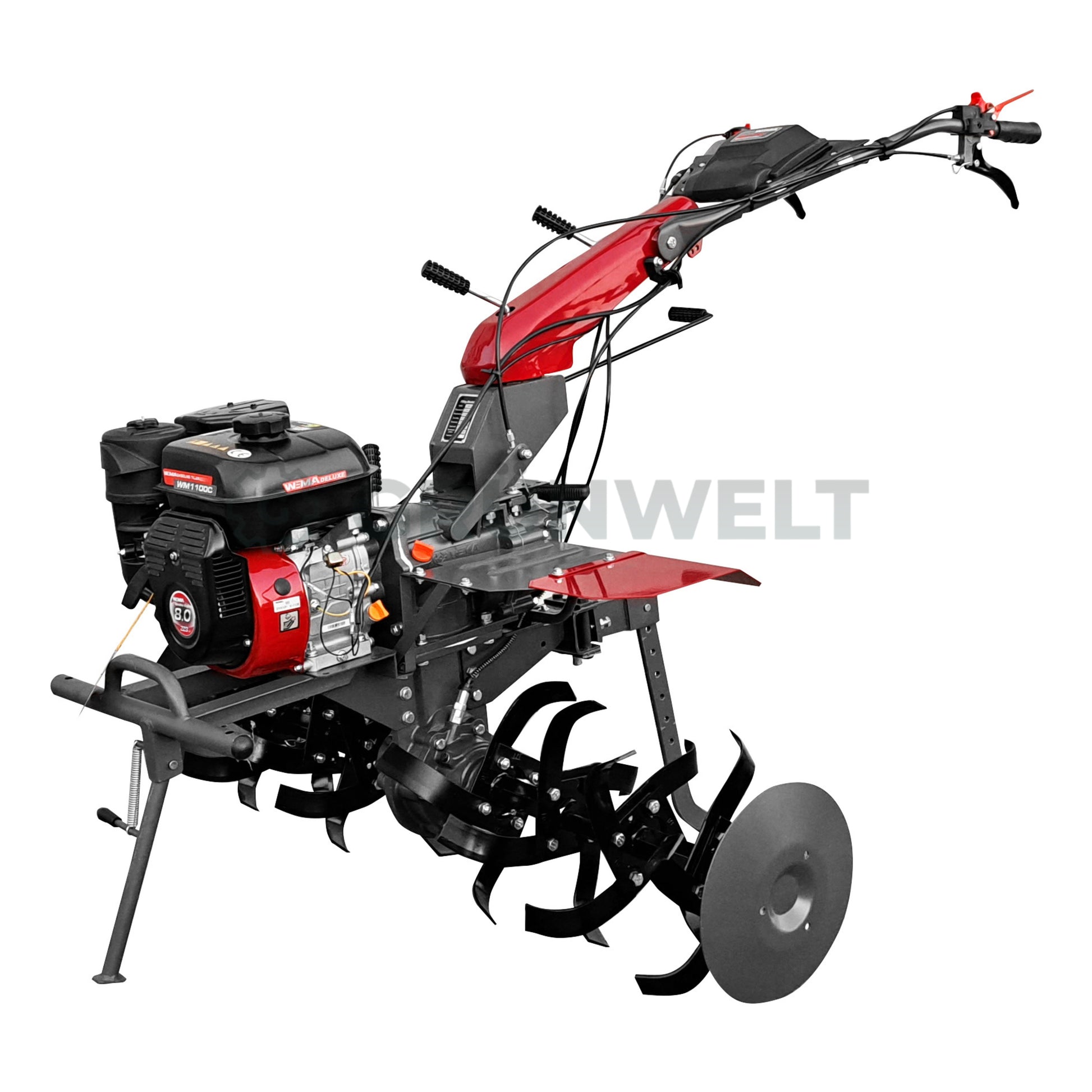

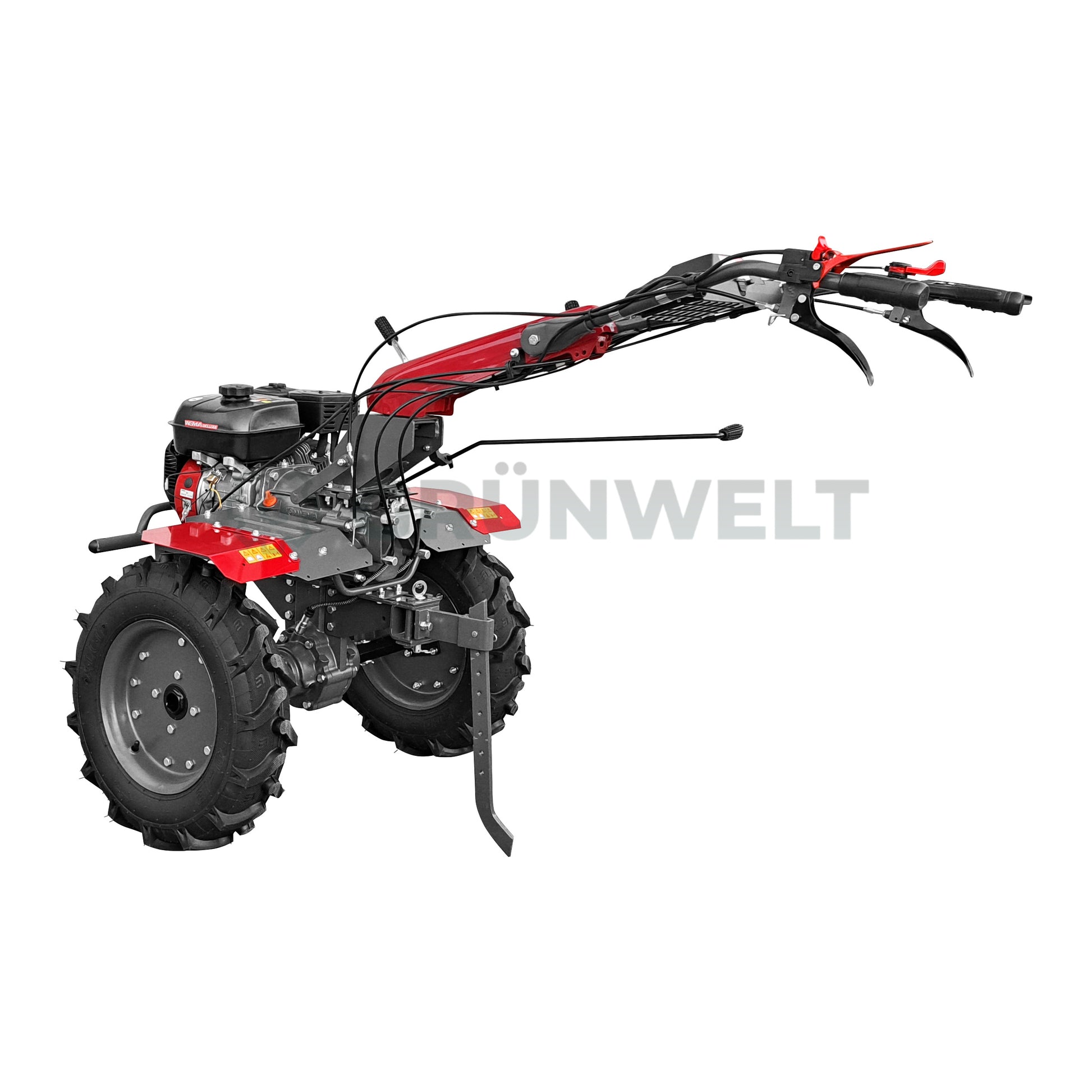

Weima WM1100C-6 DIFF Deluxe motor tiller

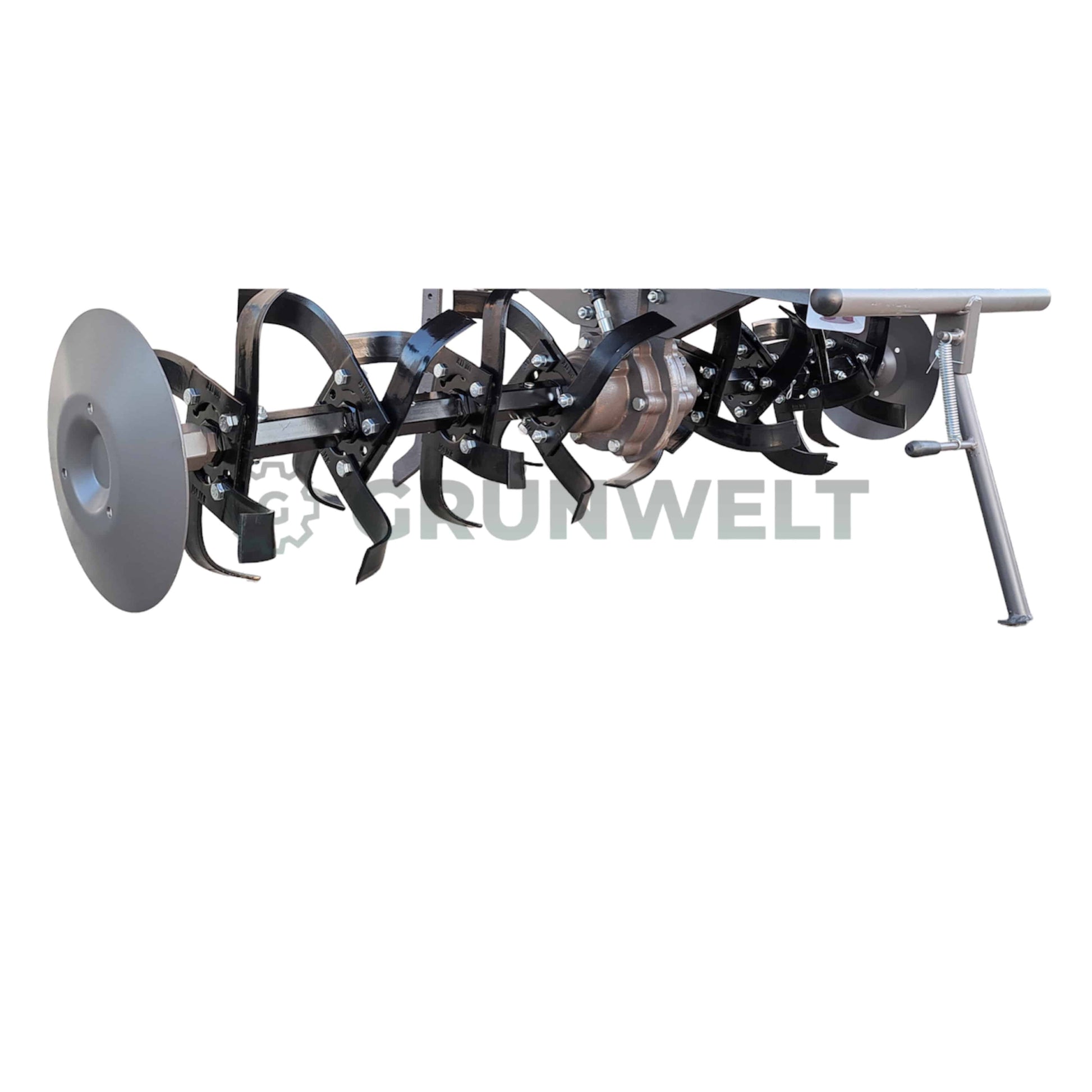

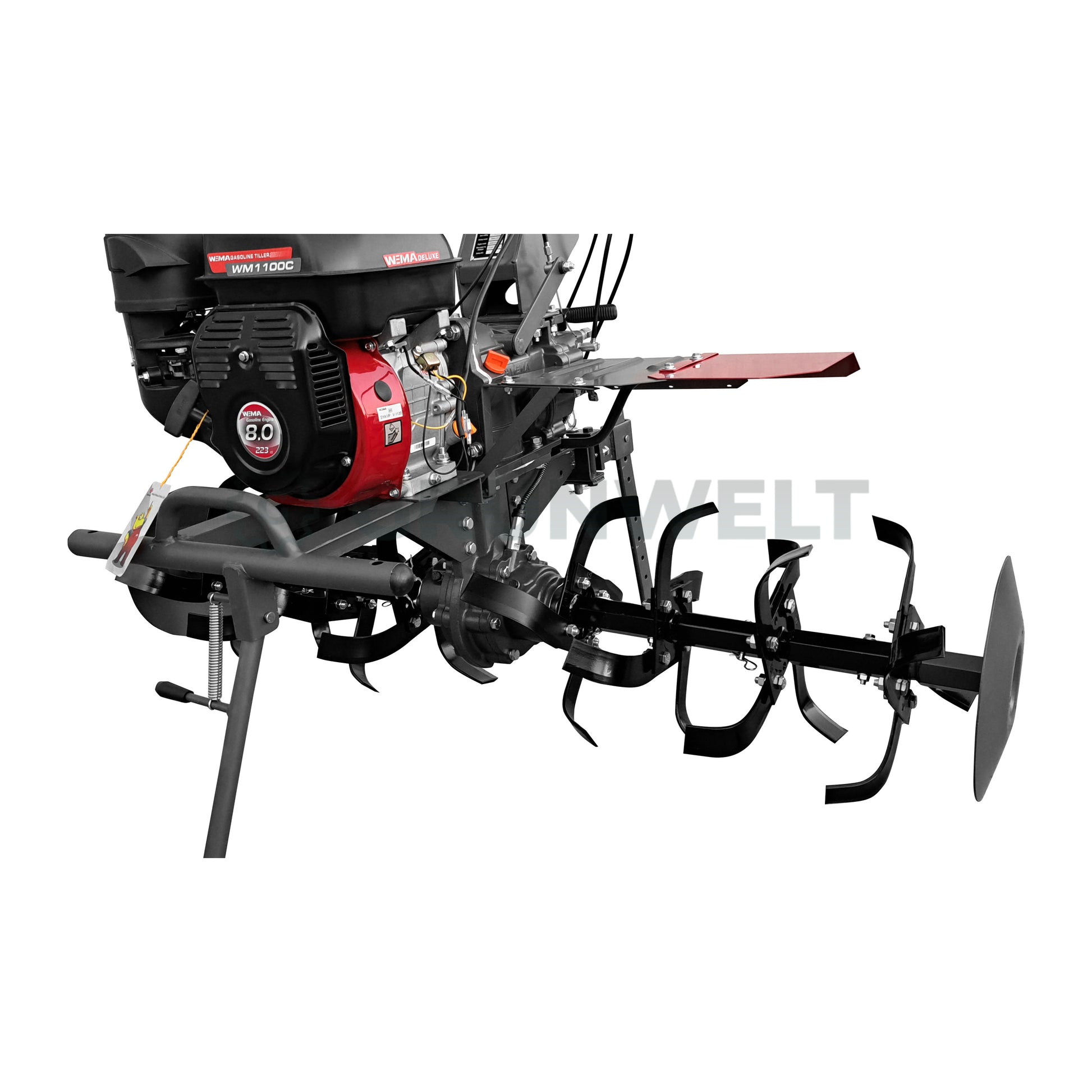

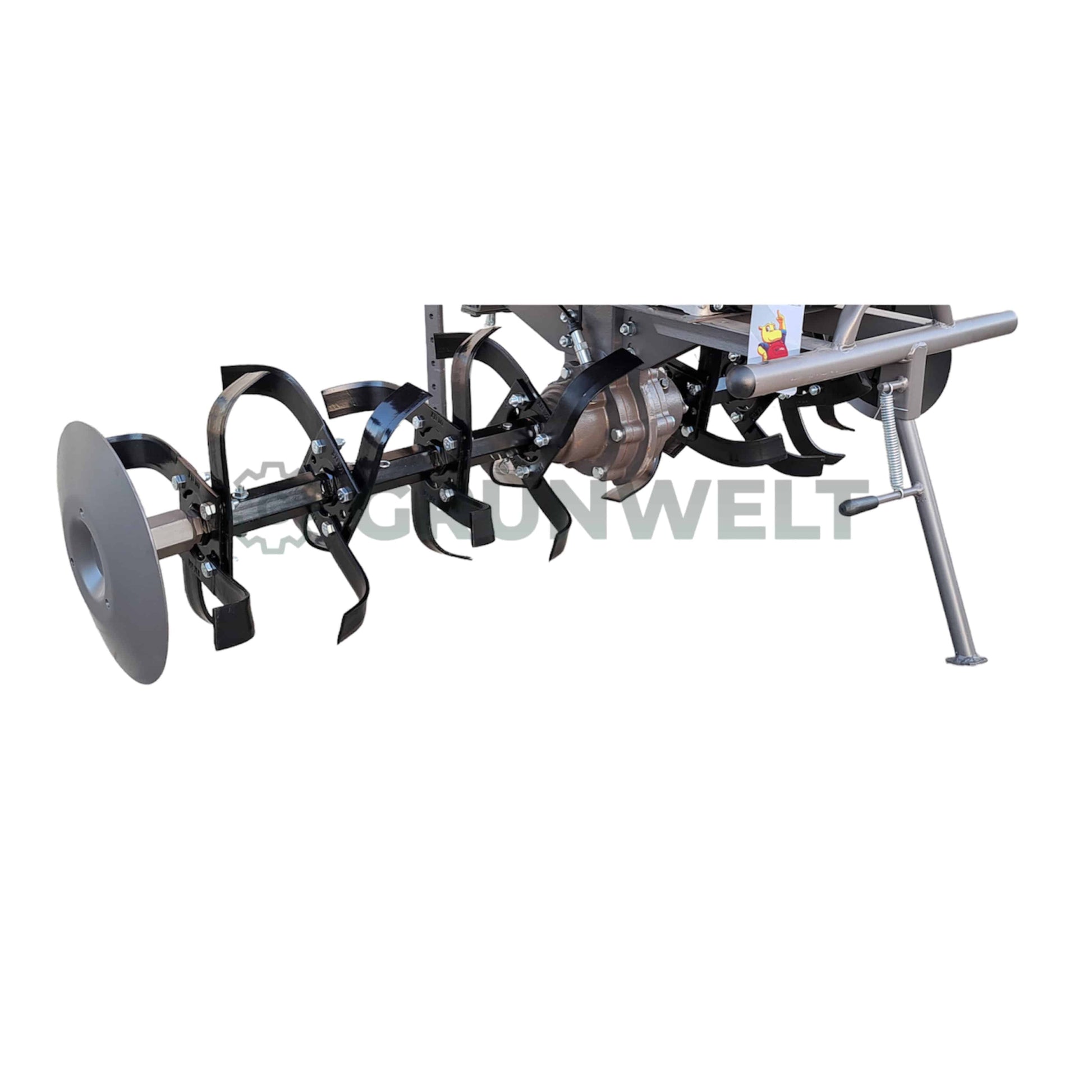

The Weima WM1100C-6 DIFF Deluxe motor tiller is equipped with (2+1+1) rotary blades with a working width of 135 cm and can work with a variety of attachments, including rotary mowers. Furthermore, mowing for hay harvesting can be done with a transport cart. But that is not all; the model is versatile – with the help of a motorized shovel, it can perform snow clearing tasks.
The Weima WM1100C-6 DIFF Deluxe motor tiller is fitted with the Weima W230F petrol engine, which enjoys a good reputation due to its excellent functionality and power. Its main difference is the low fuel consumption and the fact that it is not afraid of prolonged operation at high speeds. A completely new gearbox has been developed with a range of low gears and a very useful option such as locking the half-axles. Thanks to the locking of the half-axles, you can steer the motor tiller even more comfortably during various tasks.
The wet multi-plate clutch and the professional gearbox are very reliable parts of the motor tiller, necessary for work on different soils. The Weima WM1100C-6 DIFF Deluxe motor tiller has 5.00 – 12” wheels with pneumatic tires, which ensure flawless passability and safer work with plants, as the gearbox does not touch the plants. In addition, this model is equipped with a novel KM steering wheel, which allows more comfortable manual steering.
The Weima motor tiller is delivered drained. For the basic unit, you will need 2.4 - 2.5 L of gearbox oil (SAE 80w-90) and 0.6 - 0.7 L of engine oil (SAE 10w-30 or 10w-40). Also, for the Weima WMBF-6 rotary tiller, you need 1.6 - 1.7 L of gearbox oil (SAE 80w-90).

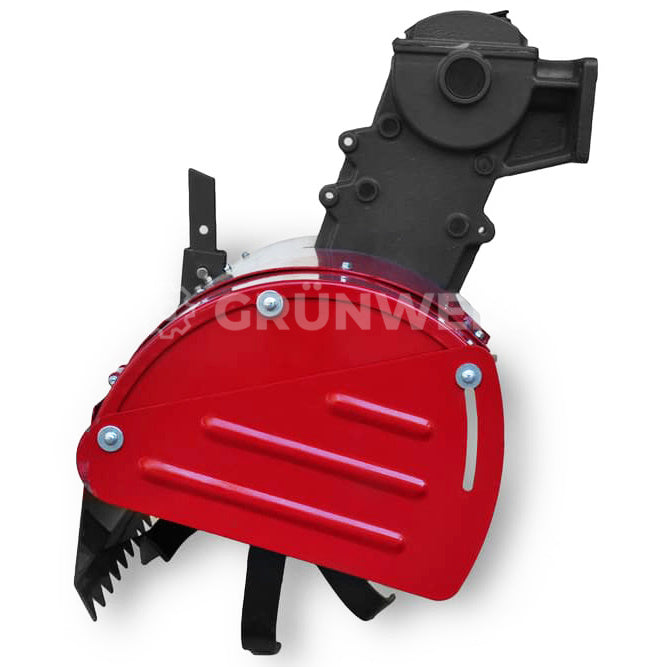

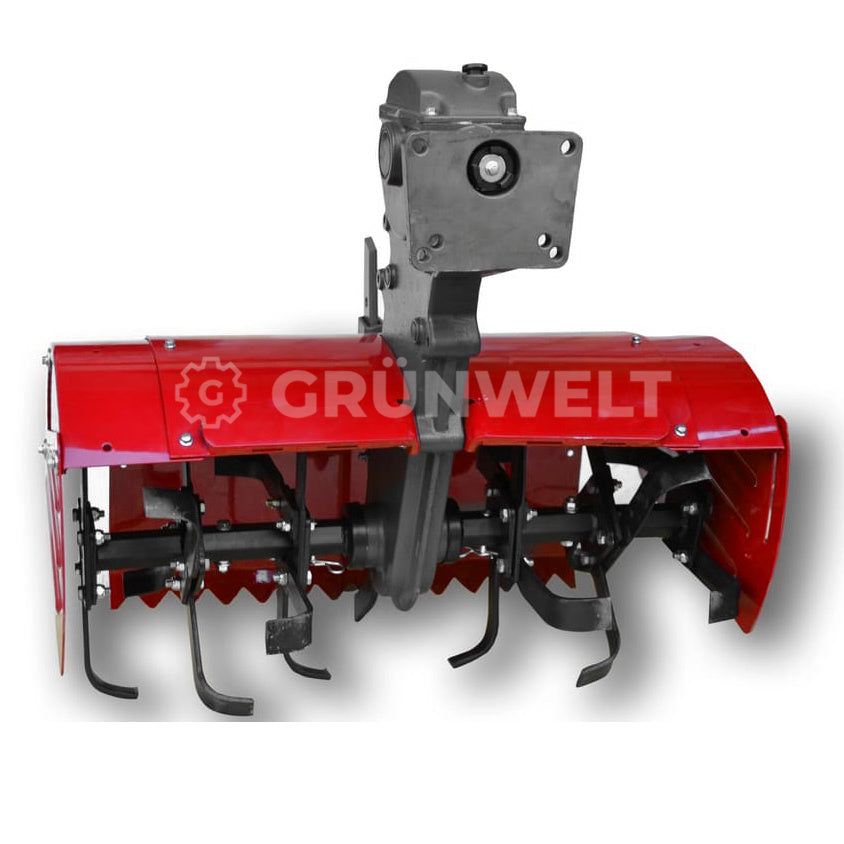

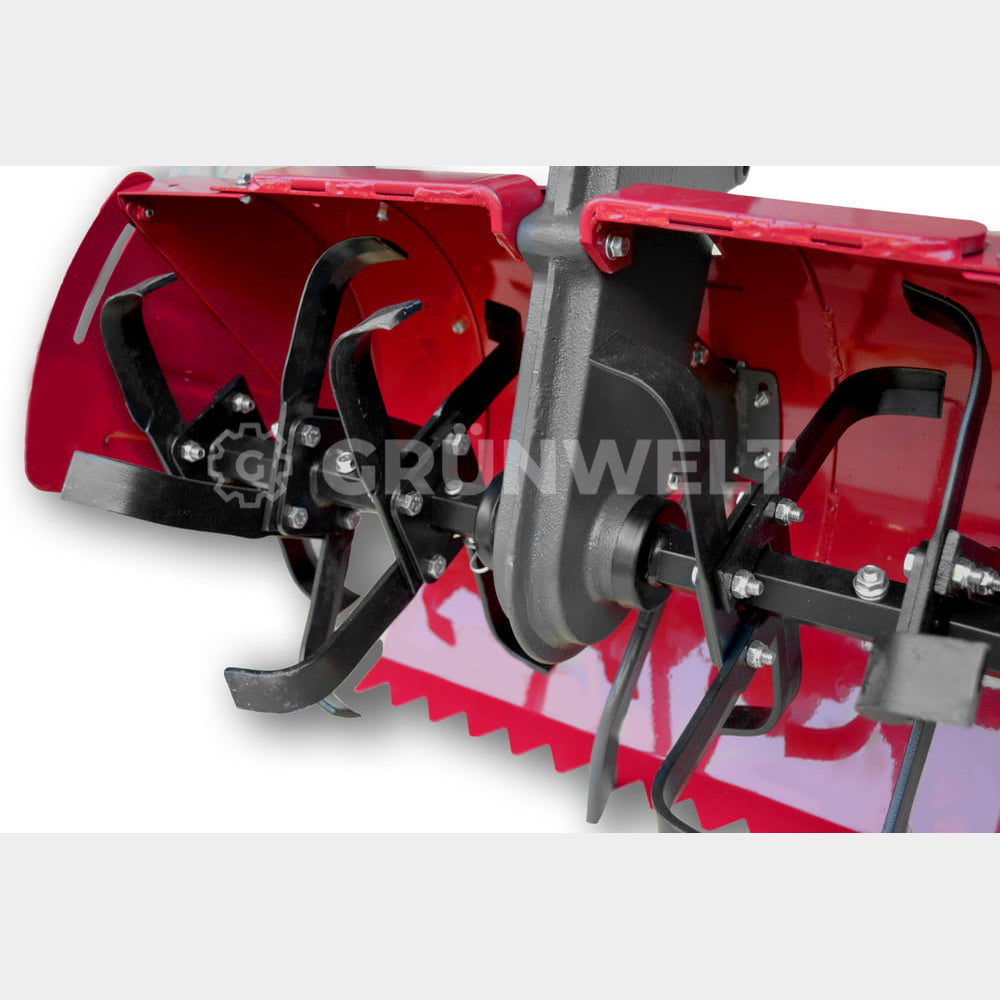

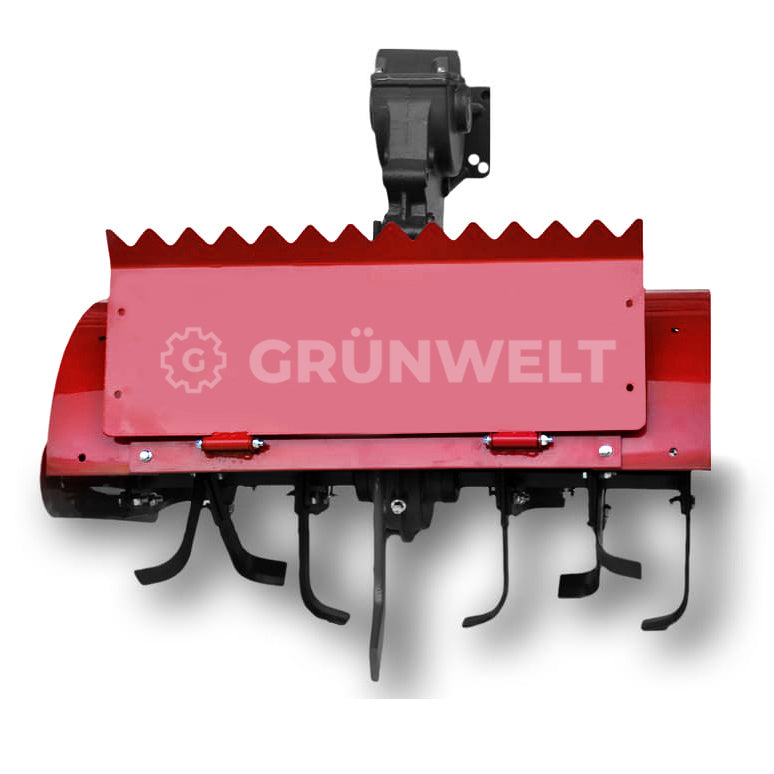

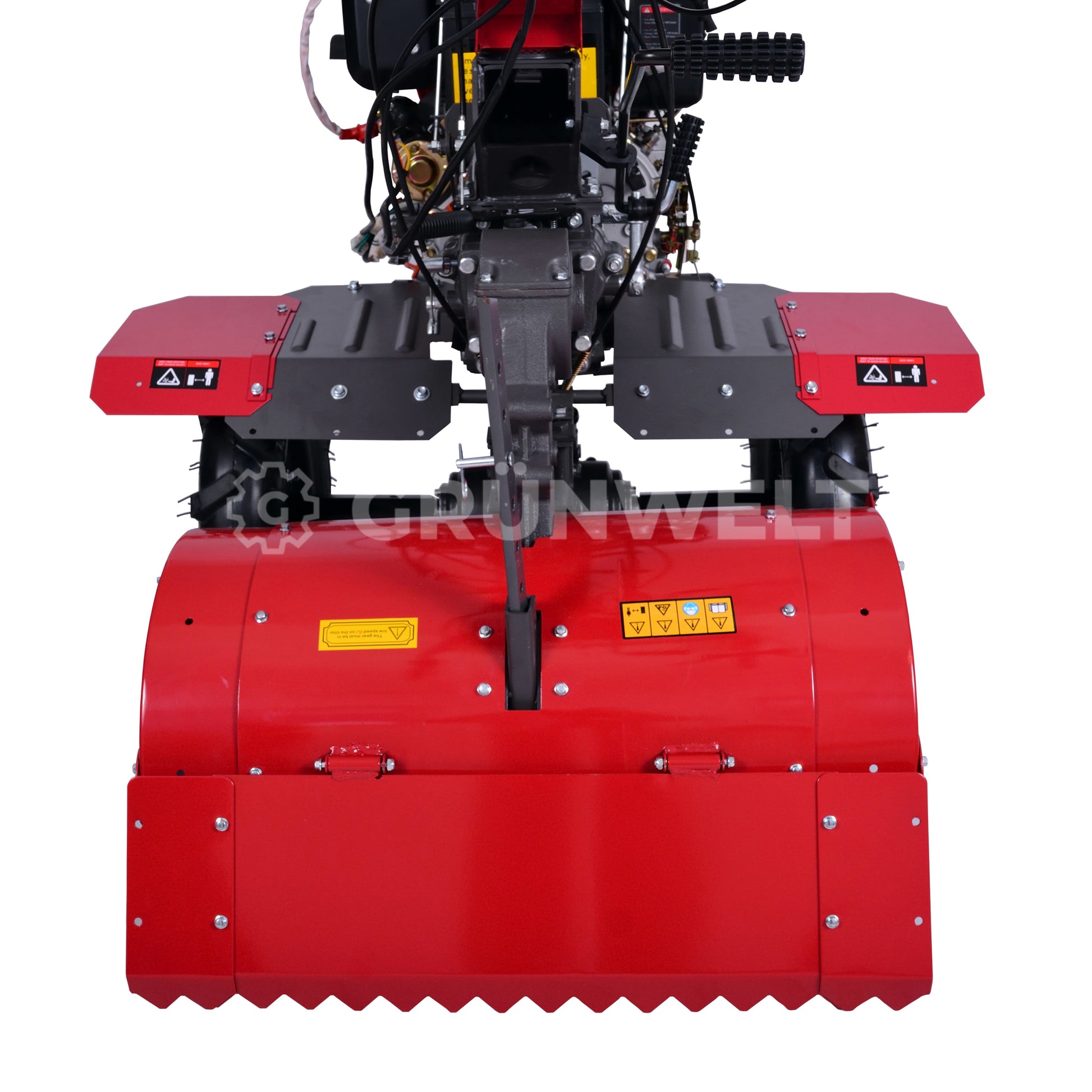

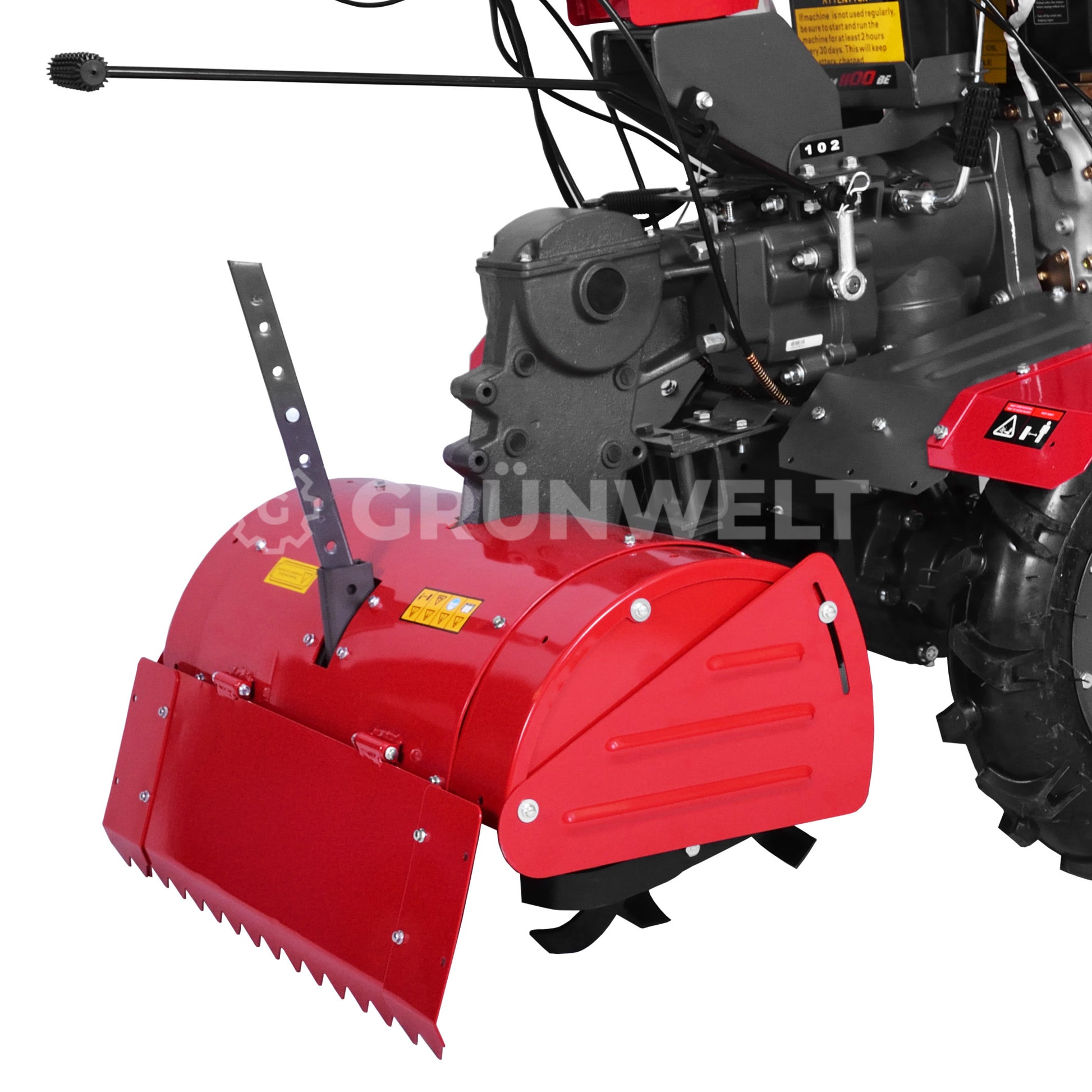

Active rotary tiller Weima WMBF-6
WMBF-6 – your helper in weed removal!

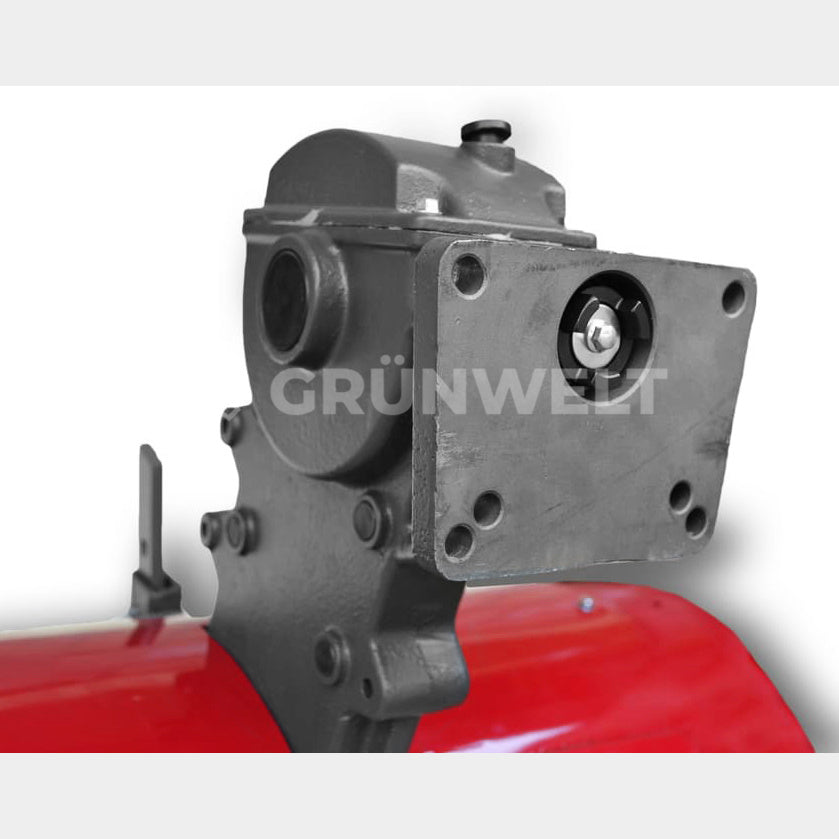

The active rotary tiller Weima WMBF-6 is suitable for working the topsoil layer, removing weeds, and loosening the soil. The device is mounted on the Weima WM1000N-6 and WM1100-6 motor tillers. The tiller is driven by a power take-off shaft and redirected downward via a chain drive with a low gear. Thanks to the cover, the operator is reliably protected from unforeseen dangers. The working depth is adjusted by a lever from 100 to 200 mm.

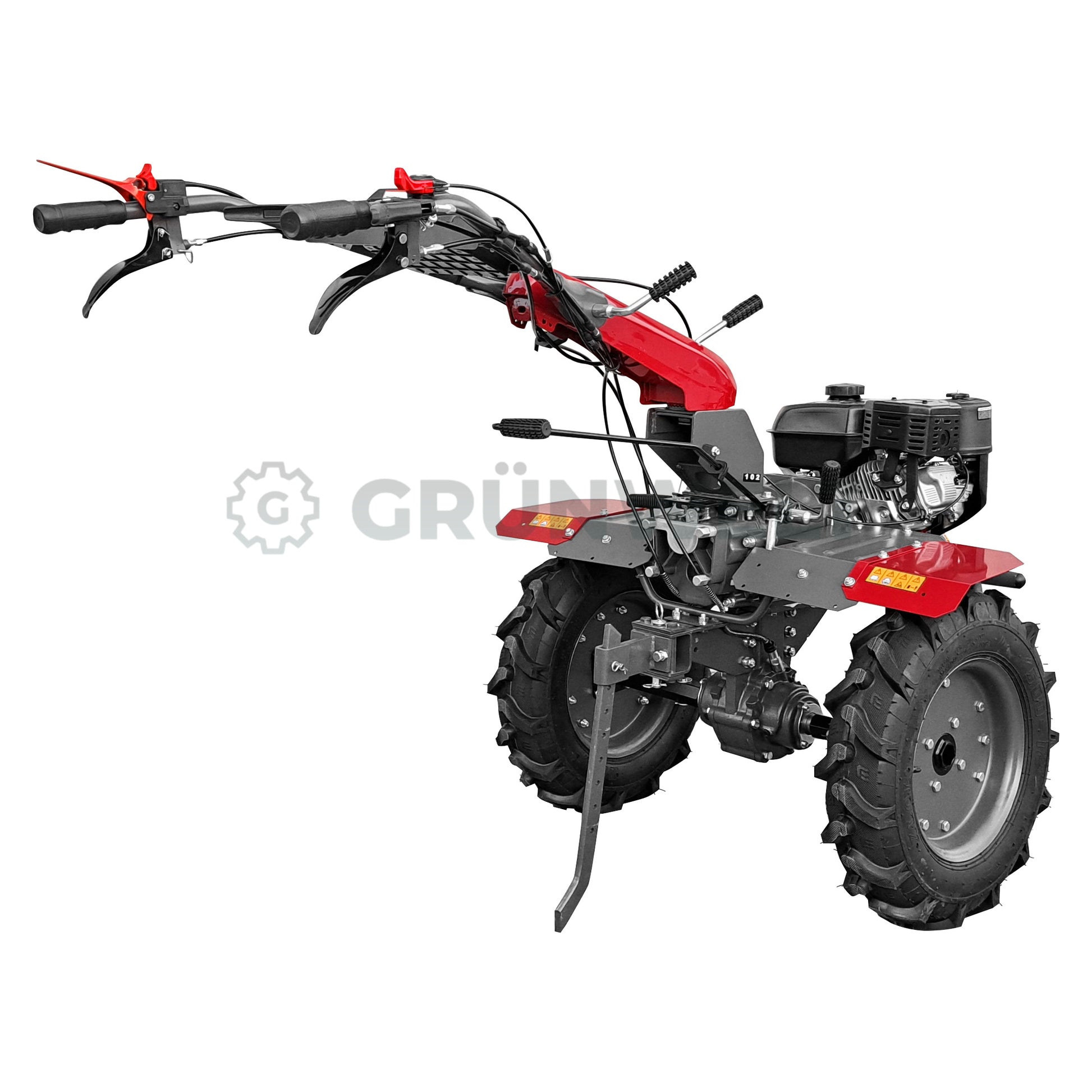

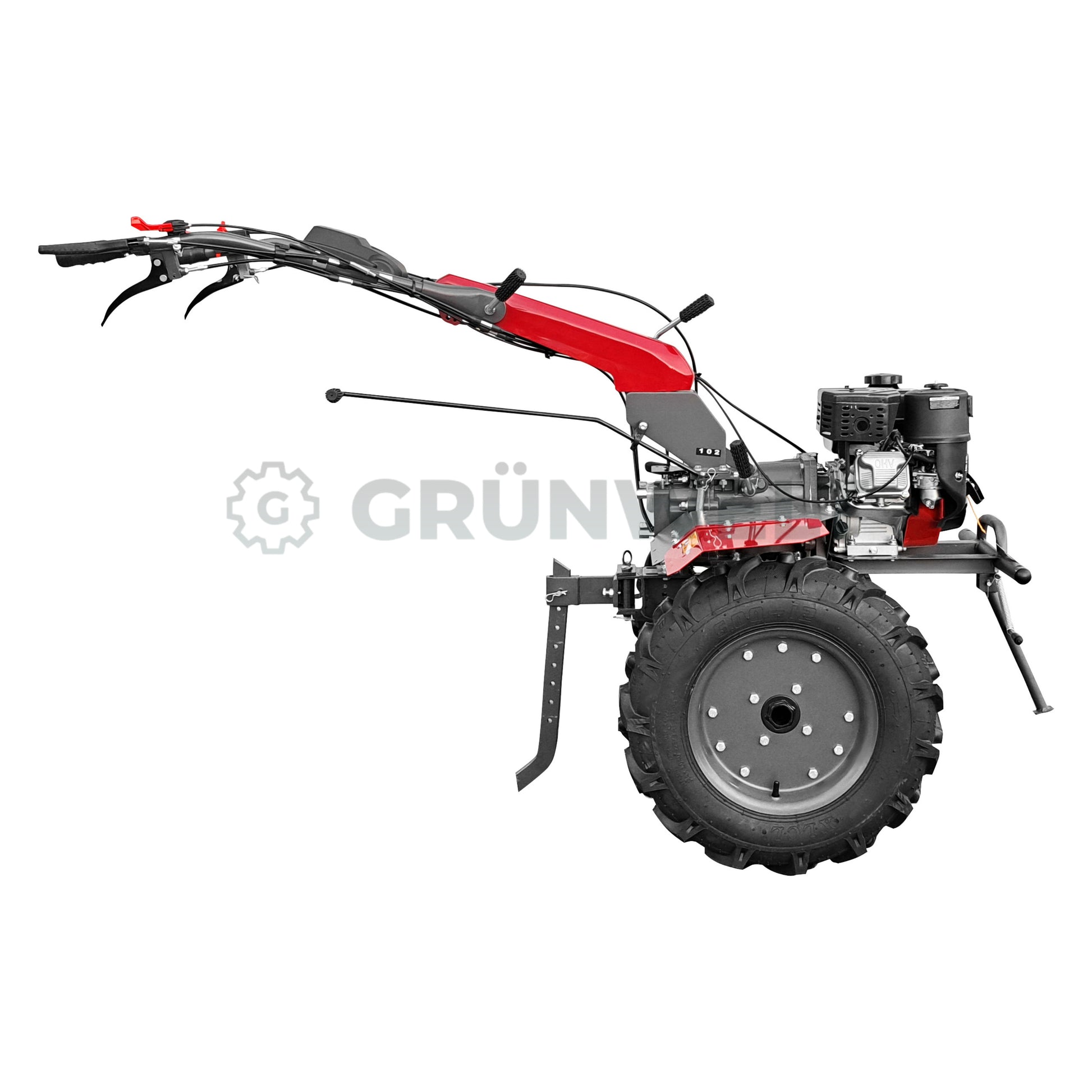

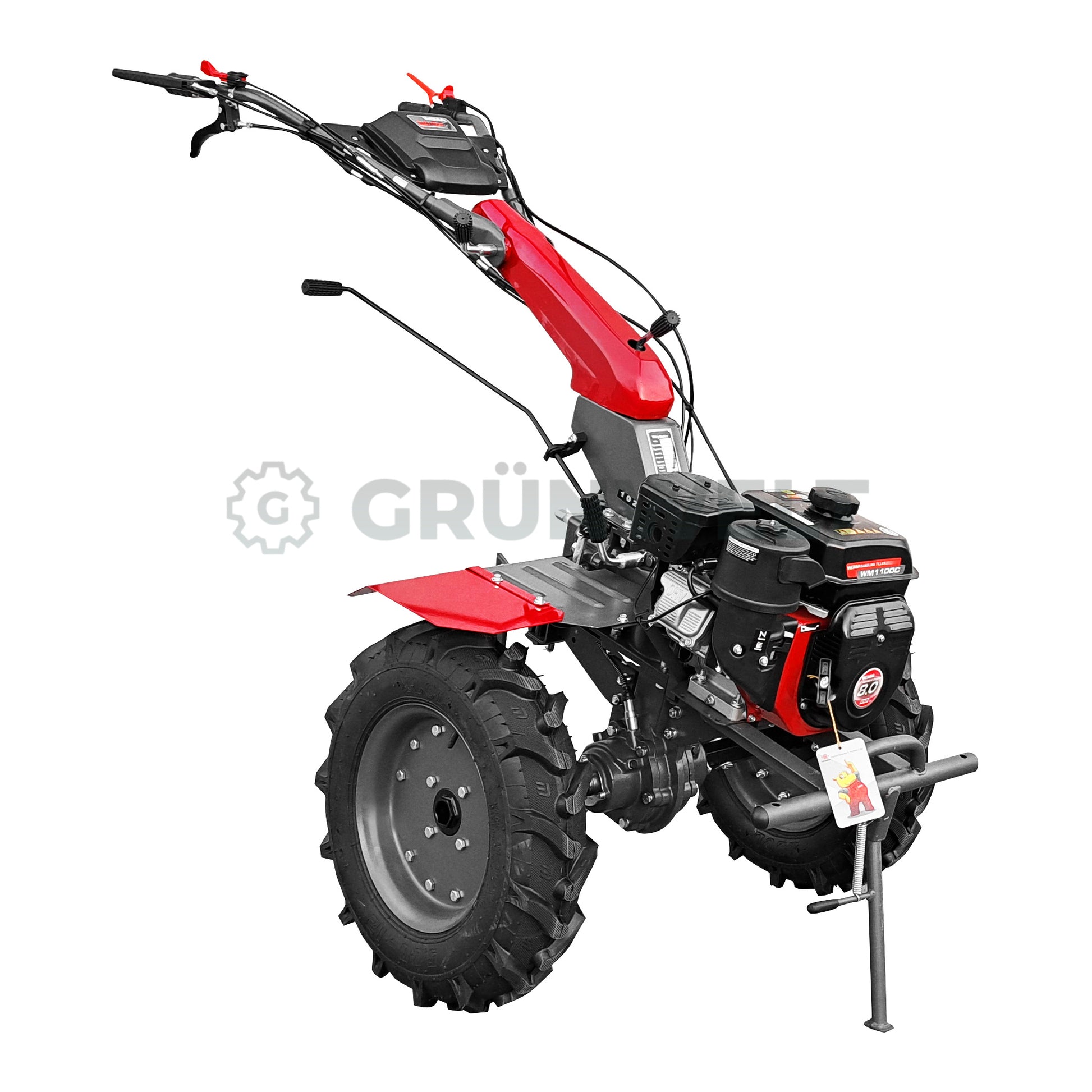

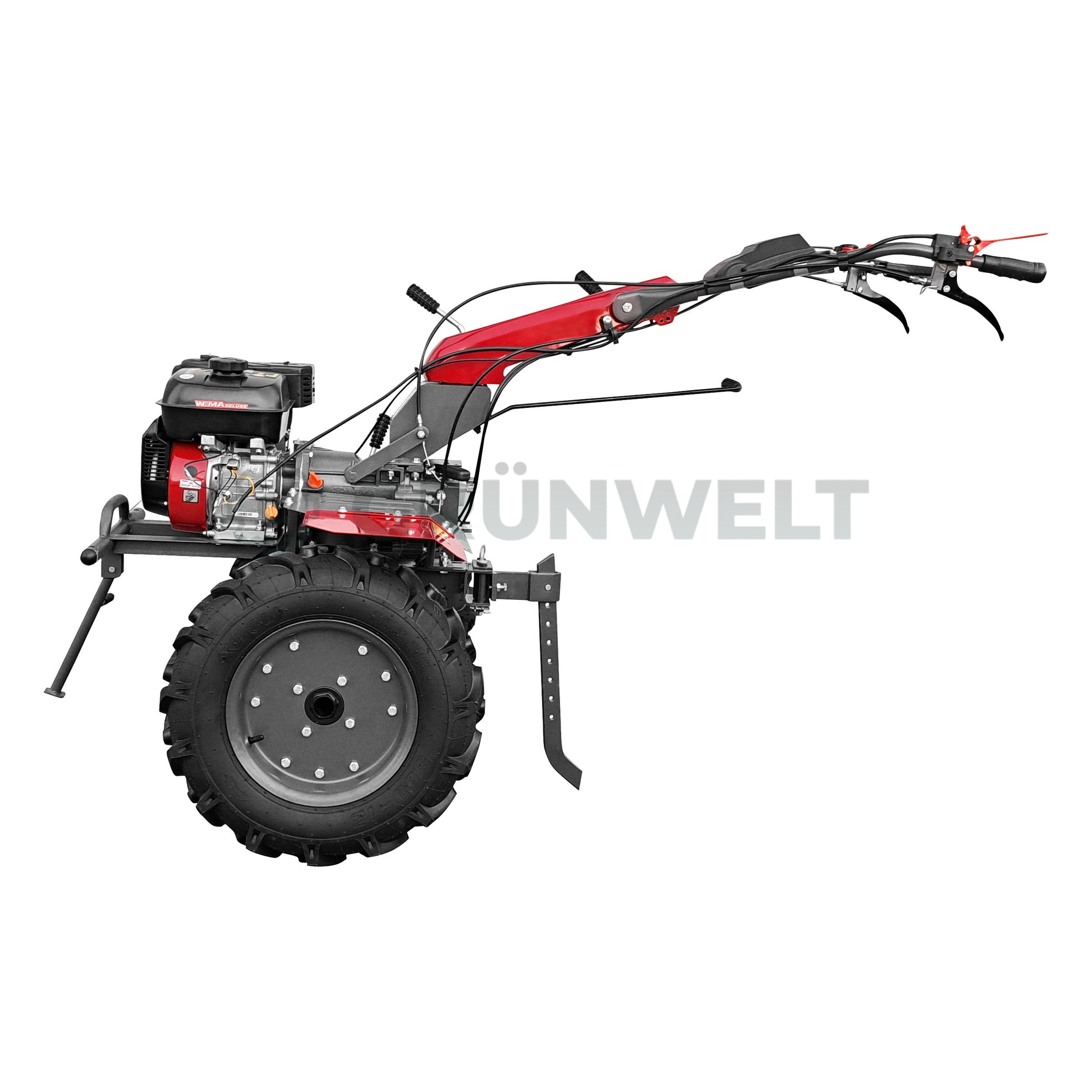

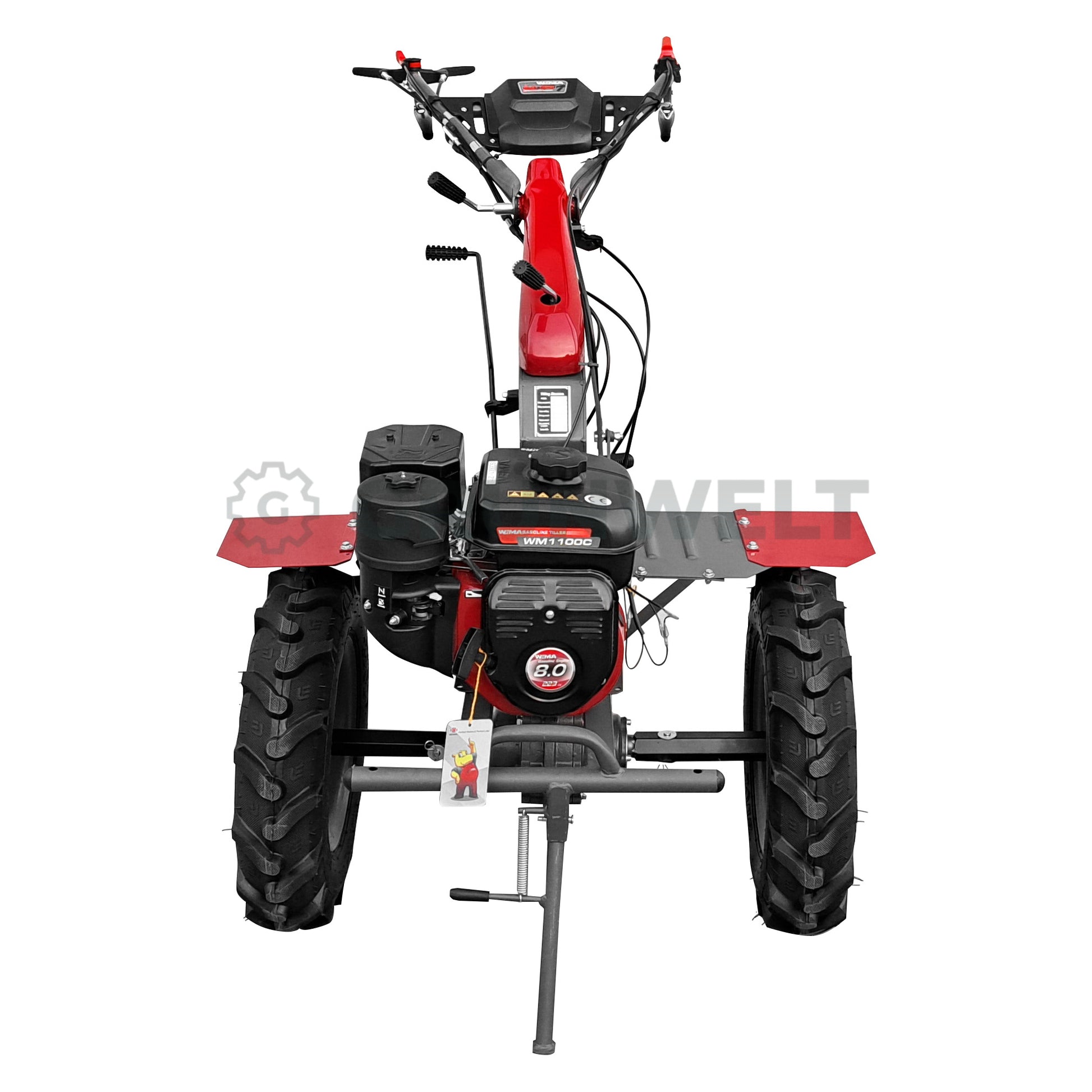

Motor tiller Weima WM1100C-6 DIFF Deluxe
• Powerful engine Weima W230F (EURO 5, 4-stroke, single-cylinder, OHV, forced cooling)
• Various uses thanks to a wide range of attachments
• Throttle for strong forward drive
• Low fuel and oil consumption
• Working width up to 1350 mm
• Sturdy tiller blades
• Tiller blade stop by dead man's switch
• Weight-optimized design for easy handling

Rotary tiller Weima WM1100C-6 DIFF Deluxe
• GTIN: 4260614713024
• Working width: 800 – 1350 mm
• Working depth: 150 – 300 mm
• Gearshift: 4 forward, 2 reverse
• Drive model: Gearbox, locking of half axles
• Gear oil capacity: 2.5 L
• Tires: 5.00 – 12“
• Tilling blades: 4 × (2+1+1) pcs.
• Engine: Weima W230F
• Type: EURO 5, OHV, single-cylinder, 4-stroke, forced cooling
• Displacement: 223 cm³
• Engine power: 5.1 kW / 7.5 hp
• Starting system: pull starter
• Fuel / engine oil volume: 3.6 / 0.6 L
• Dimensions: 1755 × 1100 × 1000 mm
• Net weight: 120 kg
Active rotary tiller Weima WMBF-6
• GTIN: 6971472300353
• Working width: 400 – 600 mm
• Working depth: 100 – 200 mm
• Mountable on rotary tiller: Weima WM1000N-6, WM1100-6 series
• Dimensions: 730 × 570 × 620 mm
• Net weight: 30 kg

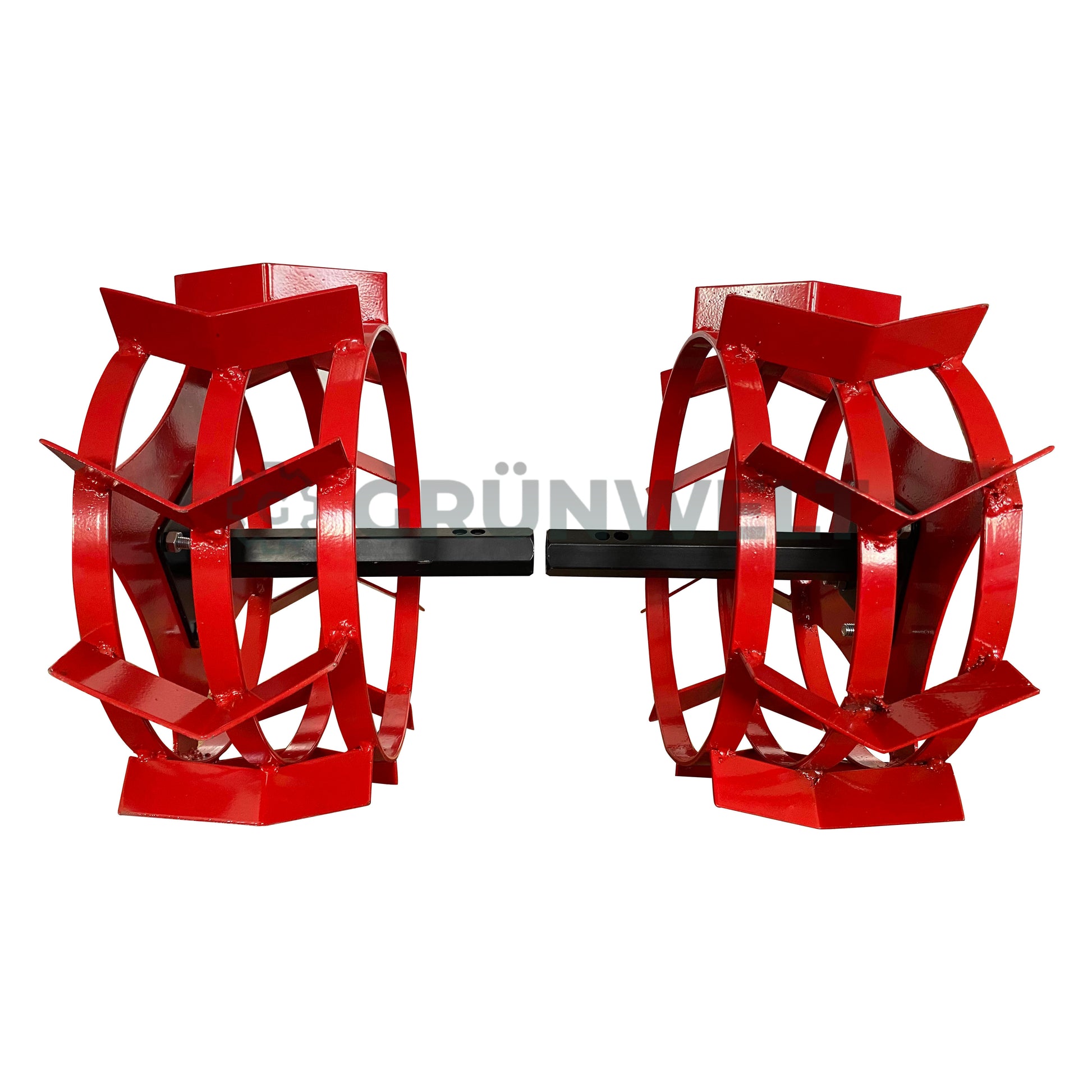

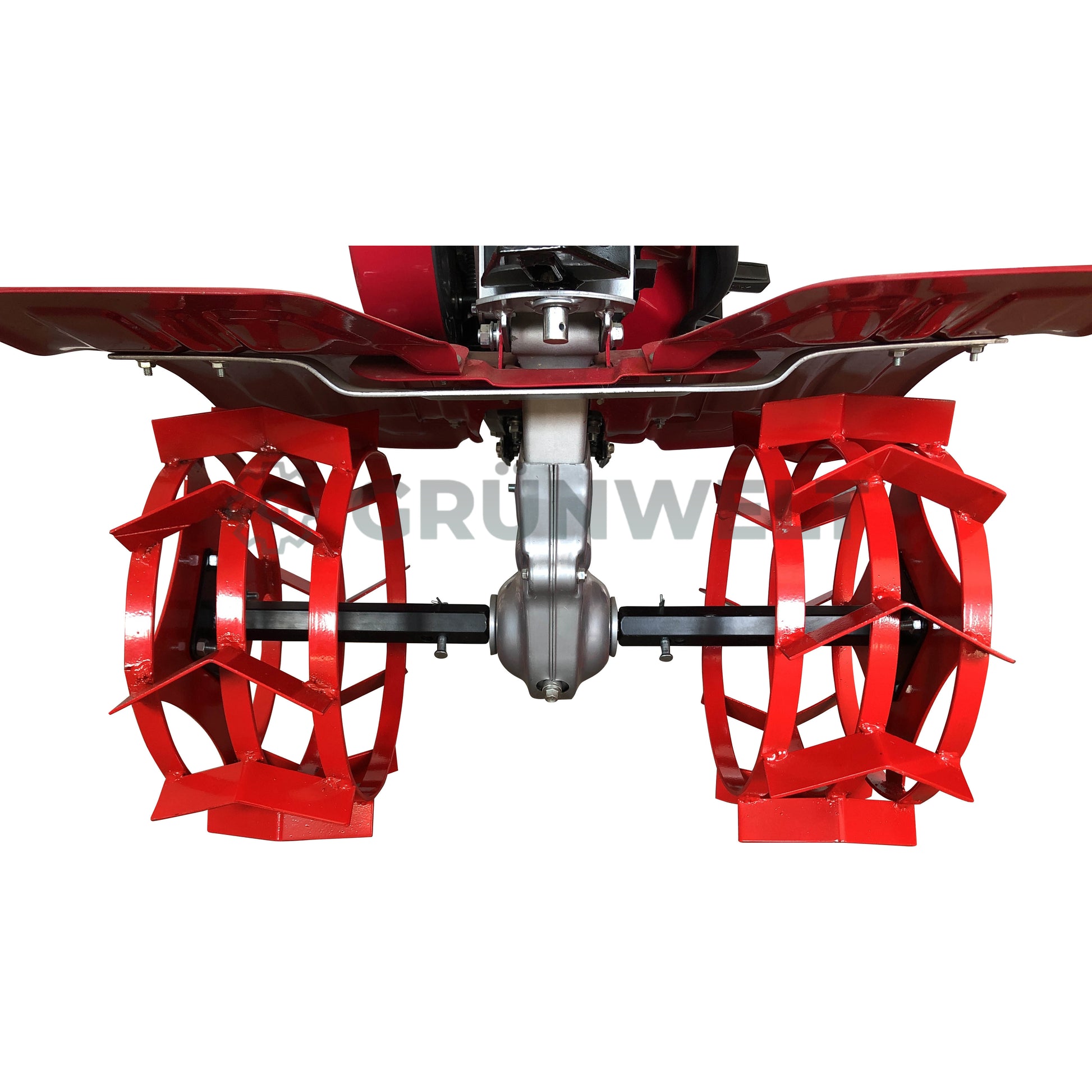

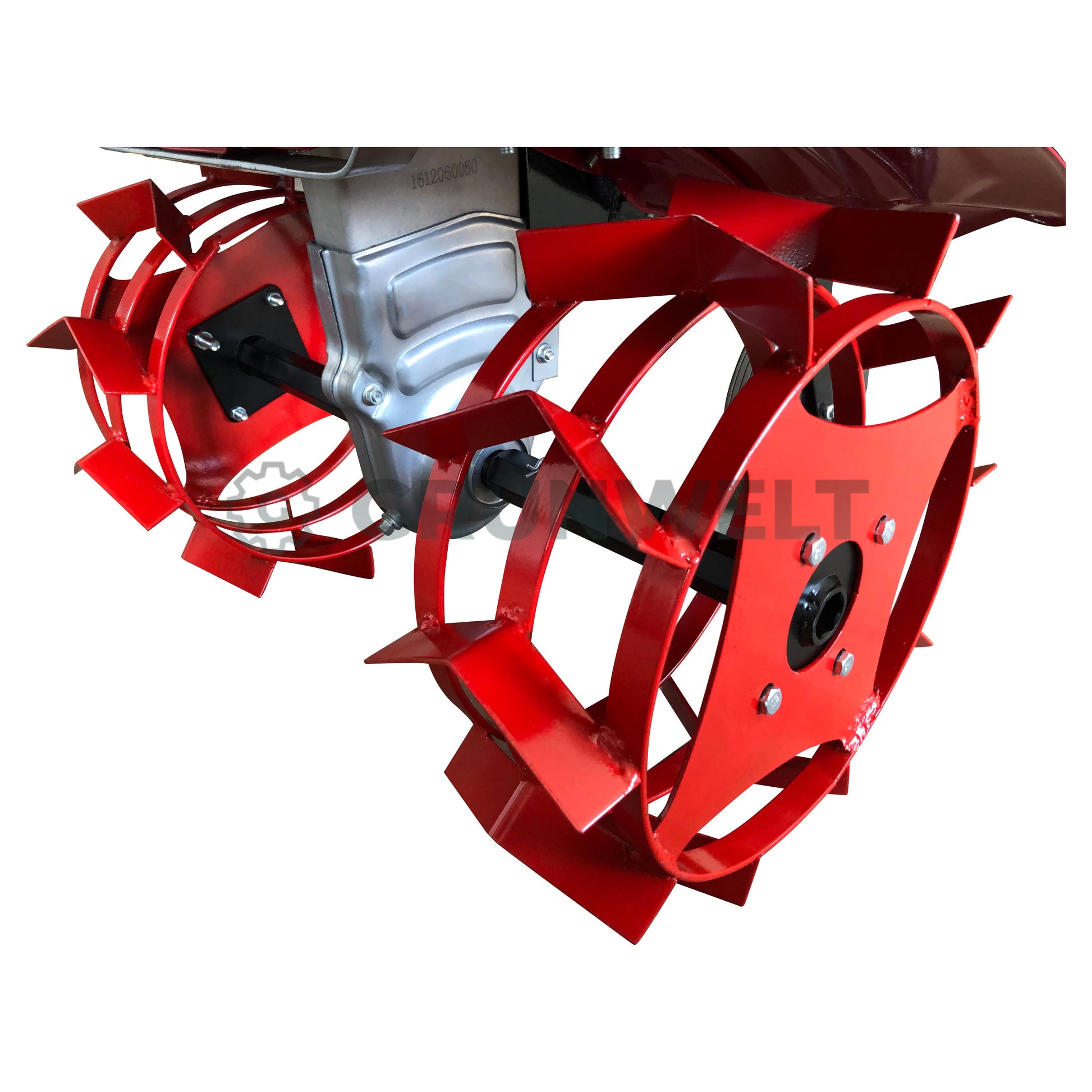

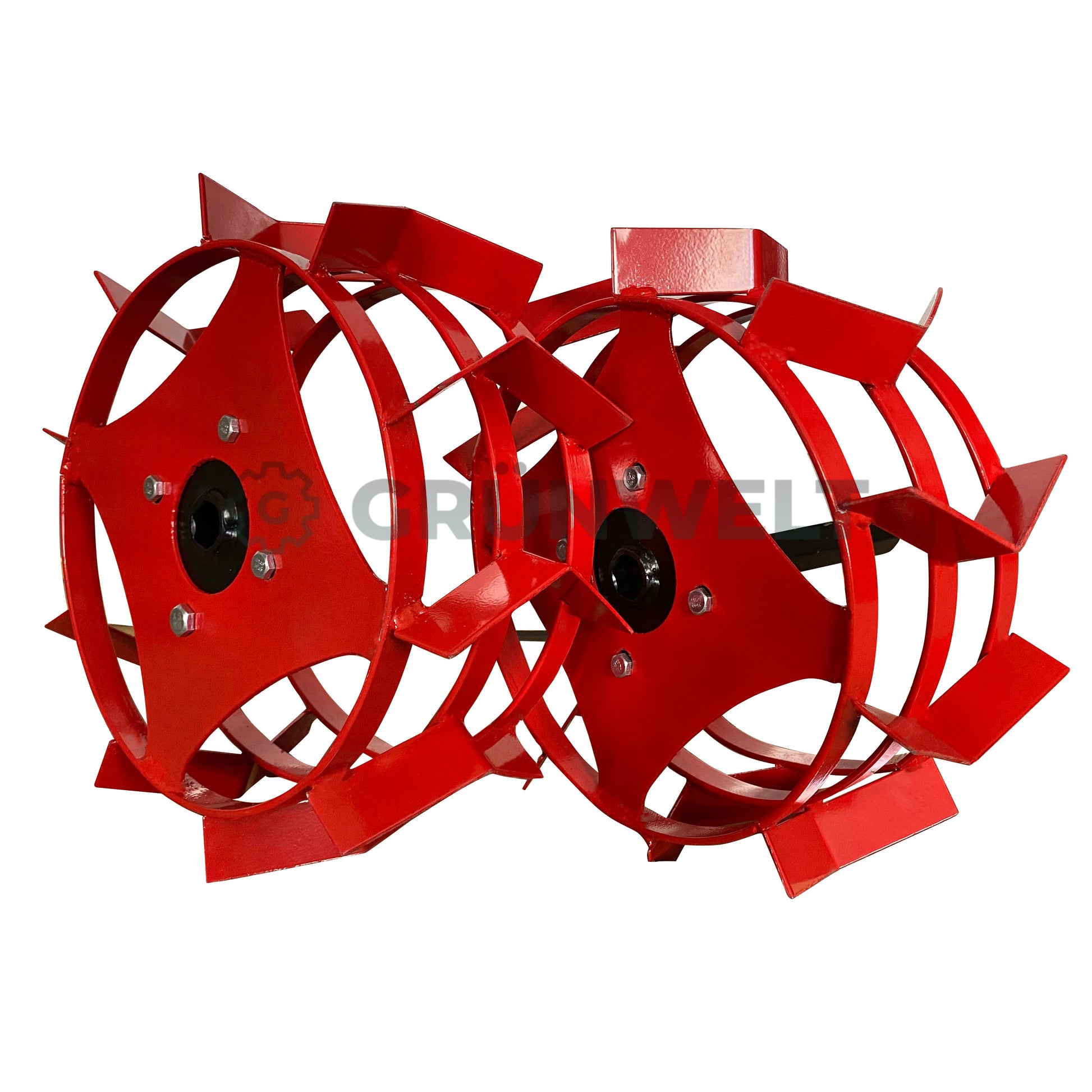

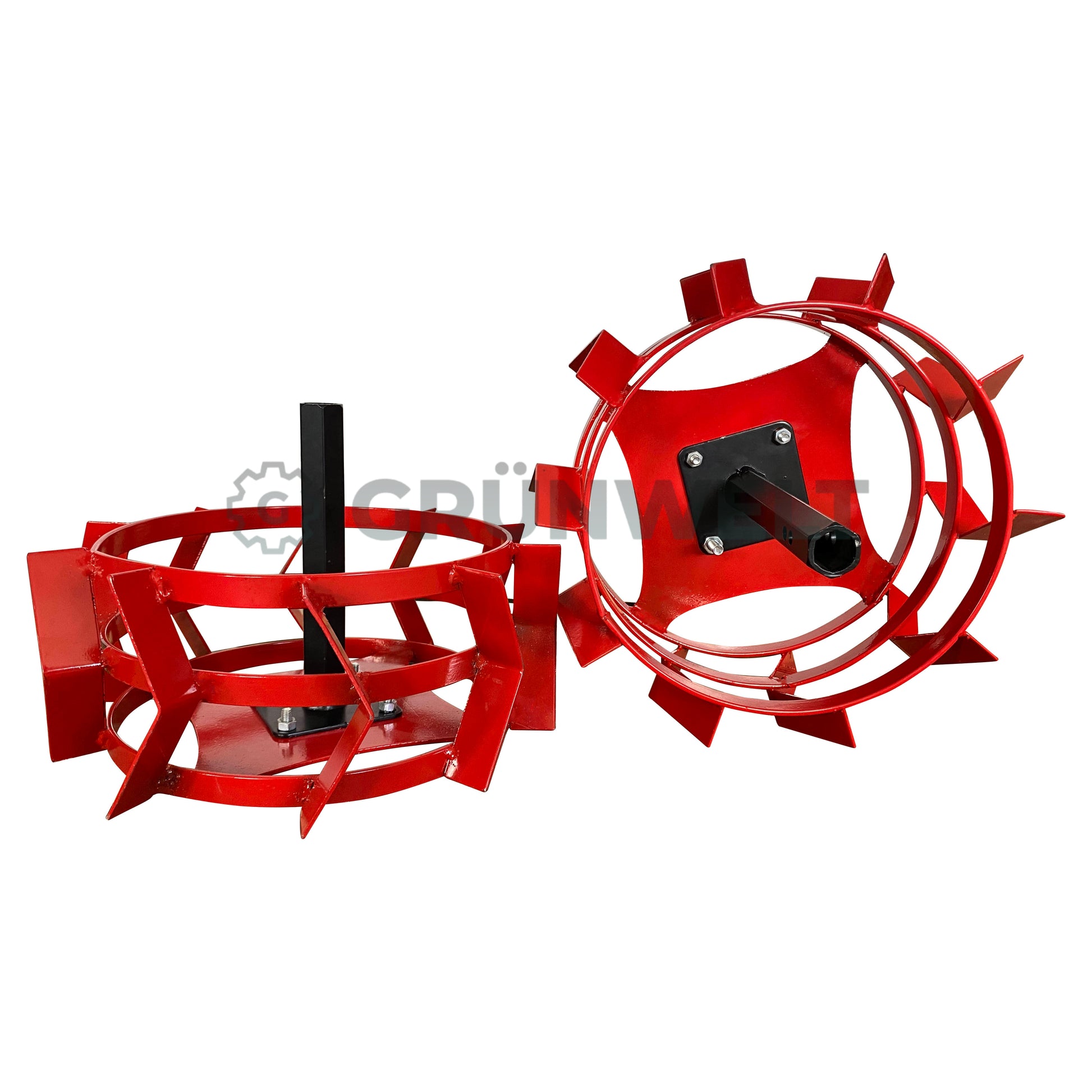

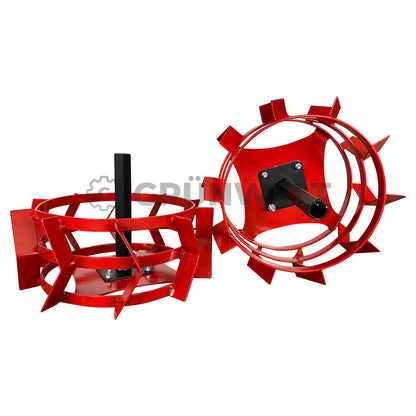

Iron wheels Grünwelt GW-ER430
• GTIN: 4260614710177
• Suitable for: Weima WM500, WM900M-3, WM1000N series, WM1100 series
• Diameter: 390 mm / 430 mm including cleats
• Tread width: 150 mm
• Cleat height: 40 mm
• Diameter of inner bore: 70 mm
• Hole spacing: 4 × 110 mm
Half axles Grünwelt GW-AX32-220
• GTIN: 4260614710245
• Length: 218 mm
• Diameter: 32 mm
• Hole spacing: 110 mm
