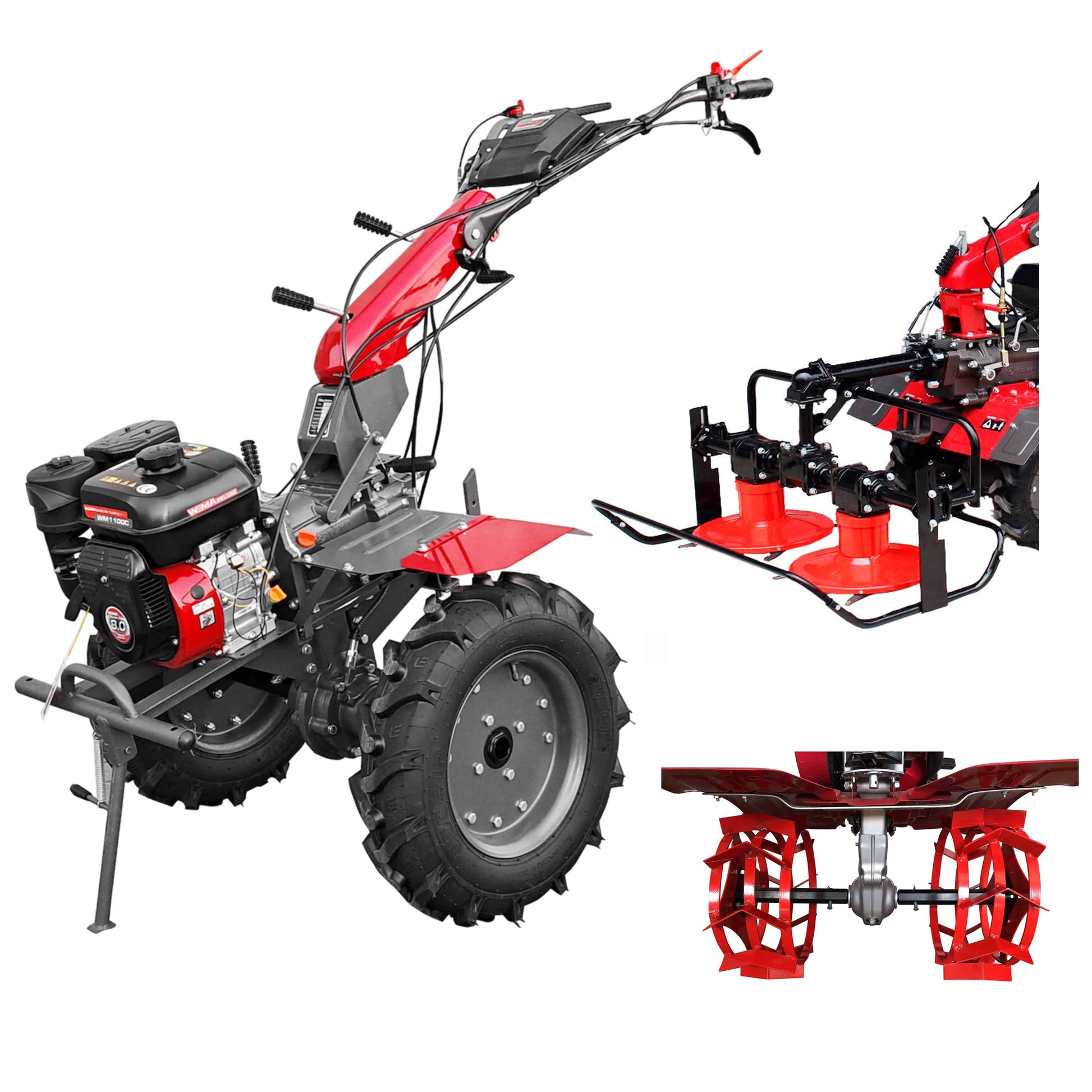

Rototiller Weima WM1100C-6 DIFF Deluxe SET with rotary mower and iron wheels (without gearbox and engine oil)

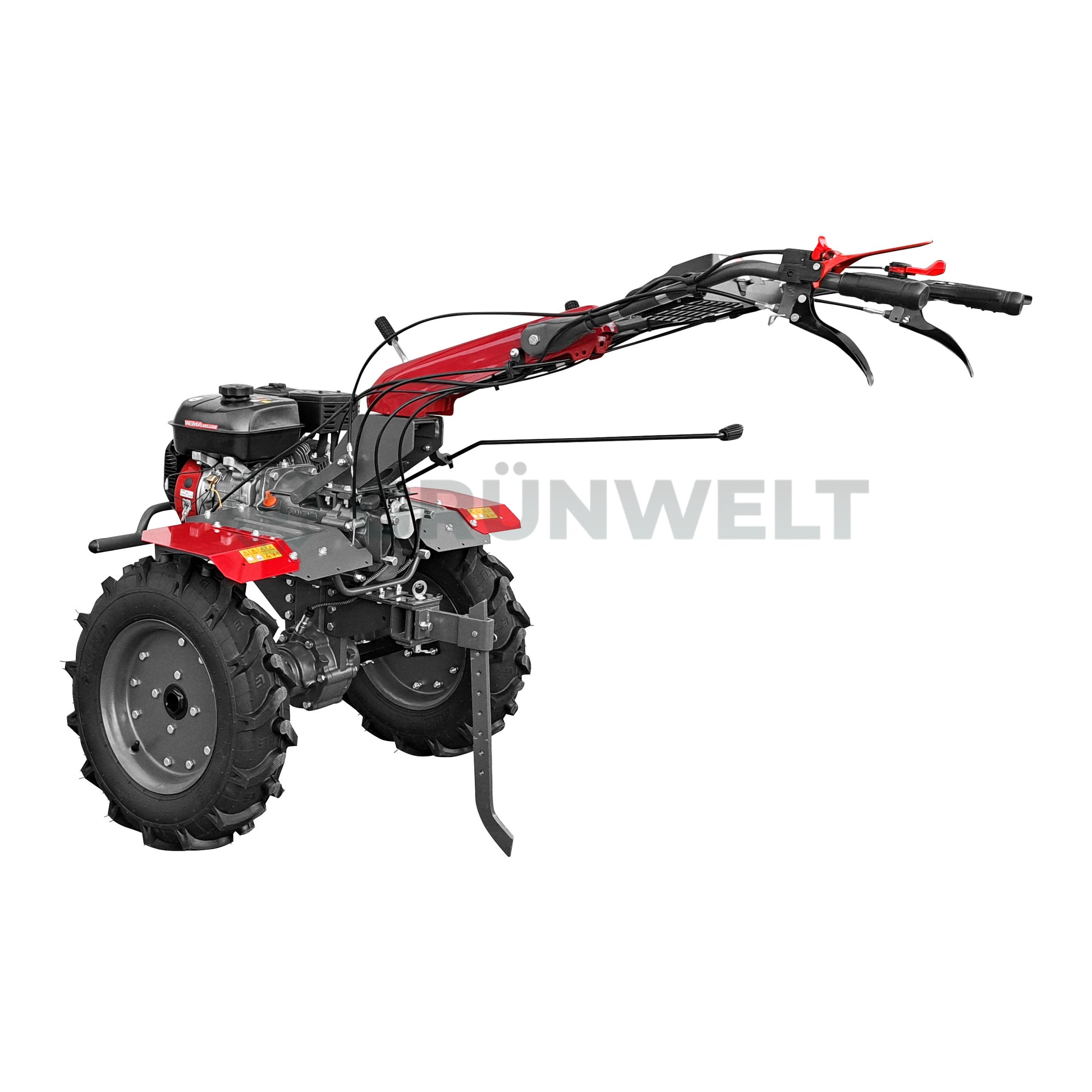

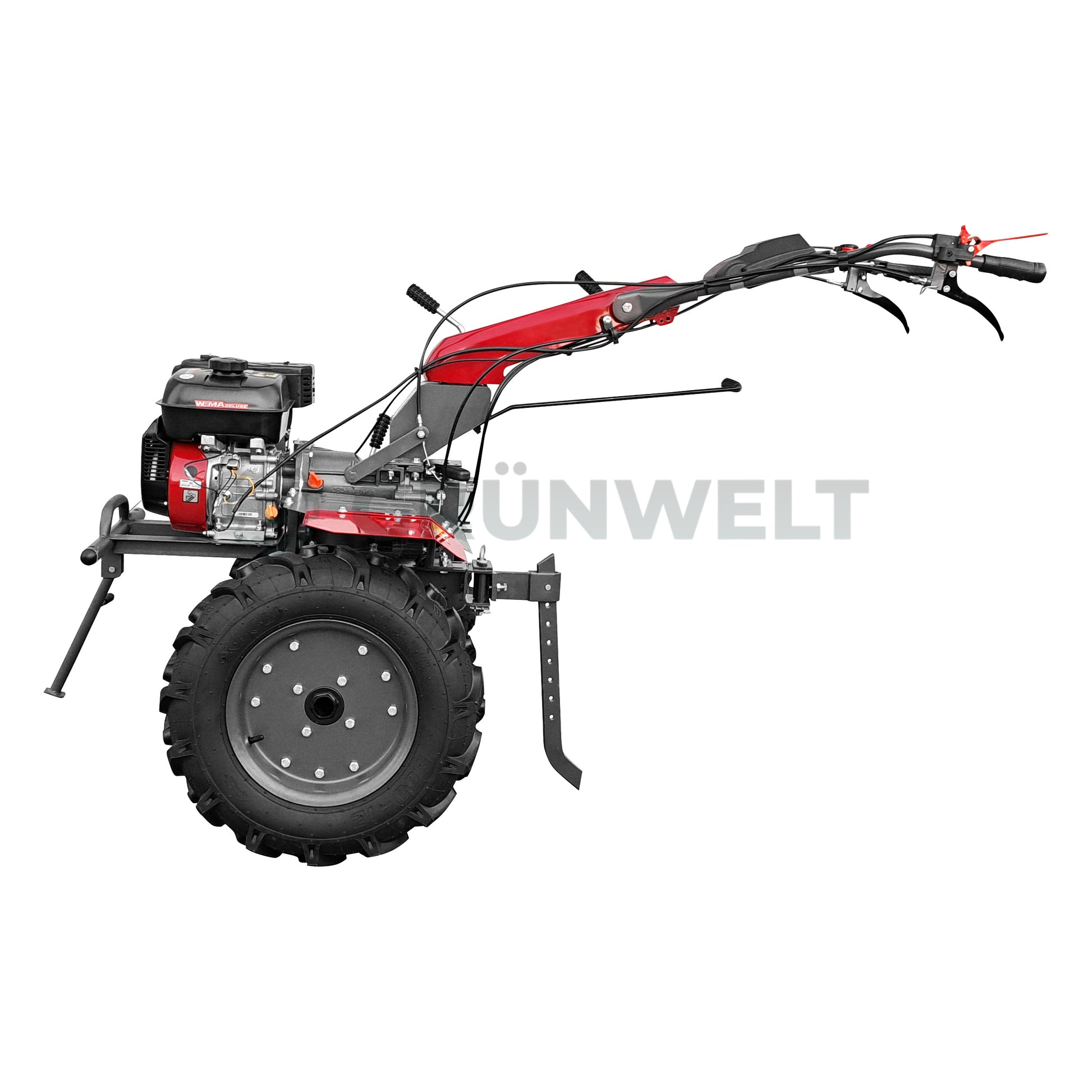

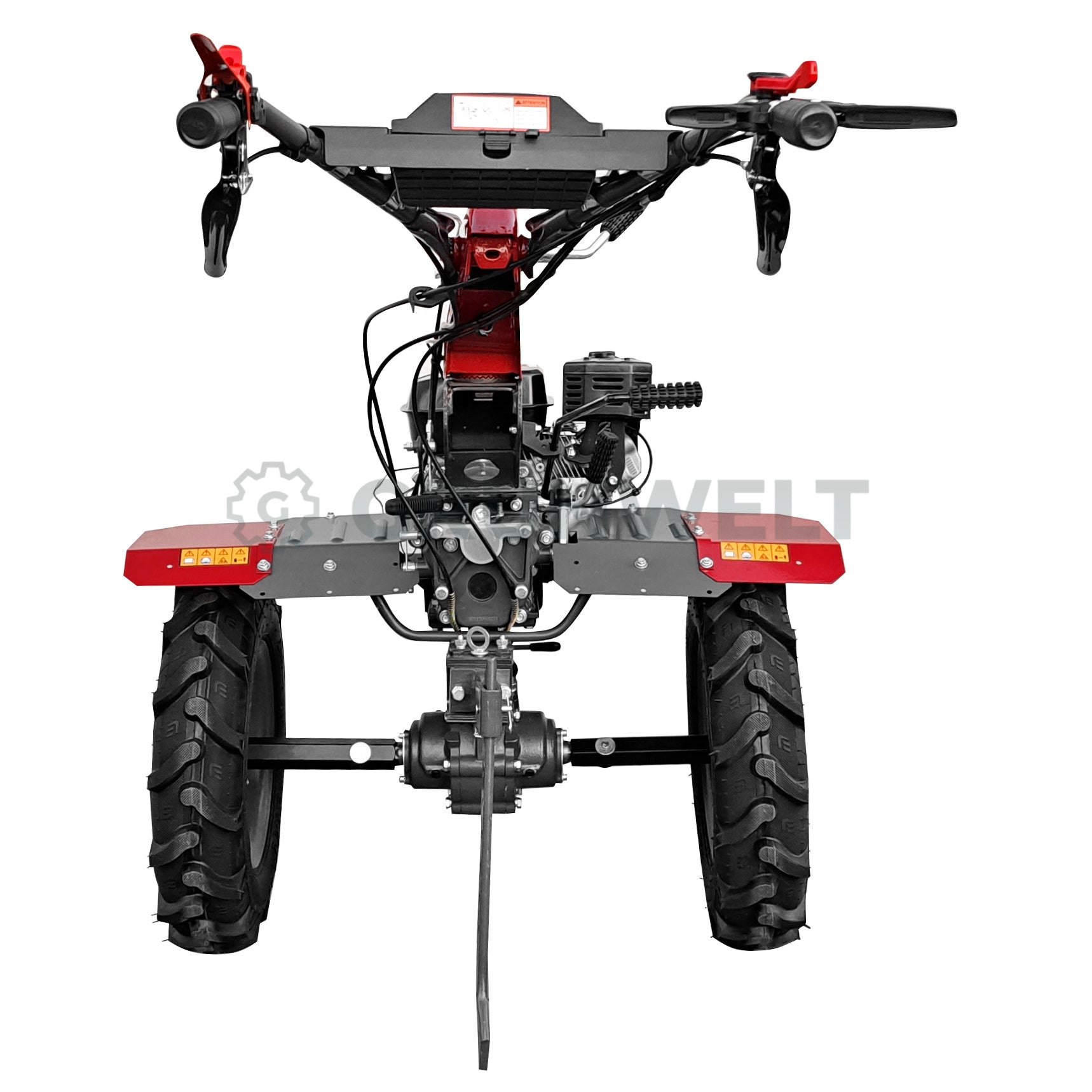

Weima WM1100C-6 DIFF Deluxe motor tiller Weima WM1100C-6 DIFF Deluxe motor tiller is equipped with (2+1+1) tillers with a working width of 135 cm and can work with a variety of attachments, including rotary mowers. Furthermore, mowing for hay harvesting can be done with a transport cart. But that is not all; the model is versatile – with the help of a motorized shovel, it can perform snow clearing tasks. The Weima WM1100C-6 DIFF Deluxe motor tiller is equipped with the Weima W230F petrol engine, which enjoys a good reputation due to its excellent functionality and power. Its main difference is the low fuel consumption and the fact that it is not afraid of prolonged operation at high speeds. A completely new gearbox has been developed with a range of low gears and a very useful option such as locking the half-axles. Thanks to the locking of the half-axles, you can control the motor tiller even more comfortably during various tasks. The wet clutch and the professional gearbox are very reliable parts of the motor tiller, necessary for work on different soils. The Weima WM1100C-6 DIFF Deluxe motor tiller has 5.00 – 12” wheels with pneumatic tires, which ensure flawless passability as well as safer work with plants, since the gearbox does not touch the plants. In addition, this model is equipped with a novel KM steering wheel, which allows more comfortable manual steering. The Weima motor tiller is delivered drained. For the basic unit, you will need 2.4 - 2.5 L of gear oil (SAE 80w-90) and 0.6 - 0.7 L of engine oil (SAE 10w-30 or 10w-40). Also, for the Weima WMBF-6 rotary tiller, you need 1.6 - 1.7 L of gear oil (SAE 80w-90). Weima WMKM1100-6 rotary mower The foldable Weima WMKM1100-6 rotary mower fits the Weima WM1100-6 series motor tiller. The WMKM1100-6 is a good helper for mowing mixed grass, dense grass (hay), and small bushes with a diameter of up to 10 mm. The rotary mower can be very easily connected to the motor tiller using a power take-off shaft. The Weima WMKM1100-6 rotary mower consists of two rotating discs that turn opposite each other. The 8 blades (4 on each disc) can rotate freely and are secured with a split pin. Using centrifugal force, the blades align when the discs rotate and begin their work. When operating the rotary mower, it is recommended to dismantle the corner joints every 12 hours and grease the gears with thick grease. This extends the device’s service life.

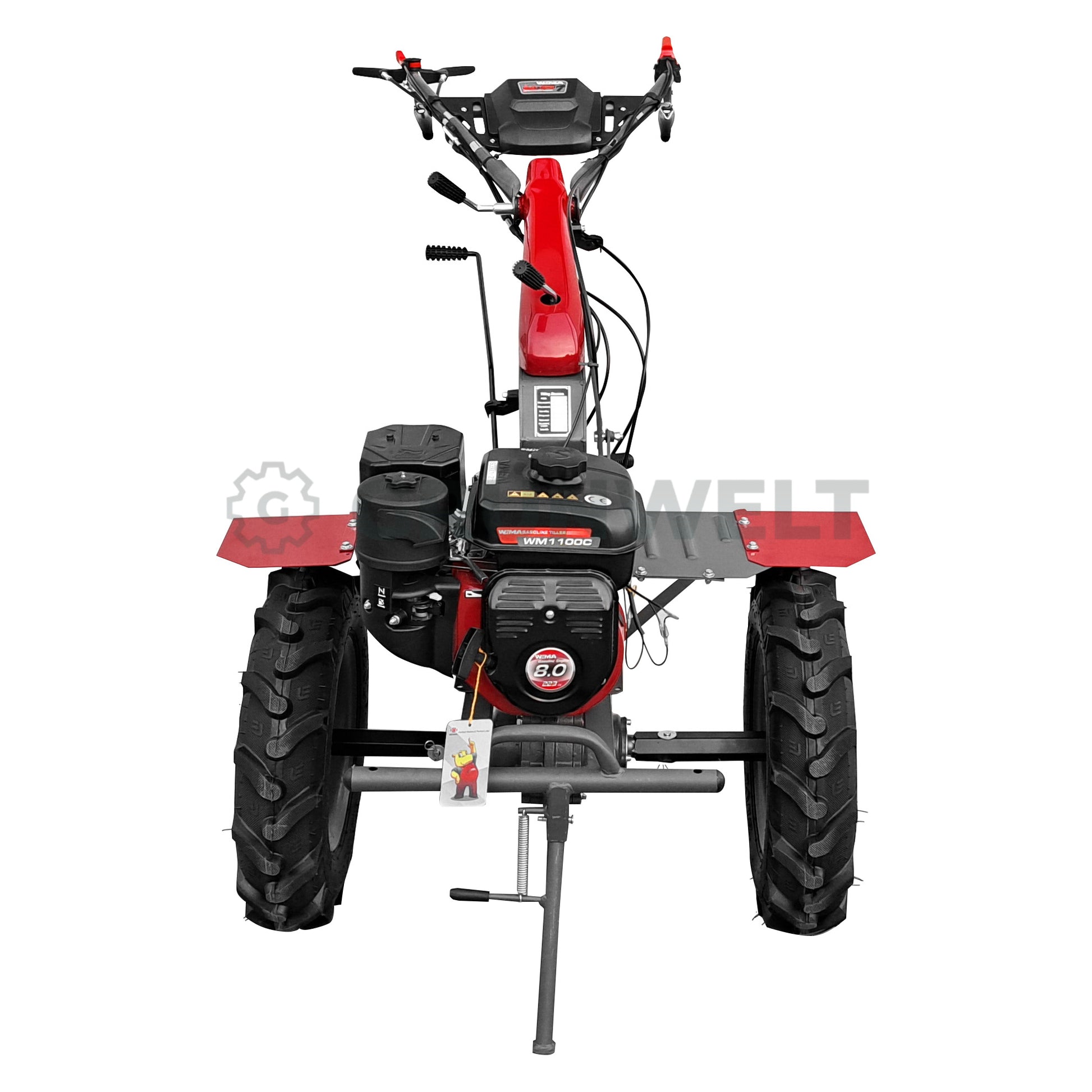

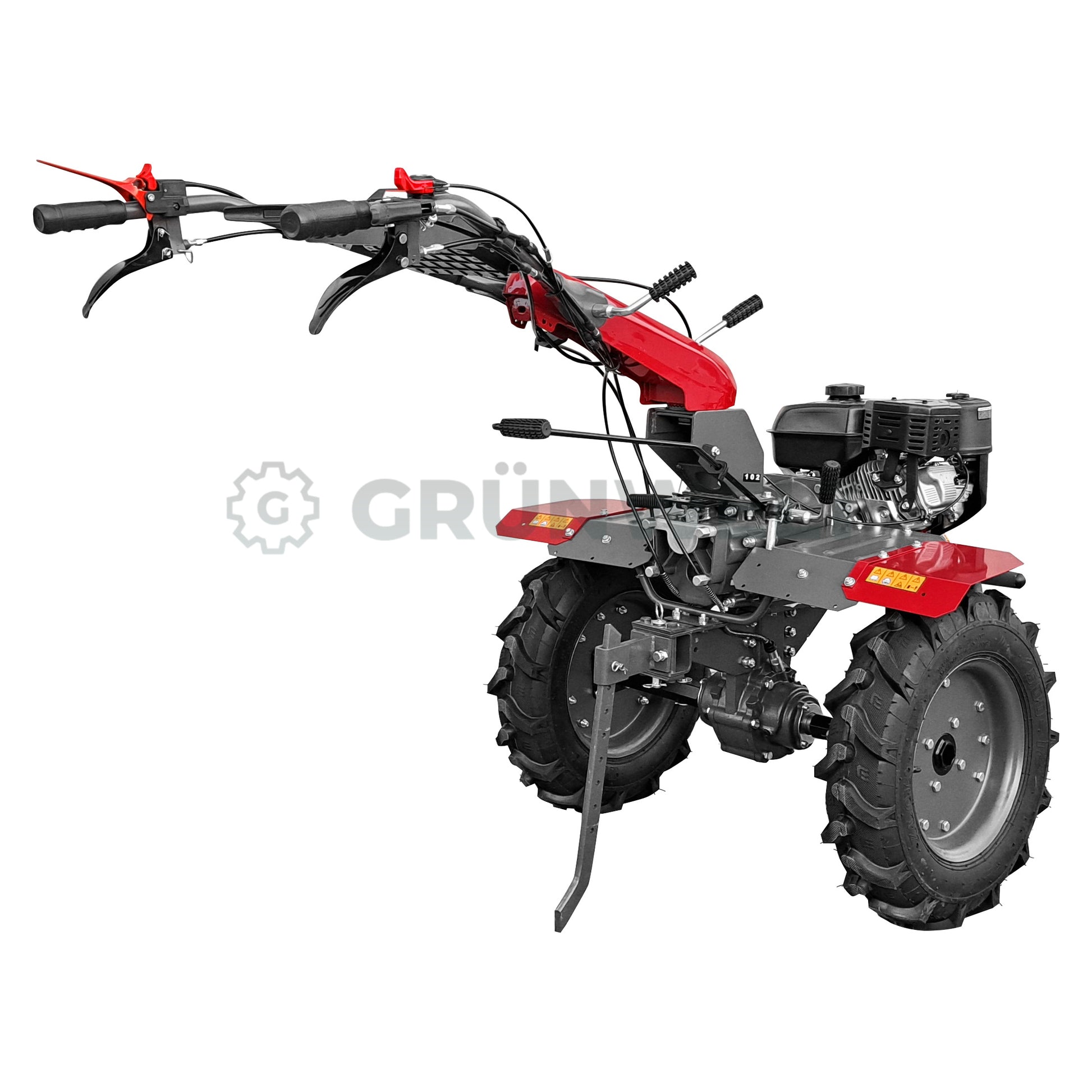

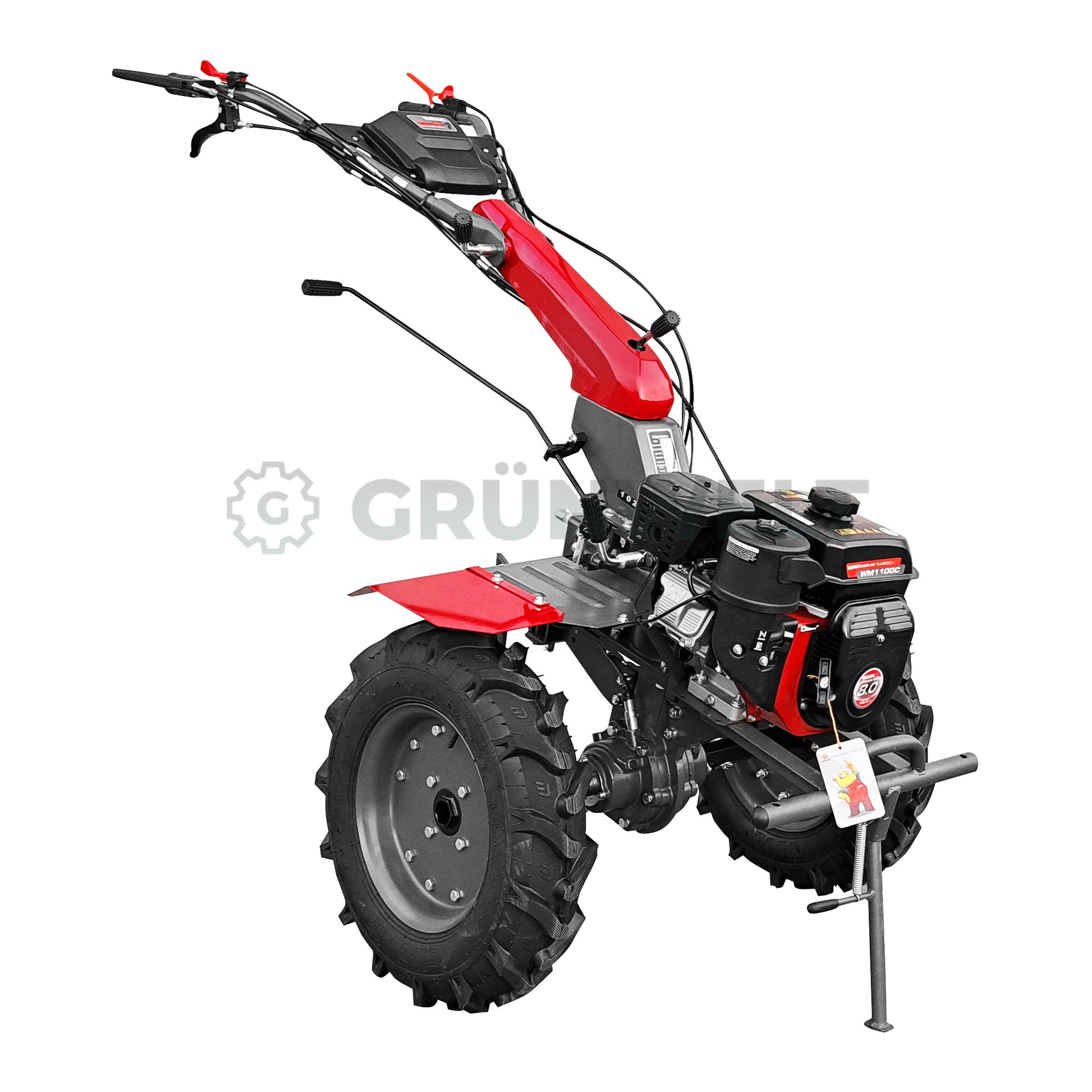

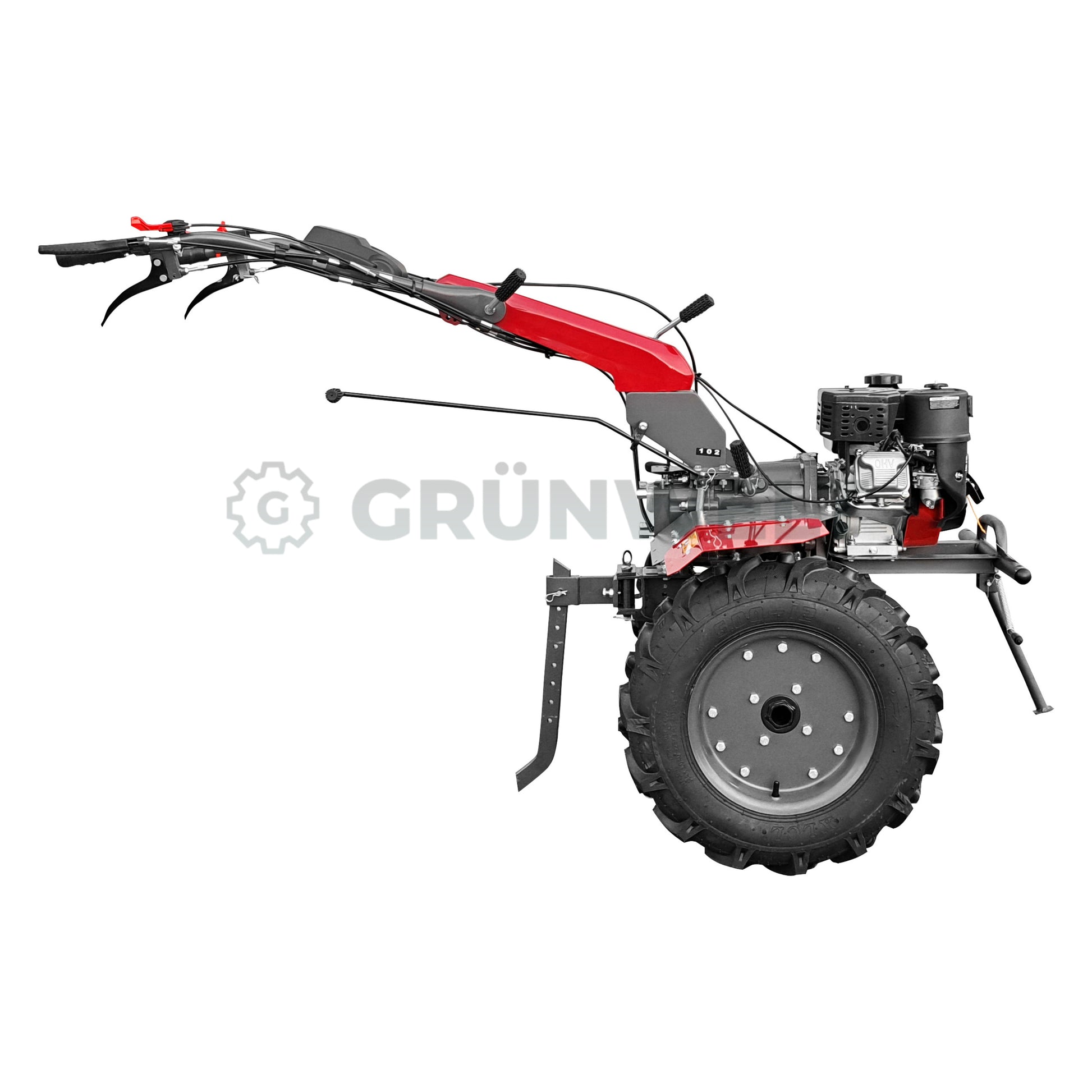

Motor tiller Weima WM1100C-6 DIFF Deluxe
• Powerful engine Weima W230F (EURO 5, 4-stroke, single-cylinder, OHV, forced cooling)
• Various uses thanks to a wide range of attachments
• Throttle for strong forward drive
• Low fuel and oil consumption
• Working width up to 1350 mm

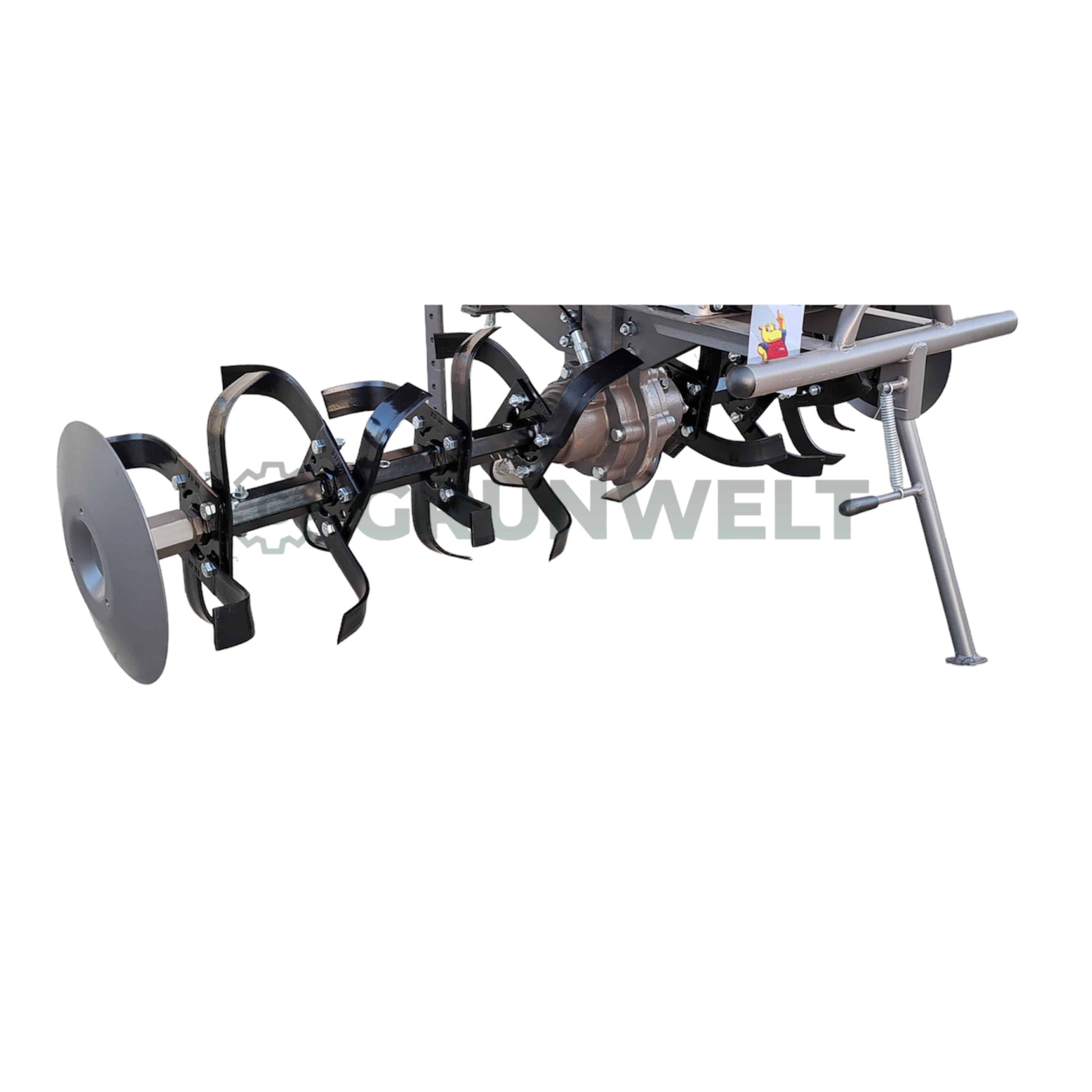

• Sturdy tiller blades
• Tiller blade stop by dead man's switch
• Weight-optimized design for easy handling

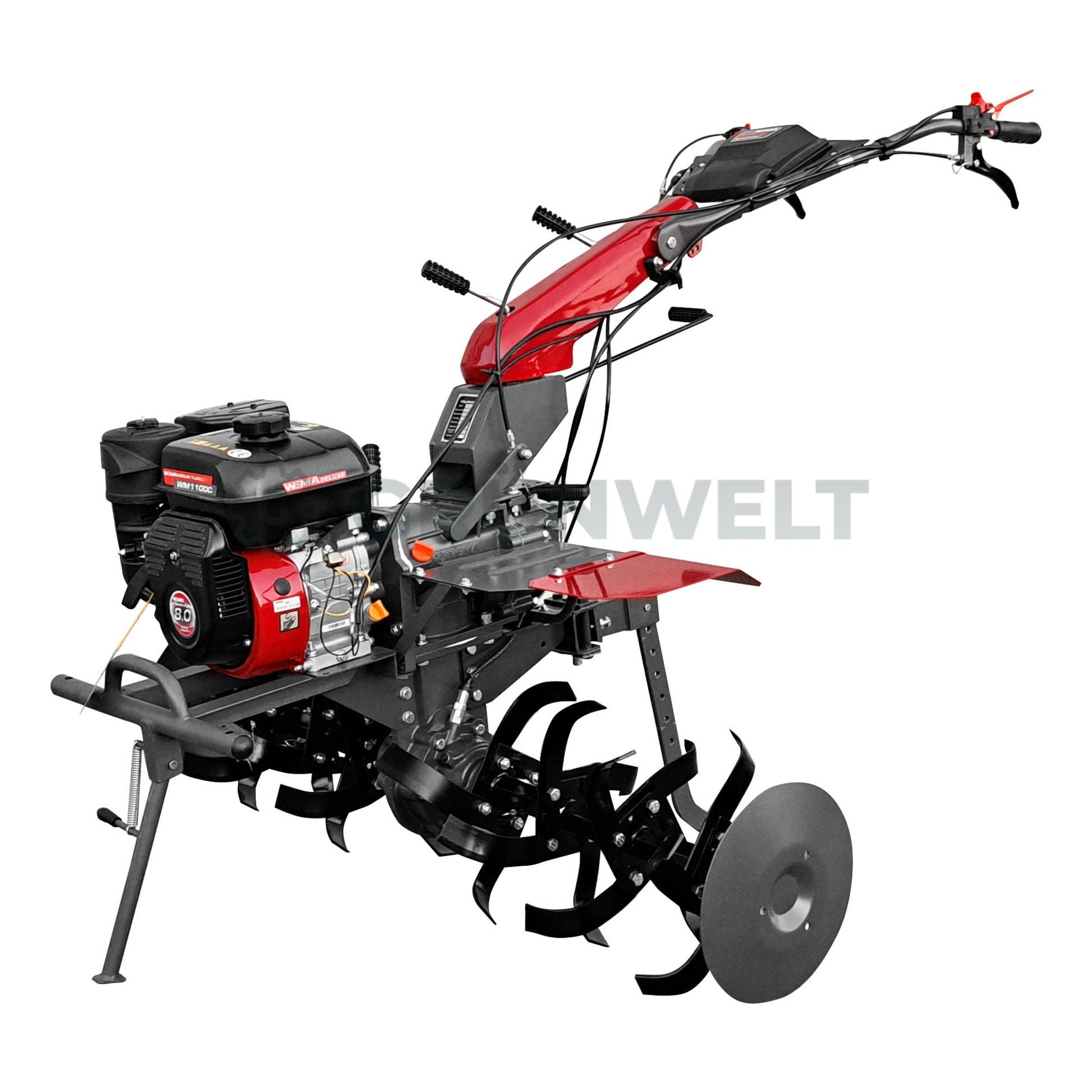

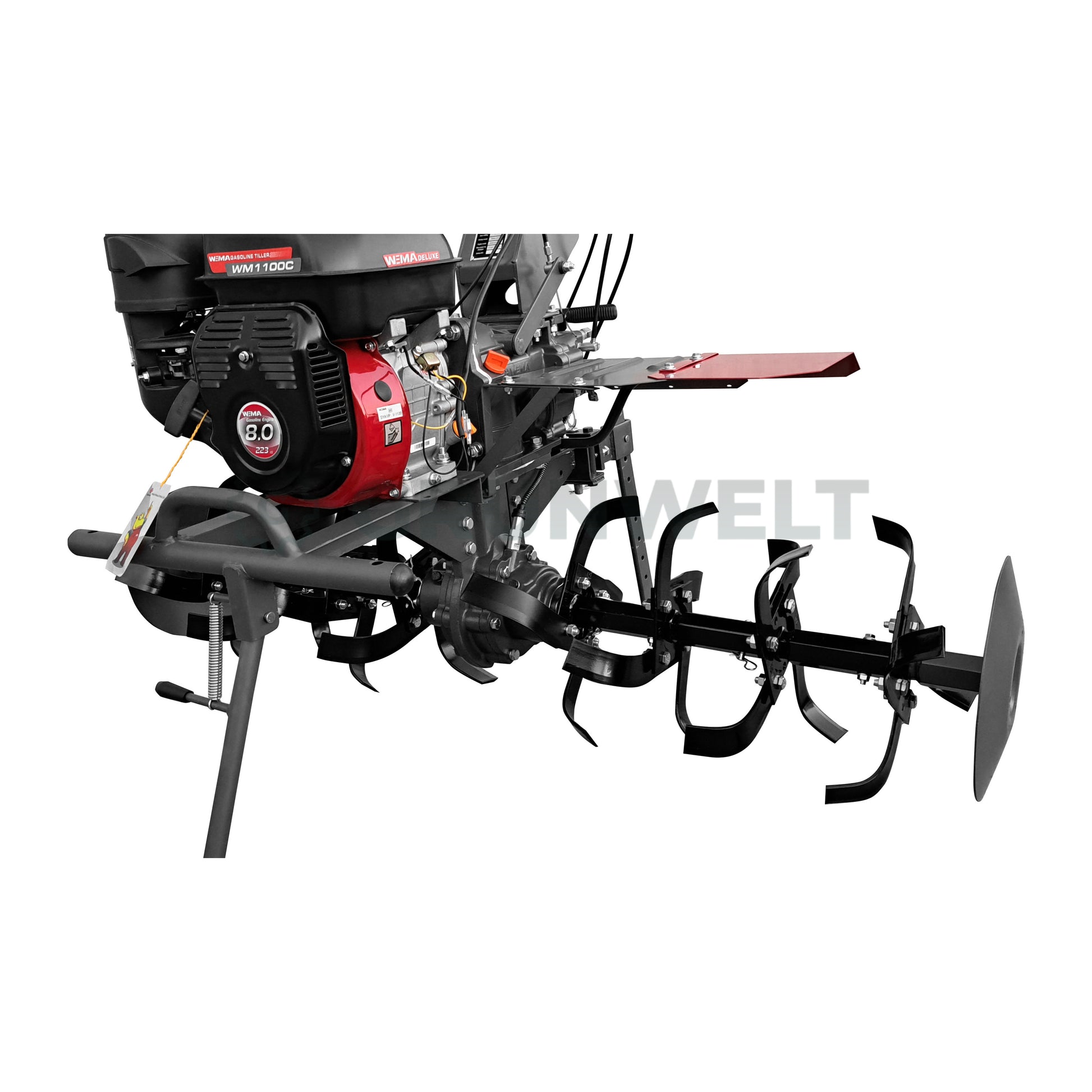

Rotary tiller Weima WM1100C-6 DIFF Deluxe
• GTIN: 4260614713024
• Working width: 800 – 1350 mm
• Working depth: 150 – 300 mm
• Gearshift: 4 forward, 2 reverse
• Drive model: Gearbox, locking of half axles
• Gear oil capacity: 2.5 L
• Tires: 5.00 – 12“

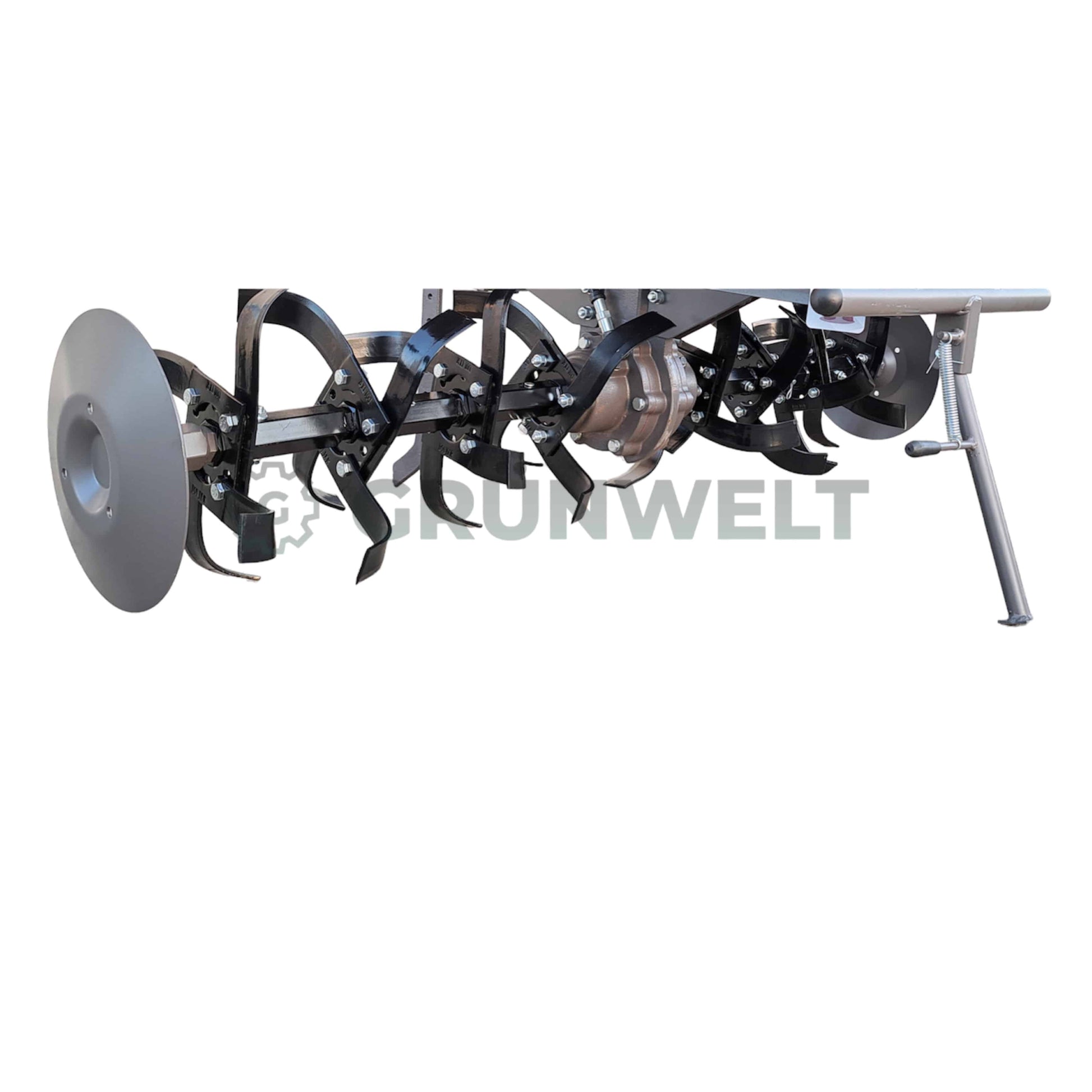

• Tilling blades: 4 × (2+1+1) pcs.
• Engine: Weima W230F
• Type: EURO 5, OHV, single-cylinder, 4-stroke, forced cooling
• Displacement: 223 cm³
• Engine power: 5.1 kW / 7.5 hp
• Starting system: Pull cord starter
• Fuel / engine oil volume: 3.6 / 0.6 L
• Dimensions: 1755 × 1100 × 1000 mm
• Net weight: 120 kg

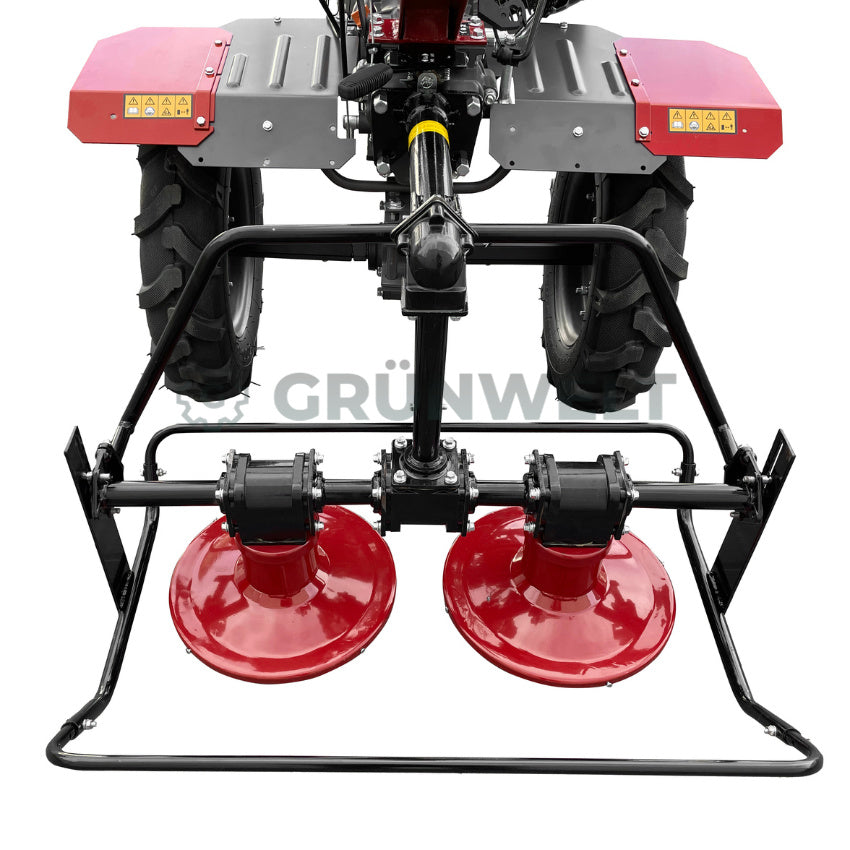

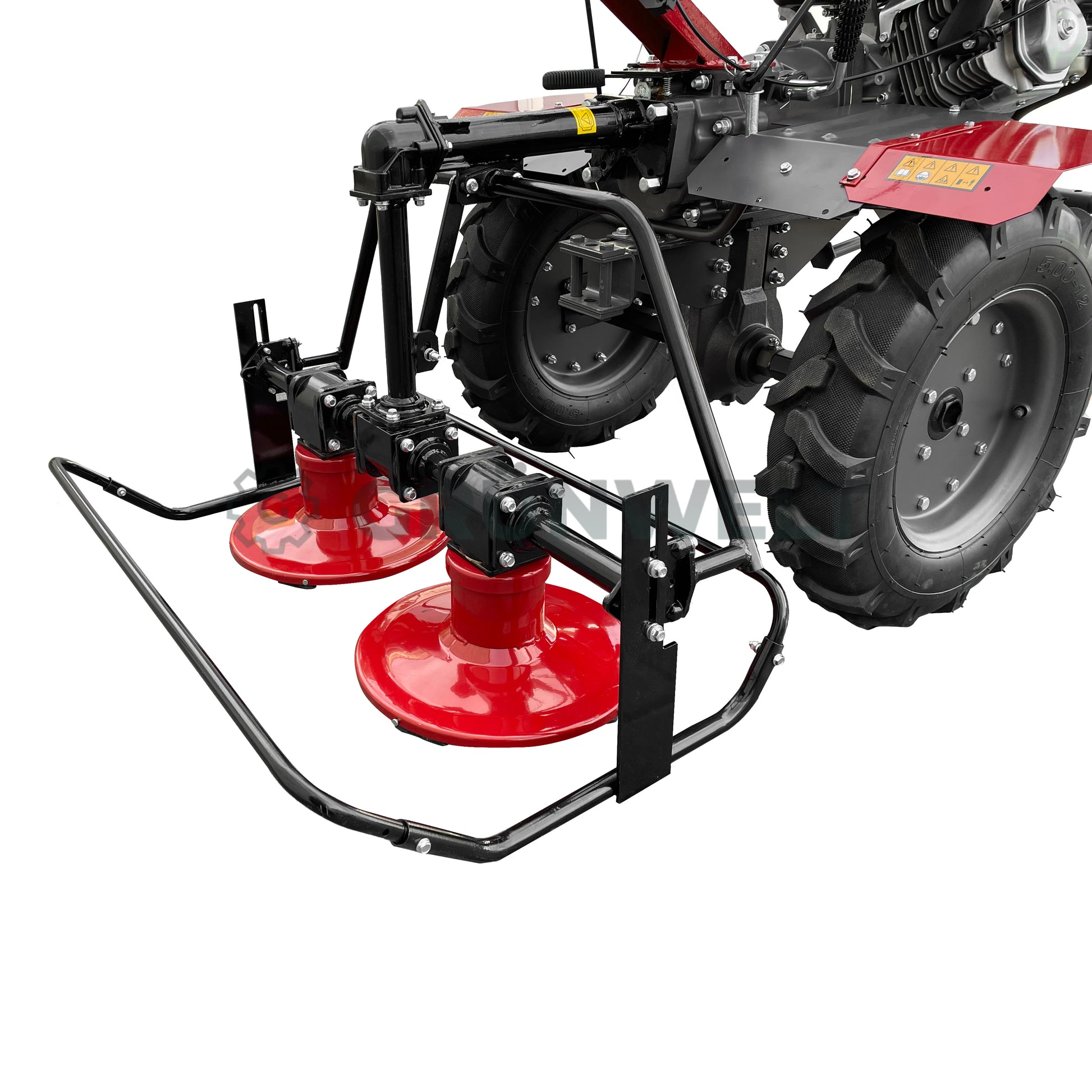

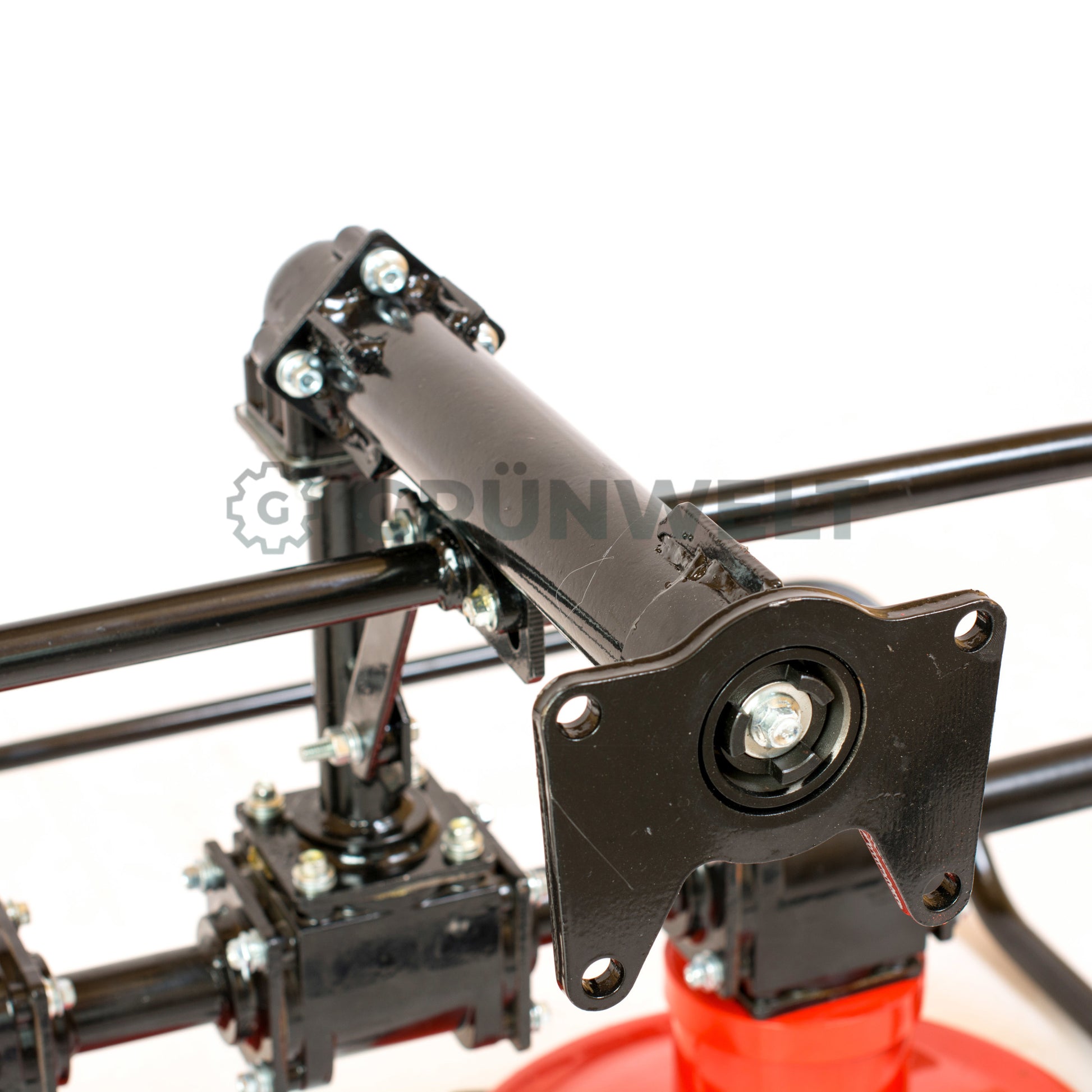

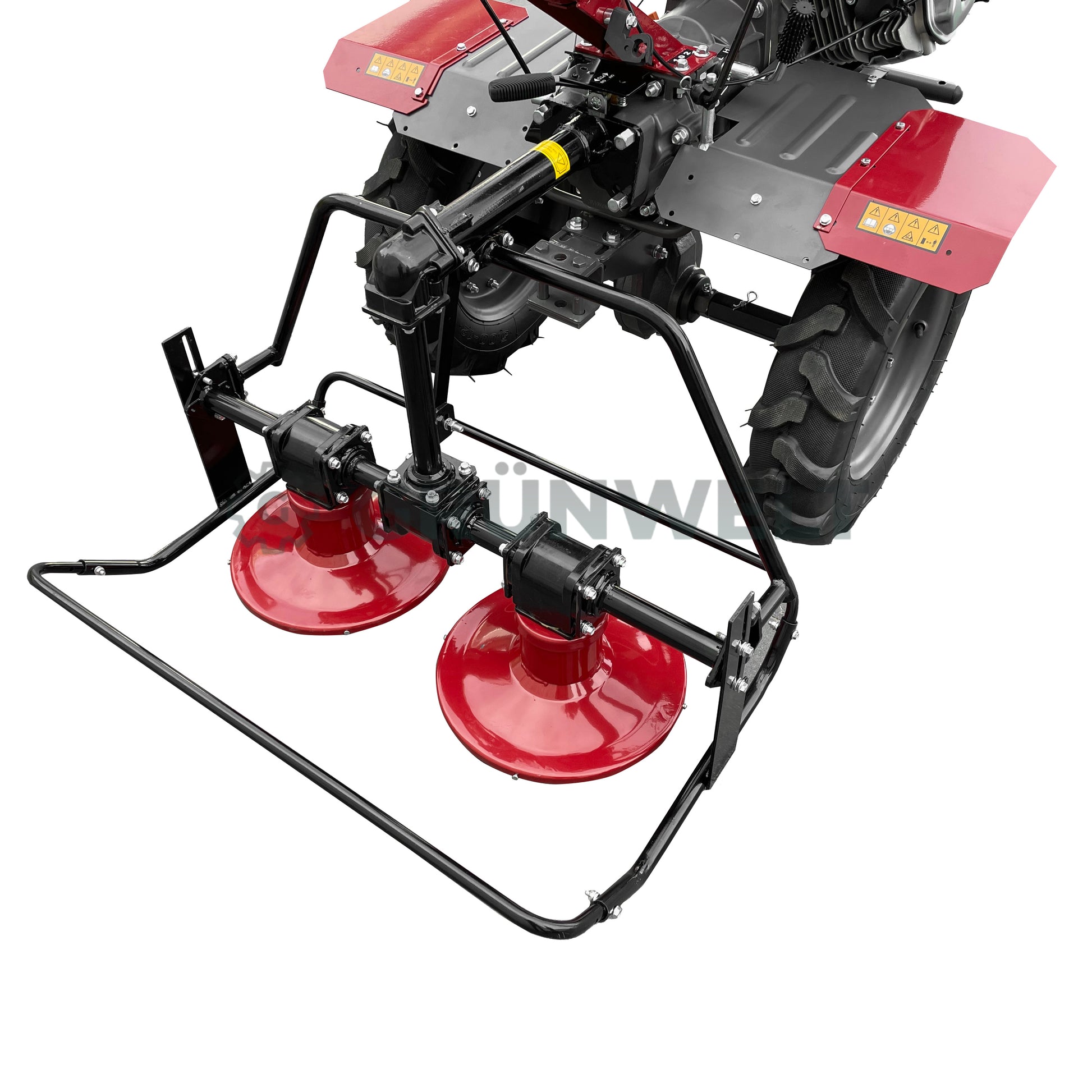

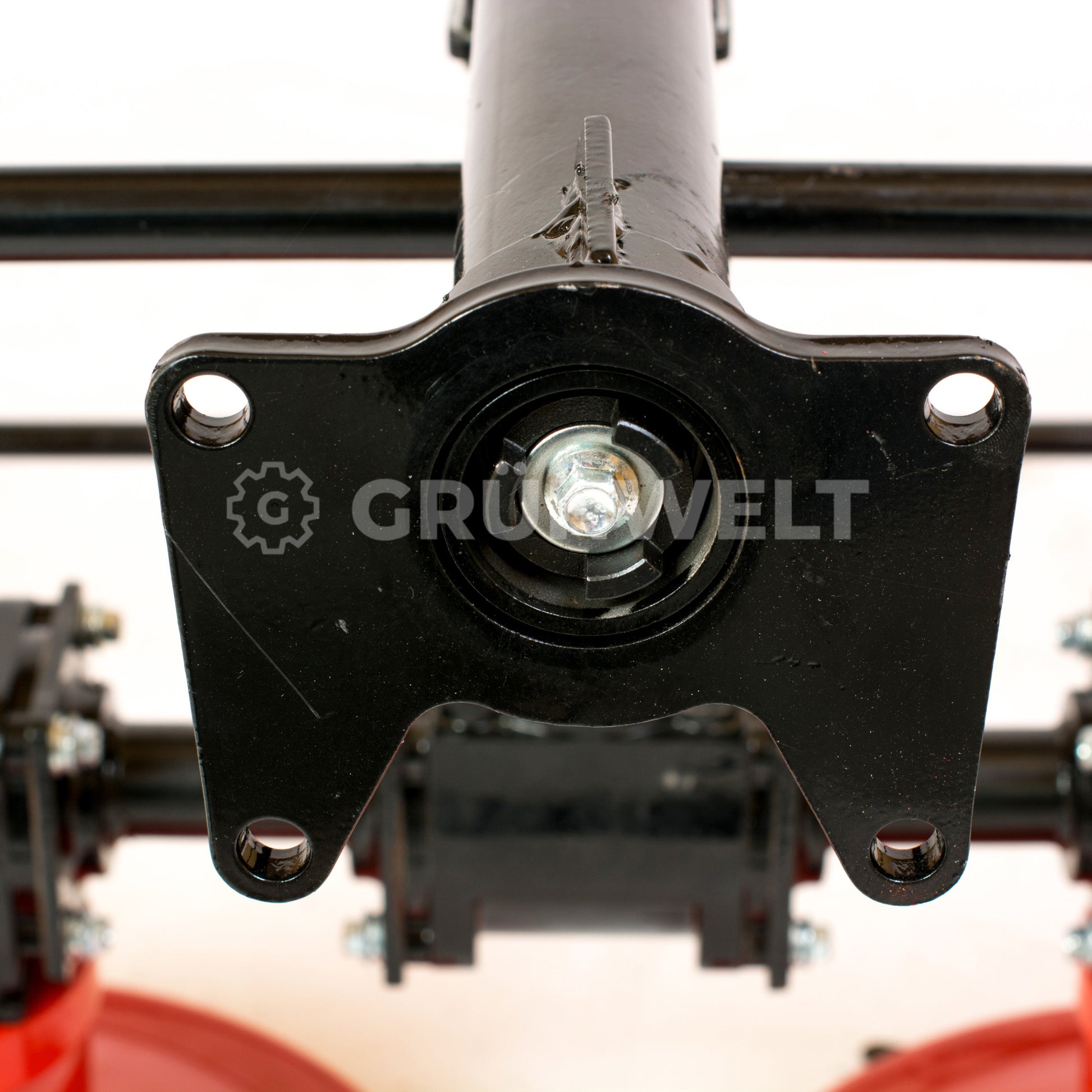

Rotary mower Weima WMKM1100-6
• GTIN: 6971472300360
• Type: Trailed
• Cutting width: 850 mm
• Maximum cutting height: 70 mm
• Working speed: approx. 2-4 km/h
• Mountable on rotary tiller: Weima WM1000N-6, WM1100-6 series
• Average output: 0.15 – 0.2 hectare/h
• PTO speed: 540 rpm
• Dimensions: 810 × 930 × 780 mm
• Net weight: 23 kg

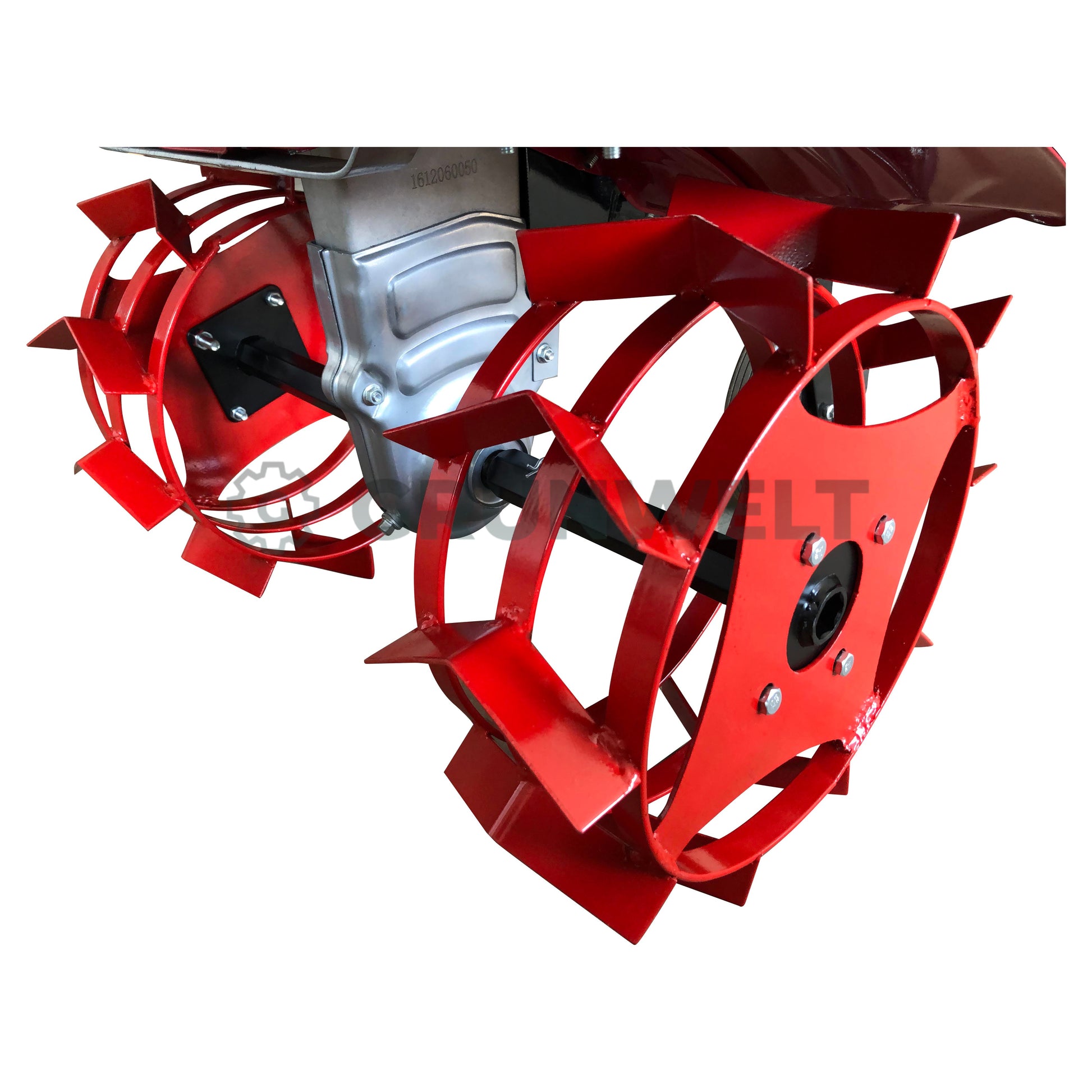

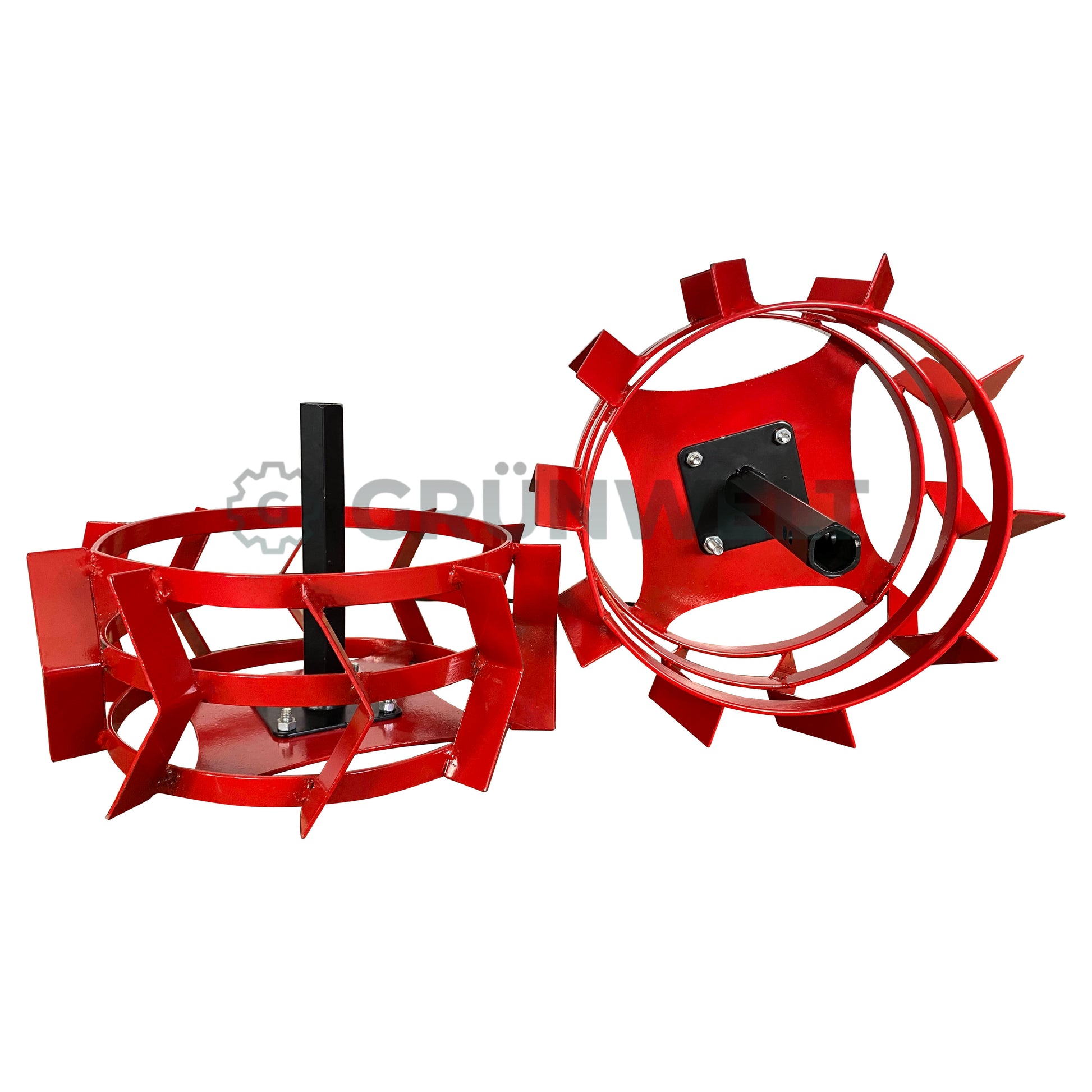

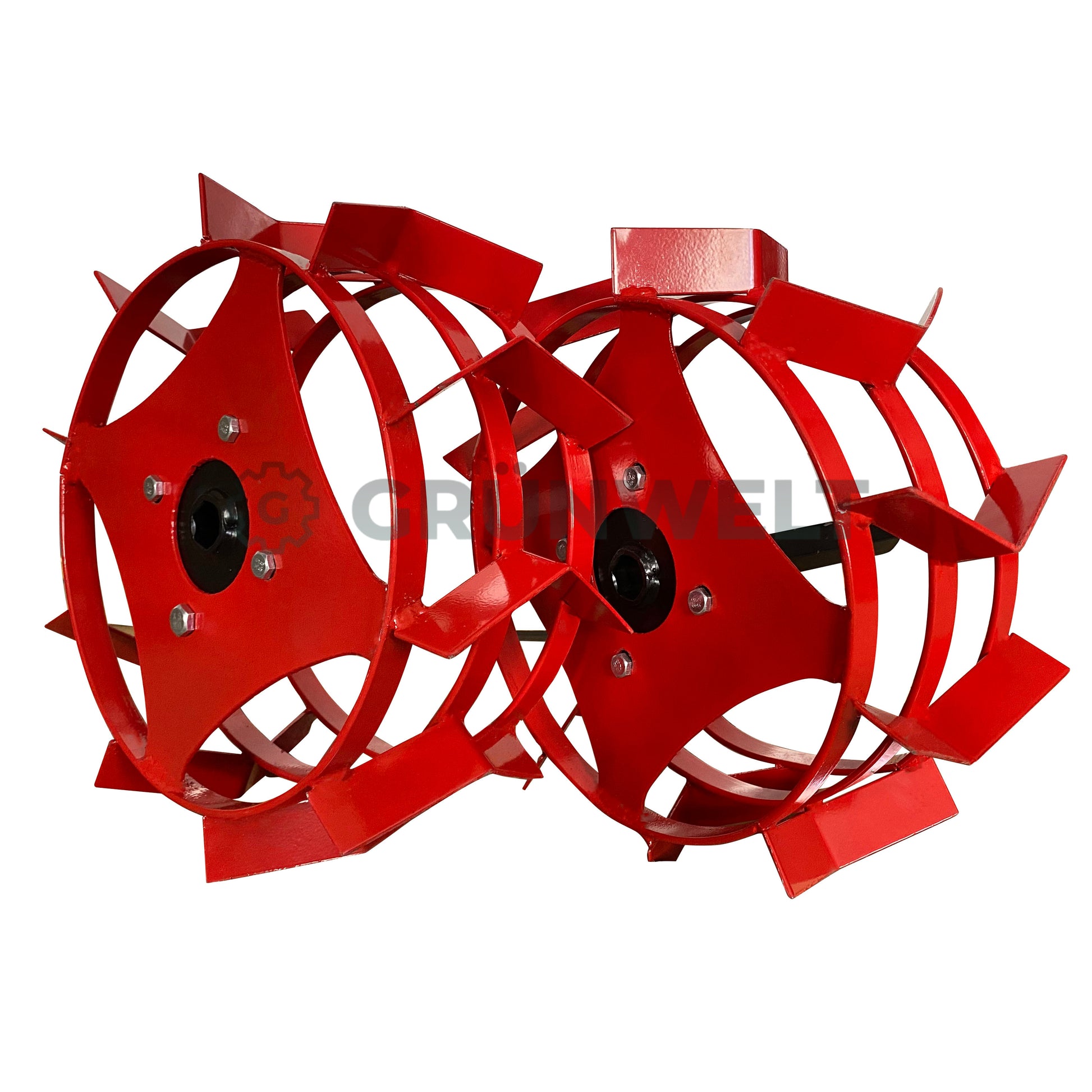

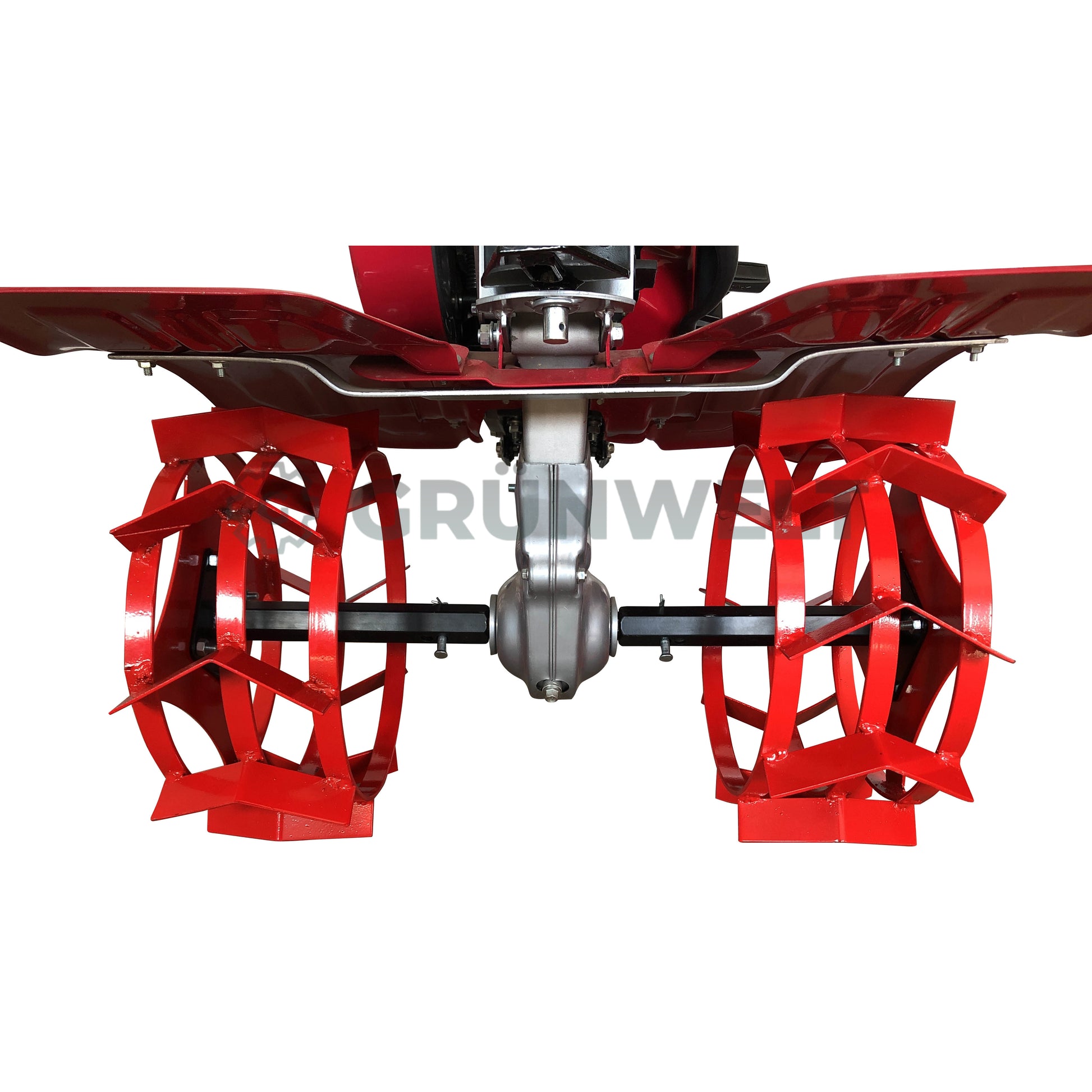

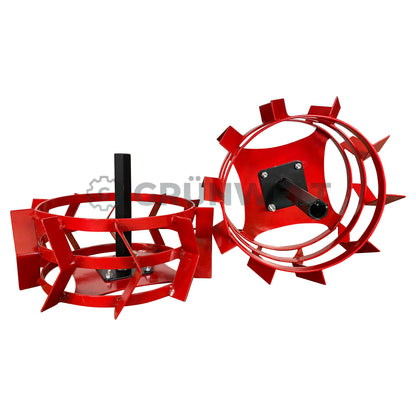

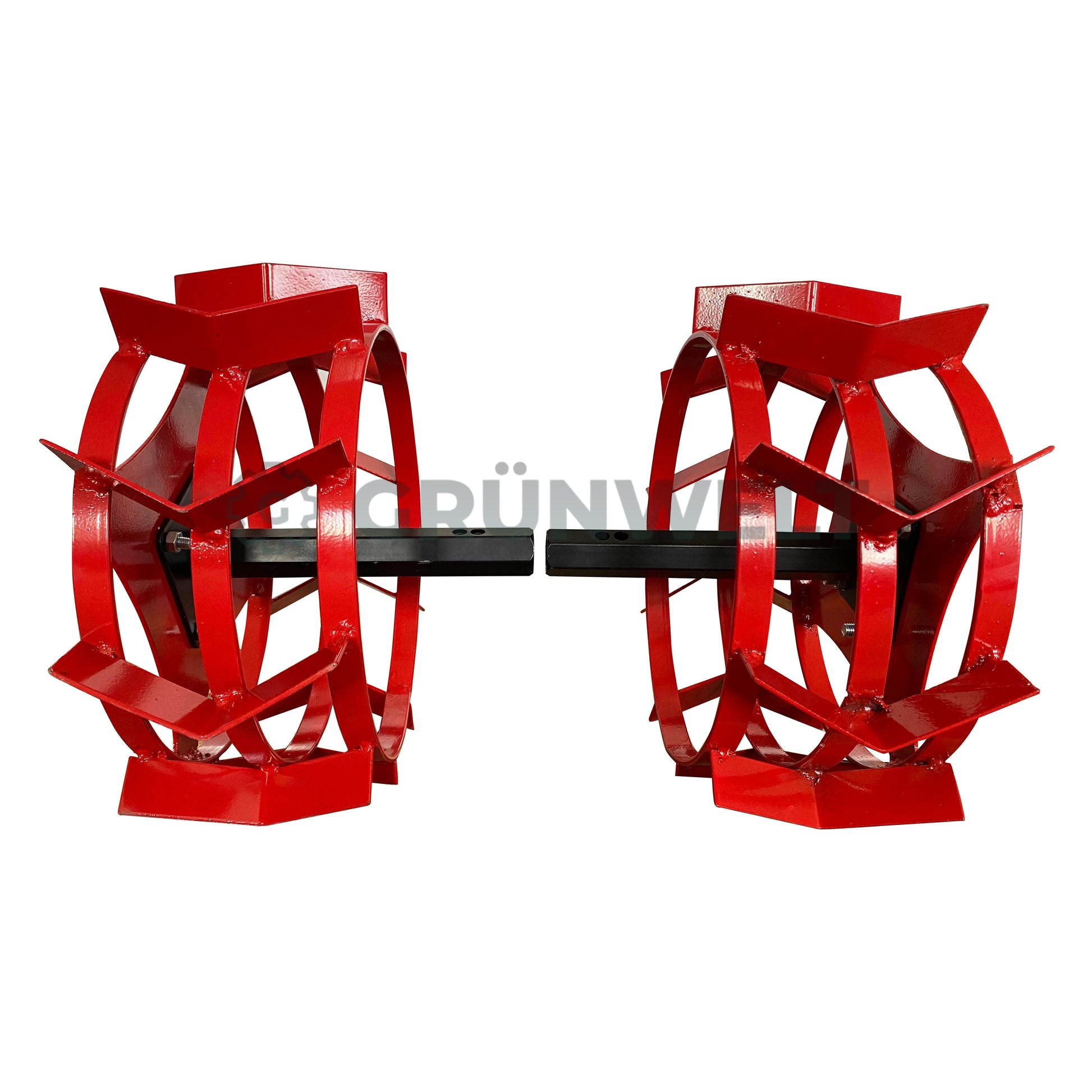

Iron wheels Grünwelt GW-ER430
• GTIN: 4260614710177
• Suitable for: Weima WM500, WM900M-3, WM1000N series, WM1100 series
• Diameter: 390 mm / 430 mm including studs
• Tread width: 150 mm
• Stud height: 40 mm
• Diameter of inner bore: 70 mm
• Hole spacing: 4 × 110 mm
Half axles Grünwelt GW-AX32-220
• GTIN: 4260614710245
• Length: 218 mm
• Diameter: 32 mm
• Hole spacing: 110 mm
