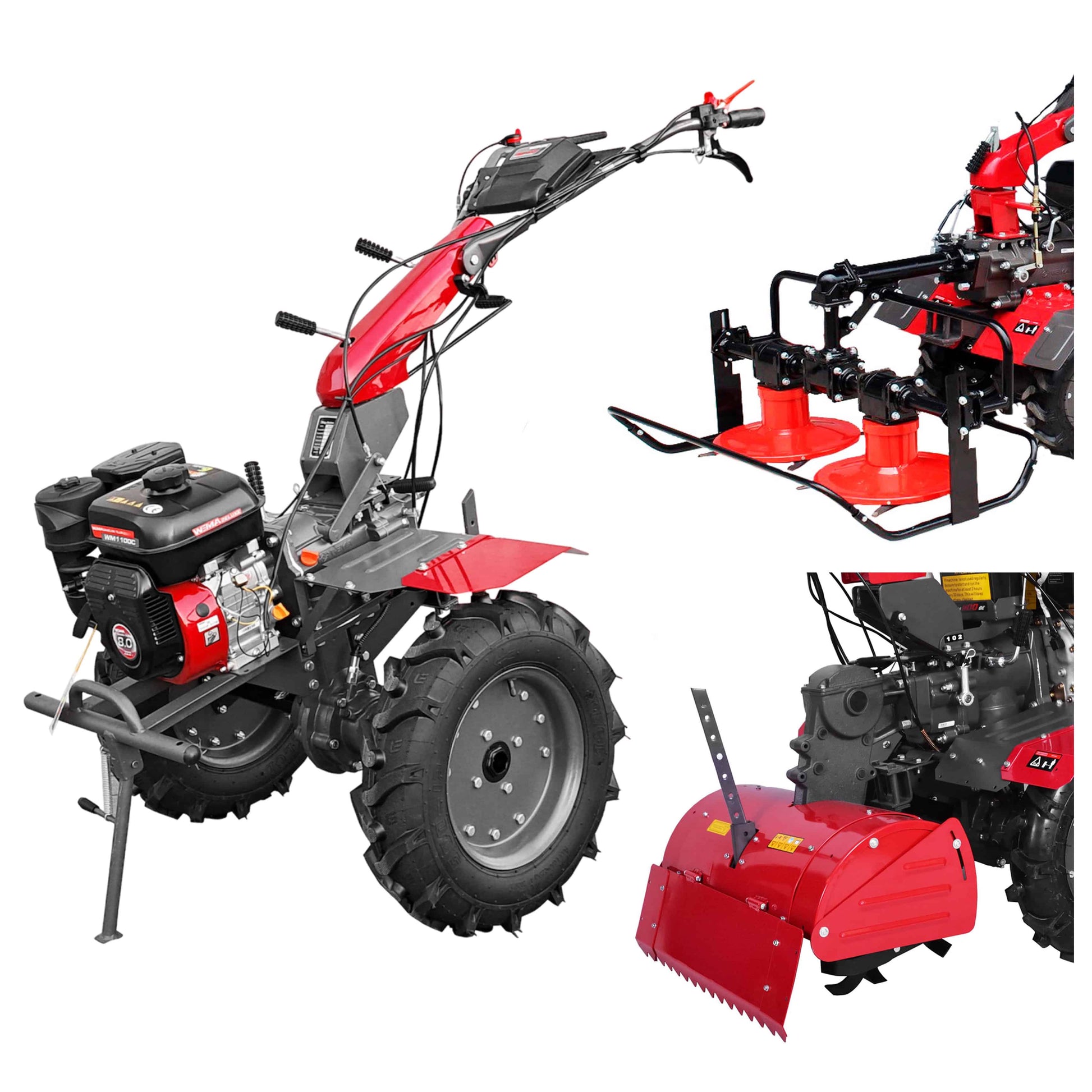

Rototiller Weima WM1100C-6 DIFF Deluxe SET with rotary tiller and rotary mower (without gearbox and engine oil)

Rototiller Weima WM1100C-6 DIFF Deluxe SET with rotary tiller and rotary mower (without gearbox and engine oil)

Regular price €2.529,99
Regular price €2.529,99 Sales price
SAVE Liquid error (snippets/price line 112): Computation results in '-Infinity'% Sold out

Rototiller Weima WM1100C-6 DIFF Deluxe Rototiller Weima WM1100C-6 DIFF Deluxe is equipped with the cutters (2+1+1) with a working width of 135 cm and can work with a variety of attachments, including rotary mowers.

Get it between - and -.

Rototiller Weima WM1100C-6 DIFF Deluxe SET with rotary tiller and rotary mower (without gearbox and engine oil)

Regular price €2.529,99
Regular price €2.529,99 Sales price
SAVE Liquid error (snippets/price line 112): Computation results in '-Infinity'% Sold out
  • American Express
  • Apple Pay
  • Bancontact
  • EPS
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • MobilePay
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa
Show full details

Foldable content

DESCRIPTION

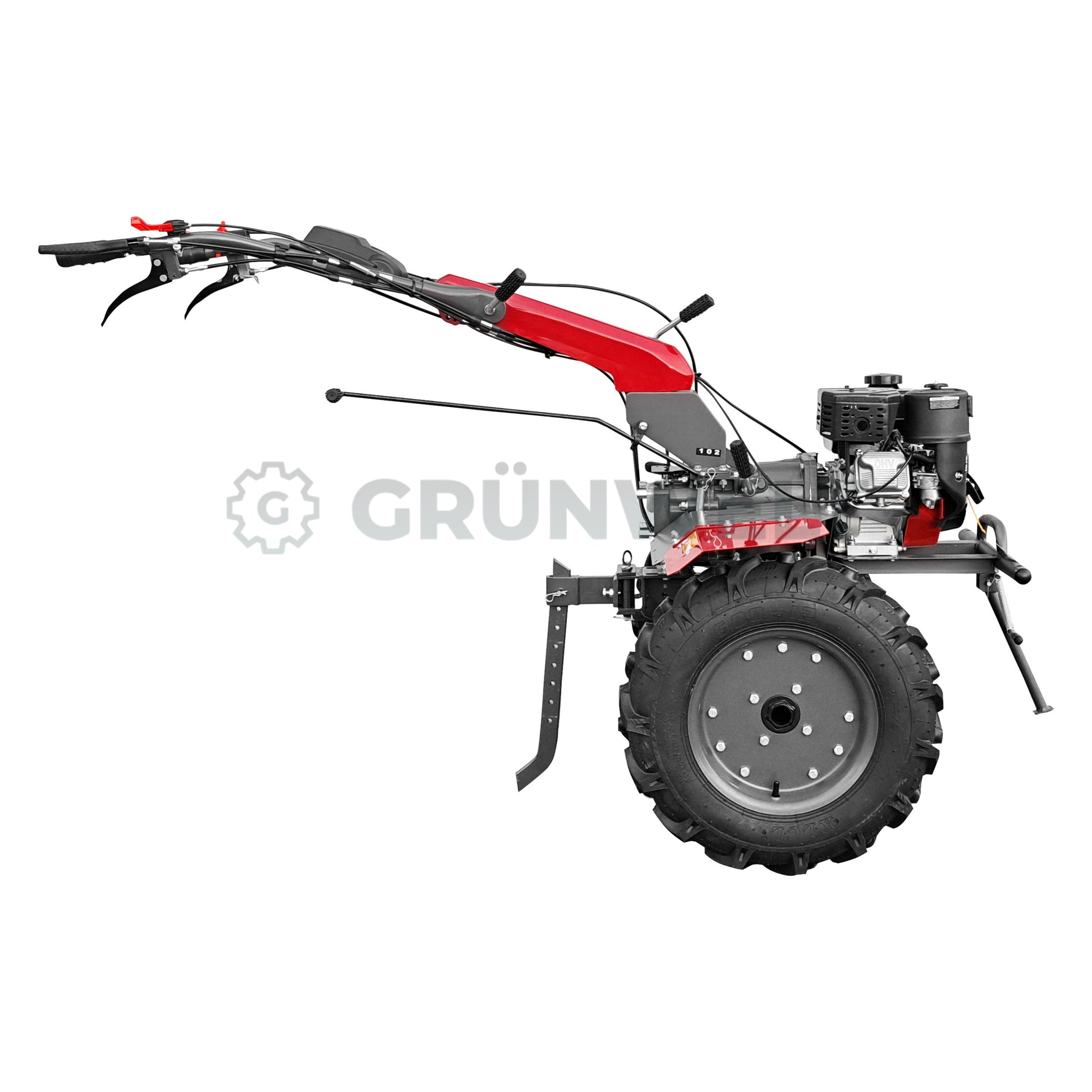

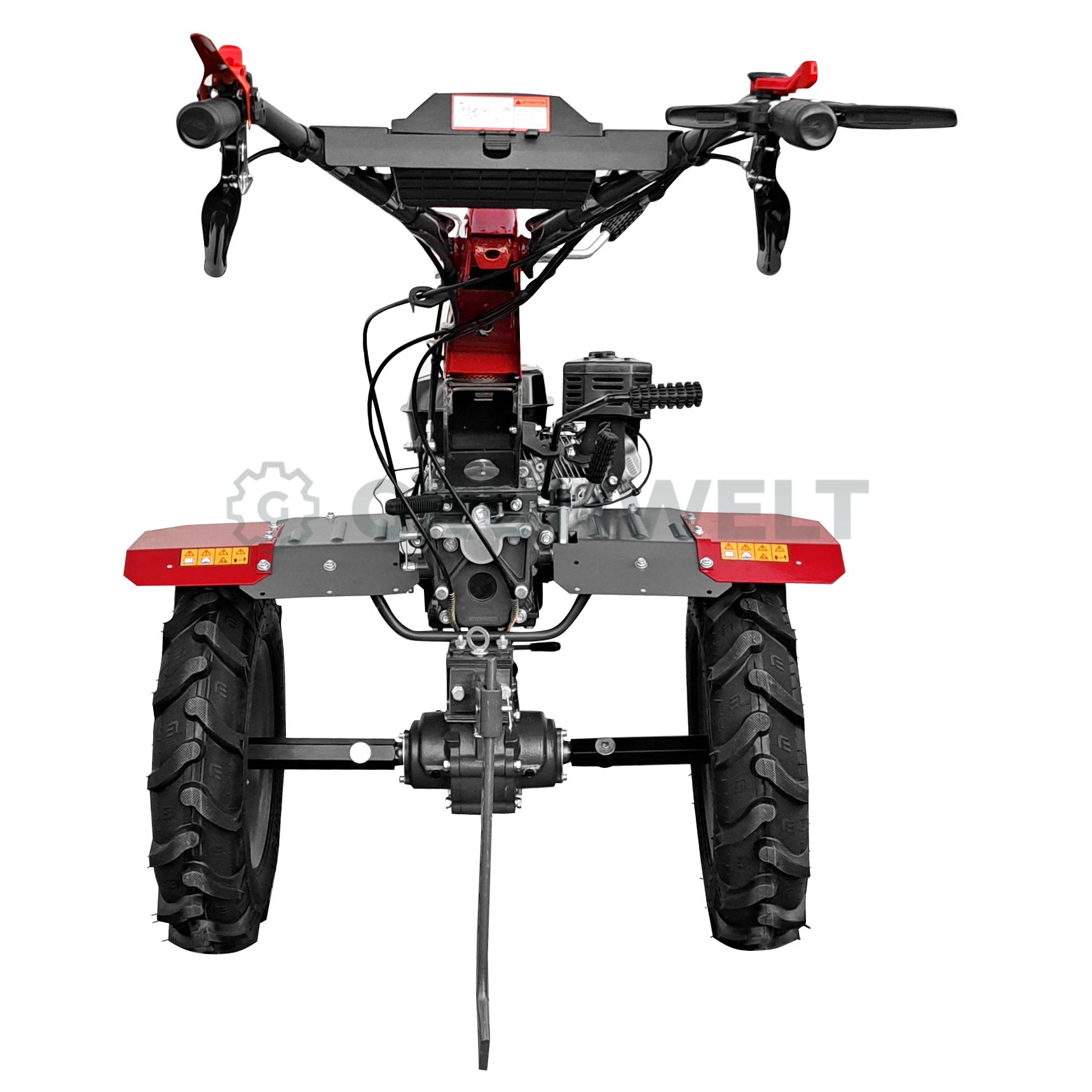

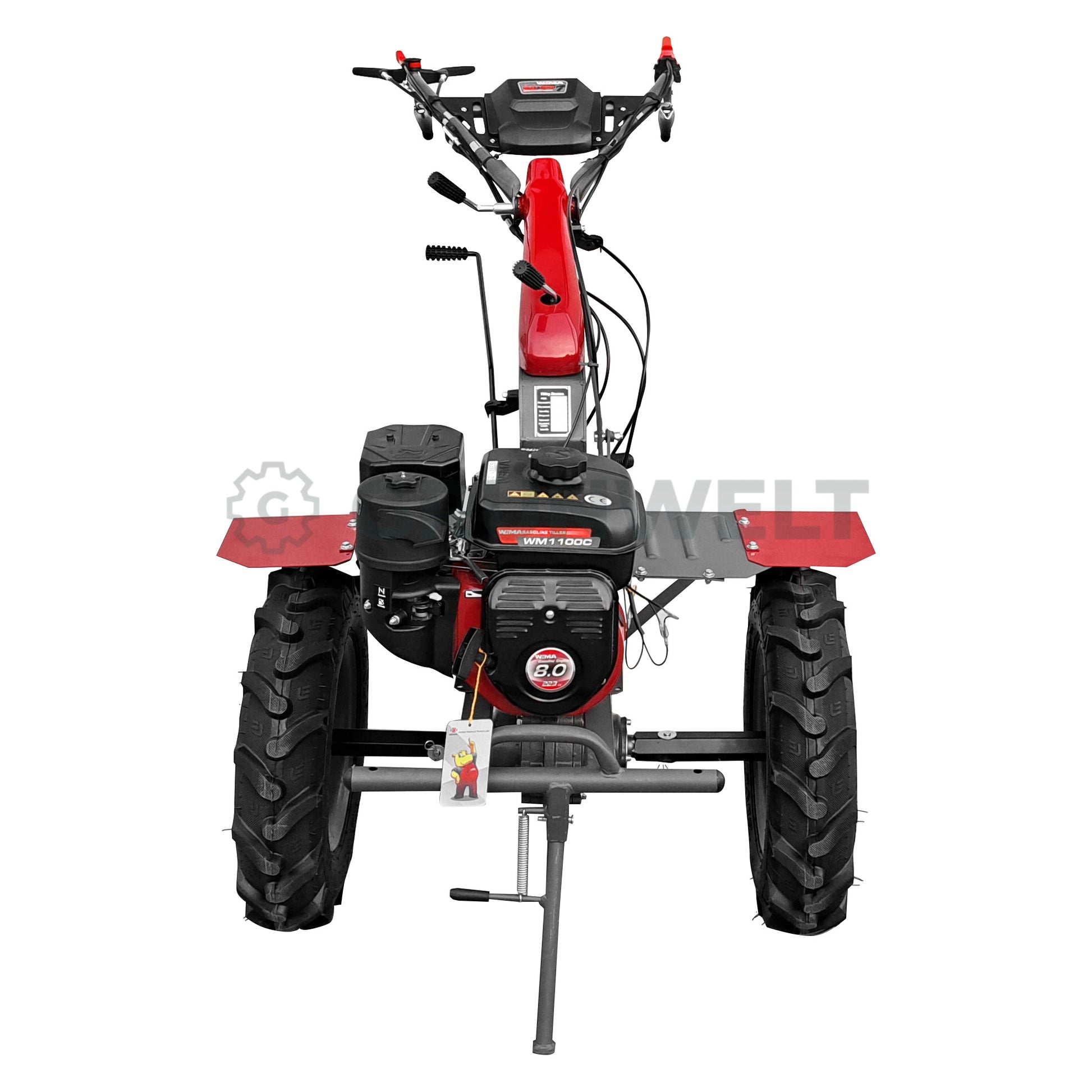

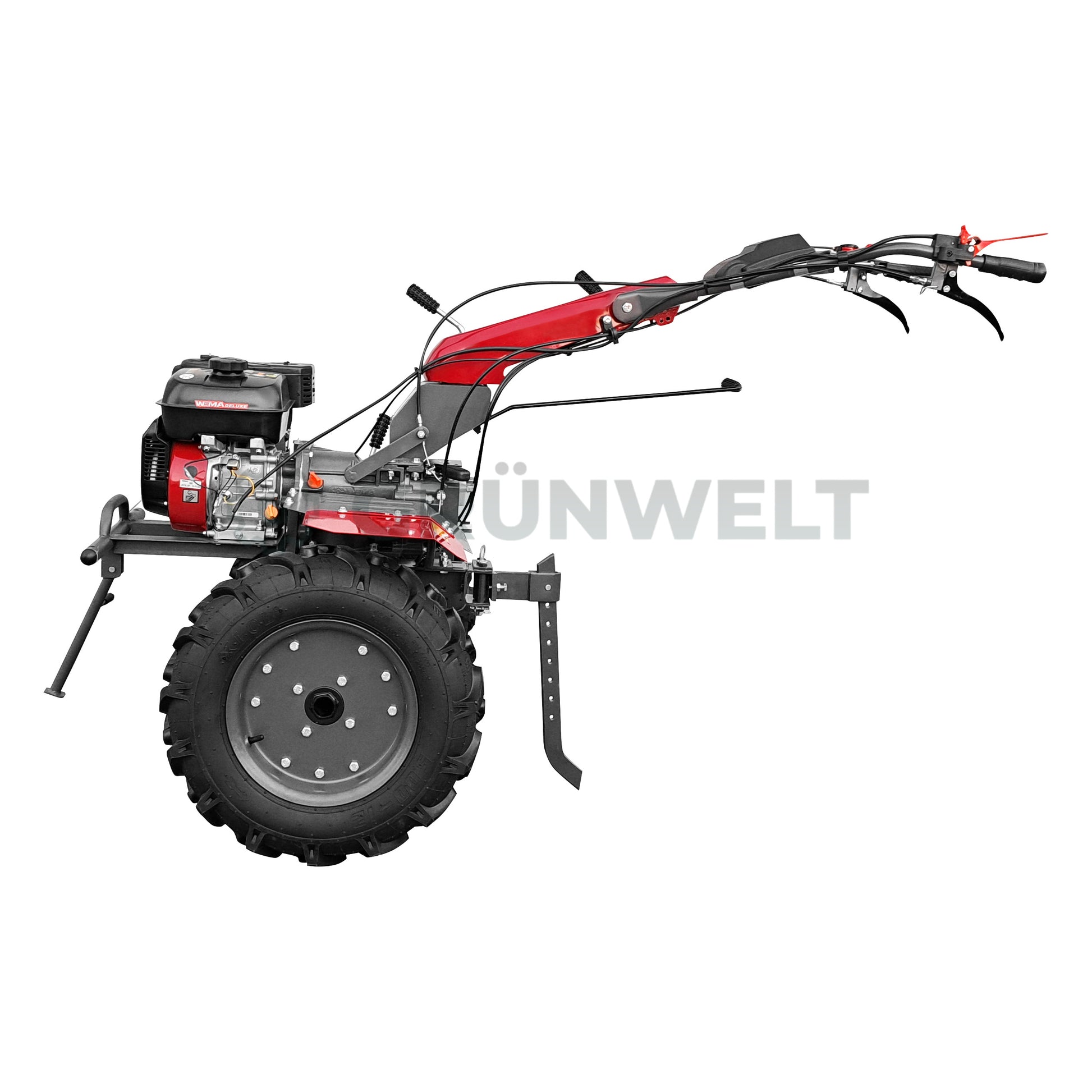

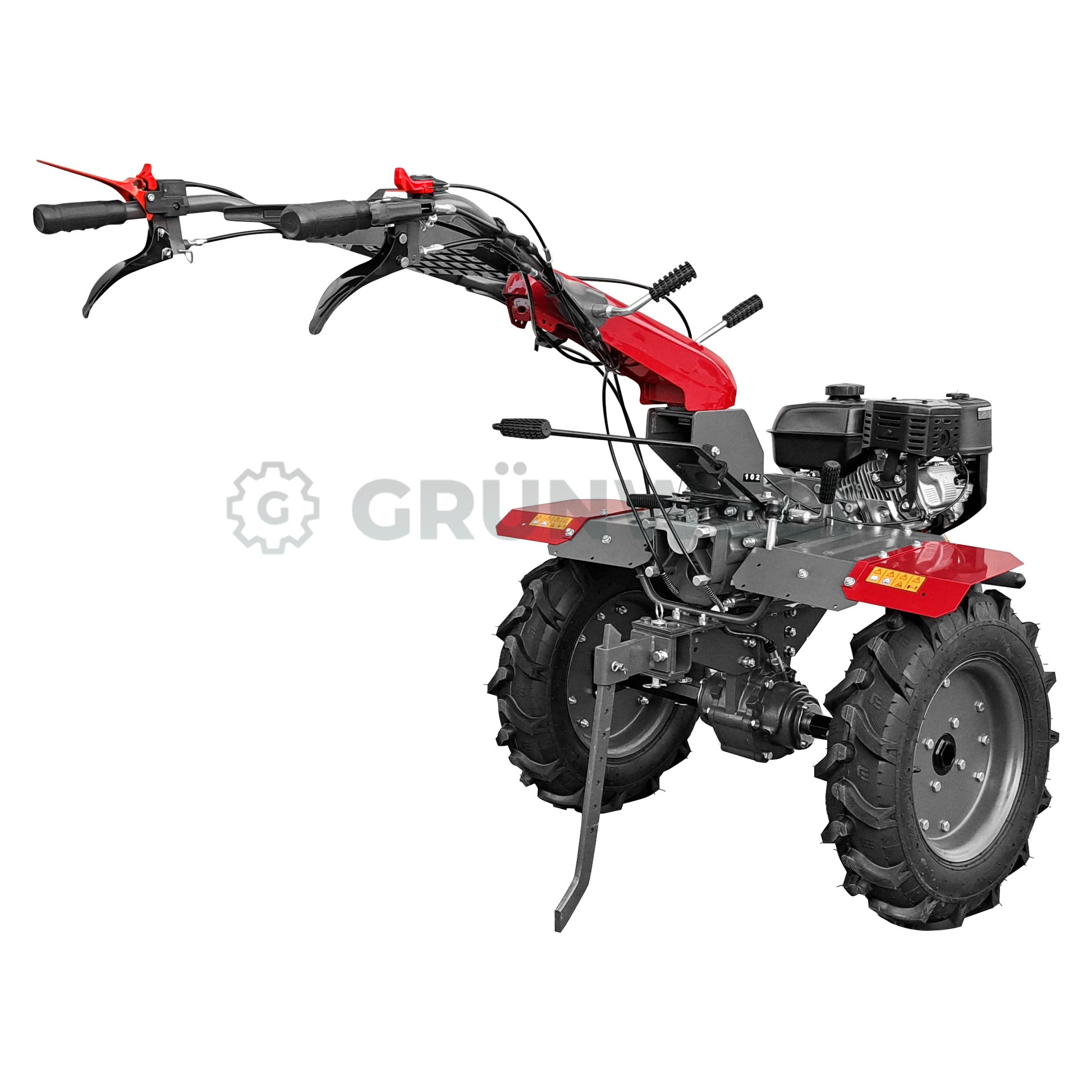

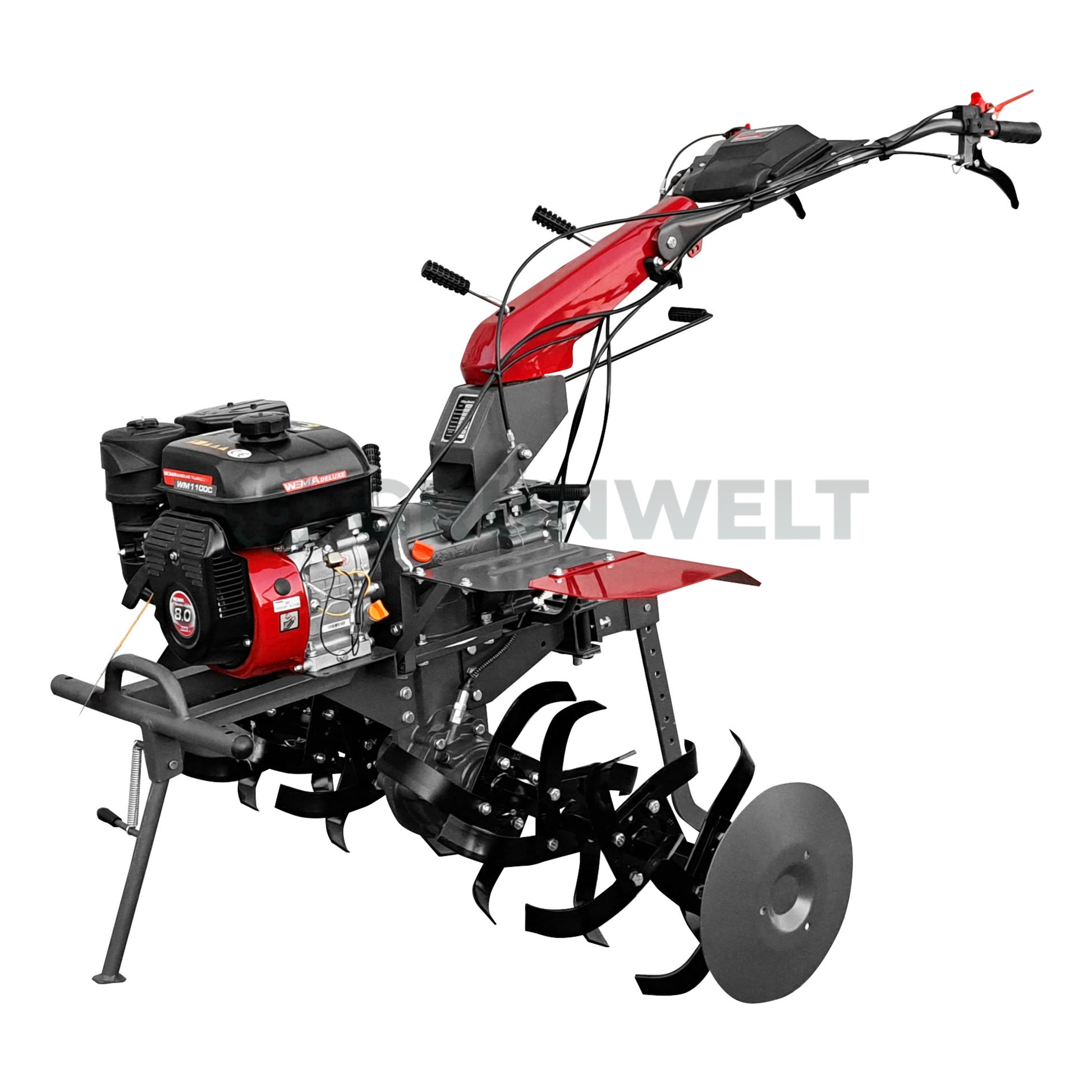

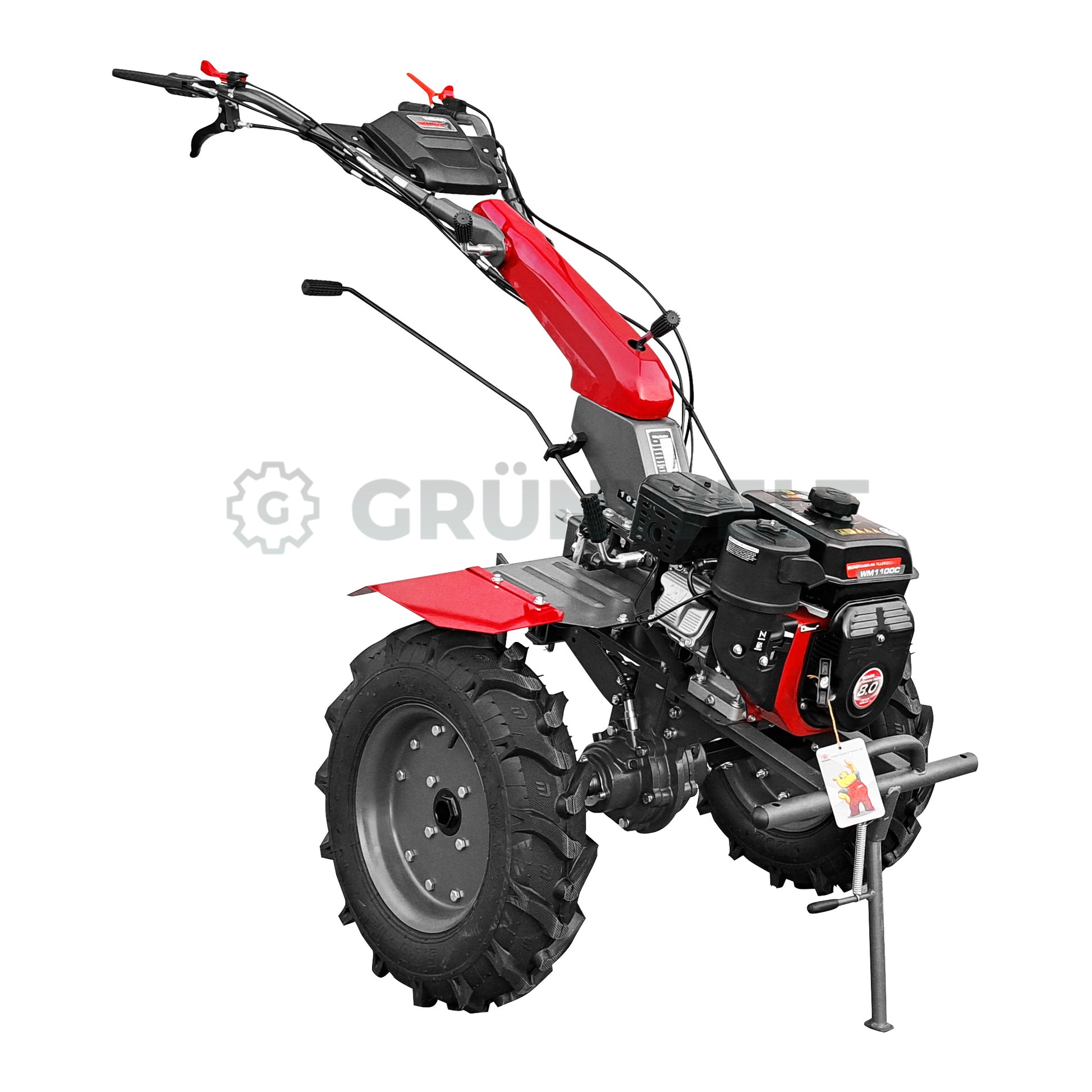

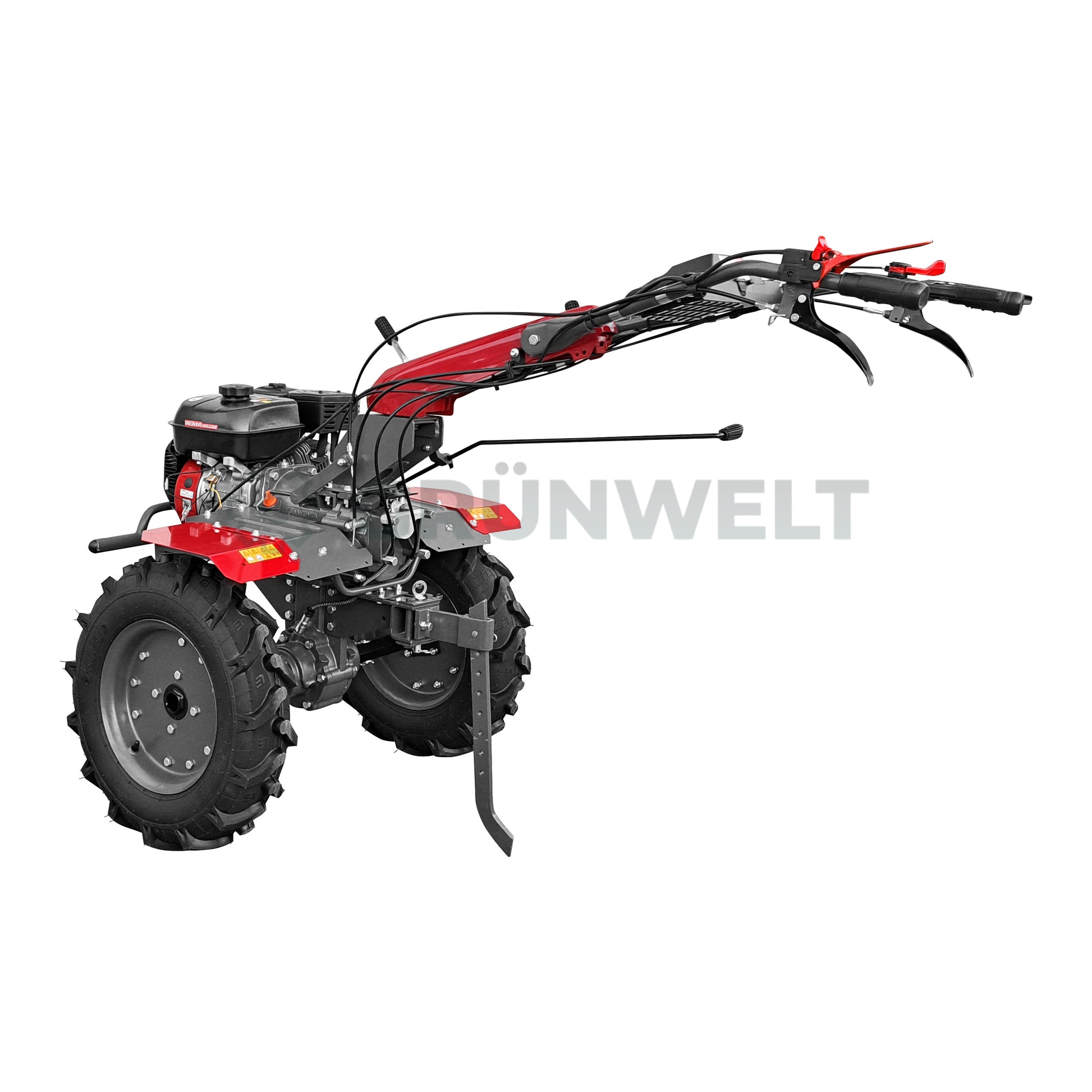

Weima WM1100C-6 DIFF Deluxe Motor Tiller Weima WM1100C-6 DIFF Deluxe Motor Tiller is equipped with tillers (2+1+1) with a working width of 135 cm and can work with a wide range of attachments, including rotary mowers. In addition, mowing can be carried out for hay harvesting with a transport cart. But that is not all: the model is universal - with the help of a motorized blade, it can perform snow-clearing work.
The Weima WM1100C-6 DIFF Deluxe motor tiller is equipped with the Weima W230F gasoline engine, which enjoys a good reputation due to its excellent functionality and performance. Its main advantages are low fuel consumption and the fact that it is not afraid of prolonged operation at high speeds. A completely new transmission has been developed with a range of low gears and such a useful option as half-axle locking.

Thanks to the half-axle locking, you can control the motor tiller even more comfortably during a variety of tasks. The oil-bath plate clutch and professional transmission are highly reliable components of the motor tiller and are necessary for working on different types of soil. The Weima WM1100C-6 DIFF Deluxe motor tiller has 5.00 – 12“ wheels with pneumatic tires, ensuring excellent mobility as well as safer work around plants, since the transmission does not touch them.

This model is also equipped with a new-style KM handlebar, which allows more comfortable manual operation. The Weima motor tiller is delivered drained. The base unit requires 2.4 - 2.5 L of transmission oil (SAE 80w-90) and 0.6 - 0.7 L of engine oil (SAE 10w-30 or 10w-40).

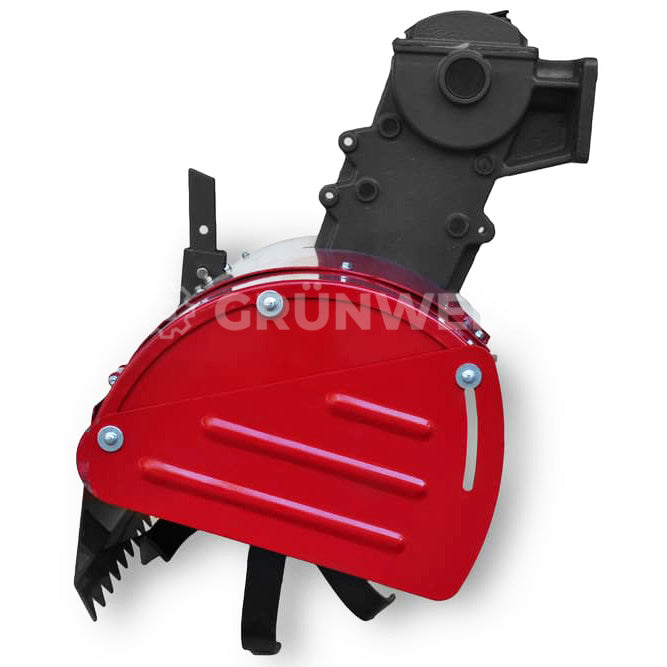

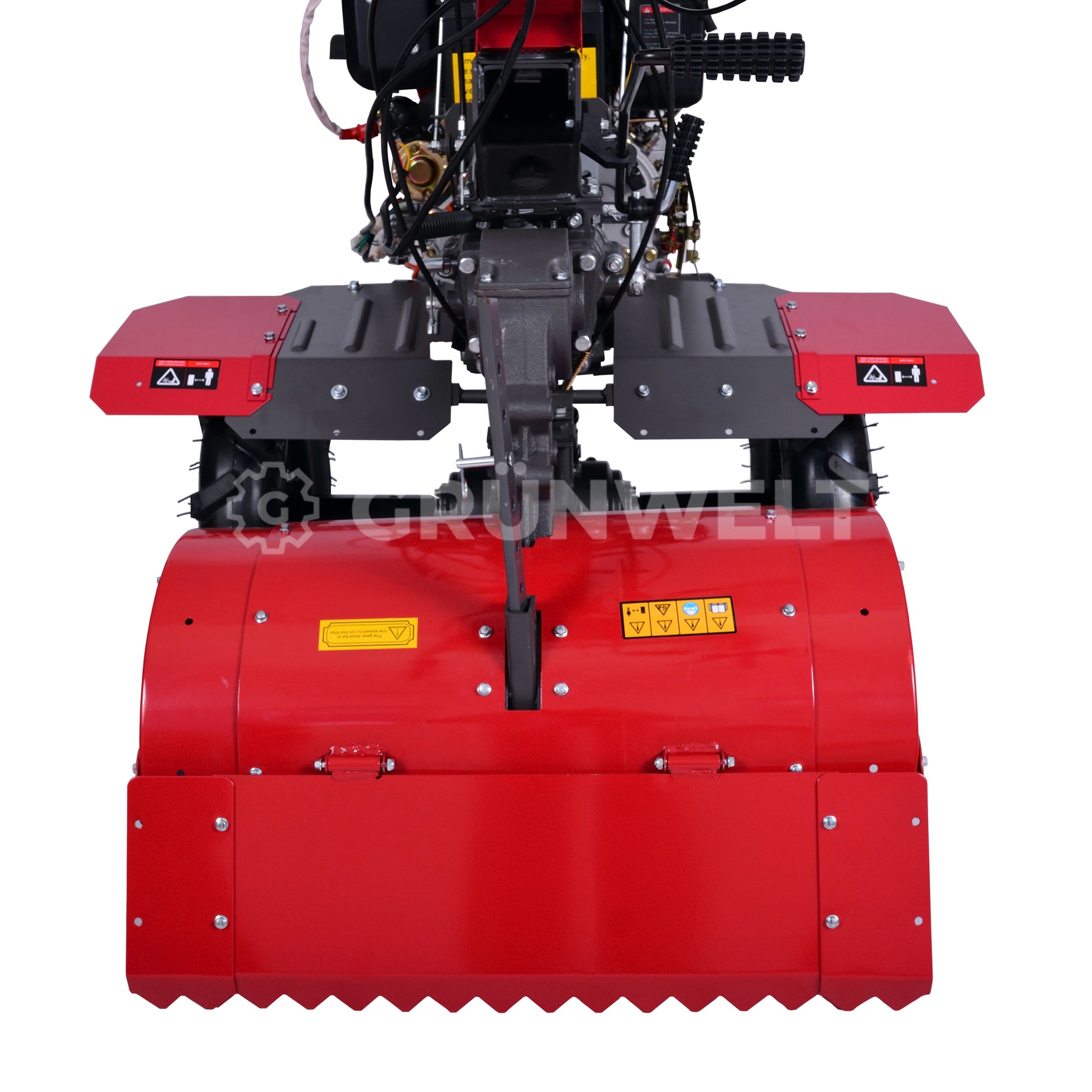

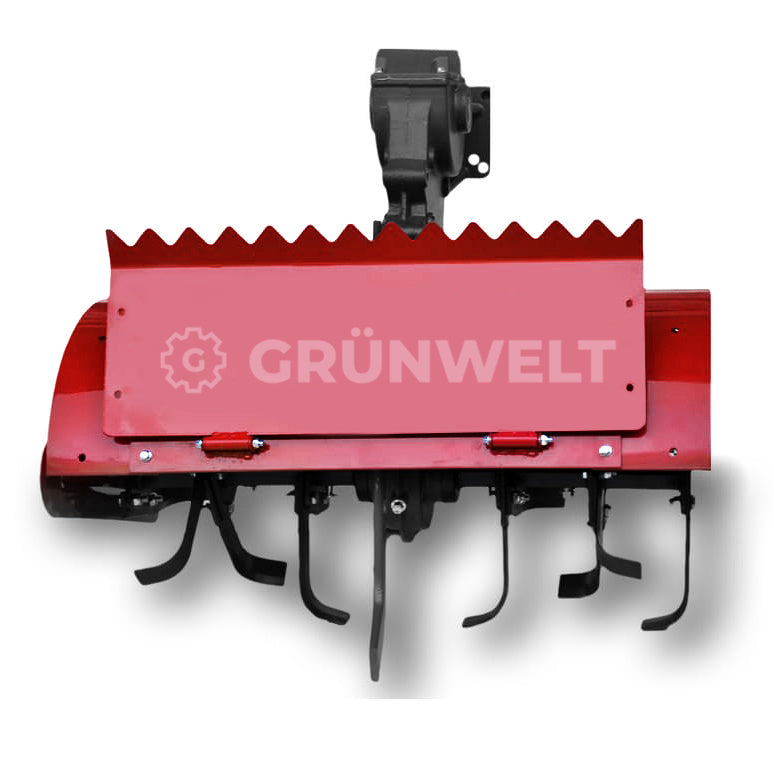

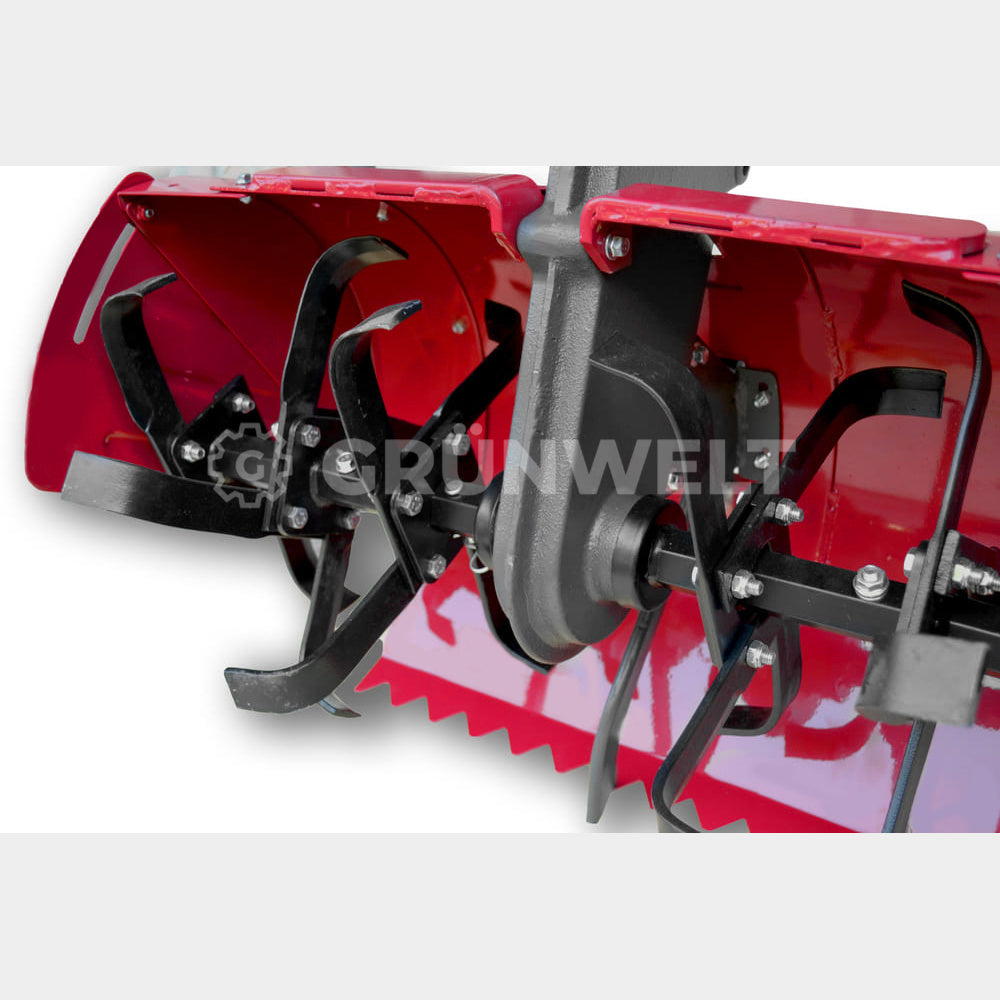

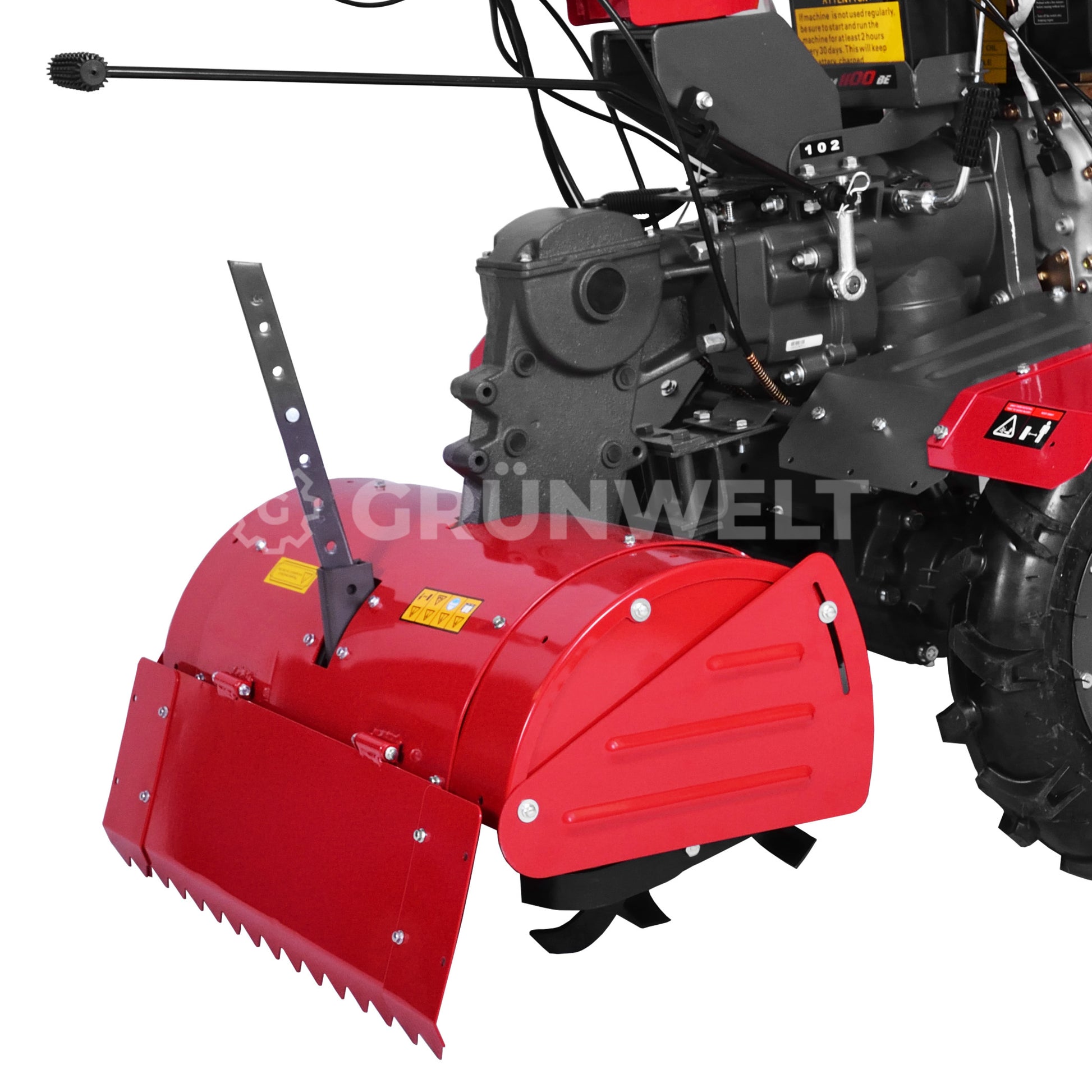

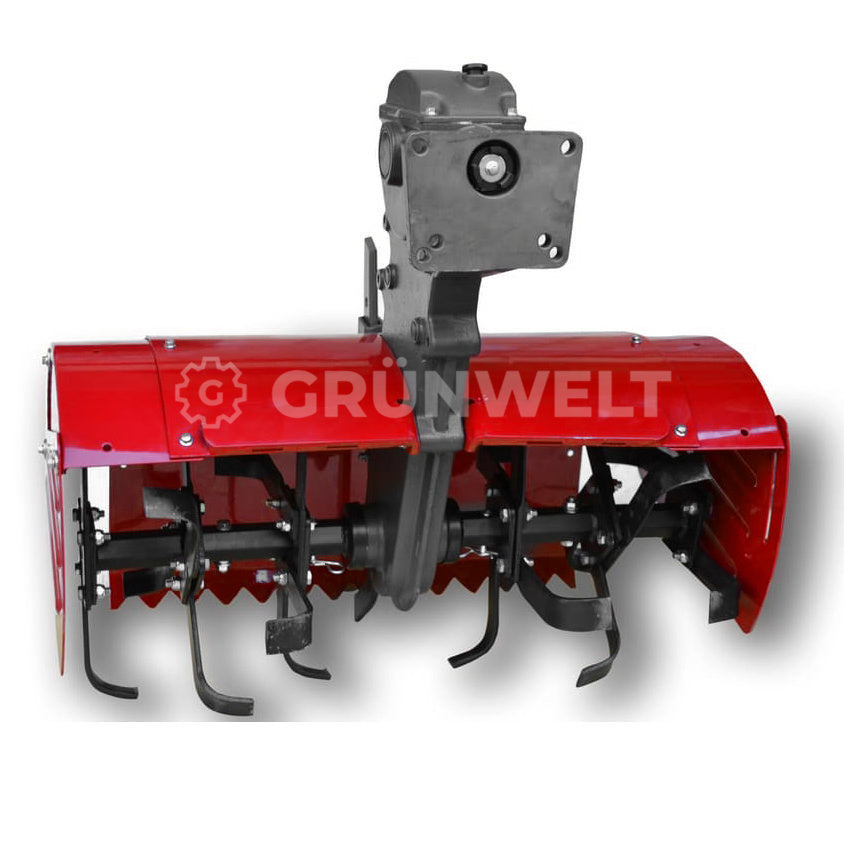

In addition, the Weima WMBF-6 rotary tiller requires 1.6 - 1.7 L of transmission oil (SAE 80w-90). Weima WMBF-6 Active Rotary Tiller WMBF-6 - Your helper for removing weeds! The Weima WMBF-6 active rotary tiller is suitable for cultivating the topsoil, removing weeds, and loosening the soil. The attachment is mounted on Weima WM1000N-6 and WM1100-6 motor tillers.

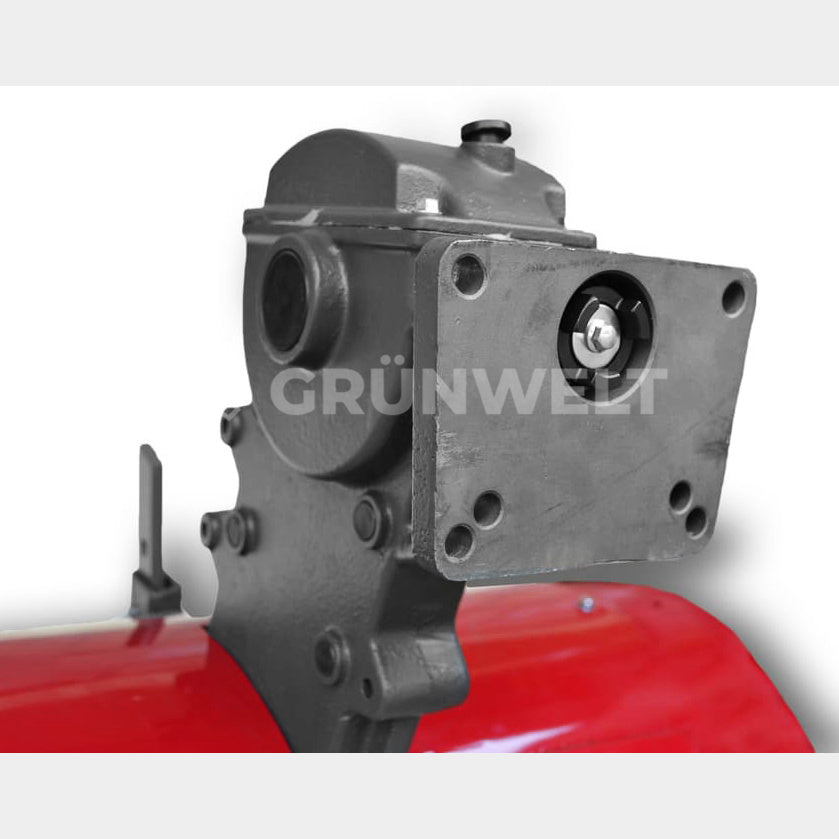

The tiller is driven by a PTO shaft and redirected downward through a low-speed chain drive. The cover reliably protects the operator from unforeseen hazards. The working depth is adjusted from 100 to 200 mm using a lever.

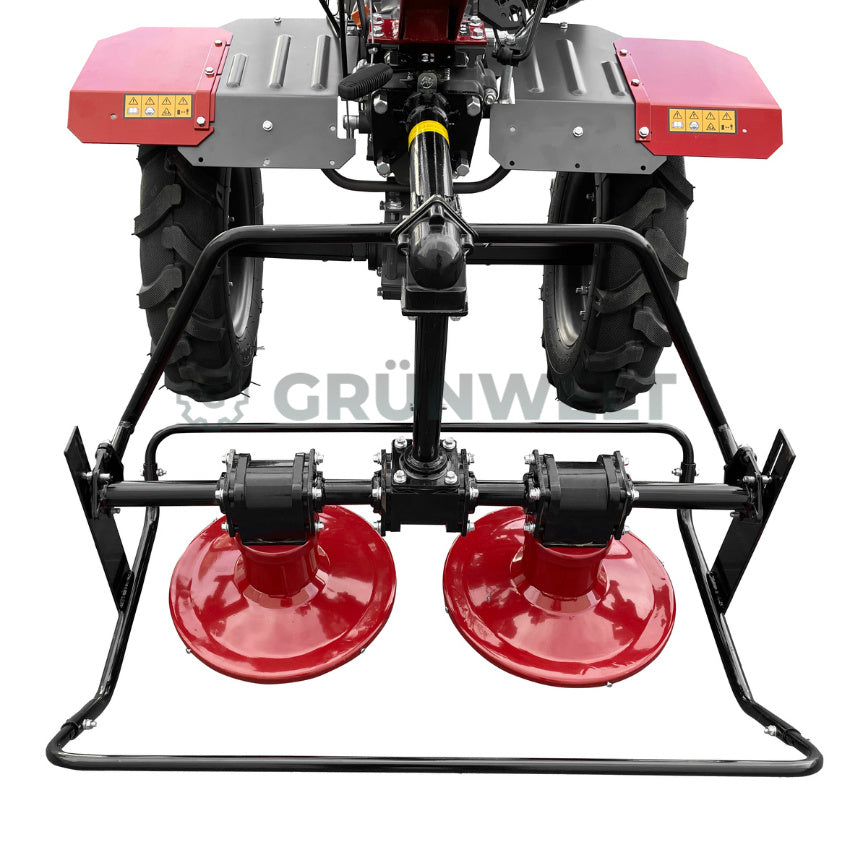

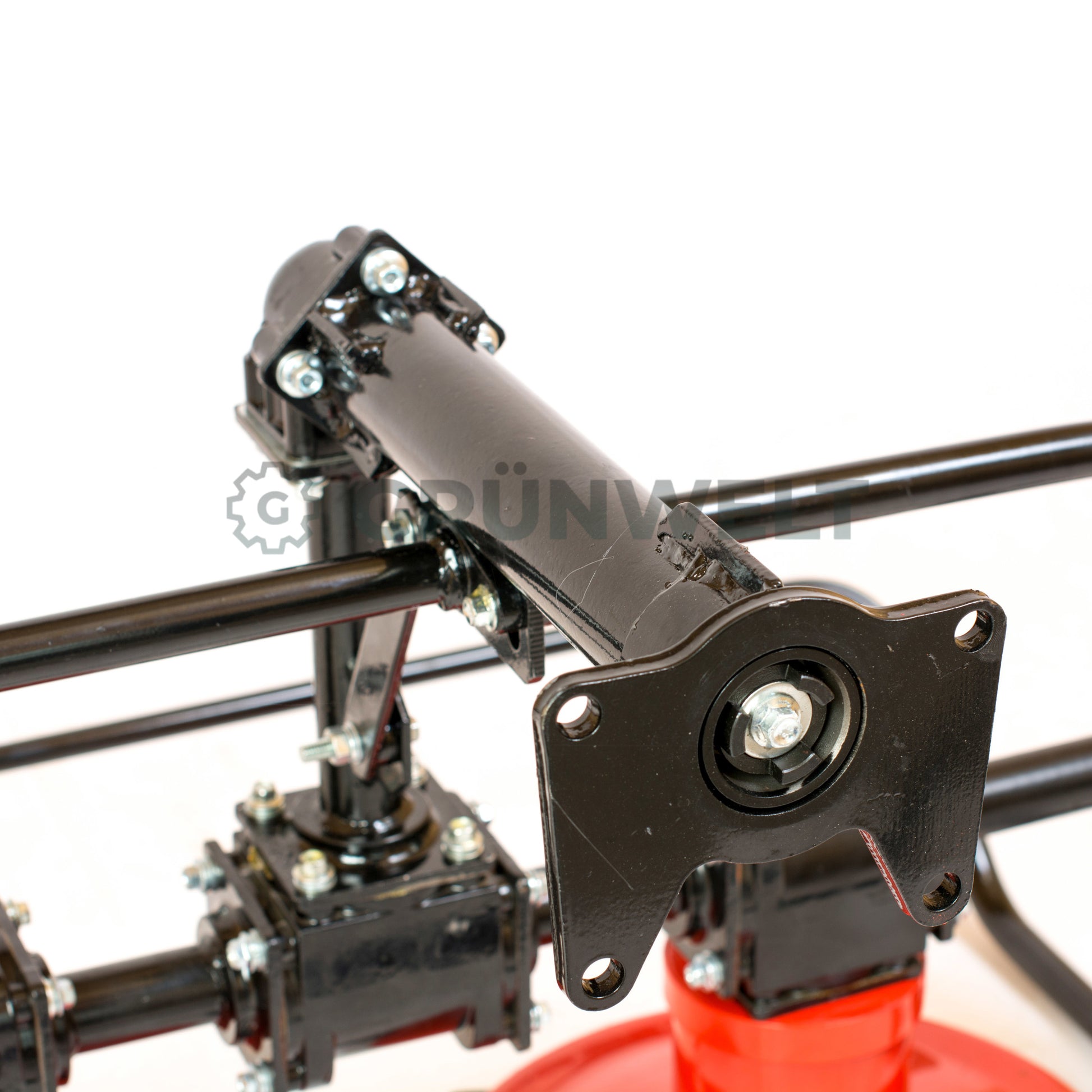

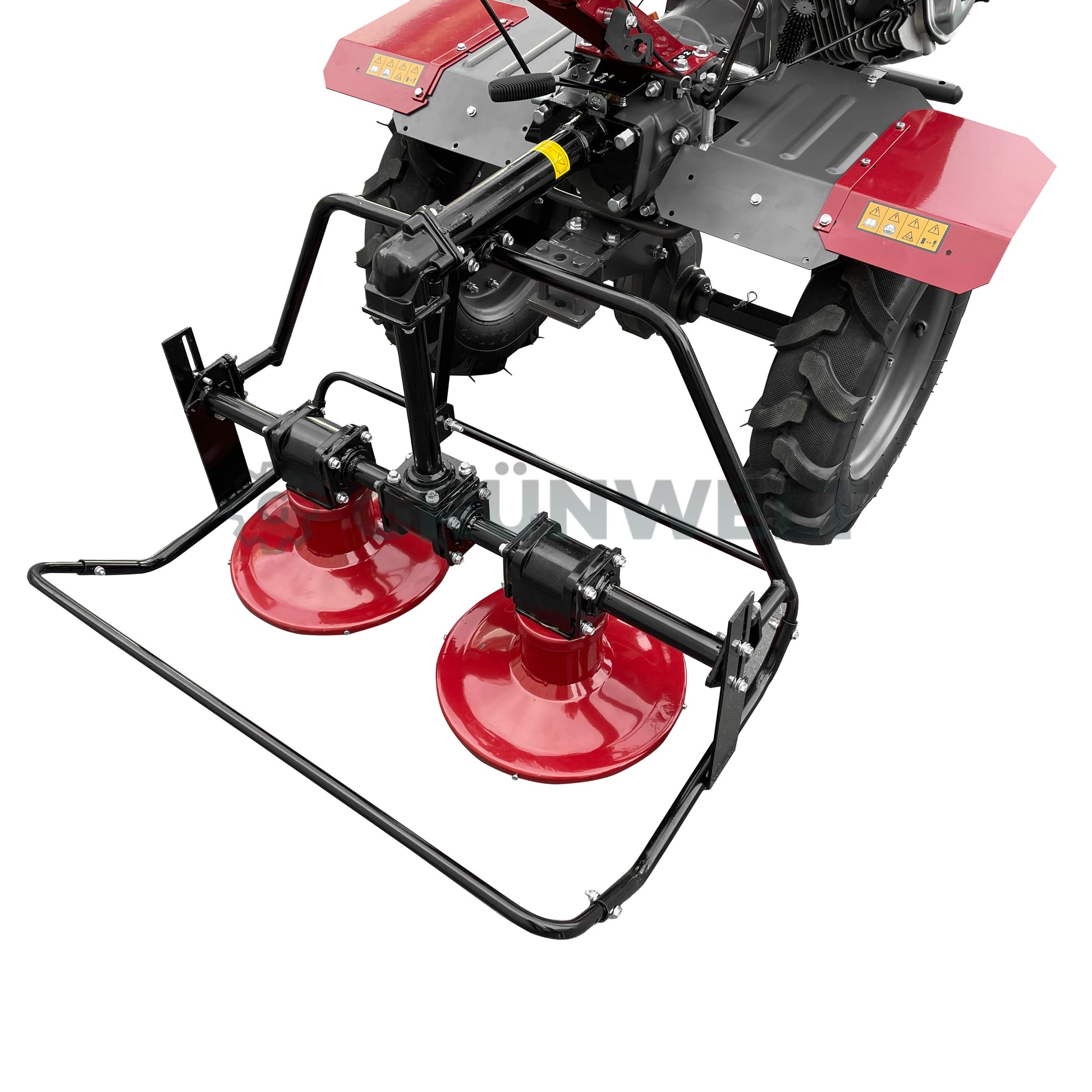

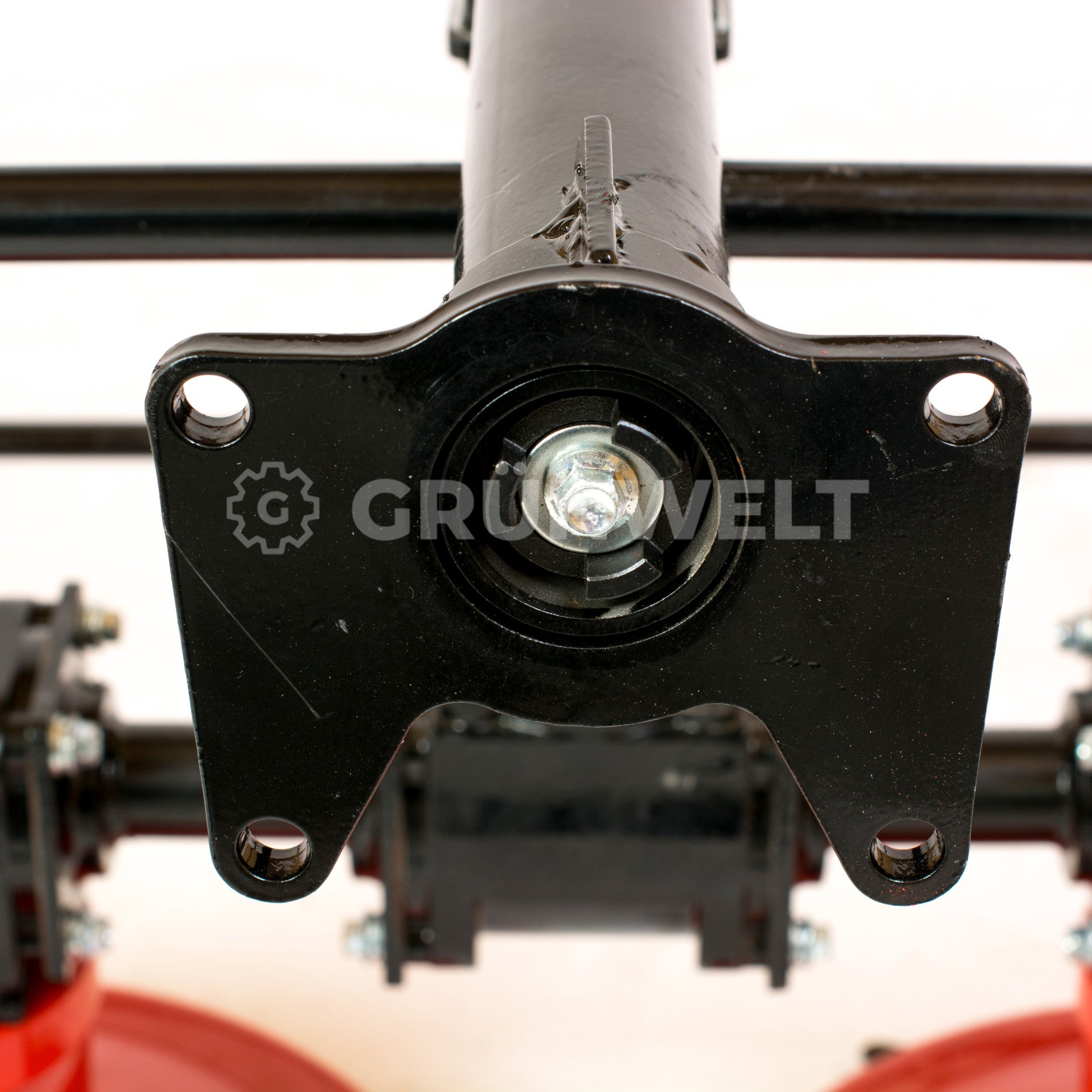

Weima WMKM1100-6 Rotary Mower The foldable Weima WMKM1100-6 rotary mower is compatible with the Weima WM1100-6 series motor tiller. The WMKM1100-6 is a reliable helper designed for mowing colorful grass, dense grass (hay), and small shrubs with a diameter of up to 10 mm. The rotary mower can be connected to the motor tiller very easily using a PTO shaft.

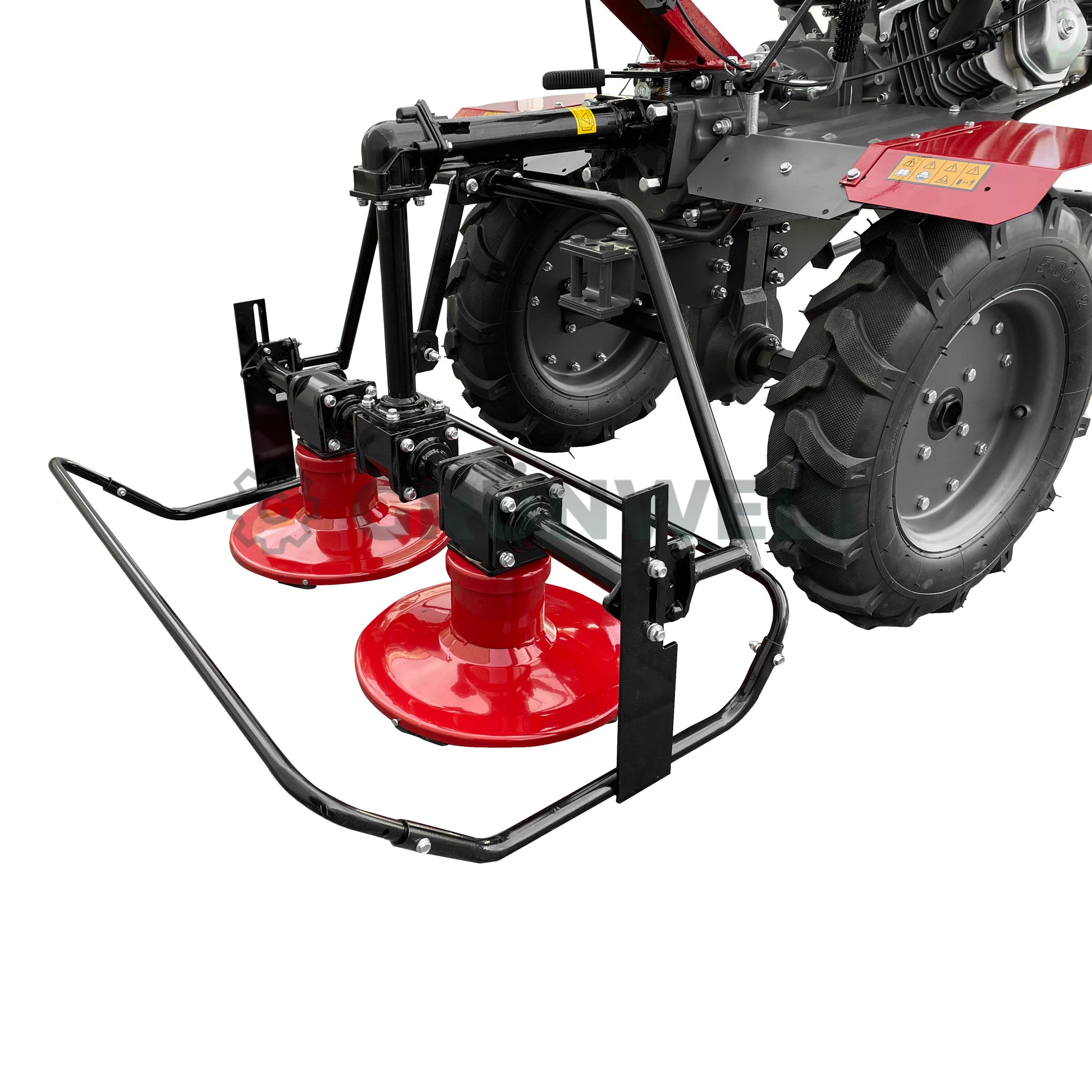

The Weima WMKM1100-6 rotary mower consists of two rotating discs that rotate in opposite directions. The 8 blades (4 on each disc) rotate freely and are secured with cotter pins. Centrifugal force aligns the blades as the discs rotate, allowing them to begin working.

During operation of the rotary mower, it is recommended to remove the corner joints every 12 hours and lubricate the gears with thick grease. This extends the service life of the device.

FEATURES

Motor tiller Weima WM1100C-6 DIFF Deluxe
• Powerful engine Weima W230F (EURO 5, 4-stroke, single-cylinder, OHV, forced cooling)
• Various uses thanks to a wide range of attachments
• Throttle for strong forward drive
• Low fuel and oil consumption
• Working width up to 1350 mm
• Sturdy tiller blades
• Tiller blade stop by dead man's switch
• Weight-optimized design for easy handling

TECHNICAL DATA

Rotary tiller Weima WM1100C-6 DIFF Deluxe
• GTIN: 4260614713024
• Working width: 800 – 1350 mm
• Working depth: 150 – 300 mm
• Gearshift: 4 forward, 2 reverse
• Drive model: Gearbox, locking of half axles
• Gear oil capacity: 2.5 L
• Tires: 5.00 – 12“

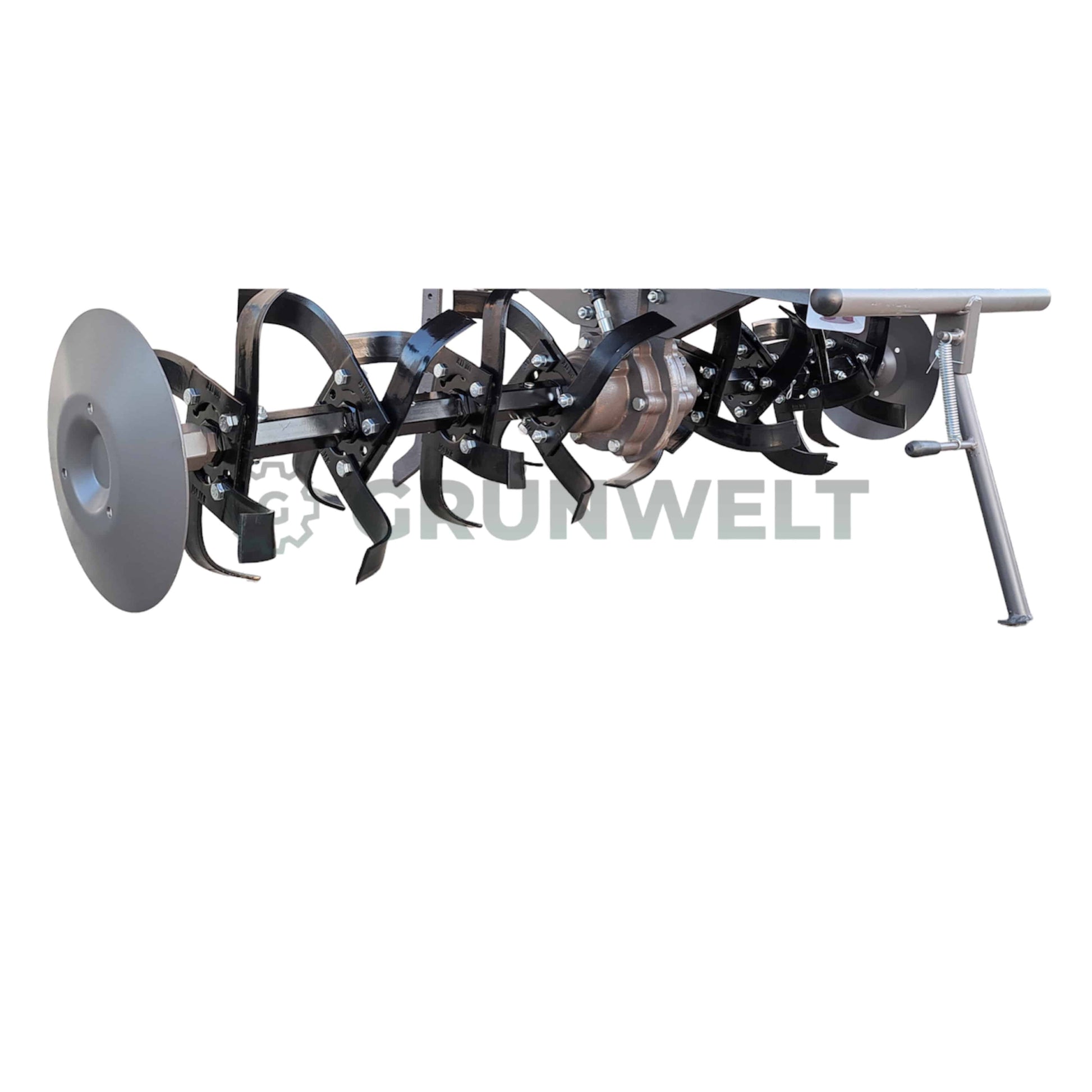

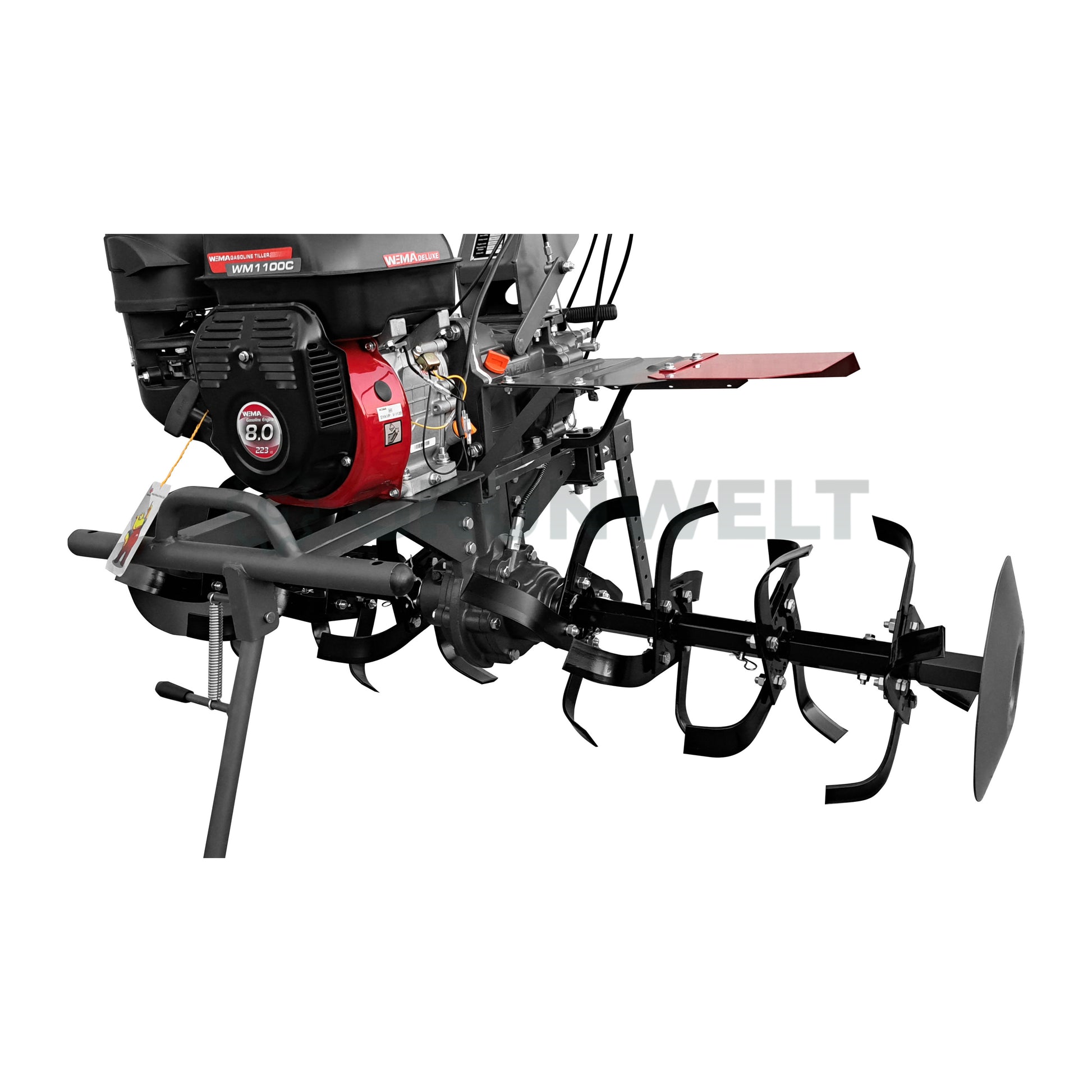

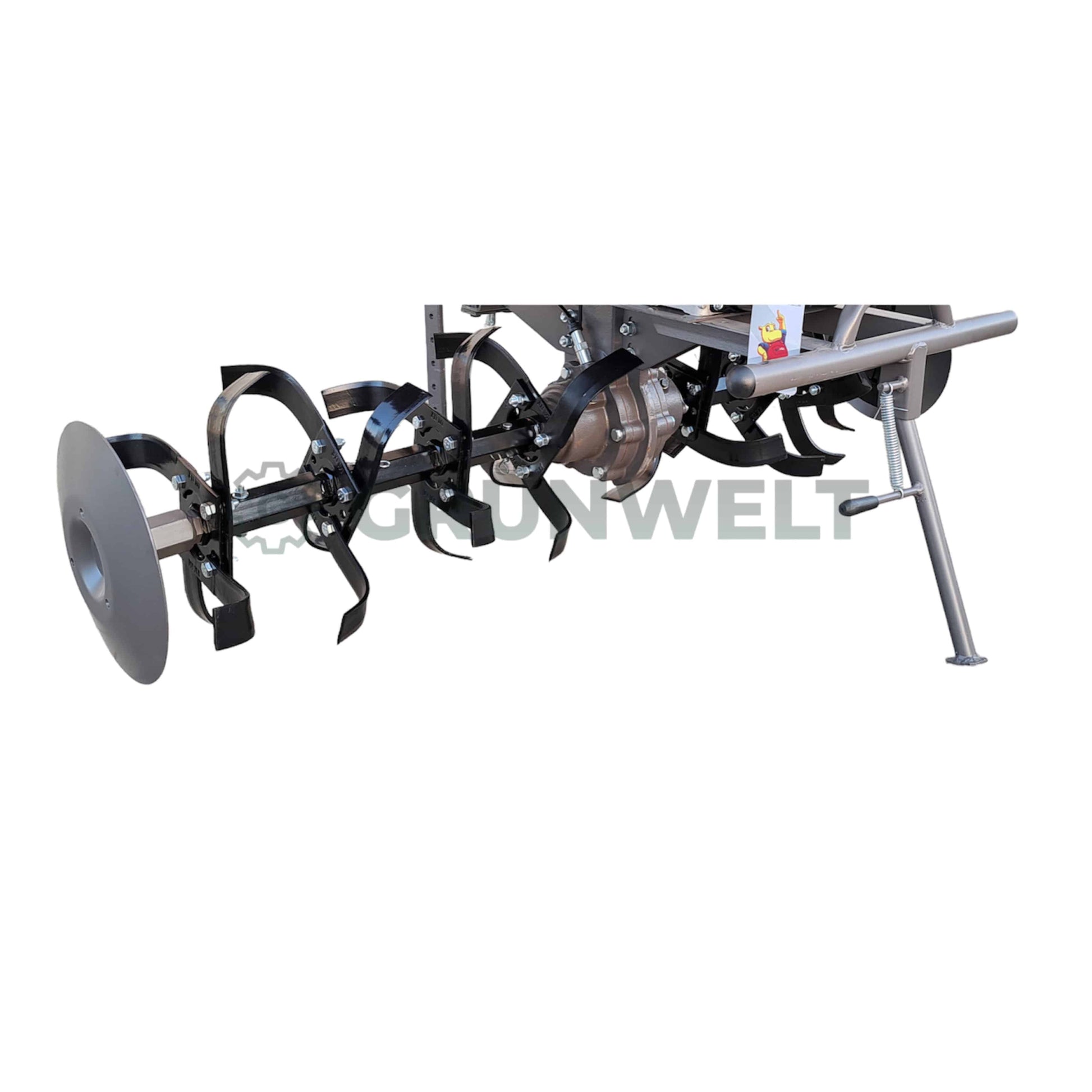

• Tilling blades: 4 × (2+1+1) pcs.
• Engine: Weima W230F
• Type: EURO 5, OHV, single-cylinder, 4-stroke, forced cooling
• Displacement: 223 cm³
• Engine power: 5.1 kW / 7.5 hp
• Starting system: Pull cord starter
• Fuel / engine oil volume: 3.6 / 0.6 L
• Dimensions: 1755 × 1100 × 1000 mm
• Net weight: 120 kg
Active soil cultivator Weima WMBF-6
• GTIN: 6971472300353
• Working width: 400 – 600 mm
• Working depth: 100 – 200 mm
• Mountable on rotary tiller: Weima WM1000N-6, WM1100-6 series
• Dimensions: 730 × 570 × 620 mm
• Net weight: 30 kg
Rotary mower Weima WMKM1100-6
• GTIN: 6971472300360
• Type: Trailed
• Cutting width: 850 mm
• Maximum cutting height: 70 mm
• Working speed: approx. 2-4 km/h
• Mountable on rotary tiller: Weima WM1000N-6, WM1100-6 series
• Average output: 0.15 – 0.2 hectare/h
• PTO speed: 540 rpm
• Dimensions: 810 × 930 × 780 mm
• Net weight: 23 kg
