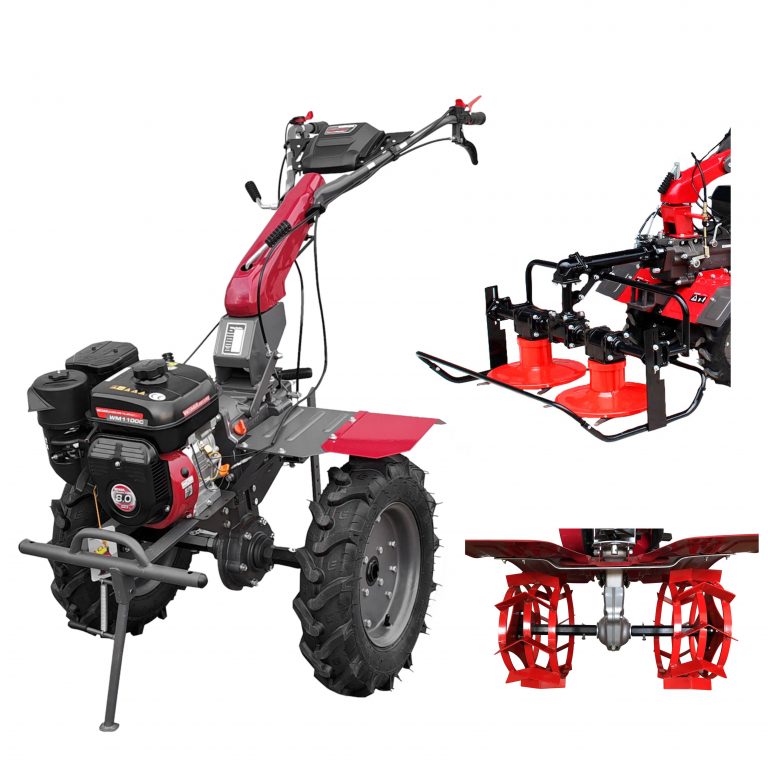

Rototiller Weima WM1100C-6 Deluxe SET with rotary mower and iron wheels (without gearbox and engine oil)

Weima WM1100C-6 Deluxe Motor Tiller
The Weima WM1100C-6 Deluxe motor tiller is equipped with tillers with a working width of 110 cm and can work with a variety of attachments, including rotary mowers. Furthermore, mowing for hay harvesting can be done with a transport cart. But that is not all; the model is versatile – with the help of a motorized shovel, it can perform snow clearing tasks. The Weima WM1100C-6 Deluxe motor tiller is equipped with the Weima W230F petrol engine, which enjoys a good reputation due to its excellent functionality and performance. Its main difference is the low fuel consumption and the fact that it is not afraid of prolonged operation at high speeds. Additionally, this model is provided with a novel KM steering wheel that allows more comfortable manual steering. A completely new gearbox has been developed with a range of low gears. This development will make your work easier and safer. The wet clutch and the professional gearbox are very reliable parts of the motor tiller, necessary for work on different soils.
The Weima motor tiller is delivered drained. You will still need 1.9 - 2.1 L of gear oil (SAE 80w-90) and 0.6 - 0.7 L of engine oil (SAE 10w-30 or 10w-40) for the base unit. Also, for the Weima WMBF-6 rotary tiller, you need 1.6 - 1.7 L of gear oil (SAE 80w-90).

Weima WMKM1100-6 Rotary Mower
The foldable Weima WMKM1100-6 rotary mower fits the Weima WM1100-6 series motor tiller. The WMKM1100-6 is a good helper for mowing mixed grass, dense grass (hay), and small bushes with a diameter of up to 10 mm. The rotary mower can be very easily connected to the motor tiller using a power take-off shaft. The Weima WMKM1100-6 rotary mower consists of two rotating discs that turn opposite each other. The 8 blades (4 on each disc) can rotate freely and are secured with a split pin. Using centrifugal force, the blades align when the discs rotate and begin their work. When operating the rotary mower, it is recommended to dismantle the corner joints every 12 hours and grease the gears with thick grease. This extends the device’s lifespan.

Grünwelt GW-ER430 Iron Wheels
Grünwelt iron wheels are the perfect choice for your motor tiller. Grünwelt GW-ER430 iron wheels are especially sturdy, resilient, and long-lasting and are recommended for those who frequently work their soil and also have difficult ground conditions. Quick and easy to mount, and off you go! Our wheels increase the traction of the motor tillers and simplify operation during soil cultivation.

Grünwelt GW-AX32-220 Half Axles
Do you not have enough suitable wheels for your device? No problem! Save when buying different types of wheels and acquire our GW-AX32-220 half axles! Our half axles are an absolute “must” for your farm and garden. In this case, you can install the same wheels or iron wheels on different motor tillers, only changing the half axle to the suitable one. The purpose of the Grünwelt GW-AX32-220 half axles is to connect the transmission gearbox with the wheels or iron wheels. The half axles fit motor tillers with a hexagonal shaft with a diameter of 32 mm and a length of 218 mm.

• Powerful engine Weima W230F (EURO 5, 4-stroke, single-cylinder, OHV, forced cooling)
• Various application possibilities thanks to a wide range of attachments
• Throttle for strong forward drive
• Low fuel and oil consumption
• Working width up to 1100 mm
• Sturdy tiller blades
• Tiller blade stop via dead man's switch
• Weight-optimized design for easy handling

Rotary tiller Weima WM1100C-6 Deluxe
• GTIN: 4260614713031
• Working width: 800 – 1100 mm
• Working depth: 150 – 300 mm
• Gearshift: 4 forward, 2 reverse
• Drive type: Gearbox
• Gear oil capacity: 2 L
• Tires: 5.00 – 12“
• Engine: Weima W230F
• Type: EURO 5, OHV, single-cylinder, 4-stroke, forced cooling
• Displacement: 223 cm³
• Engine power: 5.1 kW / 7.5 hp
• Starting system: Pull starter
• Fuel / engine oil volume: 3.6 / 0.6 L
• Dimensions: 1755 × 1100 × 1000 mm
• Net weight: 120 kg
Rotary mower Weima WMKM1100-6
• GTIN: 6971472300360
• Type: Trailed
• Cutting width: 850 mm
• Maximum cutting height: 70 mm
• Working speed: approx. 2-4 km/h
• Mountable on rotary tiller: Weima WM1000N-6, WM1100-6 series
• Average output: 0.15 – 0.2 hectare/h
• PTO speed: 540 rpm
• Dimensions: 810 × 930 × 780 mm
• Net weight: 23 kg
Iron wheels Grünwelt GW-ER430
• GTIN: 4260614710177
• Suitable for: Weima WM500, WM900M-3, WM1000N series, WM1100 series
• Diameter: 390 mm / 430 mm including cleats
• Tread width: 150 mm
• Cleat height: 40 mm
• Inner bore diameter: 70 mm
• Bolt circle: 4 × 110 mm
Half shafts Grünwelt GW-AX32-220
• GTIN: 4260614710245
• Length: 218 mm
• Diameter: 32 mm
• Bolt circle: 110 mm
