Motor hoe Weima WM1000N-6 The heavy-duty motor hoe Weima WM1000N-6 with the Weima WM170F engine is used for large workloads and withstands heavy stress. The Weima WM170F engine is characterized by excellent functionality, performance, and low fuel consumption.

Get it between - and -.

Rototiller Weima WM1000N-6 SET with rotary mower and active soil cultivator (without gearbox and engine oil)

Regular price €2.149,99
Regular price €2.149,99 Sales price
SAVE Liquid error (snippets/price line 112): Computation results in '-Infinity'% Sold out
  • American Express
  • Apple Pay
  • Bancontact
  • EPS
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • MB WAY
  • MobilePay
  • PayPal
  • Satispay
  • Shop Pay
  • Union Pay
  • Visa
Show full details

Foldable content

DESCRIPTION

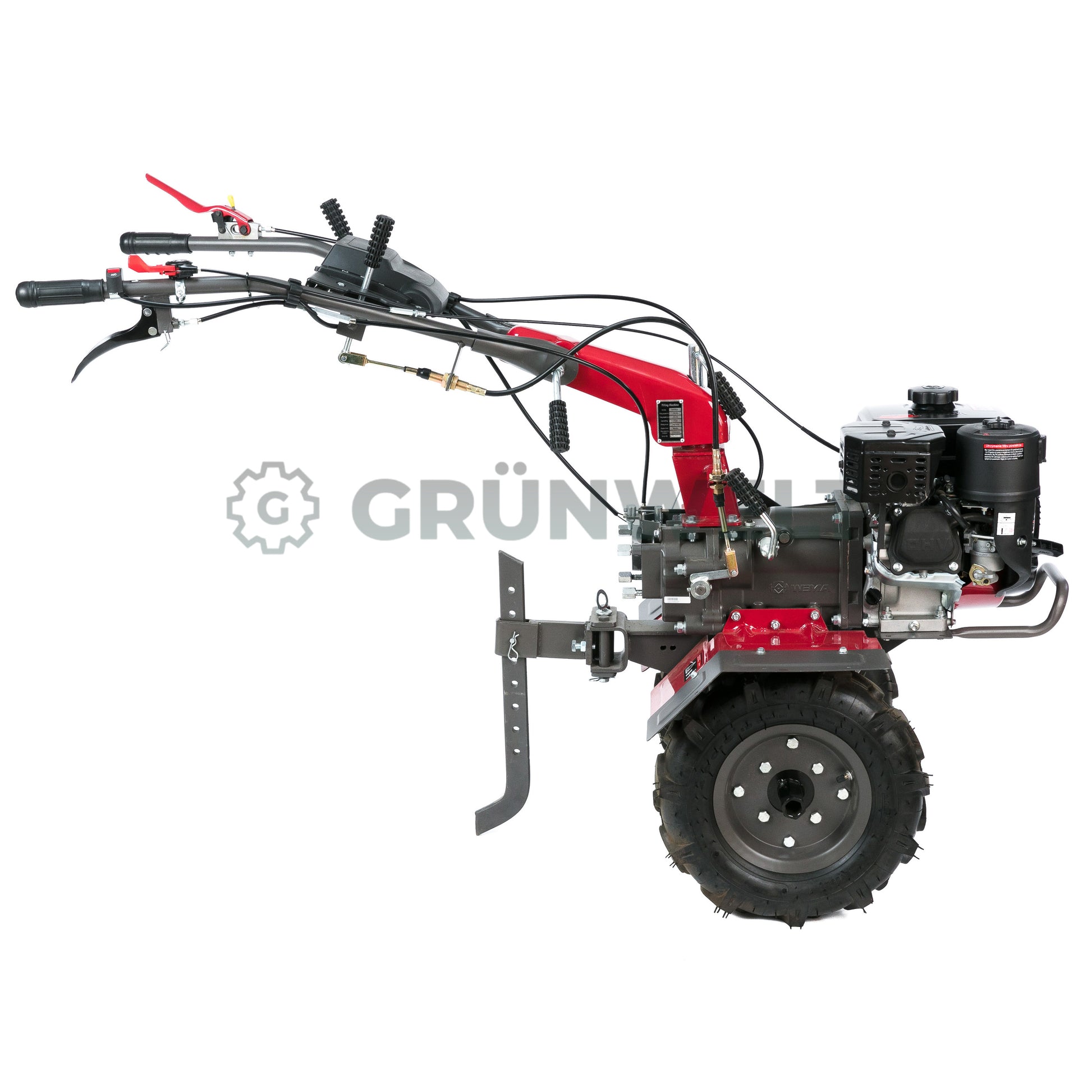

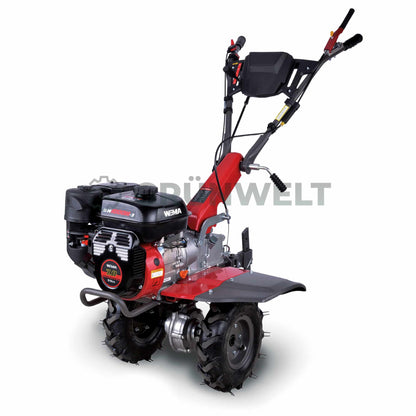

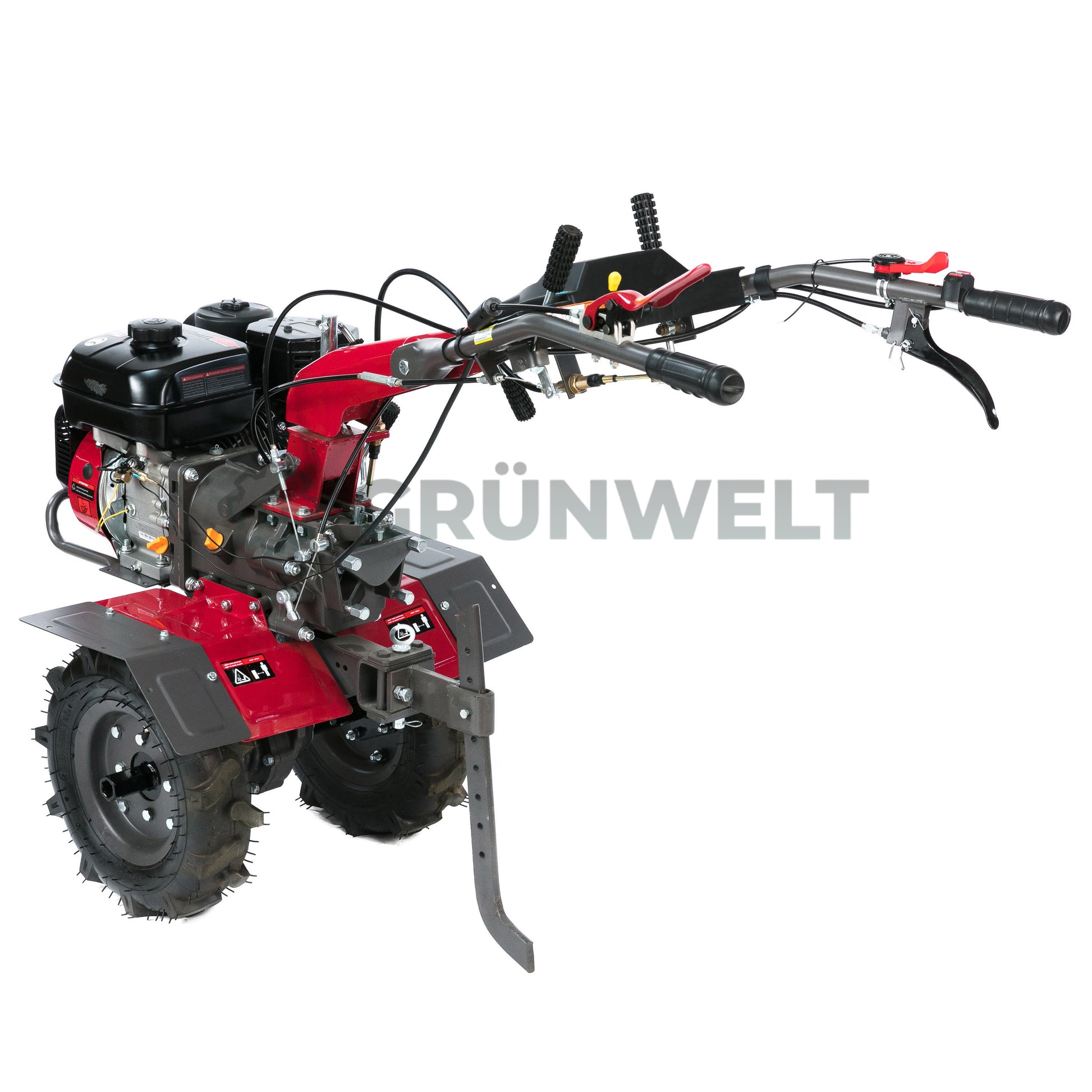

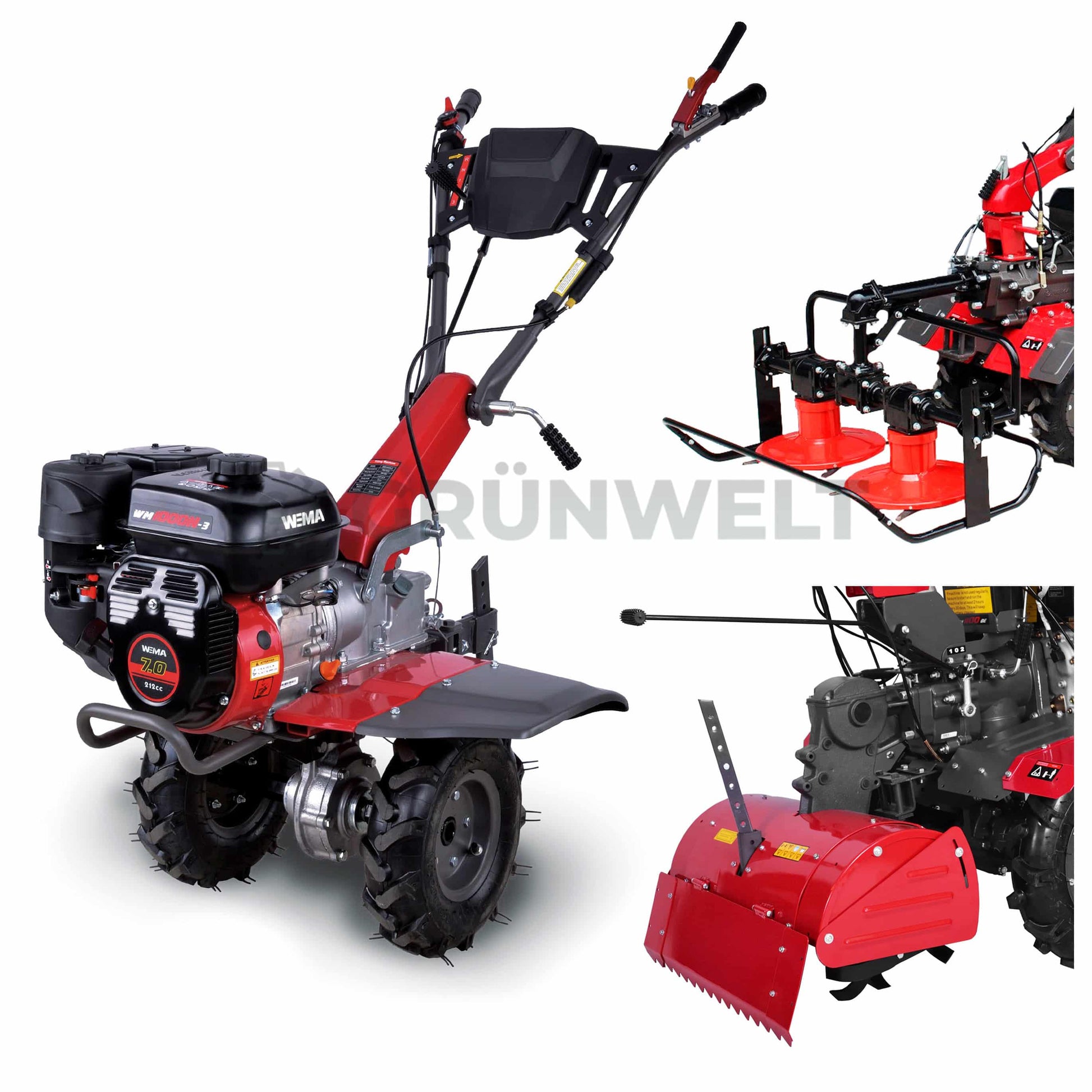

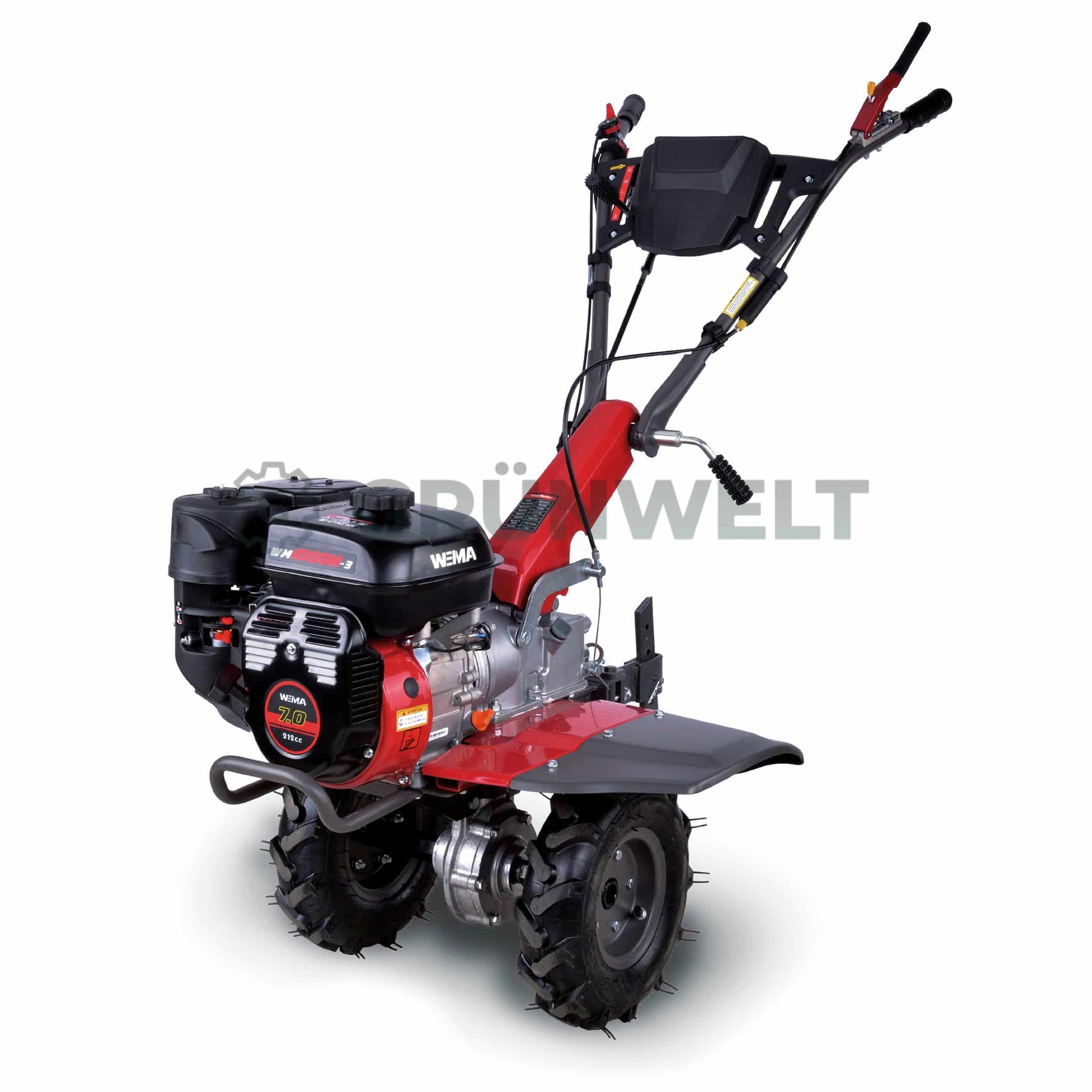

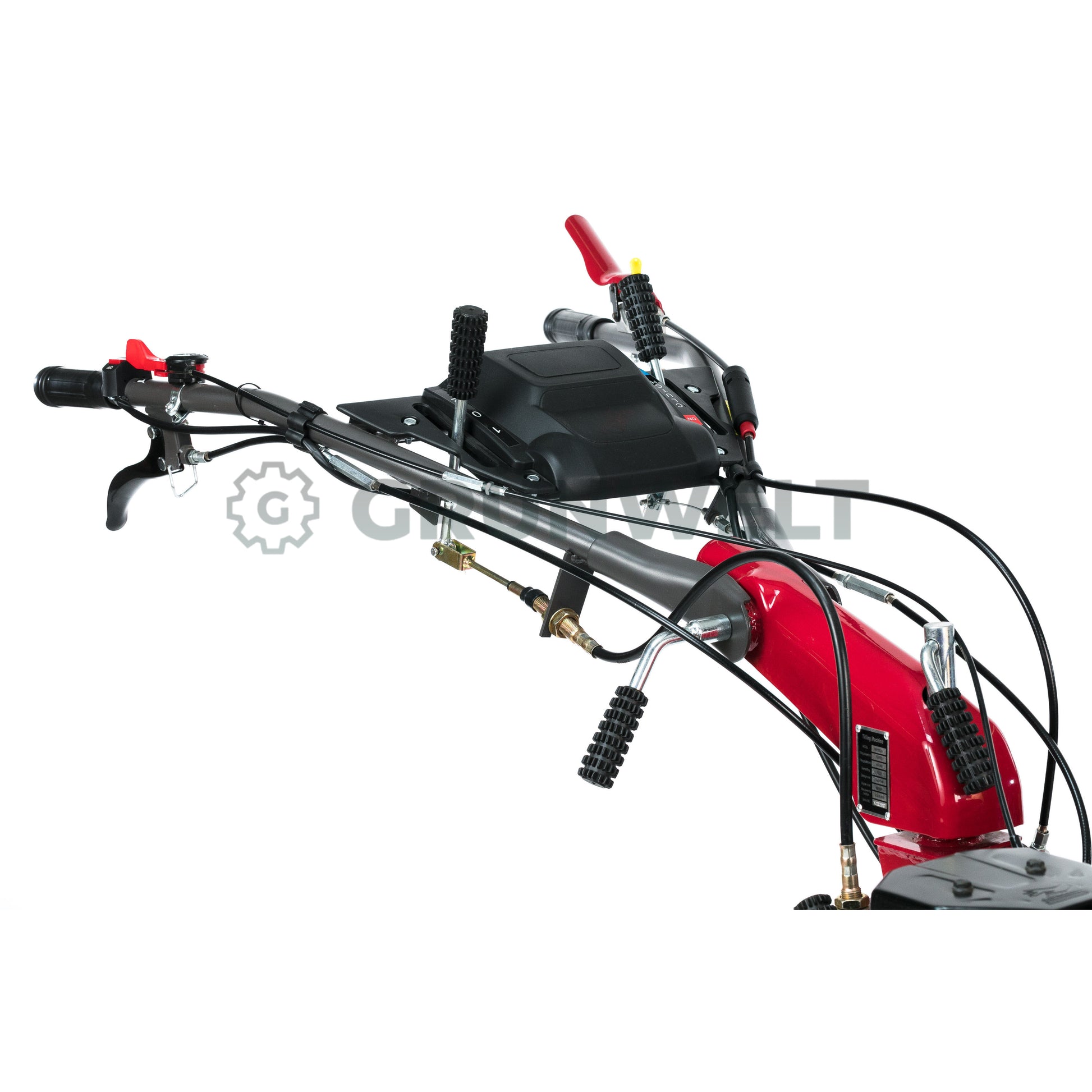

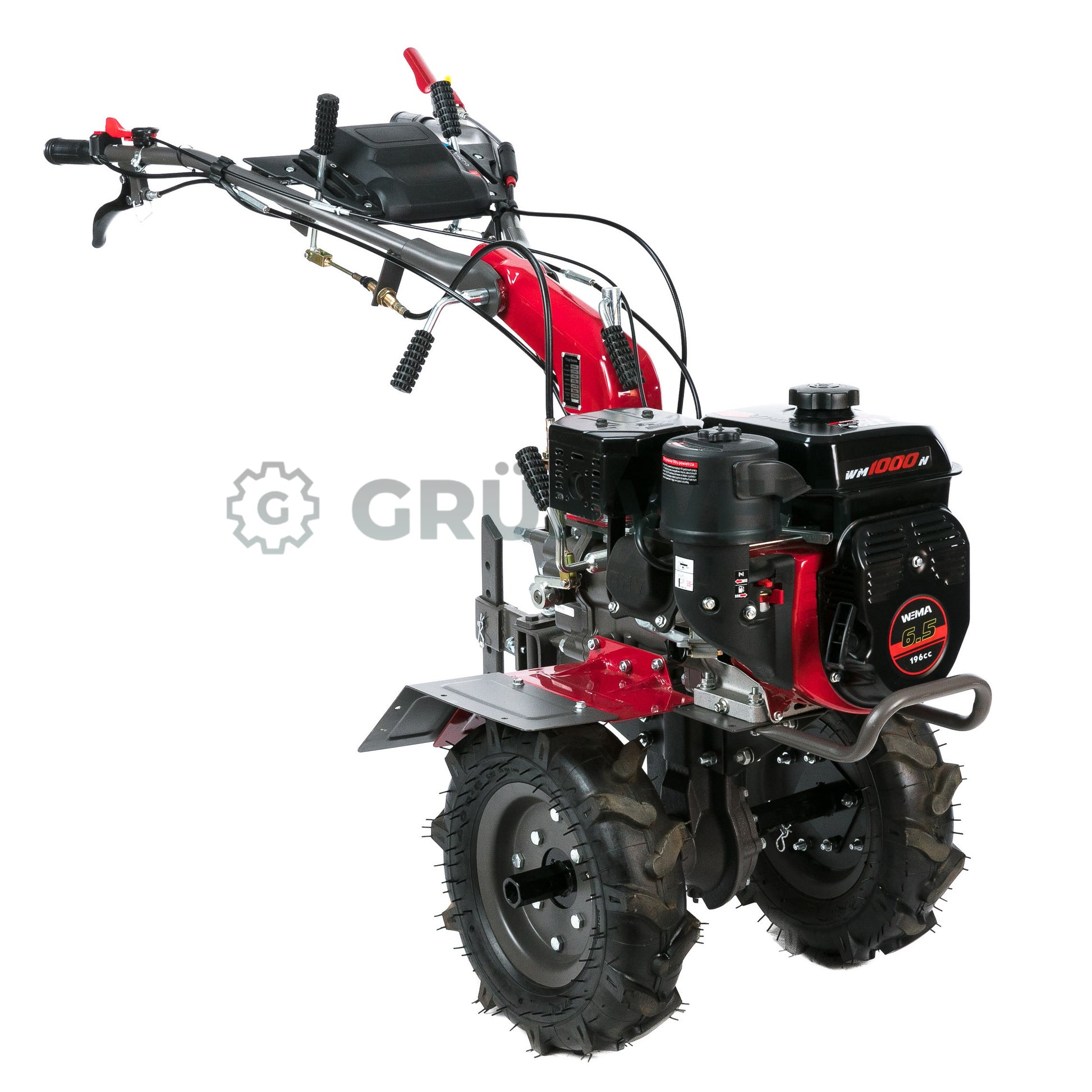

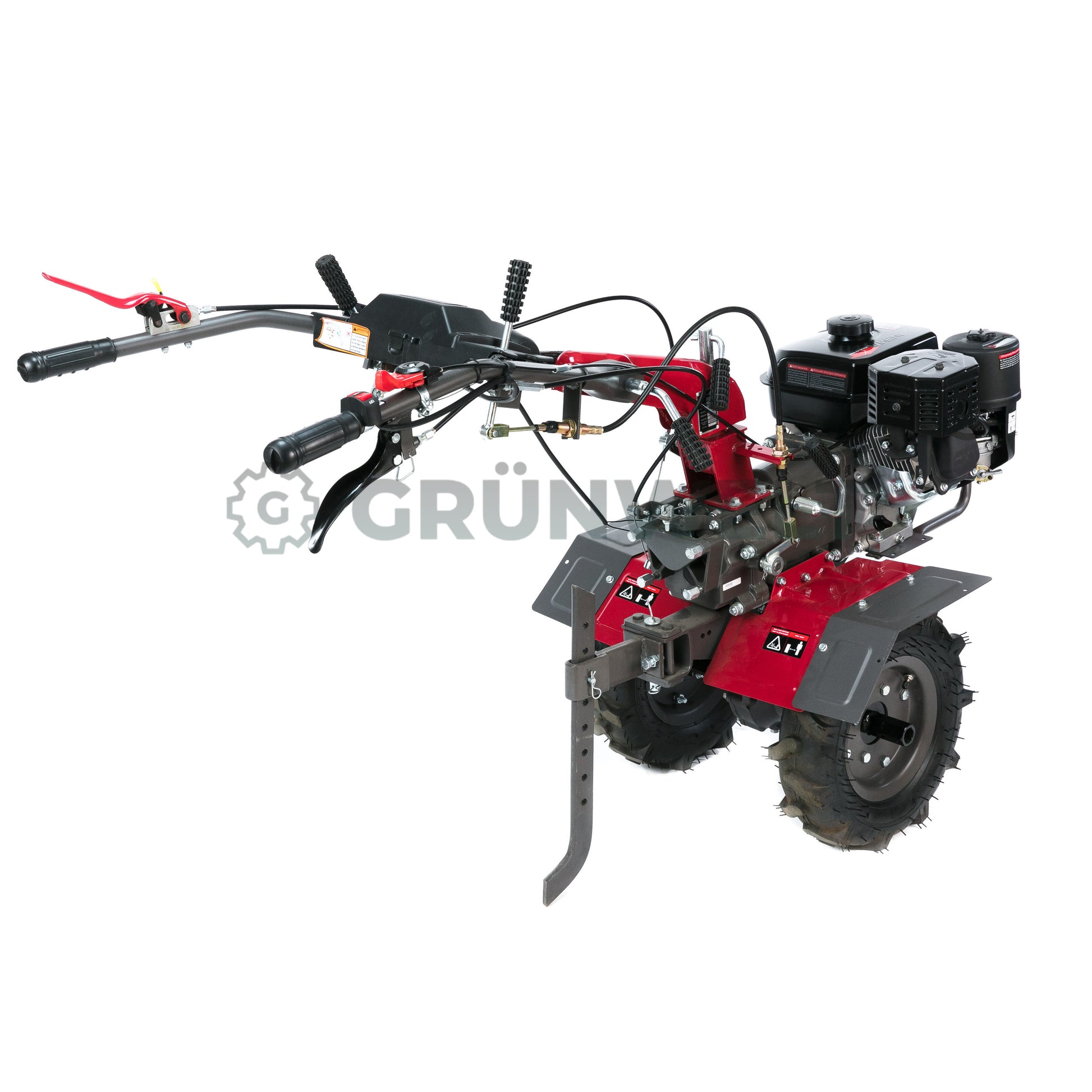

Weima WM1000N-6 Motor Hoe

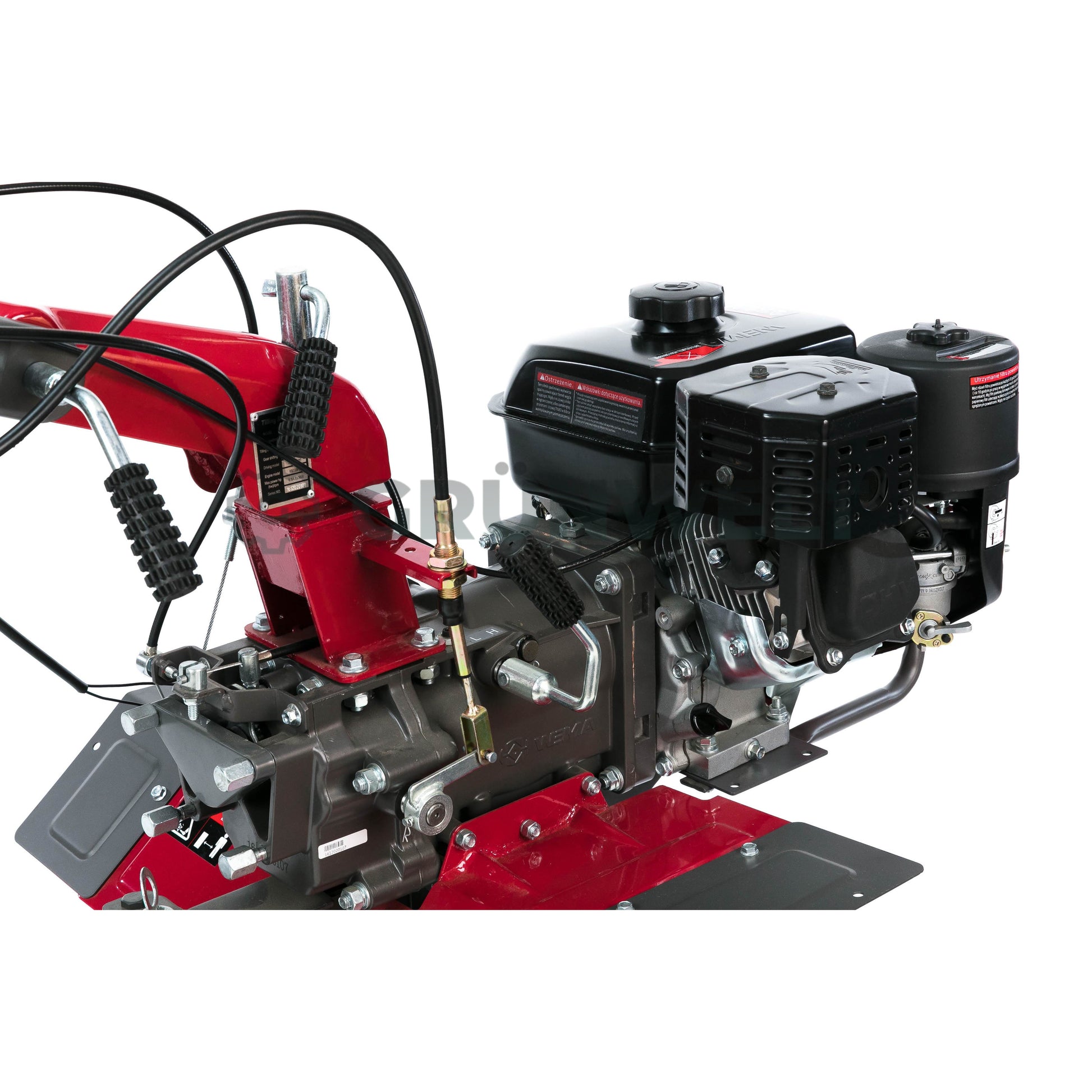

The heavy-duty Weima WM1000N-6 motor hoe with the Weima WM170F engine is designed for large workloads and can withstand heavy use. The Weima WM170F engine is distinguished by excellent functionality, performance, and low fuel consumption. To maximize usability and operation, a completely new gearbox with reduced gears was further developed. This improvement will make your work easier and safer. Above all, you can choose the optimal speed for yourself so that you do not have to run after the machine.

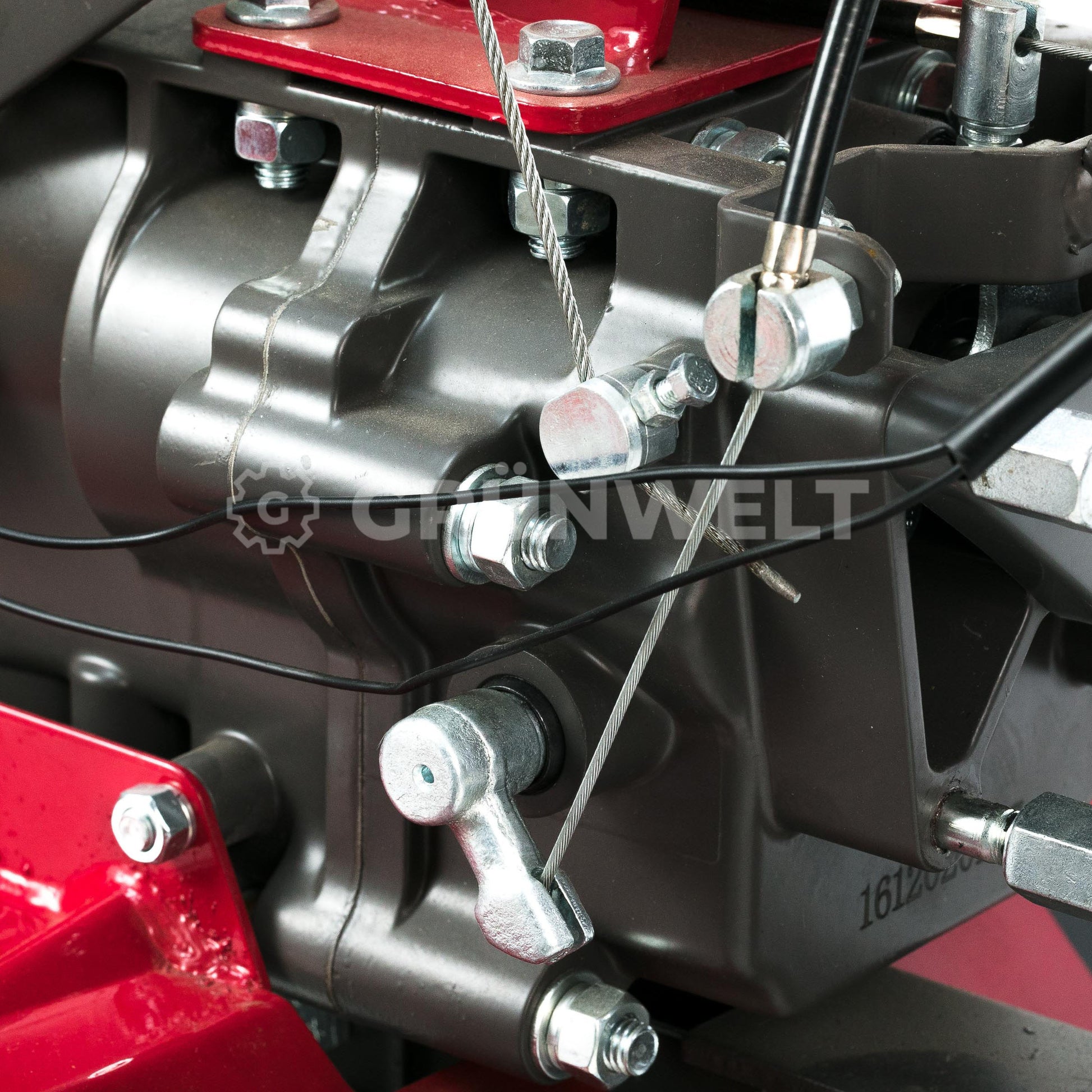

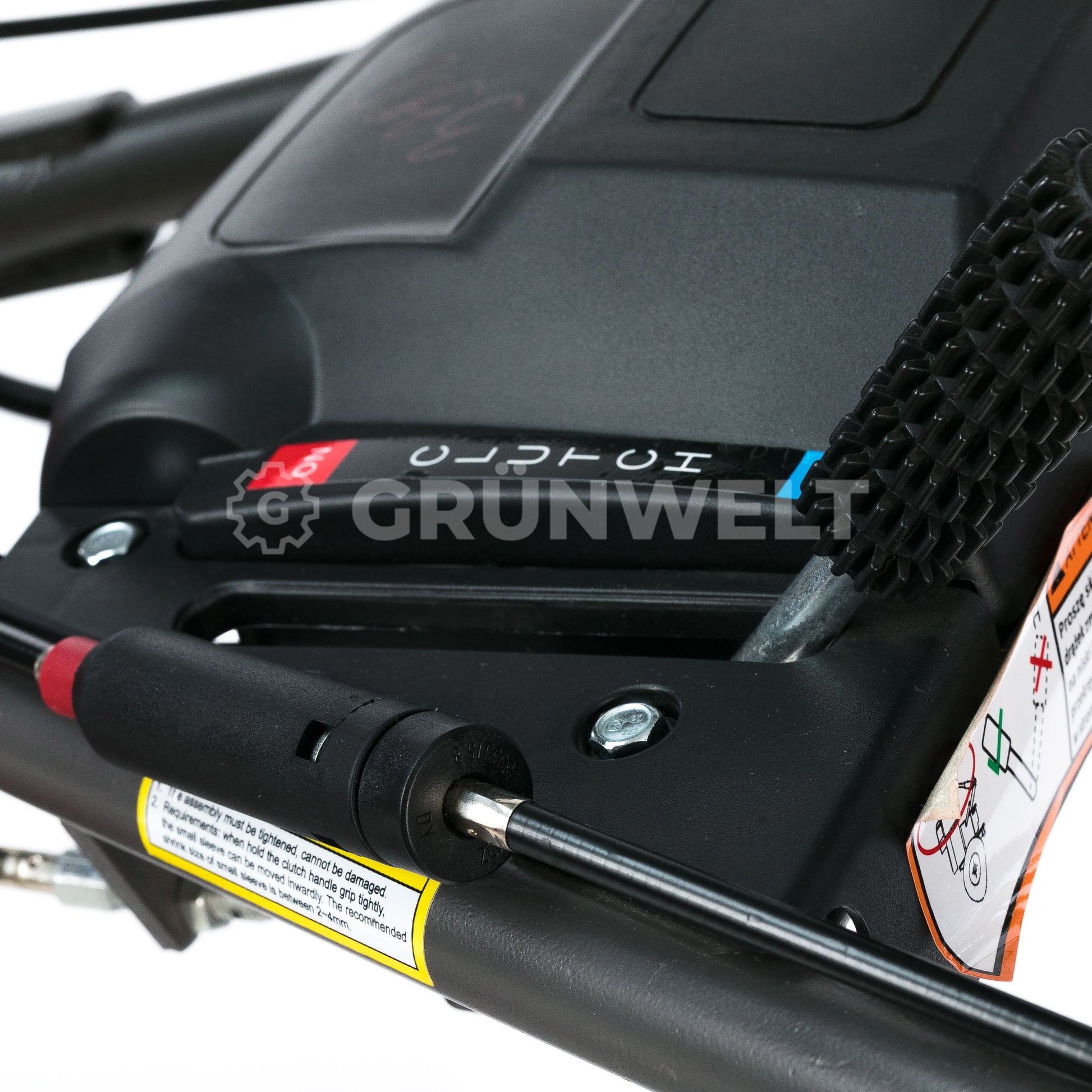

Take your work to a new level with attachments such as a potato planter, rotary cultivator, rotary mower, motor pump, and active tiller. The PTO is equipped with a switch that can disengage the active clutch. The oil-bath multi-plate clutch and professional gearbox are highly reliable components of the motor hoe and are essential for working on different types of soil. This was designed so that the tilling depth is not affected.

The Weima WM1000N-6 motor hoe is equipped with (2+1) tillers with a working width of 100 cm. Thanks to the option of using attachments with the Weima WM1000N-6, it is possible to clear areas of leaves or snow, transport loads, and perform a range of other operations. The Weima motor hoe is delivered without fluids. The basic unit requires 1.6 - 1.7 L of gear oil (SAE 80w-90) and 0.6 - 0.7 L of engine oil (SAE 10w-30 or 10w-40).

The Weima WMBF-6 active tiller also requires 1.6 - 1.7 L of gear oil (SAE 80w-90).

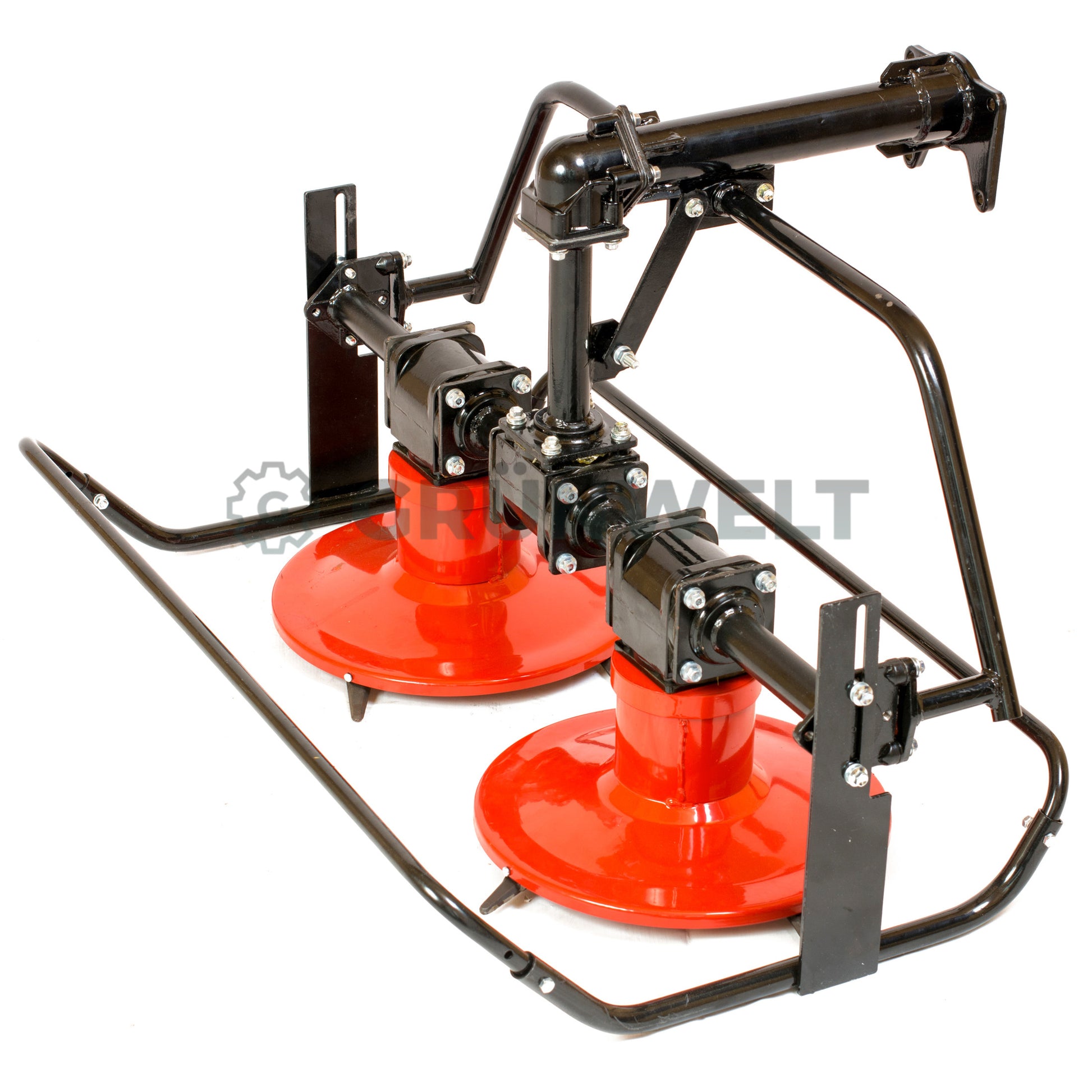

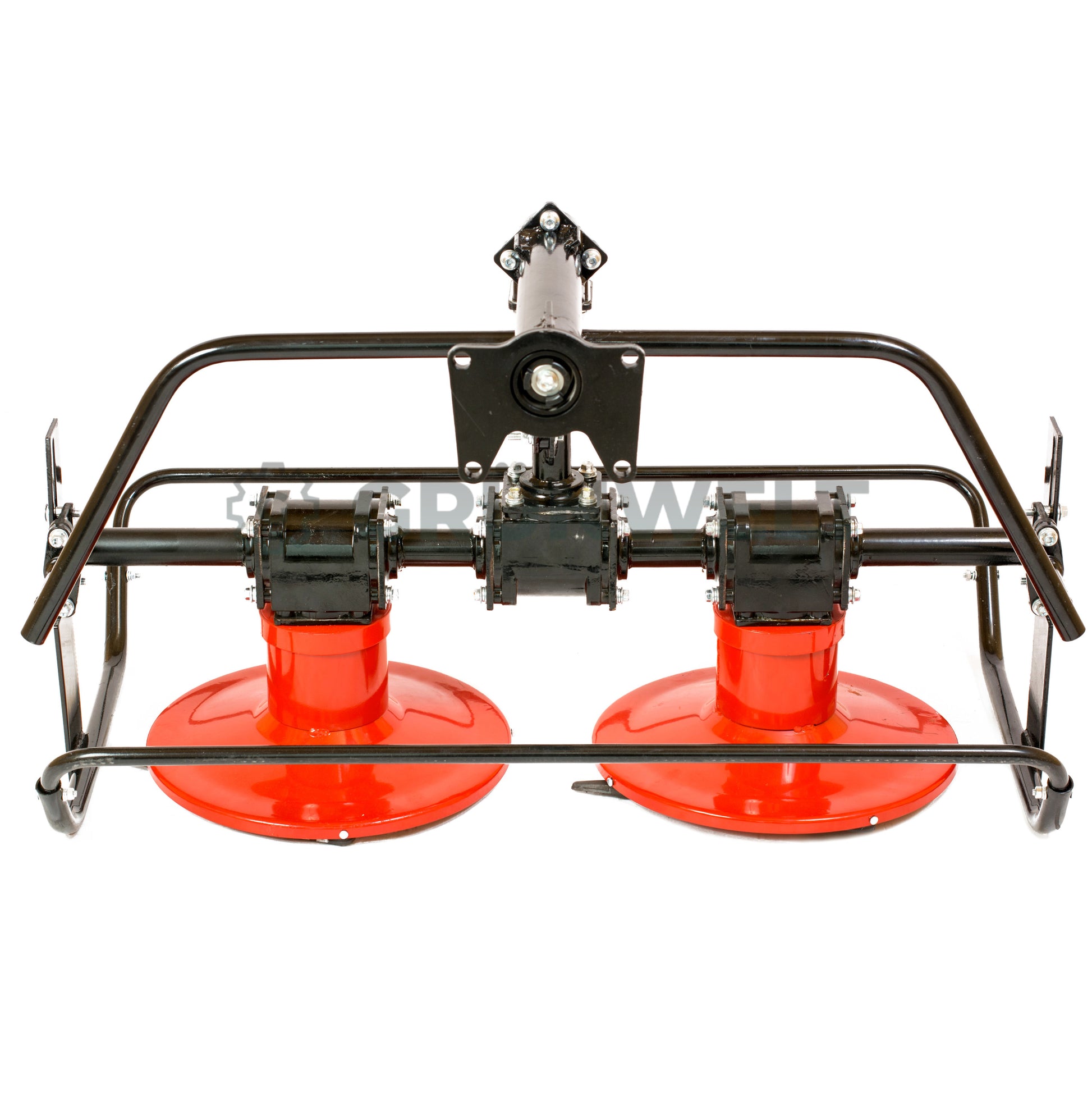

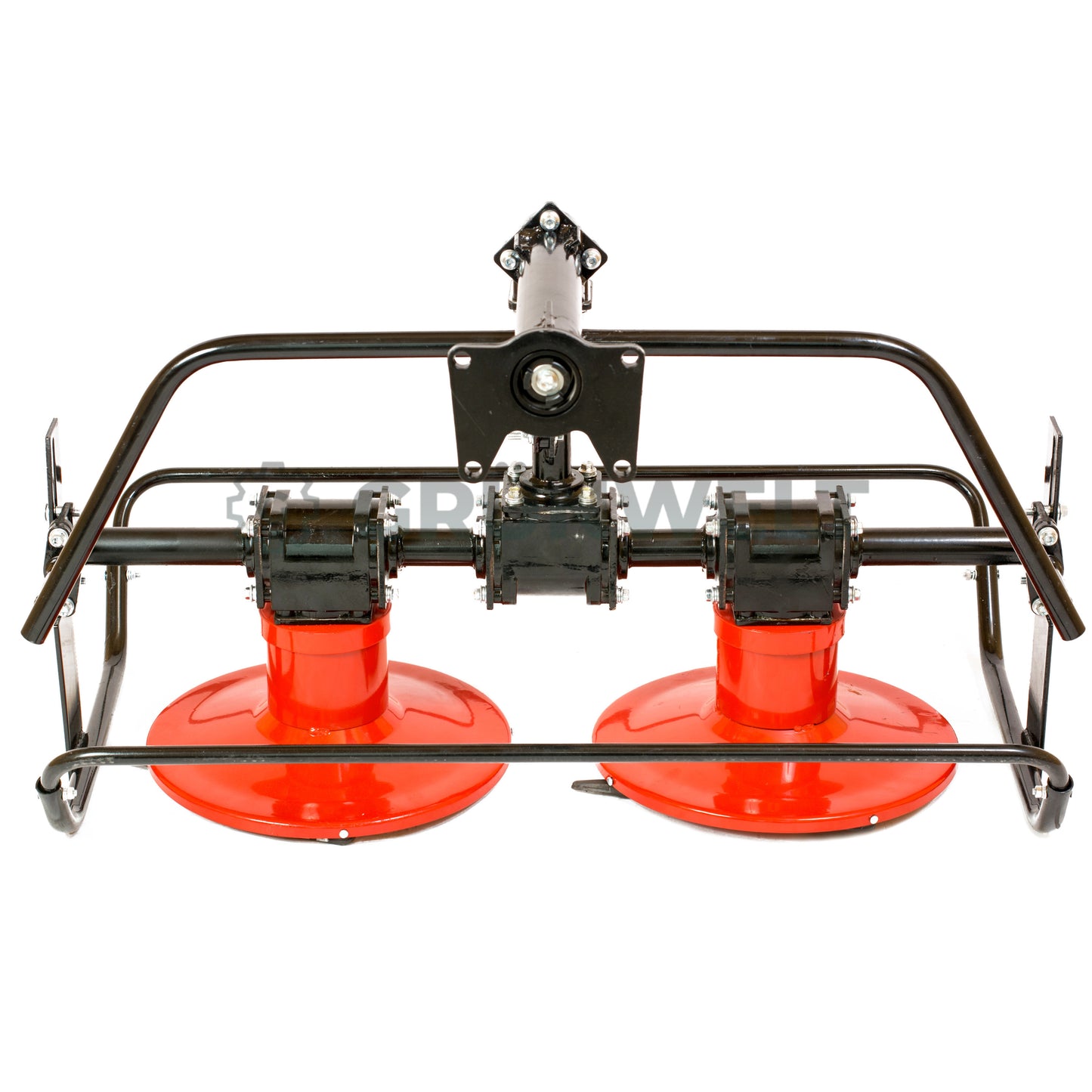

Weima WMKM1000N-6 Rotary Mower

Have you already purchased a motor hoe from us and are looking for a rotary mower? Do you want to save money and avoid buying an additional mower? We have a solution for you - the Weima WMKM1000N-6 rotary mower!

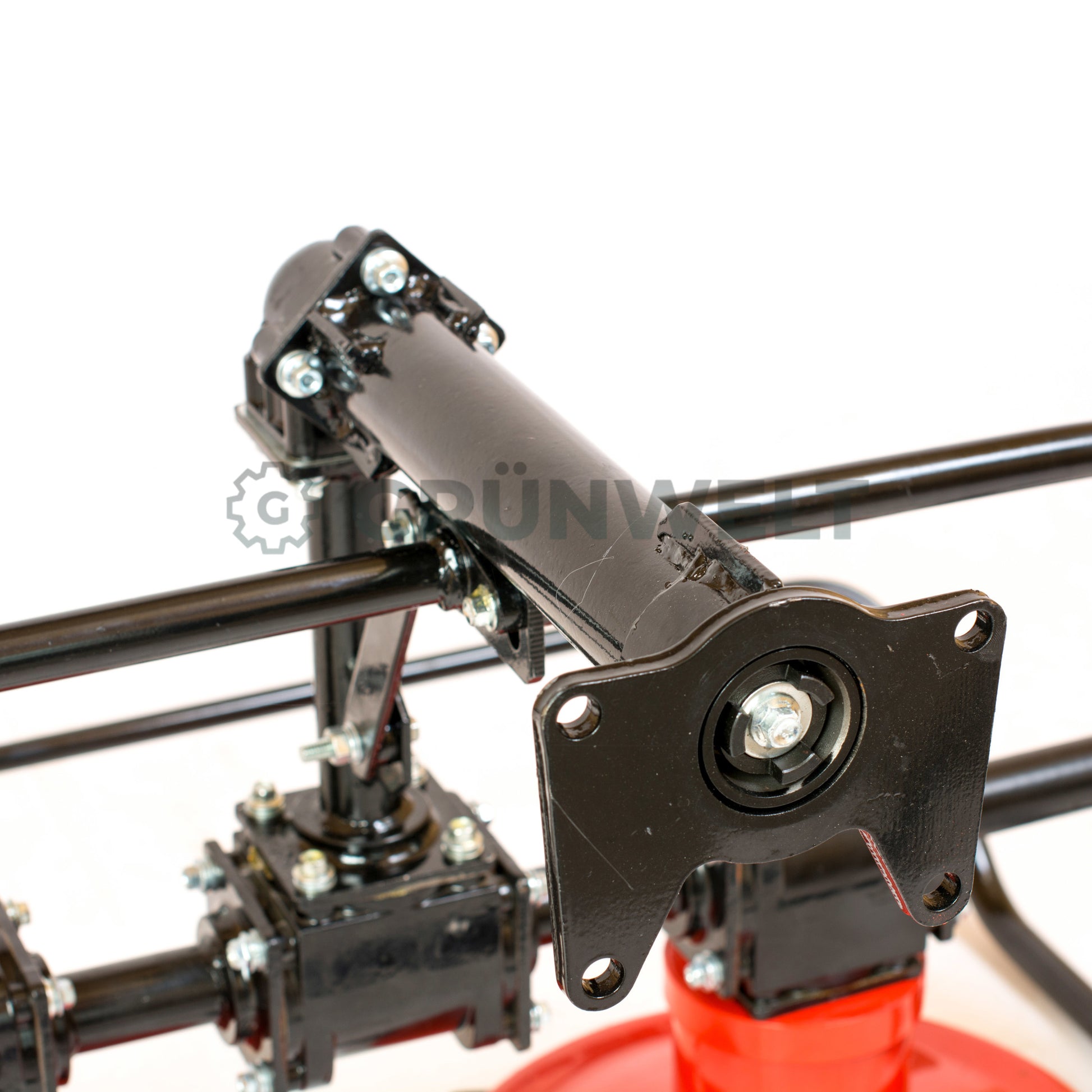

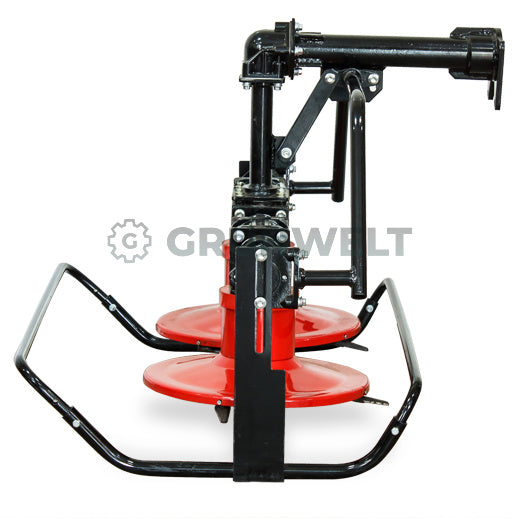

The foldable Weima WMKM1000N-6 rotary mower fits the Weima WM1000N-6 motor hoe. The WMKM1000N-6 is your reliable helper, designed for mowing colorful grass, dense grass (hay), and small shrubs with a diameter of up to 10 mm. The rotary mower can be connected to the motor hoe very easily using a PTO. Thanks to the design of the Weima WMKM1000N-6 mower, the grass-cutting height can be adjusted using a skid. The weight of the rotary mower is transferred to the ground through the skid.

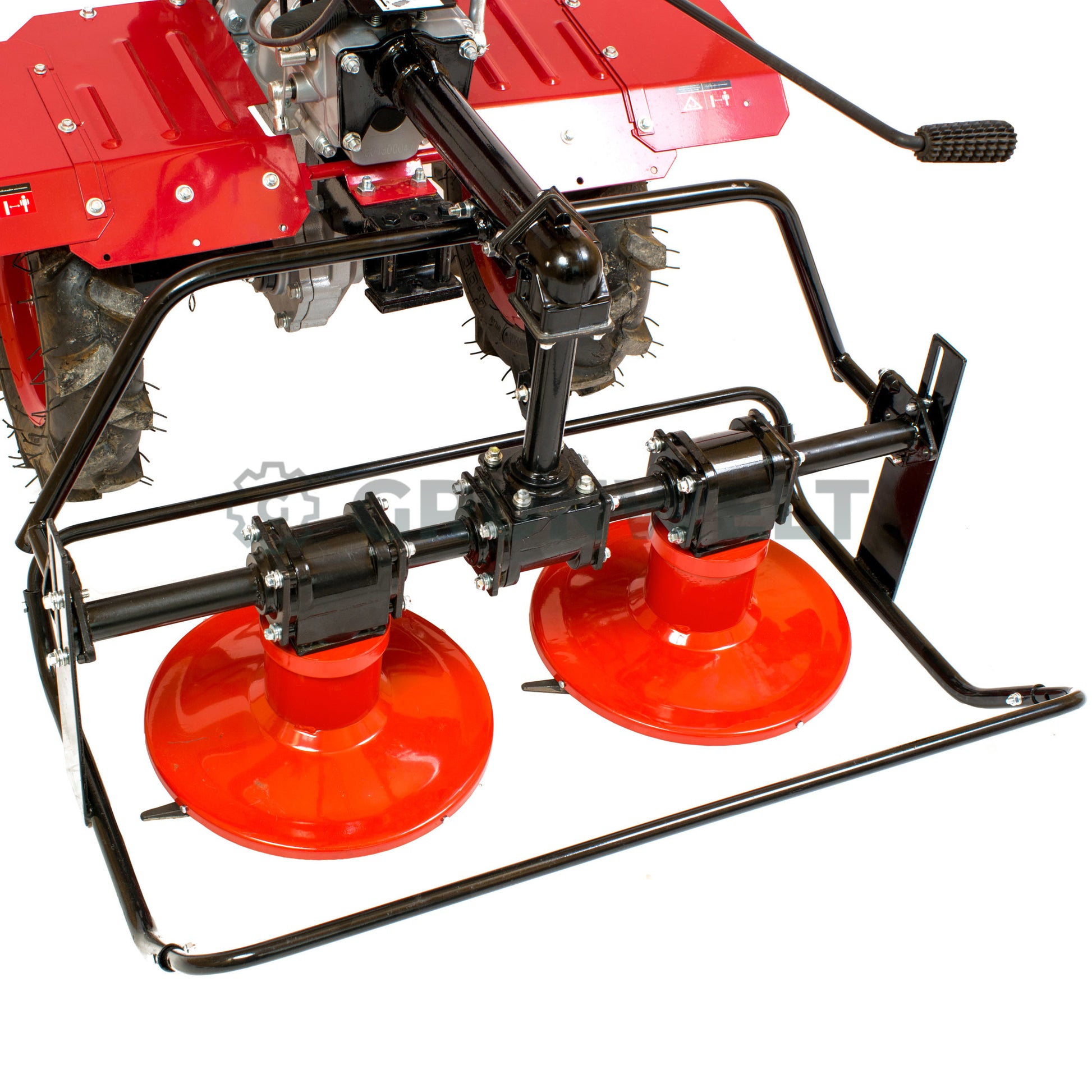

The Weima WMKM1000N-6 rotary mower consists of two rotating discs that rotate in opposite directions. The 8 blades (4 on each disc) rotate freely and are secured with cotter pins. Through centrifugal force, the blades extend as the discs rotate and begin cutting.

During operation of the rotary mower, it is recommended to remove the corner joints every 12 operating hours and lubricate the gears with thick grease. This extends the service life of the unit.

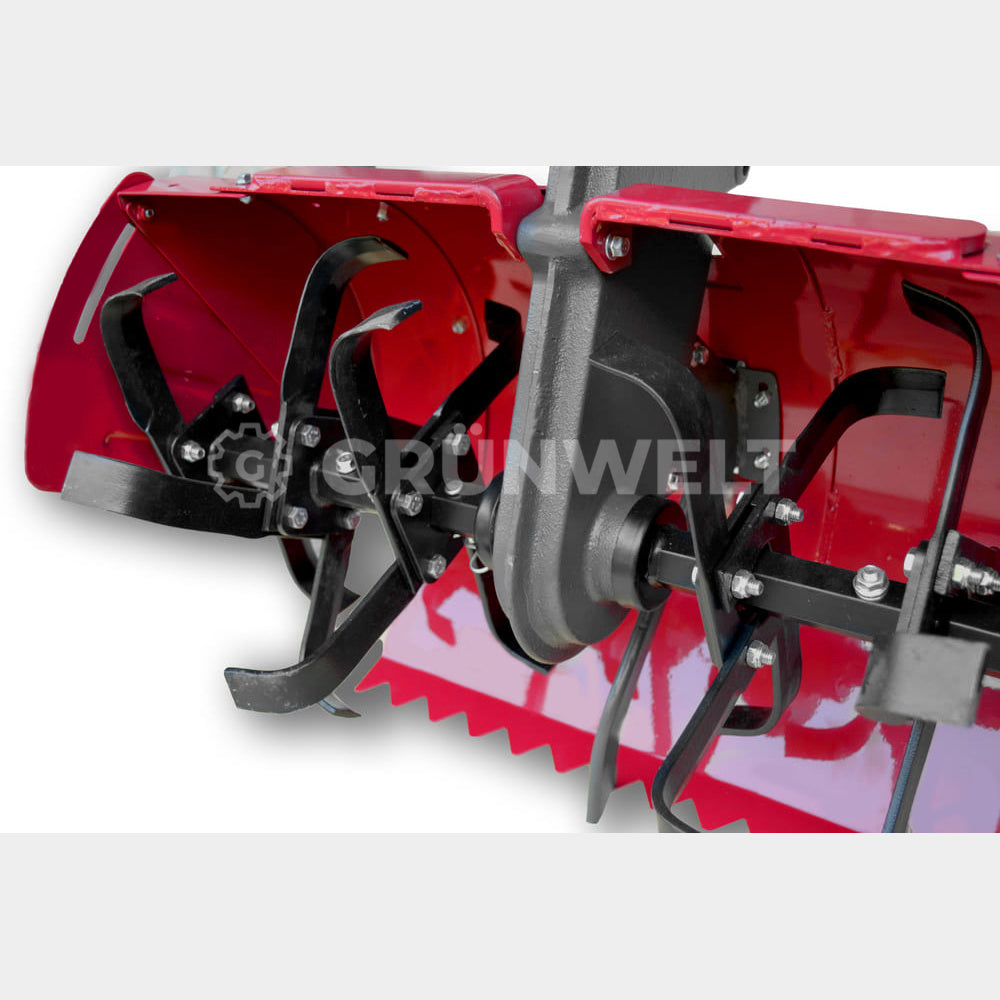

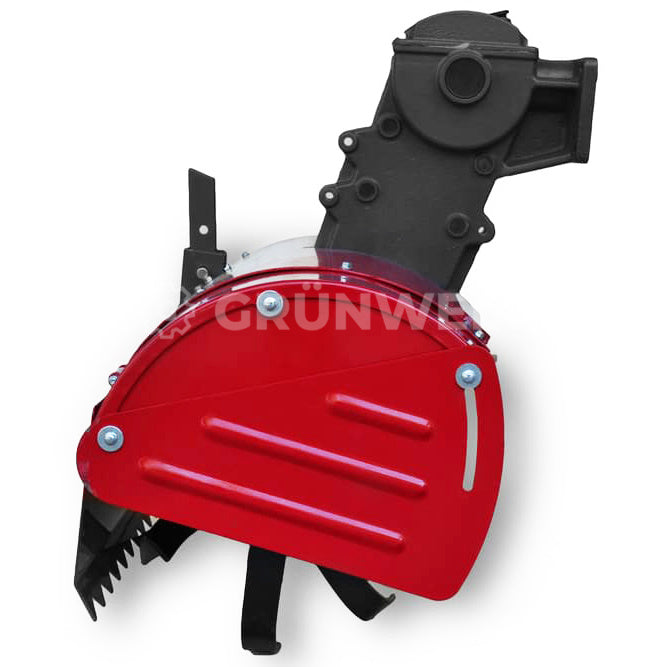

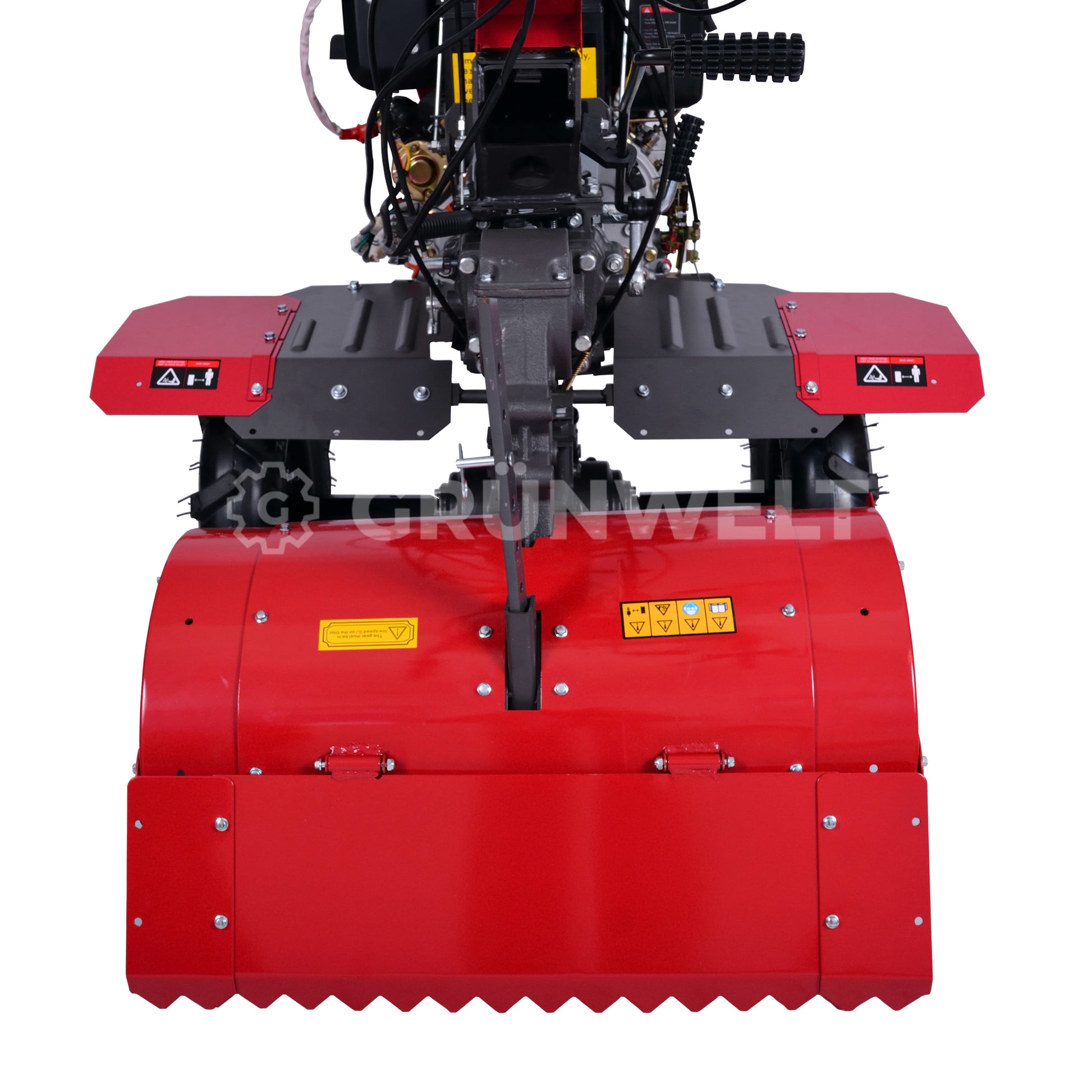

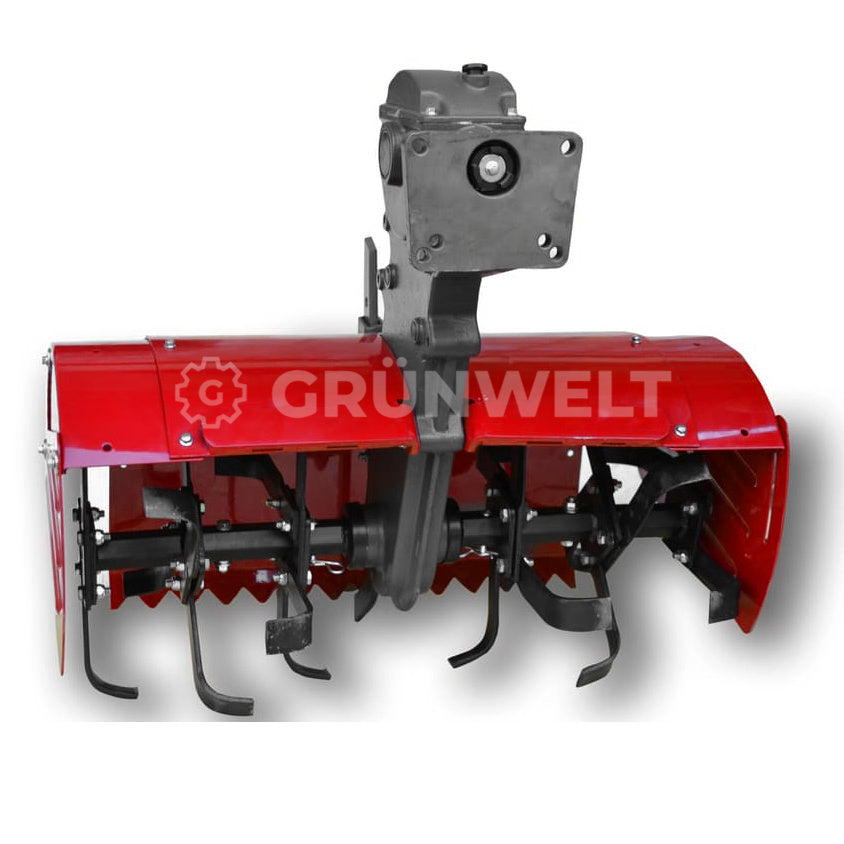

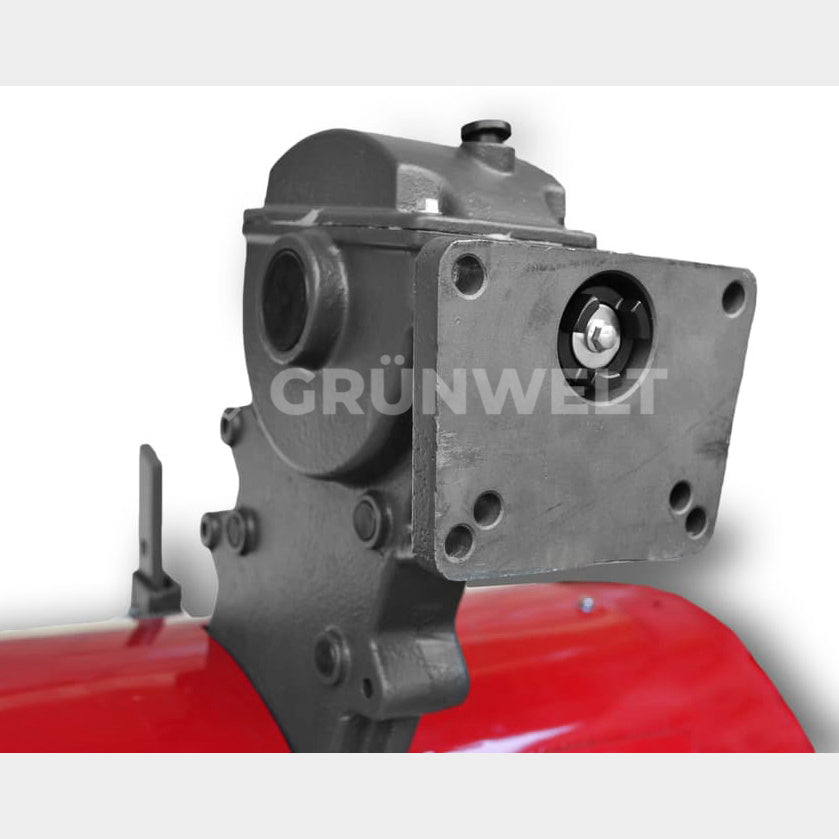

Weima WMBF-6 Active Tiller

Have you already purchased a motor hoe from us and are looking for an active tiller? Do you want to save money and avoid buying an additional unit? We have a solution for you - the Weima WMBF-6 active tiller! WMBF-6 - your helper in removing weeds!

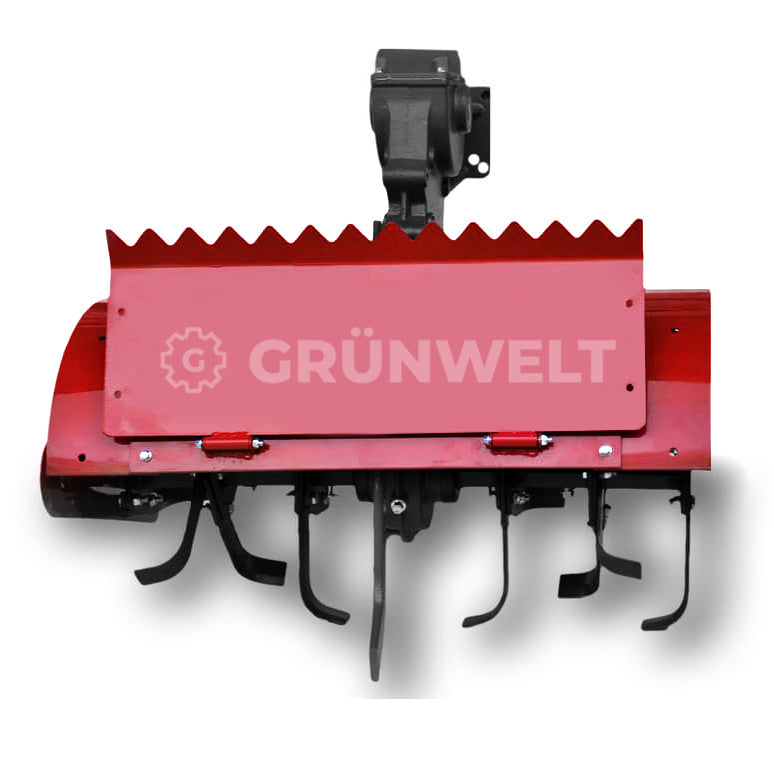

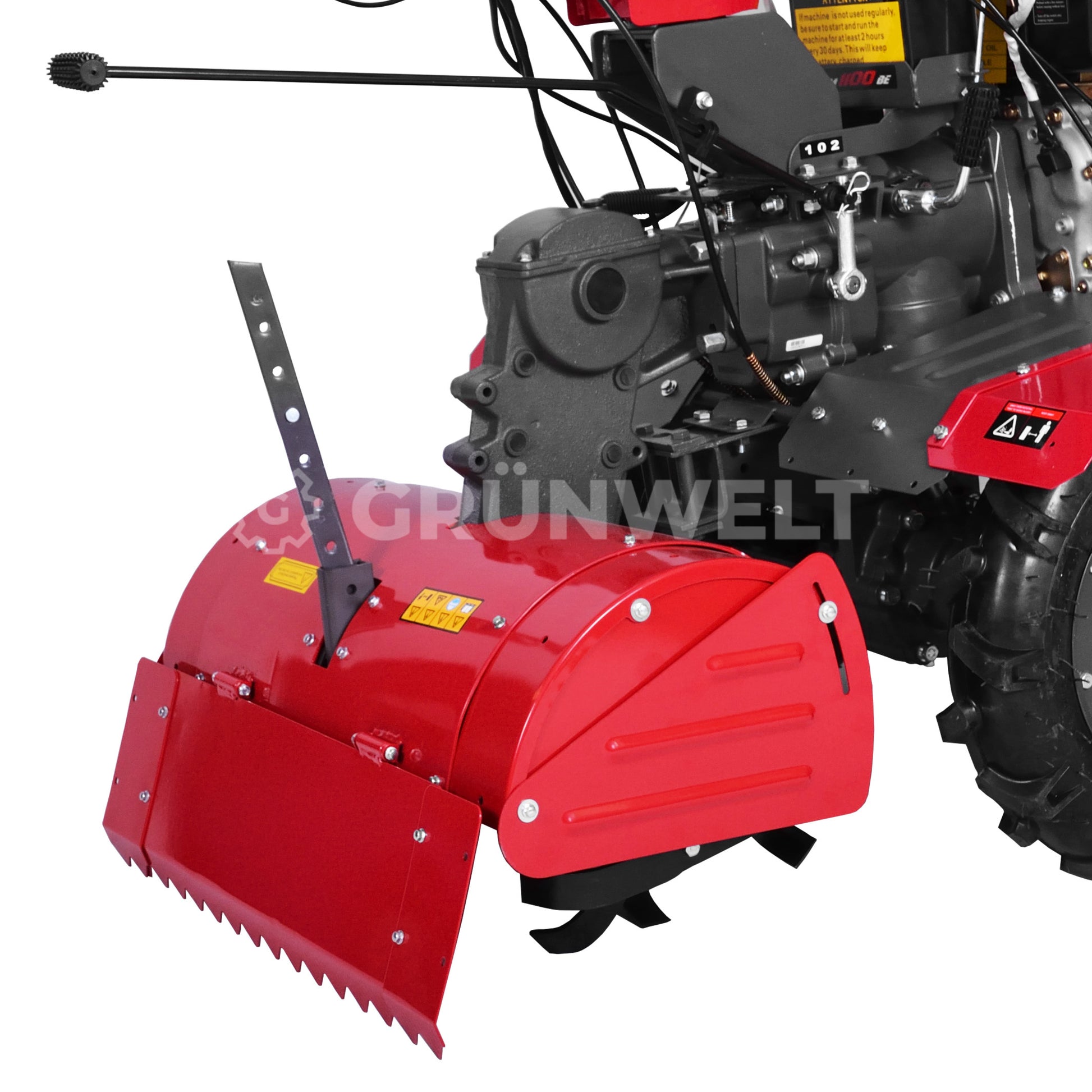

The Weima WMBF-6 active tiller is suitable for cultivating the topsoil, removing weeds, and loosening the soil. The unit is mounted on Weima WM1000N-6 and WM1100-6 motor hoes. The tiller is driven by a PTO and redirected downward through a chain drive with a low gear. The cover reliably protects the operator from unexpected hazards. The working depth can be adjusted from 100 to 200 mm using a lever.

The Weima WMBF-6 active tiller also requires 1.6 - 1.7 L of gear oil (SAE 80w-90).

FEATURES

Motor tiller Weima WM1000N-6
• Powerful engine Weima WM170F (EURO 5, 4-stroke, single-cylinder, OHV, forced cooling)
• Various uses thanks to a wide range of attachments
• Throttle for strong forward drive
• Low fuel and oil consumption
• Working width up to 1000 mm
• Sturdy tiller blades
• Tiller blade stop by dead man's switch
• Weight-optimized design for easy handling

TECHNICAL DATA

Rotary tiller Weima WM1000N-6
• GTIN: 6971472300209
• Working width: 700 - 1000 mm
• Working depth: 150 - 300 mm
• Gearshift: 4 forward, 2 reverse
• Drive type: Gearbox
• Gear oil capacity: 1.6 L
• Tilling blades: 4 × (2+1) pcs.

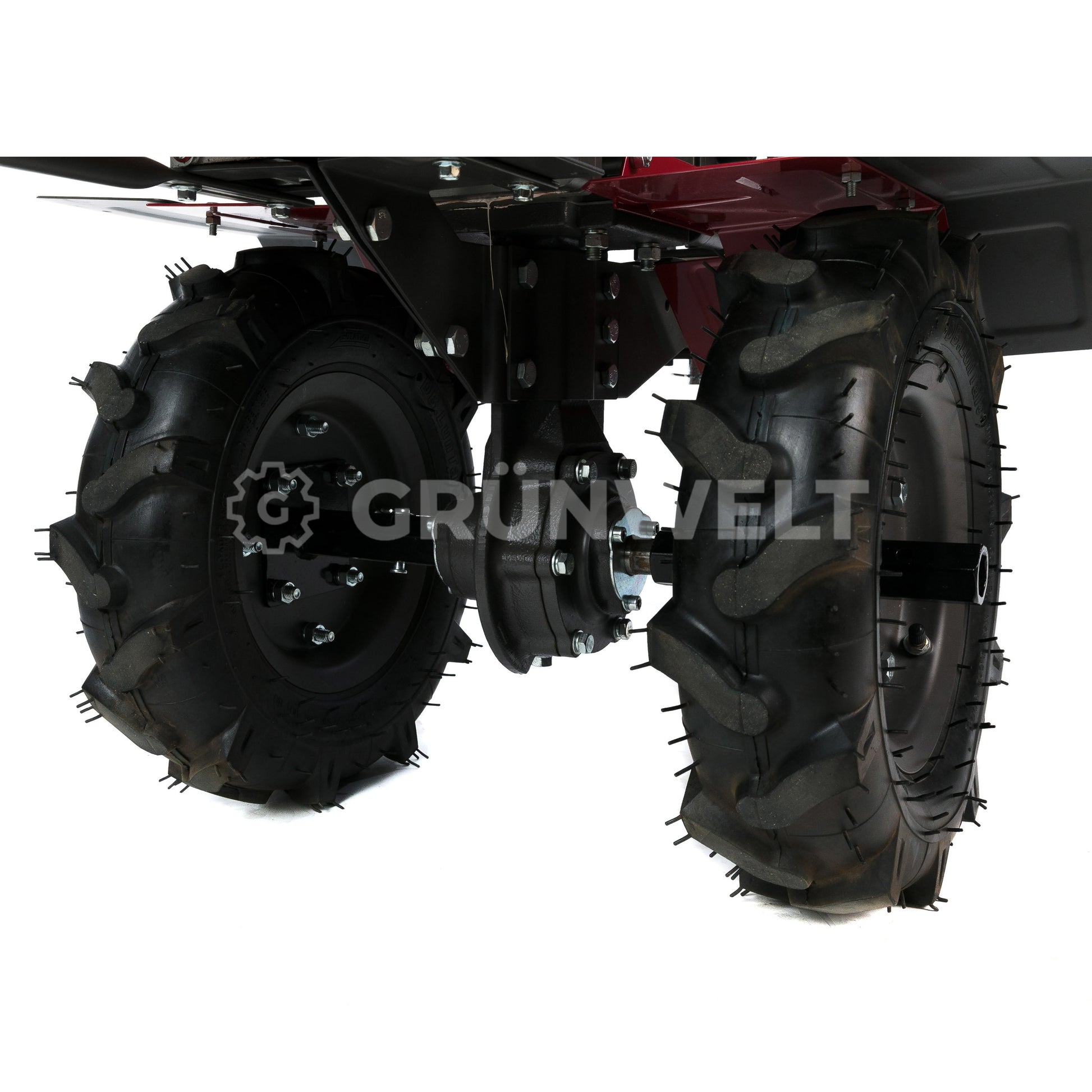

• Tires: 4.00 – 8“

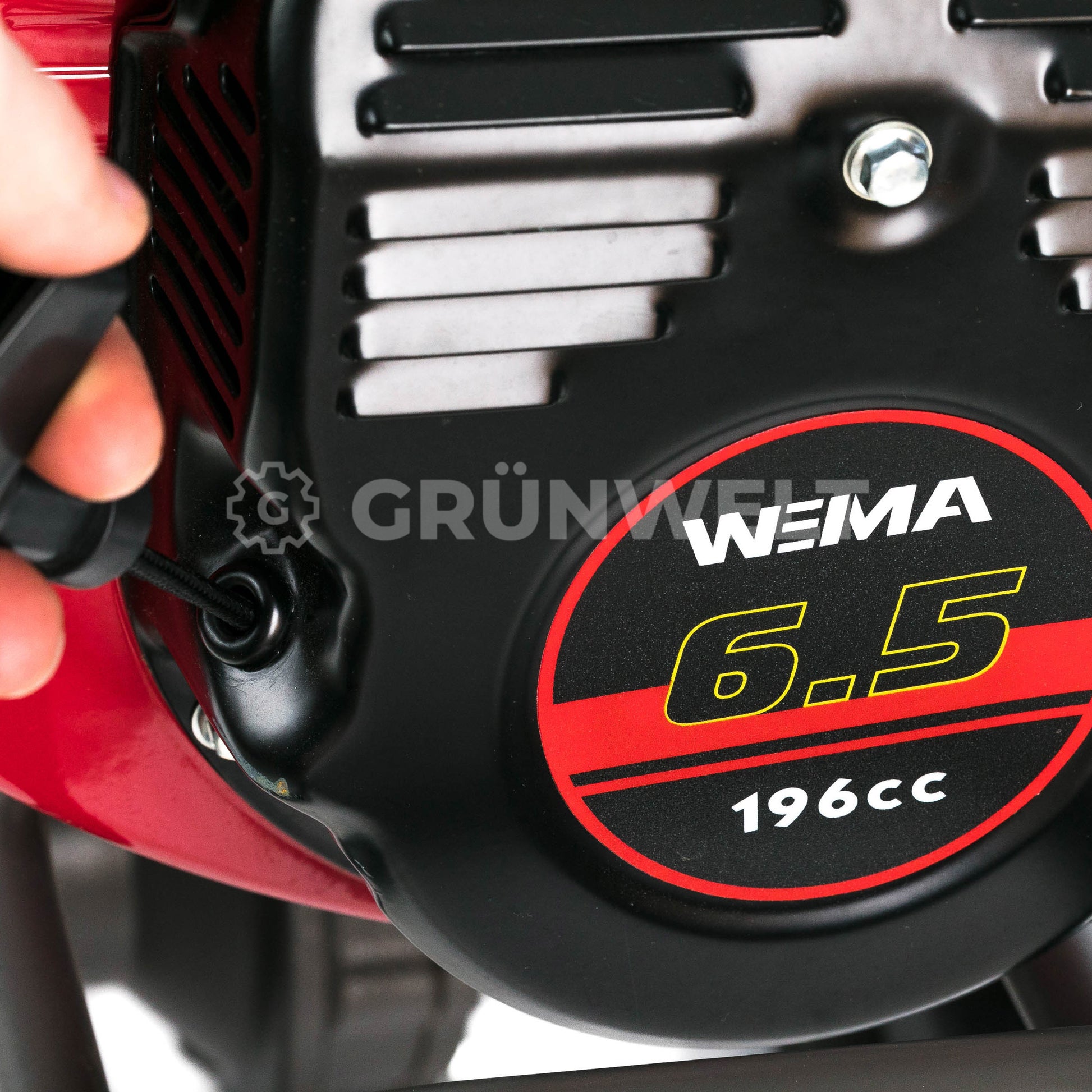

• Engine: Weima WM170F
• Type: EURO 5, OHV, single-cylinder, 4-stroke, forced cooling
• Displacement: 212 cm³
• Max. engine power: 5 kW / 7 hp
• Starting system: Pull starter
• Fuel capacity: 3.6 L
• Dimensions: 1600 × 1000 × 1050 mm
• Net weight: 75 kg
Rotary mower Weima WMKM1000N-6
• GTIN: 6971472300377
• Type: Trailed
• Cutting width: 850 mm
• Maximum cutting height: 70 mm
• Working speed: approx. 2-4 km/h
• Mountable on rotary tiller: Weima WM1000N-6
• Average output: 0.15 – 0.2 hectare/h
• PTO speed: 540 rpm
• Dimensions: 810 × 930 × 780 mm
• Net weight: 23 kg
Active soil cultivator Weima WMBF-6
• GTIN: 6971472300353
• Working width: 400 – 600 mm
• Working depth: 100 – 200 mm
• Mountable on rotary tiller: Weima WM1000N-6, WM1100-6 series
• Dimensions: 730 × 570 × 620 mm
• Net weight: 30 kg
