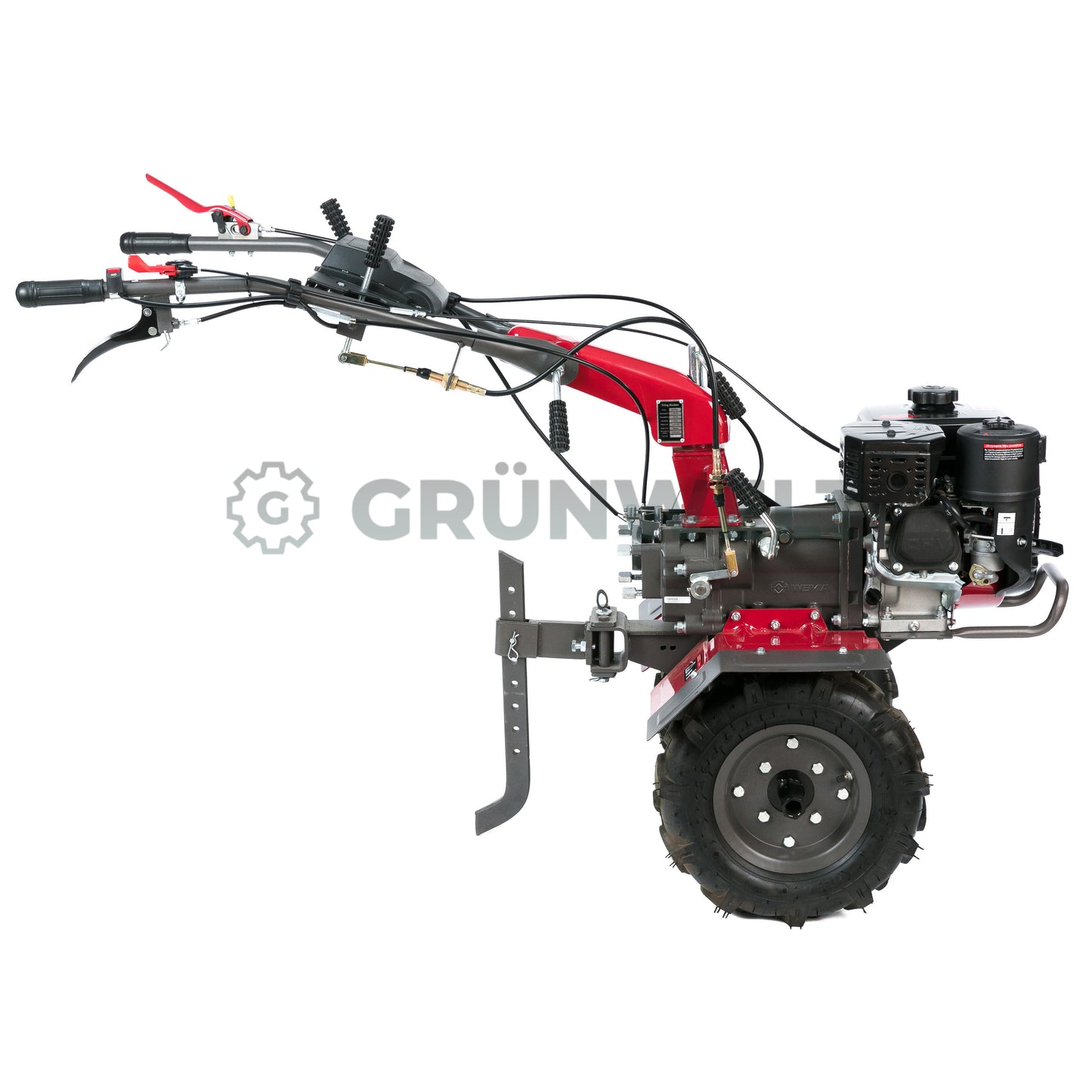

Rototiller Weima WM1000N-6 SET with rotary mower and iron wheels (without gearbox and engine oil)

Weima WM1000N-6 Motor Cultivator The heavy Weima WM1000N-6 motor cultivator with the Weima WM170F engine is used for large workloads and withstands heavy strain. The Weima WM170F engine is distinguished by excellent functionality, power, and low fuel consumption. To maximize use and operation, a completely new gearbox with reduced gears has been developed. This development will make your work easier and safer. Above all, you can choose the optimal speed for yourself so you do not have to keep up with the machine. Take your work to a new level with attachments such as a potato planter, rotary cultivator, rotary mower, motor pump, and active tiller. The power take-off shaft is equipped with a switch that can disengage the active clutch. The wet multi-plate clutch and the professional gearbox are very reliable parts of the motor cultivator, necessary for work on different soils. This was done to avoid affecting the tilling depth. The Weima WM1000N-6 motor cultivator is equipped with (2+1) tillers with a working width of 100 cm. Due to the possibility of using attachments with the Weima WM1000N-6, it is possible to clear areas of leaves or snow, transport loads, and perform a range of other operations. The Weima motor cultivator is delivered drained. You will still need 1.6 - 1.7 L of gear oil (SAE 80w-90) and 0.6 - 0.7 L of engine oil (SAE 10w-30 or 10w-40) for the base unit. Additionally, for the Weima WMBF-6 rotary tiller, you need 1.6 - 1.7 L of gear oil (SAE 80w-90). Weima WMKM1000N-6 Rotary Mower Have you already purchased a motor cultivator from us and are looking for a rotary mower? Do you want to save money and not buy an extra mower? We have a solution for you – the Weima WMKM1000N-6 rotary mower! The foldable Weima WMKM1000N-6 rotary mower fits the Weima WM1000N-6 motor cultivator. The WMKM1000N-6 is your good helper for mowing mixed grass, dense grass (hay), and small bushes up to 10 mm in diameter. The rotary mower can be very easily connected to the motor cultivator using a power take-off shaft. Due to the design of the Weima WMKM1000N-6 mower, the cutting height can be adjusted via a sled. The weight of the rotary mower is transferred to the ground through the sled. The Weima WMKM1000N-6 rotary mower consists of two rotating discs that turn opposite each other. The 8 blades (4 on each disc) can rotate freely and are secured with a split pin. Thanks to centrifugal force, the blades align when the discs rotate and begin their work. When operating the rotary mower, it is recommended to dismantle the corner joints every 12 hours of operation and grease the gears with thick grease. This extends the device’s service life.

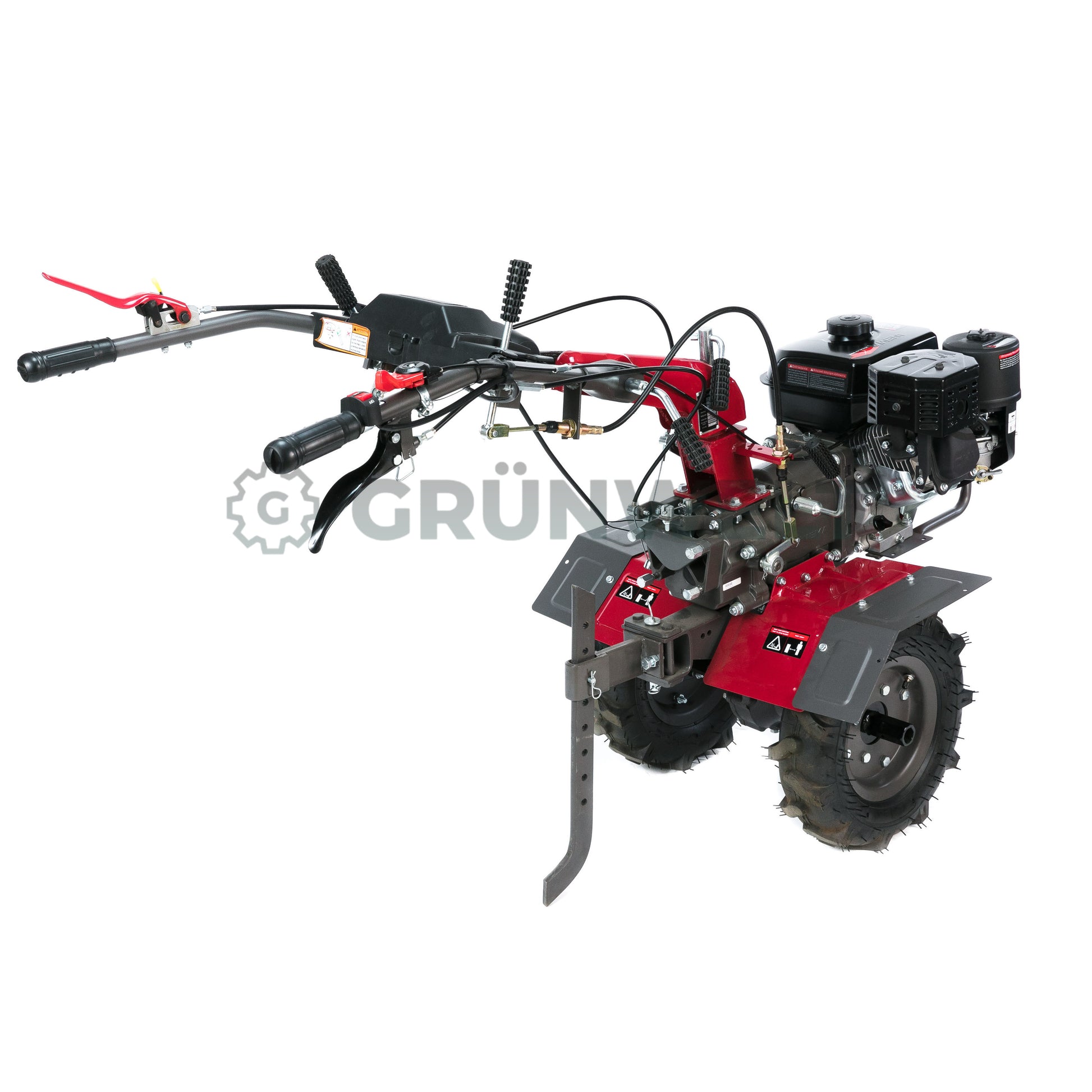

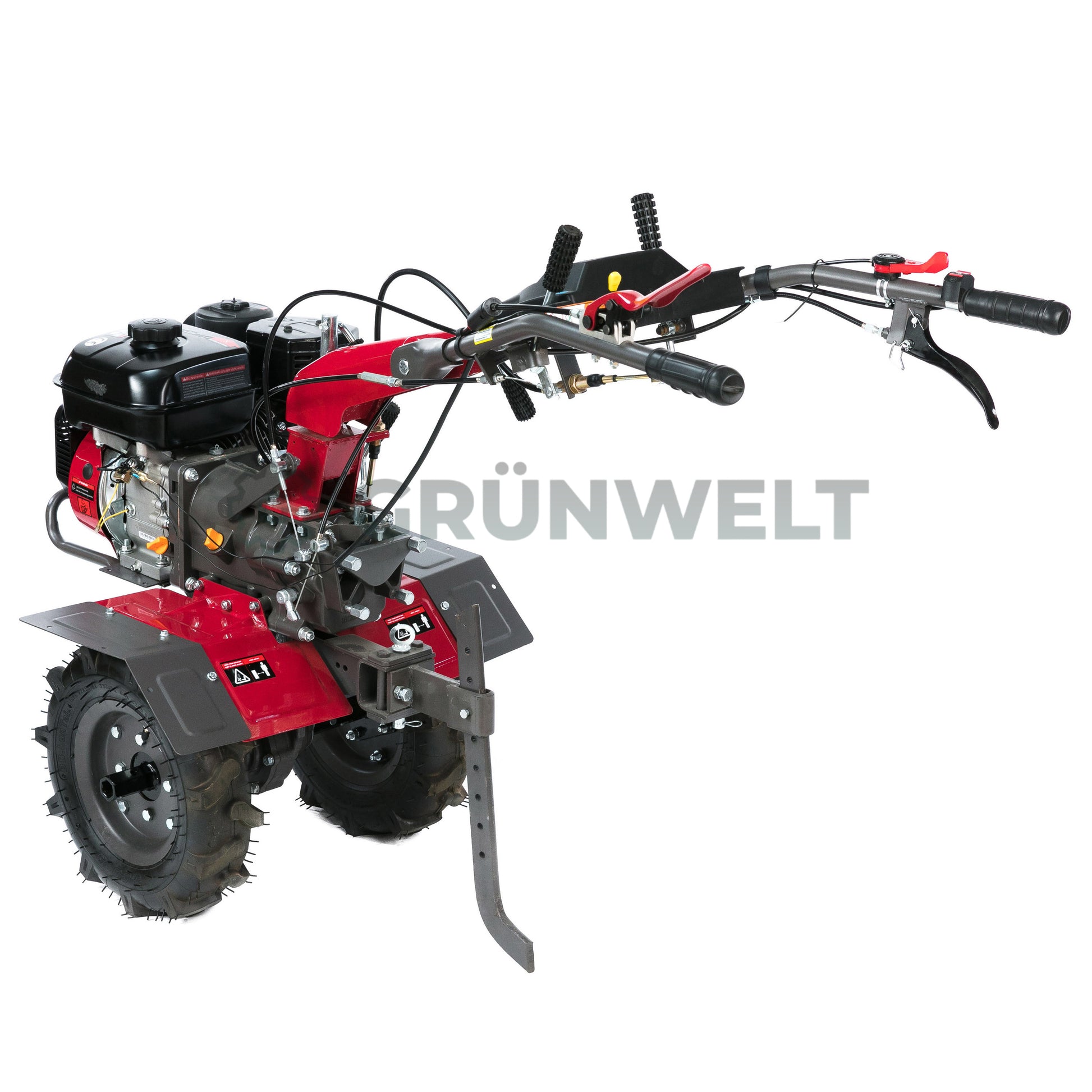

Motor tiller Weima WM1000N-6
• Powerful engine Weima WM170F (EURO 5, 4-stroke, single-cylinder, OHV, forced cooling)
• Various uses thanks to a wide range of attachments
• Throttle for strong forward drive
• Low fuel and oil consumption
• Working width up to 1000 mm
• Sturdy tiller blades
• Tiller blade stop by dead man's switch
• Weight-optimized design for easy handling

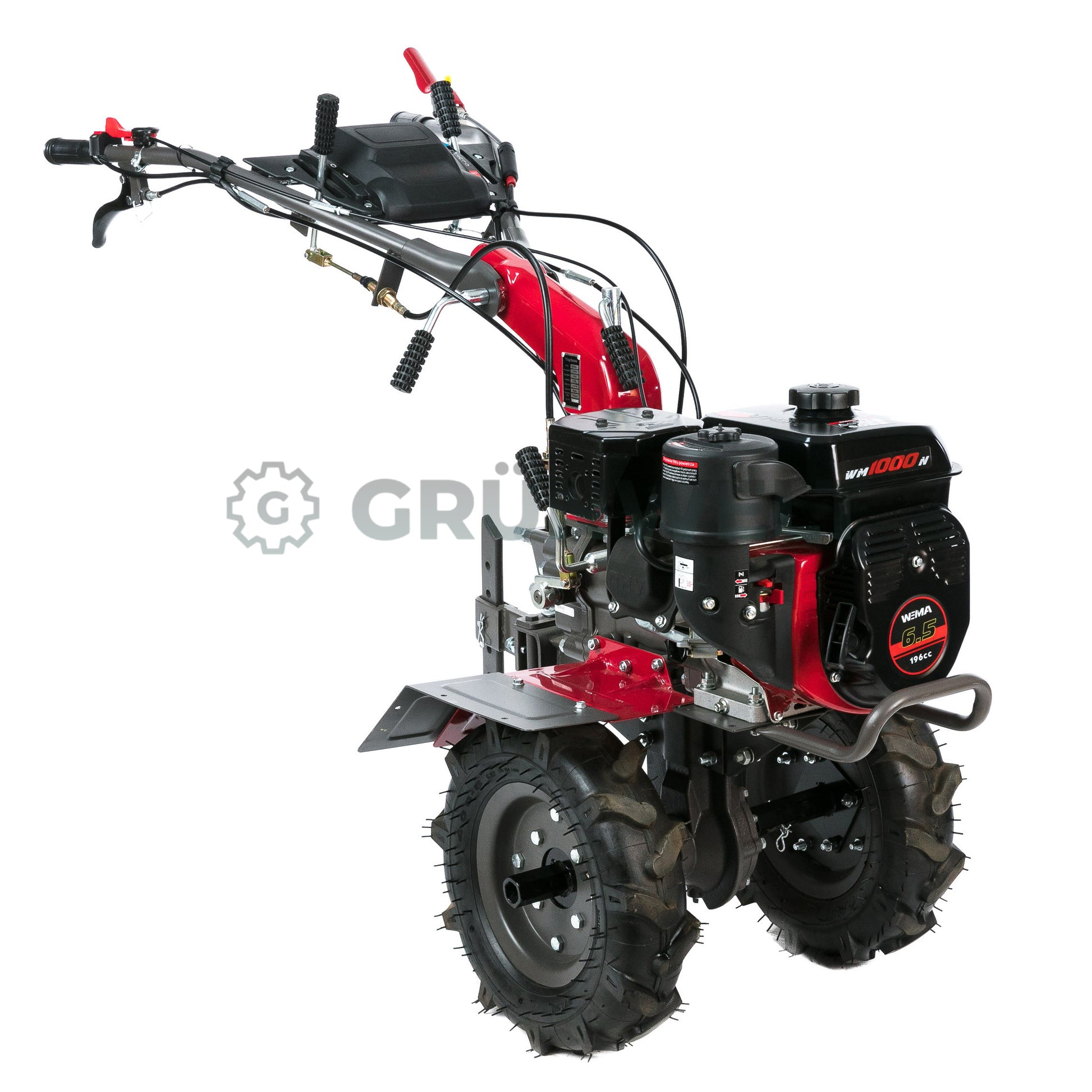

Rotary tiller Weima WM1000N-6
• GTIN: 6971472300209
• Working width: 700 - 1000 mm
• Working depth: 150 - 300 mm
• Gearshift: 4 forward, 2 reverse
• Drive type: Gearbox
• Gear oil capacity: 1.6 L

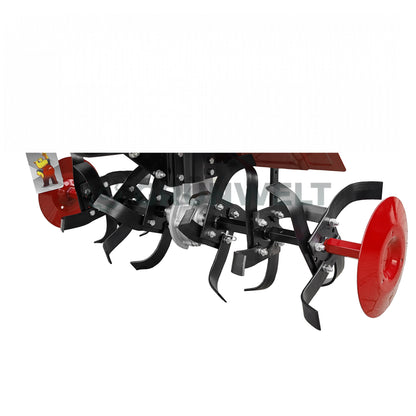

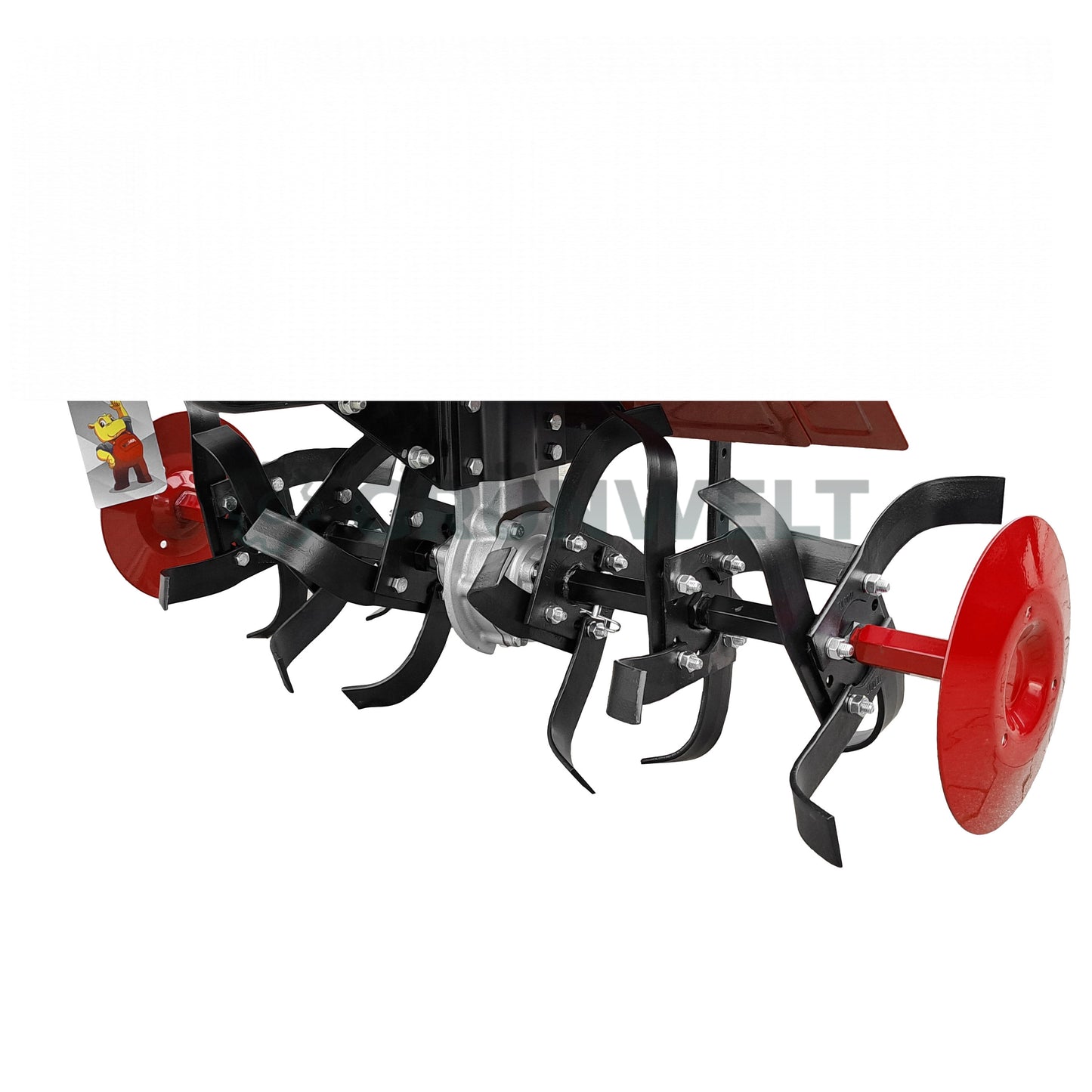

• Tilling blades: 4 × (2+1) pcs.
• Tires: 4.00 – 8“
• Engine: Weima WM170F
• Type: EURO 5, OHV, single-cylinder, 4-stroke, forced cooling
• Displacement: 212 cm³
• Max. engine power: 5 kW / 7 hp
• Starting system: Pull starter
• Fuel capacity: 3.6 L
• Dimensions: 1600 × 1000 × 1050 mm
• Net weight: 75 kg

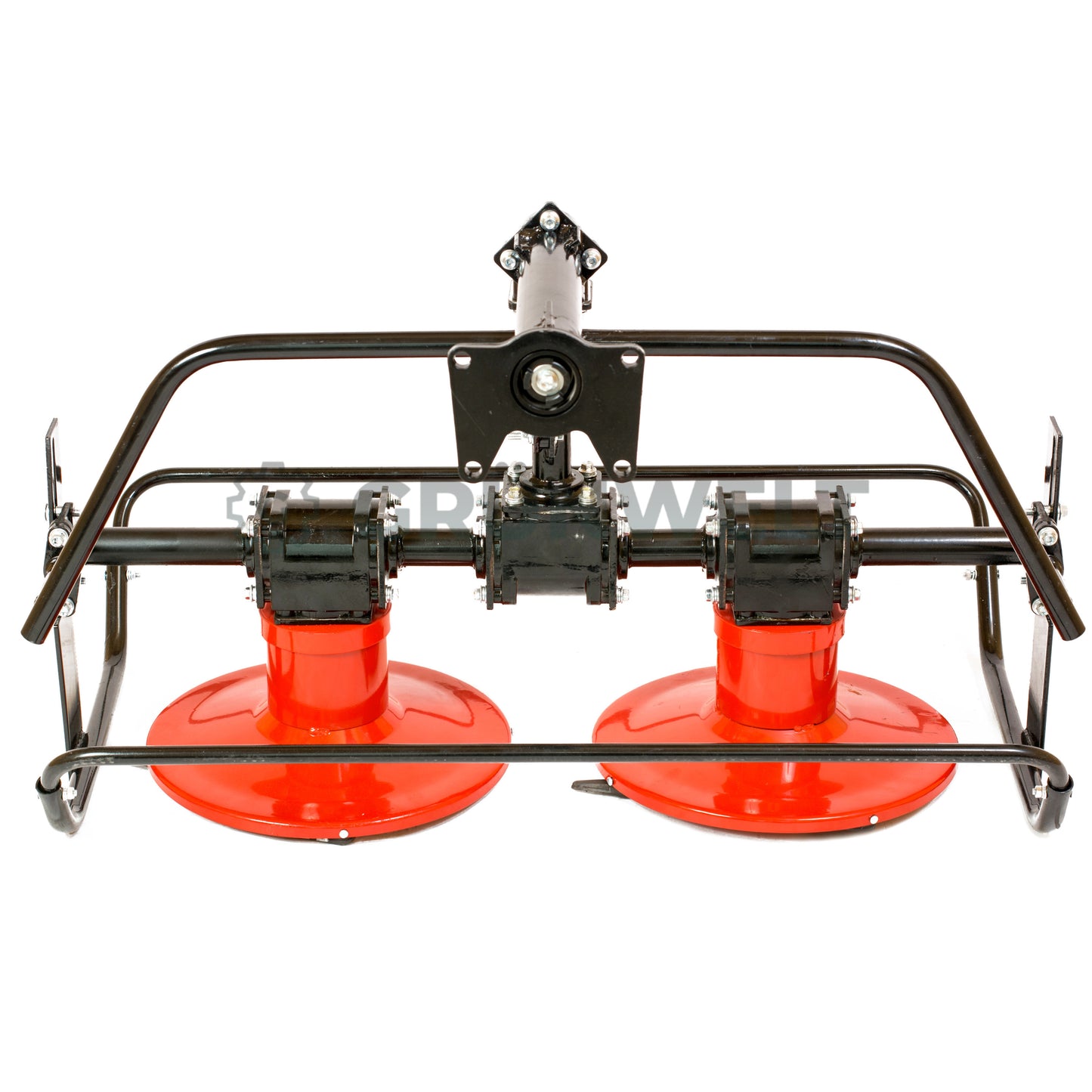

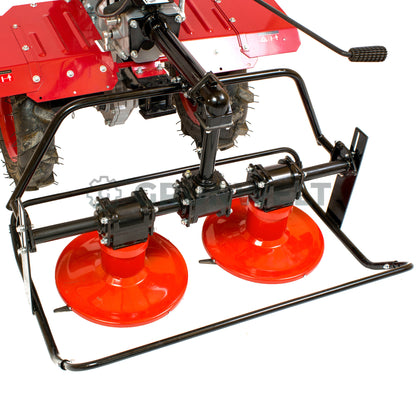

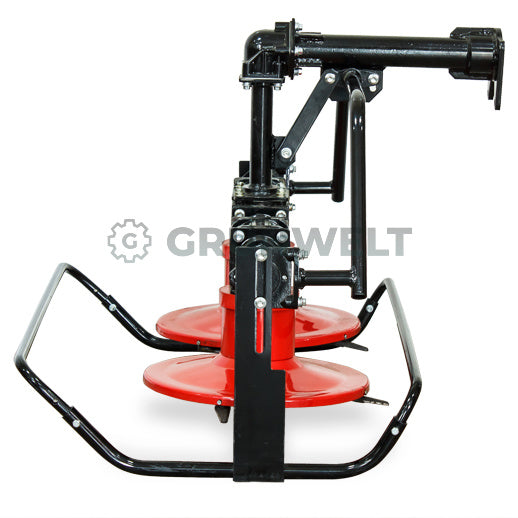

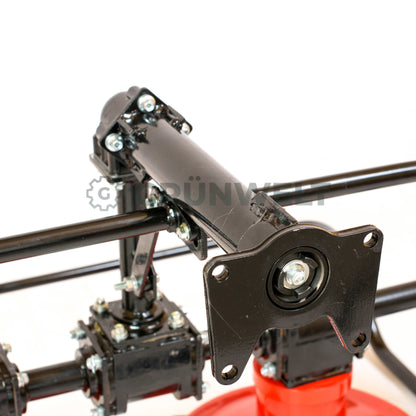

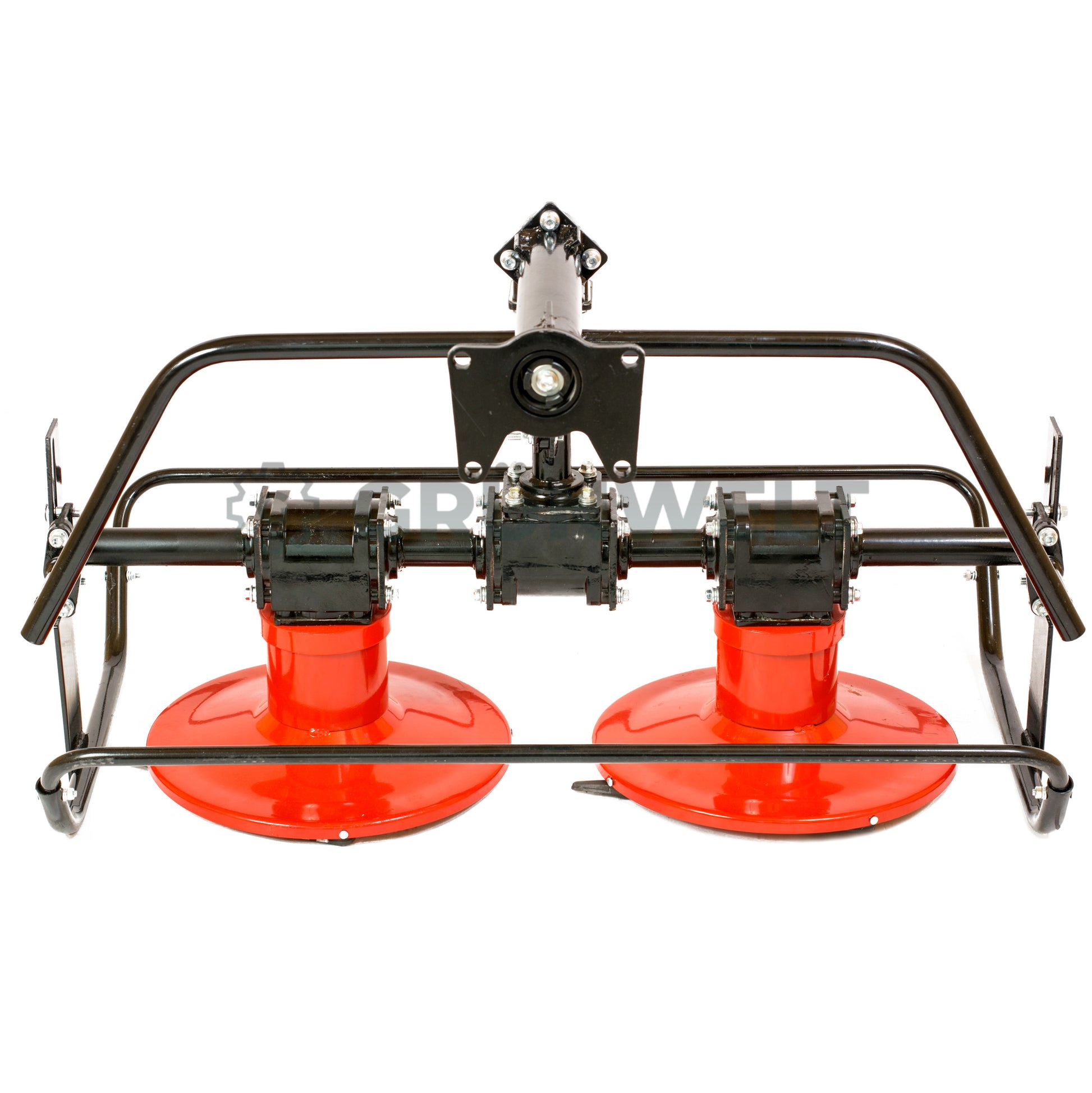

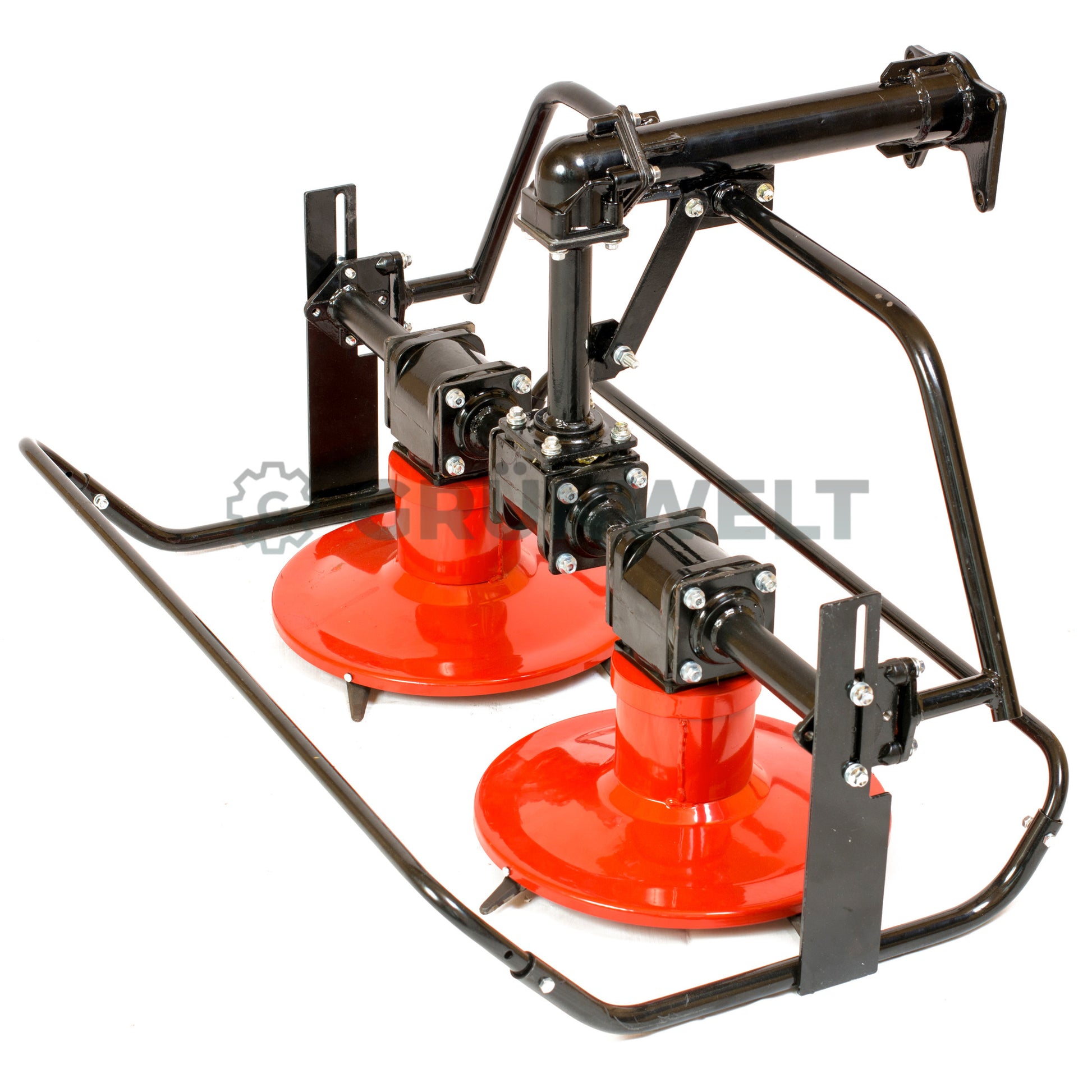

Rotary mower Weima WMKM1000N-6
• GTIN: 6971472300377
• Type: Mounted
• Cutting width: 850 mm
• Maximum cutting height: 70 mm
• Working speed: approx. 2-4 km/h
• Mountable on rotary tiller: Weima WM1000N-6
• Average output: 0.15 – 0.2 hectare/h
• PTO speed: 540 rpm
• Dimensions: 810 × 930 × 780 mm
• Net weight: 23 kg

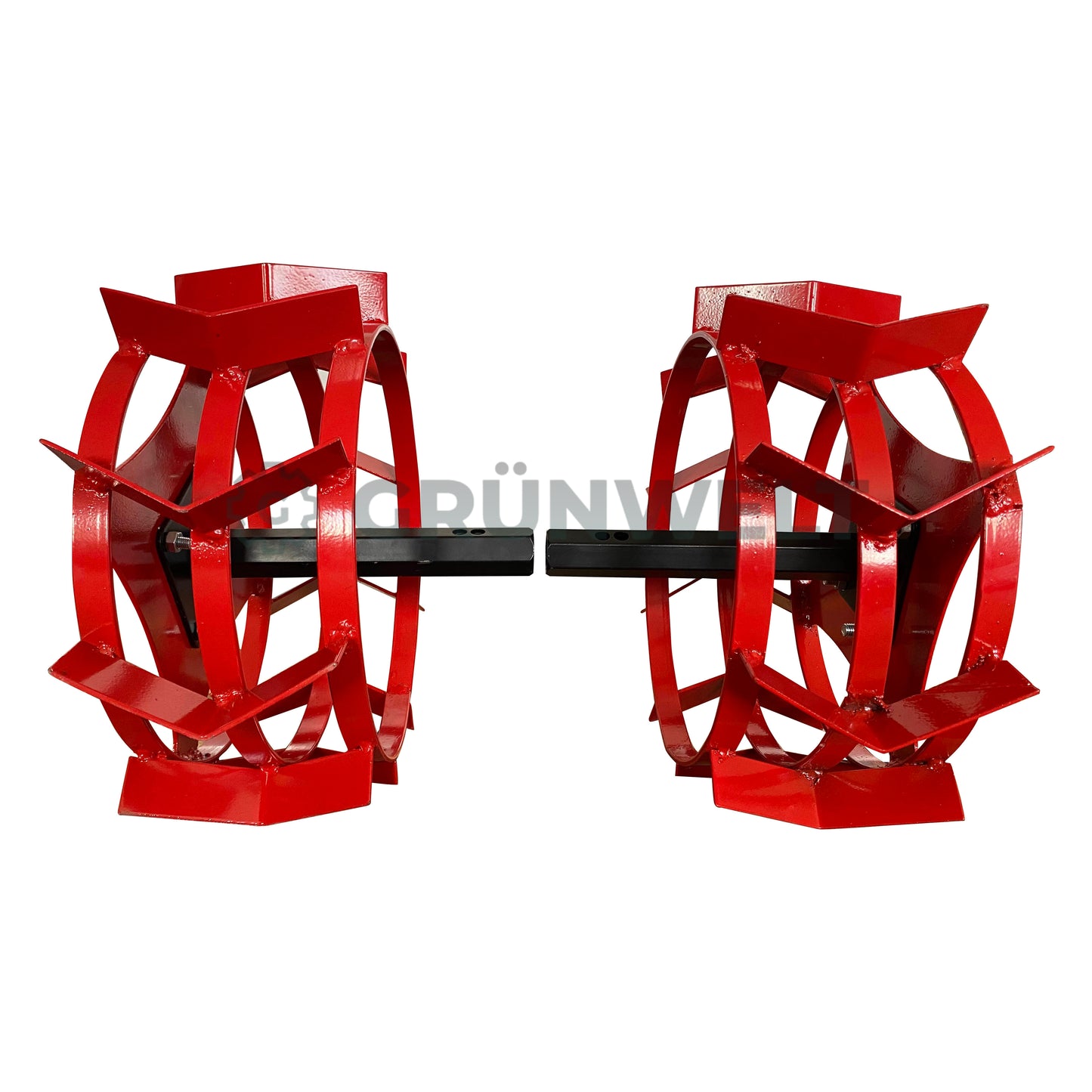

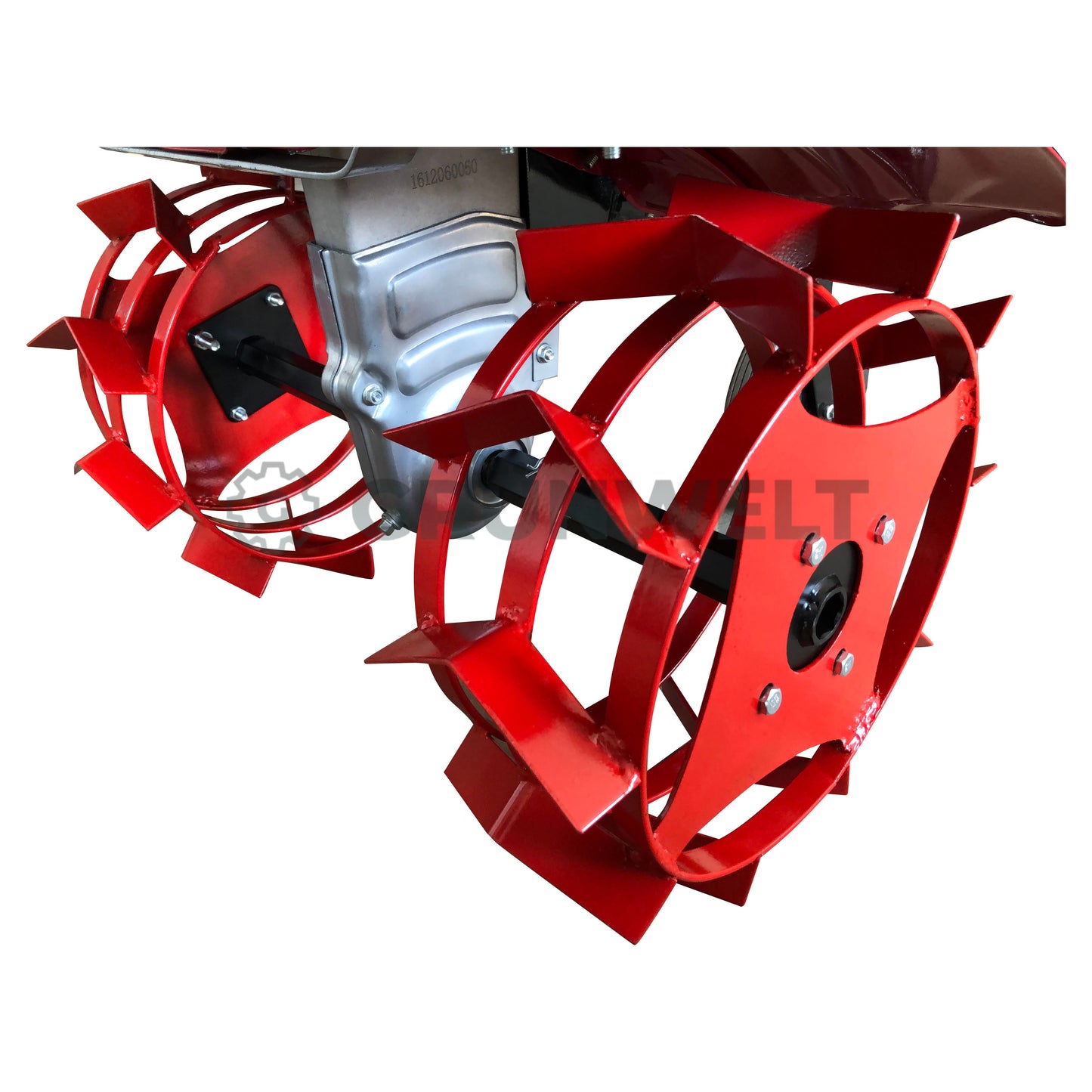

Iron wheels Grünwelt GW-ER430
• GTIN: 4260614710177
• Suitable for: Weima WM500, WM900M-3, WM1000N series, WM1100 series
• Diameter: 390 mm / 430 mm incl. studs
• Tread width: 150 mm
• Stud height: 40 mm
• Inner bore diameter: 70 mm
• Bolt circle: 4 × 110 mm
Half shafts Grünwelt GW-AX24-240
• GTIN: 4260614710726
• Length: 240 mm
• Diameter: 24 mm
• Bolt circle: 110 mm
