Loncin LC2P82FD gasoline engine

The Loncin LC2P82FD is a powerful petrol engine designed with a vertical shaft for a variety of uses. Reliable and easy to operate, it makes working in the garden or on building sites a pleasure. The engines of the new V-Twin series feature an advanced design, setting them clearly apart from other engines in this class. Thanks to its two cylinders, it runs especially smoothly and provides a pleasant working environment. With a displacement of 803 cubic centimeters and an impressive power output of 24.5 horsepower at a crankshaft speed of up to 3600 rpm, the Loncin LC2P82FD is ready for all tasks. The electric starter makes starting completely easy, and the improved wear resistance guarantees a long service life. The Loncin LC2P82FD has a two-chamber carburettor with an electronic valve. The fuel injection system is a distributed injection. Additionally, an improved ignition coil with reinforced cable insulation is installed, which increases the reliability of the ignition system. To start the engine, connection to an external battery is required. Furthermore, a 15A lighting coil is installed, allowing the connection of electrical devices with a power of up to 200 W. The engine is equipped with an oil pressure sensor and an oil cooler for better cooling. The Loncin LC2P82FD does not have a built-in fuel tank but can be connected to an existing external fuel system. The standardised crankshaft shaft has a diameter of 25.4 mm. Thanks to its small dimensions and a weight of only 43 kg, the engine can be used as a replacement engine with the same crankshaft size for a large number of different machines. Due to its vertical crankshaft, it is especially suitable for use in garden machines such as lawn mowers, small tractors, as well as in construction grinding machines.

• Excellent modern design
• Reliable 4-stroke engine with a power of 24.5 hp
• Vertical shaft arrangement (shaft diameter: 25.4 mm)
• Electric starter for easy starting
• Cast iron cylinder liner with improved lubrication
• Better wear resistance
• Rotation is counterclockwise when viewed from the shaft side

• GTIN: 4260614712768
• Type: OHV, V-twin cylinder, 4-stroke, forced cooling
• Bore × Stroke: 82 × 76 mm
• Displacement: 803 cm³
• Rated engine power: 18 / 24.5 kW / hp
• Rated torque: 55 N∙m
• Speed: 3600 rpm
• Shaft diameter: 25.4 mm (keyway)
• Rotation direction of the power take-off shaft: Counterclockwise
• Compression ratio: 8.7 : 1
• Engine oil volume: 2.4 L
• Ignition system: Transistor magneto ignition
• Starting system: Electric start

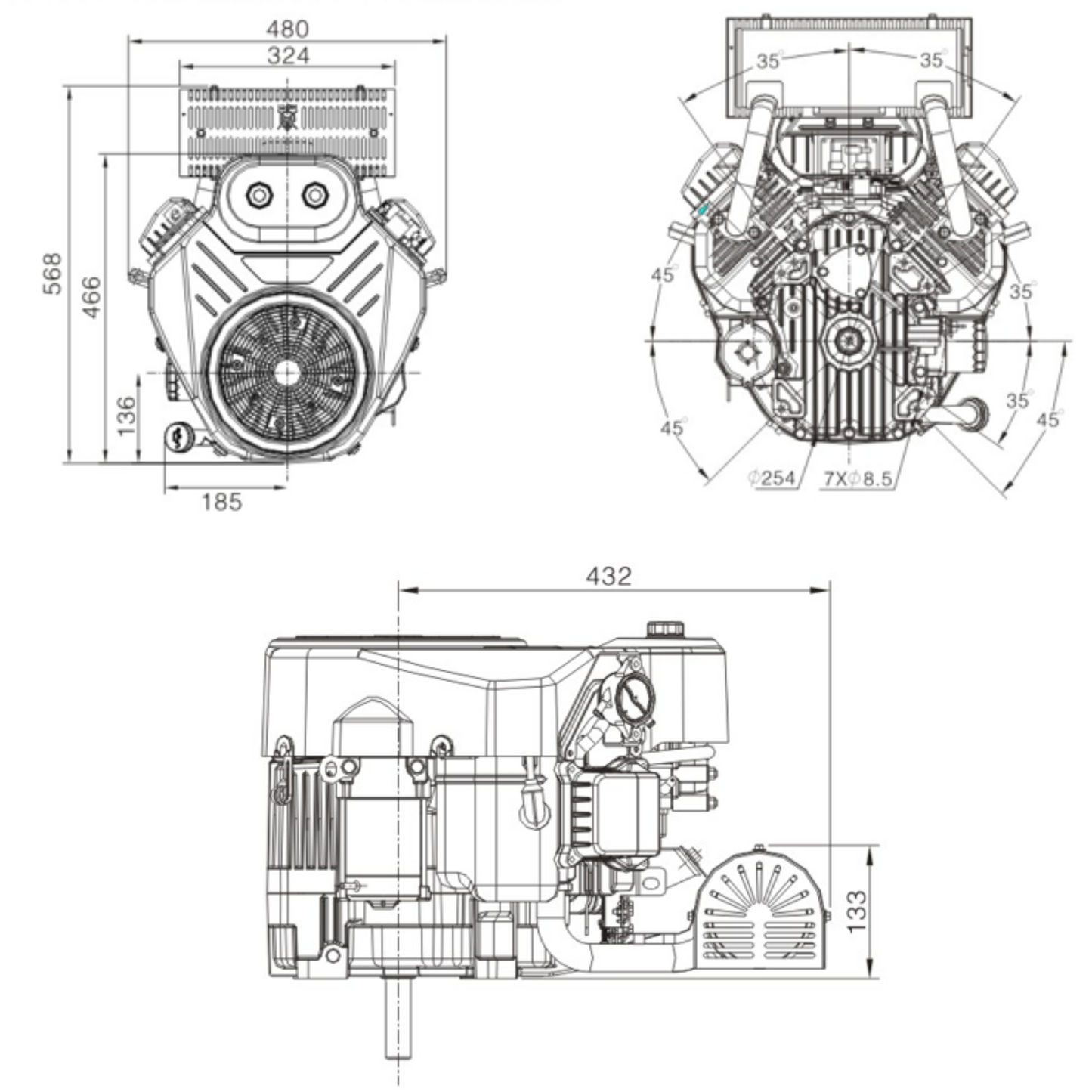

• Dimensions: 466 × 480 × 356 mm
• Net weight: 42 kg
