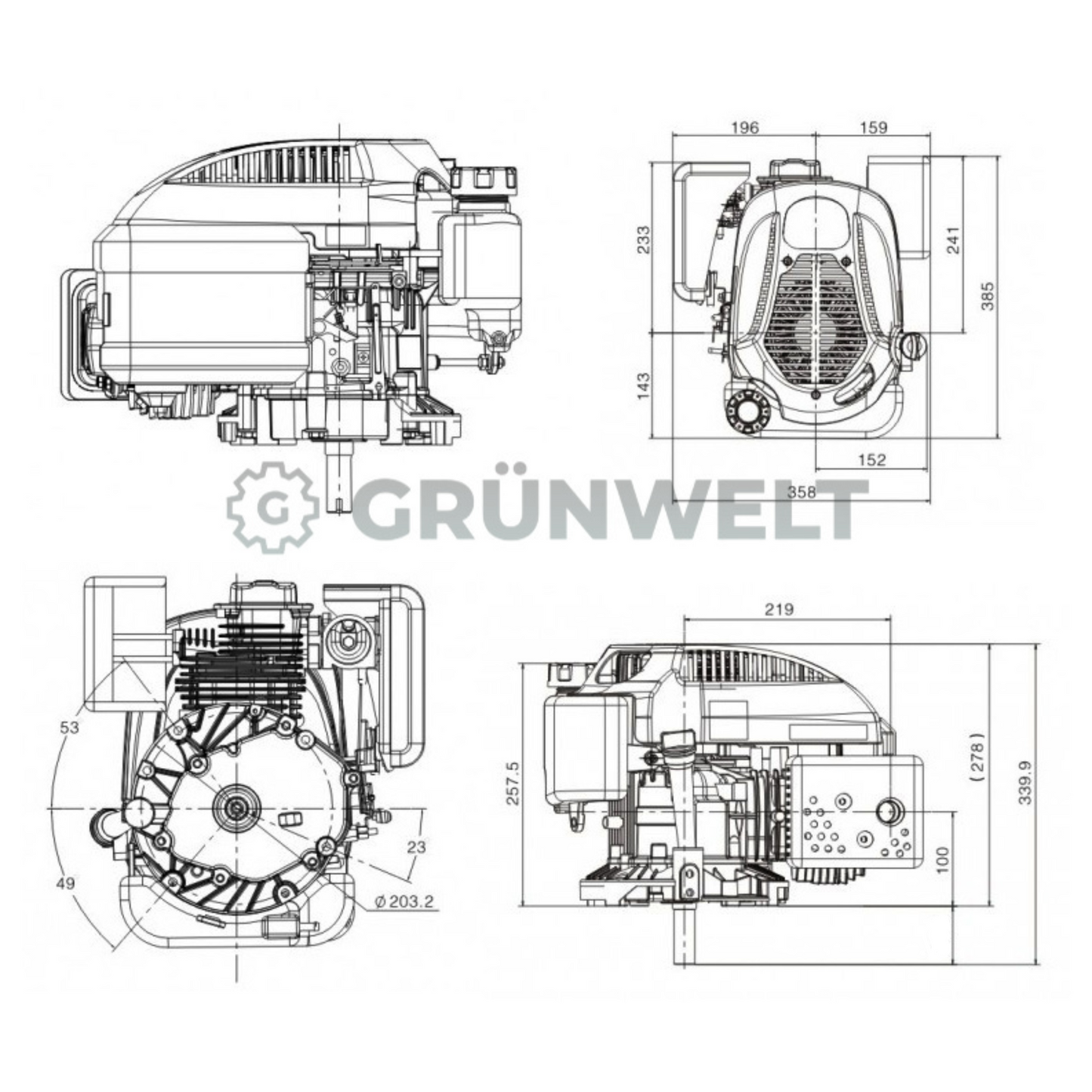

Loncin LC1P70FC/2 petrol engine with throttle regulator

The Loncin LC1P70FC/2 gasoline engine is a reliable, modern, versatile, and ergonomic vertical-shaft unit. This engine is widely used to power tillers, lawnmowers, outboard motors, and sawmills. It is characterized by its stability, high performance, fuel efficiency, and low noise level. The 4-stroke OHV (overhead valve) engine has a single cylinder. To increase durability, the cylinder liner is made of cast iron alloy. Air cooling is achieved through cooling fins that draw airflow through the hand-starter holes. The engine has a displacement of 196 cubic centimeters and consumes 395 g/kWh of fuel per hour. It delivers a maximum power output of 6.5 hp at a crankshaft speed of up to 3600 rpm. The 1-liter fuel tank allows for extended operation under medium and maximum loads. Thanks to the replaceable dual-stage air filter, the unit maintains a constant and stable operating temperature. The Loncin LC1P70FC/2 gasoline engine is also equipped with advanced features such as a speed control system. Easy starting is ensured by the ignition system and excellent carburetor performance. The manufacturer has tuned the high-quality carburetor to greatly simplify starting and improve fuel efficiency. The engine's manual starter allows for easy starting in any weather. The standardized crankshaft has a diameter of 22.2 mm and a usable length of 80 mm. Thanks to its compact dimensions and a weight of only 12.5 kg, the engine can be used as a replacement engine with a wide range of different machines that use the same crankshaft dimensions. The engine's crankshaft has a direct drive via a keyway and rotates counterclockwise.

• Reliable 4-stroke engine with a power output of 6.5 hp
• Vertical wave arrangement
• Equipped with the gas regulator
• Air filter with double cleaning
• Simple starting system
• Low levels of smoke and noise
• Economical fuel consumption
• Easy to use and transport thanks to its light weight
• The rotation is counterclockwise when evaluated from the side of the shaft.

Manufacturer/EU Responsible Person

EU Responsible Person

Company name:
Grünwelt Maschinen GmbH

Address:
Halberstädterstr. 115
39112, Magdeburg
Saxony-Anhalt
Germany

E-mail: office.gruenwelt@gmail.com
Phone: +49 15731450718

• Not suitable for children under 3 years.
• Warning: Please keep out of reach of children.
• Caution: Use only with device protection. Do not use on public roads.
