Loncin LC170F-2 gasoline engine (19.05 mm)

The Loncin LC170F-2 engine is a single-cylinder four-stroke engine that runs on petrol and is equipped with air cooling. The engine has a power output of 7 horsepower. Thanks to its 3.0-liter tank, the engine can operate for about 2 hours without refueling. The new LC170F-2 engine from Loncin is easy to maintain and reliable in use. It produces low levels of smoke and noise, and you can start it easily and without trouble in any weather. Its range of use is not limited solely to the industrial sector. This engine model can be installed on everyday and agricultural equipment. The Loncin LC170F-2 engine is often used as a replacement engine for various motor hoes, bar mowers, single-axle tractors, and many other devices with petrol engines. An oil level sensor in the crankcase, which blocks the operation of the device in case of oil shortage, helps to extend the engine’s lifespan. The engine is equipped with a pull-cord starter. There is also an enlarged filter that perfectly cleans the incoming air. The crankshaft shaft is standardized. The Loncin LC170F-2 engine can be used as a replacement engine with the same crankshaft dimensions. The engine’s crankshaft has a direct output under the keyway.

• Reliable and environmentally friendly engine
• The cylinder with a working volume of 212 cm³, featuring a cast-iron liner and an aluminum block with large cooling fins, ensures long-lasting durability and reliability of the engine
• The oil system is equipped with a modern sensor that monitors the oil level in the crankcase
• For easier maintenance, two openings for adding lubricants are provided
• The rotation is counterclockwise when viewed from the shaft side

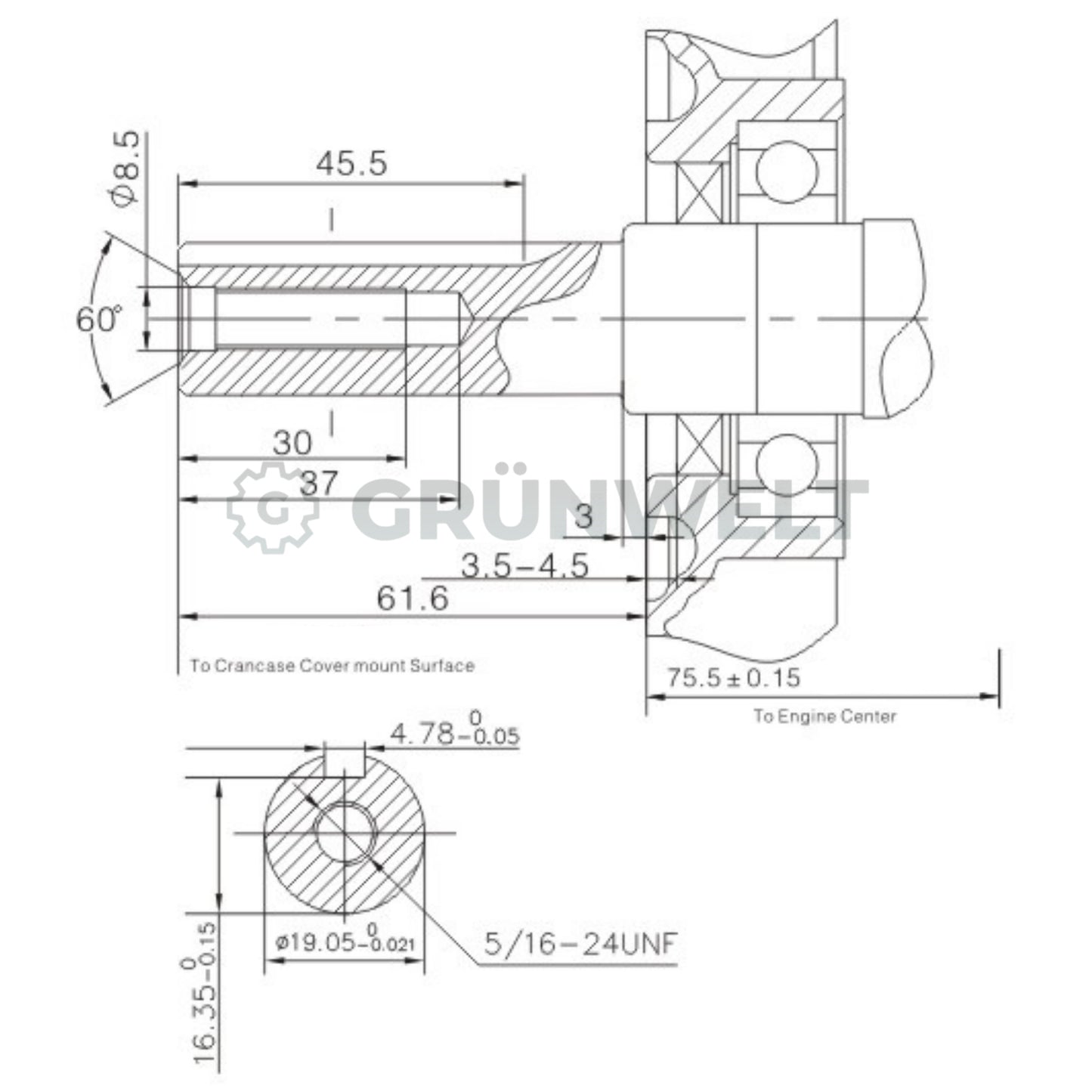

• The shaft has a diameter of 19.05 mm with a keyway slot

• GTIN: 4260614711136 (19.05 mm)
• Type: OHV, single cylinder, 4-stroke, forced cooling
• Displacement: 212 cm³
• Bore × Stroke: 70 × 55 mm
• Maximum engine power: 4.9 kW / 7 hp / 3600 rpm
• Rated engine power: 4.4 kW / 3600 rpm
• Torque: 12.5 Nm / 2500 rpm
• Shaft diameter: 19.05 mm (keyway)
• Fuel / engine oil volume: 3 / 0.6 L
• Starting system: pull starter
• Dimensions: 312 × 376 × 335 mm
• Net weight: 16 kg
