Gasoline engine with key shaft (25 mm)

The engine is a single-cylinder four-stroke engine, powered by gasoline and equipped with air cooling. The engine has a power output of 7 horsepower and consumes 395 g/kWh of fuel. Thanks to its 3.6-liter tank, the engine can run for about 2 hours without refueling. The engine is easy to maintain and reliable in use. It produces low levels of smoke and noise, and you can start it easily and without trouble in any weather. Its range of use is not limited solely to the industrial sector. This engine model can be installed on everyday and agricultural equipment. The engine is often used as a replacement engine for various motor hoes, bar mowers, single-axle tractors, vibrating plates, mini dumpers, water pumps, power generators, and many other devices with gasoline engines. The shaft of the wedge key is standardized (25 mm). The engine can be used as a replacement engine with the same wedge key size. The engine is not only reliable but also environmentally friendly! The device meets all the requirements of the EURO 5 exhaust standards.

• Reliable and environmentally friendly engine (certified according to EURO 5)
• The cylinder with a working volume of 212 cm³, featuring a cast-iron liner and an aluminum block with large cooling fins, guarantees long-lasting durability and reliability of the engine
• For easier maintenance, two openings for adding lubricants are provided
• The engine is equipped with a crankshaft with a diameter of 25 mm
• The rotation is counterclockwise when viewed from the shaft side

• Type: OHV, single cylinder, 4-stroke, forced cooling
• Displacement: 212 cm³
• Bore × Stroke: 70 × 54 mm
• Maximum engine power: 5.1 kW / 7 hp / 3600 rpm
• Rated engine power: 4.5 kW / 3600 rpm
• Maximum torque: 12.5 N∙m / 2500 rpm

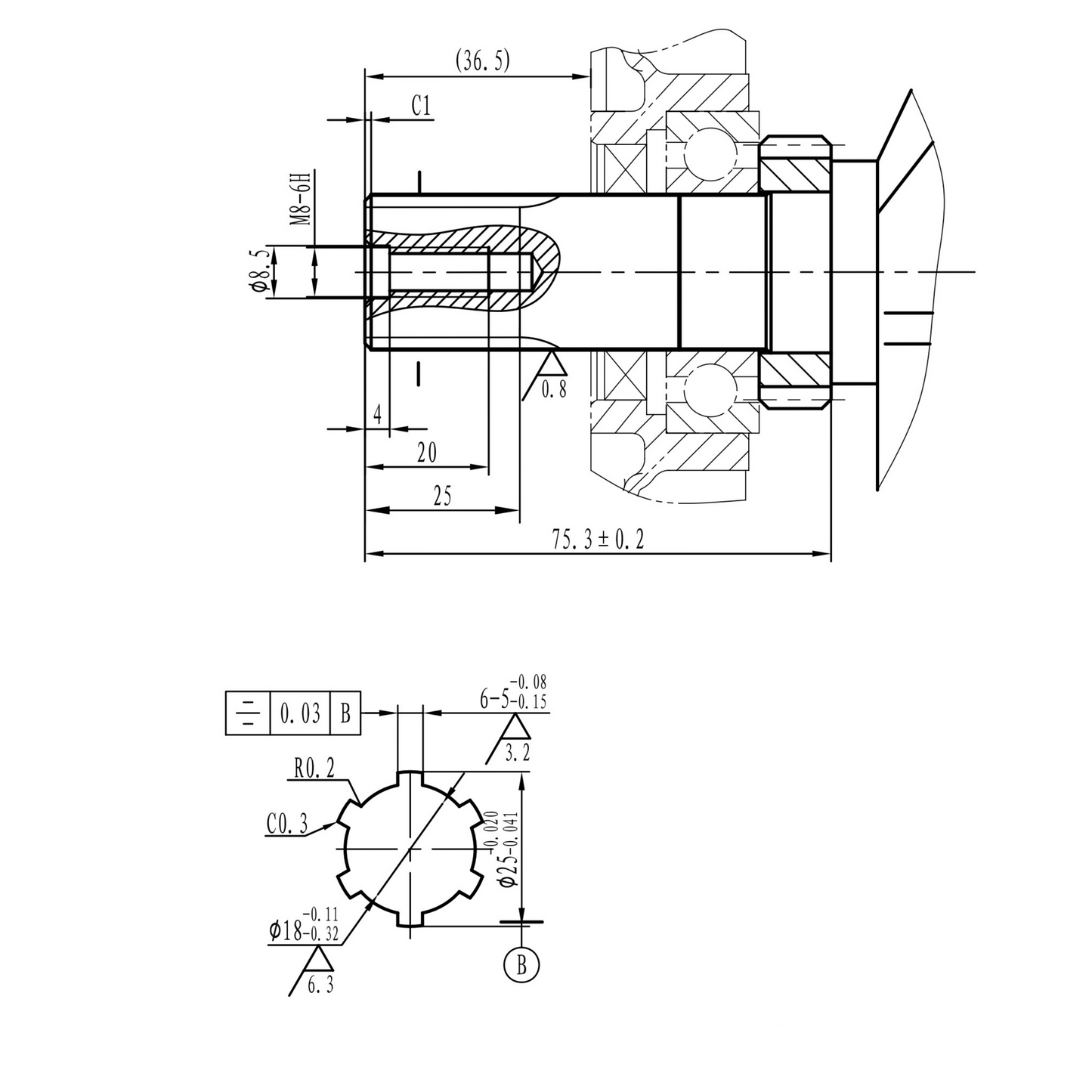

• Diameter of the key shaft: 25 mm
• Fuel / engine oil volume: 3.6 / 0.6 L
• Fuel consumption: 395 g/kW∙h
• Starting system: pull starter
• Dimensions: 390 × 330 × 330 mm
• Net weight: 16 kg

Manufacturer/EU Responsible Person

EU Responsible Person

Company name:
Grünwelt Maschinen GmbH

Address:
Halberstädterstr. 115
39112, Magdeburg
Saxony-Anhalt
Germany

E-Mail: office.gruenwelt@gmail.com
Phone: +49 15731450718

• Not suitable for children under 3 years.
• Caution: Please keep out of reach of children.
• Caution: Use only with device protection. Do not use on public roads.
